6AG1336-4GE00-2AB0 Siemens SIPLUS S7-300 SM 336 F 6AI Original Brand New
$5,043.40
6AG1336-4GE00-2AB0

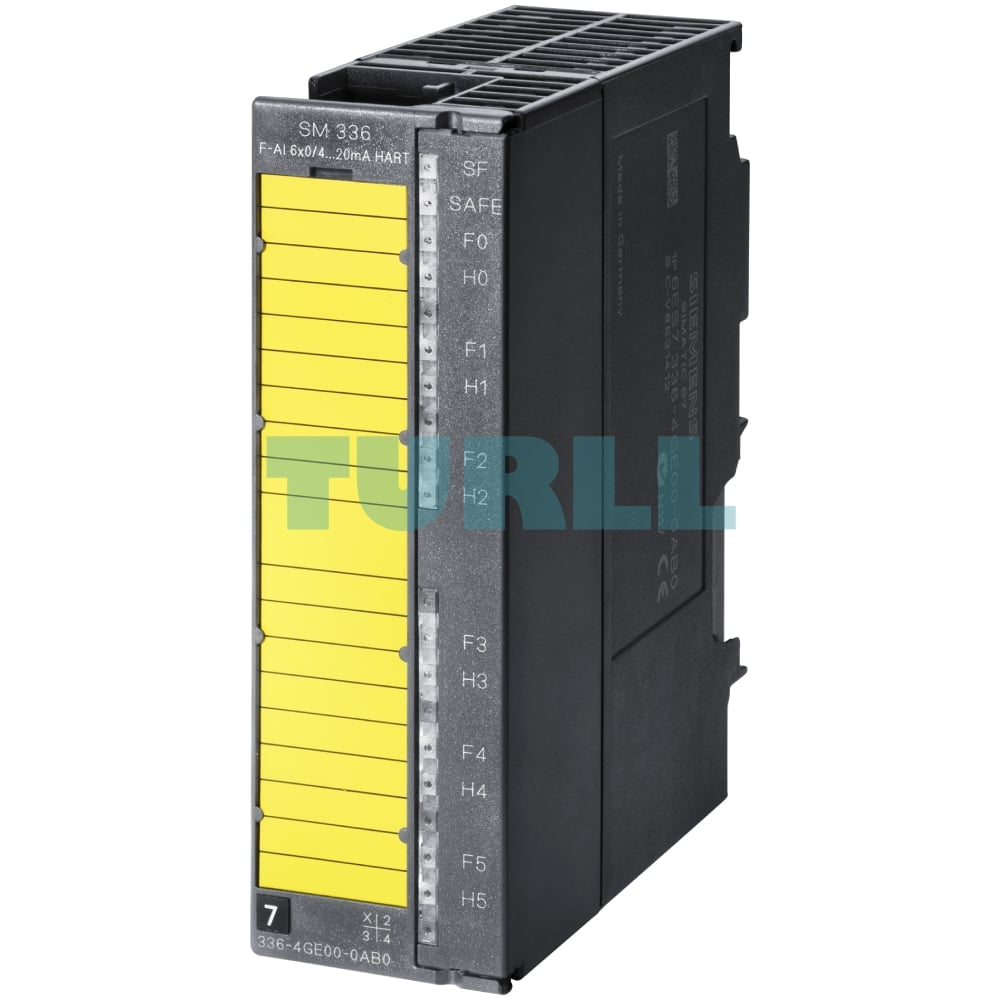

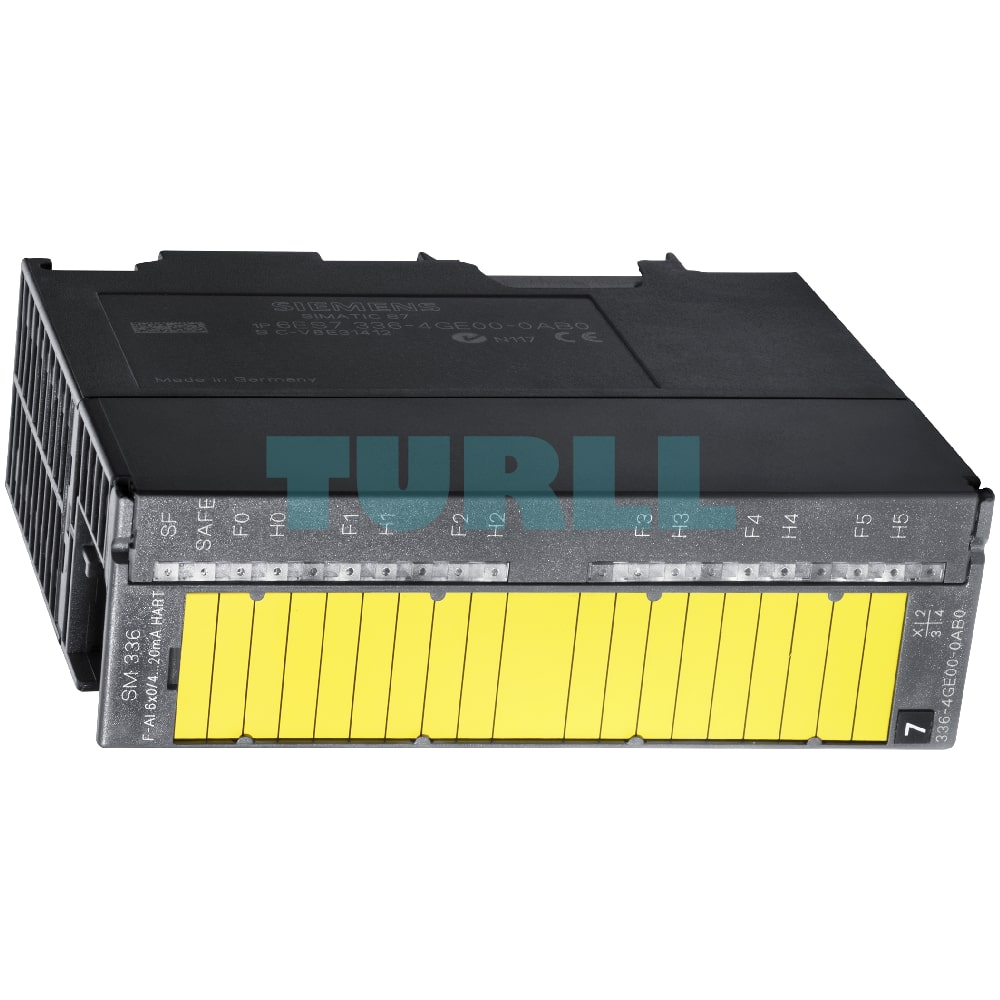

Siemens SIPLUS S7-300 SM 336 F 6AI 15 Bit based on 6ES7336-4GE00-0AB0 with conformal coating, -25…+60 °C, 70° with forced convection, fail-safe analog inputs for SIMATIC Safety, with HART support, up to category 4 (EN 954-1) /SIL3 (IEC 61508)/ PLE (ISO 13849), 1x 20-pole
[ez-toc]
Overview
- Analog inputs for fail-safe SIPLUS S7 systems
- Applicable in the ET 200M distributed I/O device with IM 153-2 HF as well as centrally with SIPLUS S7-31xF-2 DP
- Properties of the SM 336; F-AI 6 x 0/4 … 20 mA HART:
- 6 analog inputs with galvanic isolation between channels and backplane bus
- Input ranges: 0 mA to 20 mA, 4 mA to 20 mA
- Short-circuit proof power supply of 2 or 4-wire transmitter via the module
- External encoder supply possible
- Applicable in safety mode
- HART communication
- Firmware update using HW Config
- Identification data
- Temperature range -25 … +70 °C;
(+70 °C when ensuring a forced convection with a minimal air velocity of 0.3 m/s through the module. If a violation of the permissible, specified parameters is detected during maintenance or by automatic diagnostics, the modules must be proof-tested by the manufacturer. Without this measure the temperature range is -25…60°C)
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
The modules are used centrally with SIMATIC S7-31xF-2 DP and in the ET 200M distributed I/O device together with SIMATIC IM151-7 F-CPU, S7-31xF-2 DP, S7-416F-2 and S7-400F/FH.
0 – 20 mA and 4 – 20 mA current transmitters (also HART) can be connected as encoders.
Design
- 6 inputs for current measurement.
- Compact design:
- Group fault display (SF)
- Safety mode display (SAFE)
- Display for channel-specific faults (Fn)
- Display for HART status (Hn)
- Plug options for the 20-pin front connector, protected behind the front door.
- Labeling field on the front door
- Simple installation
Installation is the same as for the other ET 200M I/O modules. - User-friendly wiring with 20-pin front connector.
Function
The analog input module converts analog signals from the process to digital signals for internal processing by the fail-safe SIMATIC S7 CPUs.
The safety functions required for fail-safe operation are integrated in the module.
The following functions are available:
- Resolution 15 bits + sign.
- Measuring ranges:
- 0 to 20 mA or
- 4 to 20 mA or
- 4 to 20 mA (HART)
- Interrupt capability;
the module sends diagnostic interrupts to the CPU of the controller. - Diagnostics;
the module sends extensive diagnostic information to the CPU.
