6AG1341-1CH02-7AE0

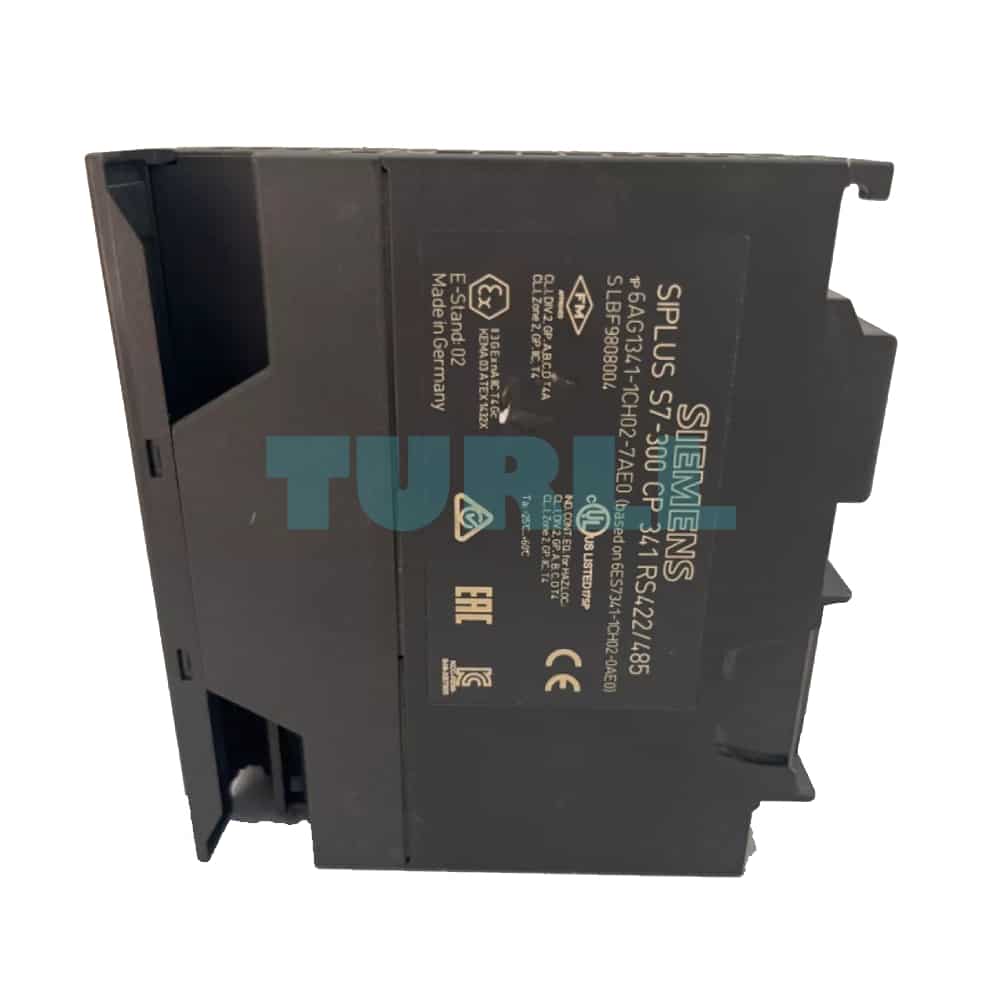

Siemens SIPLUS S7-300 CP 341 RS-422/485 based on 6ES7341-1CH02-0AE0 with conformal coating, -25…+70 °C,
[ez-toc]
Overview
- For fast, high-performance serial data exchange via point-to-point coupling
- Two versions with different physical transmission characteristics:
- RS 232C (V.24),
- RS 422/RS 485 (X.27)
- Implemented protocols: ASCII, 3964 (R), RK 512, customized protocols (can be reloaded)
- Simple parameter assignment using tool integrated in STEP 7
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
The CP 341 communications module is used for fast and powerful serial data exchange with point-to-point communication if the CPU is not to be loaded with communications tasks. It can be used in SIMATIC S7-300 and ET 200M (with S7 as master device).
Point-to-point coupling is possible e.g. to:
- SIMATIC S7, SIMATIC S5 automation systems and systems from many other vendors
- Robot controllers
- Modems
- Scanners, bar code readers etc.

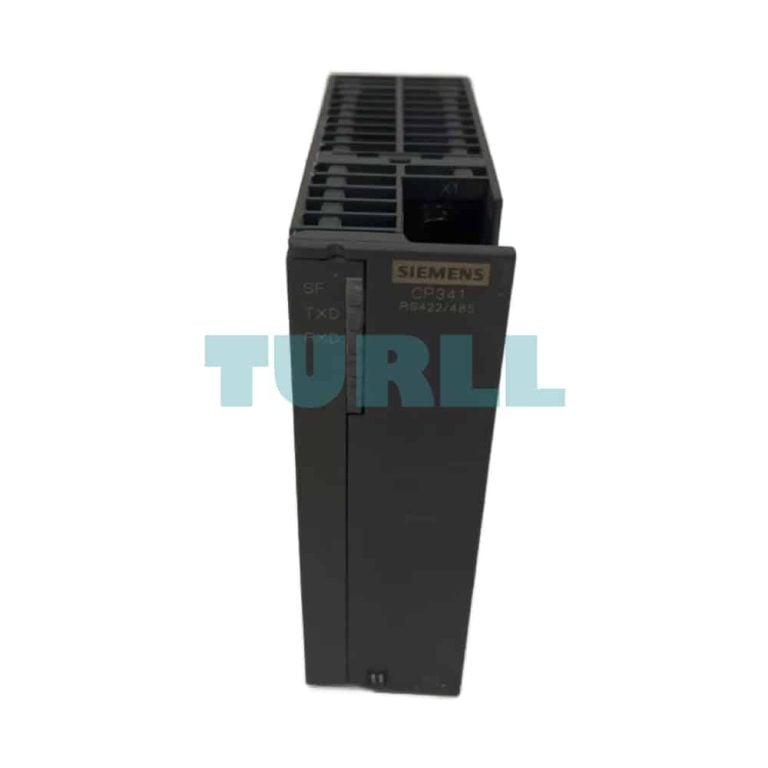

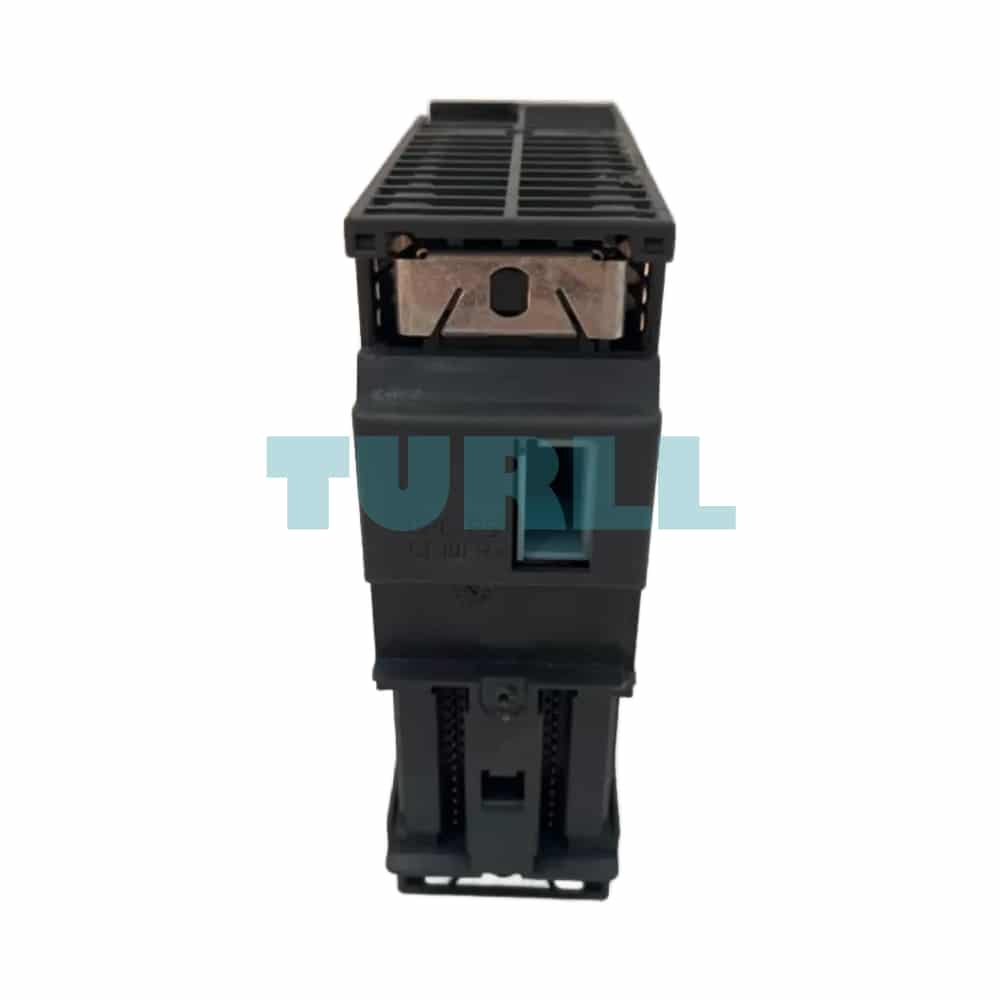

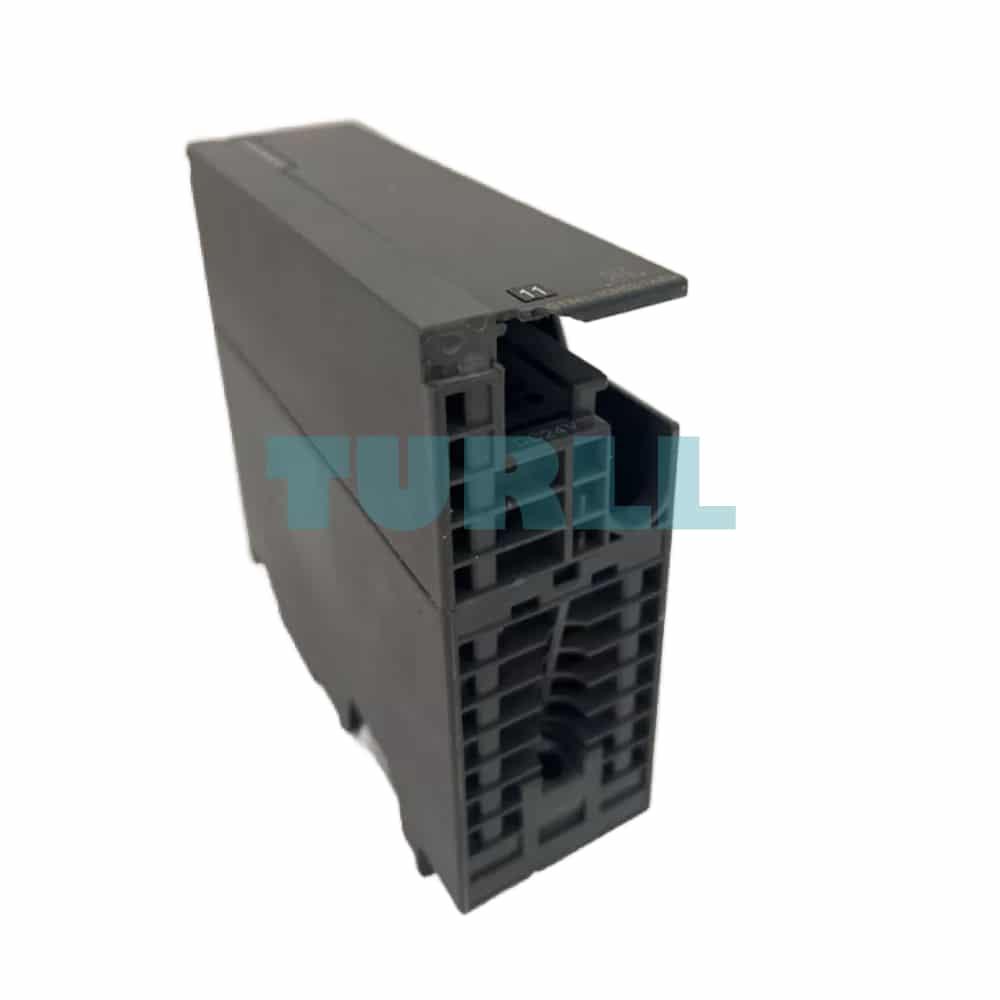

Design
The communications module has the following features:

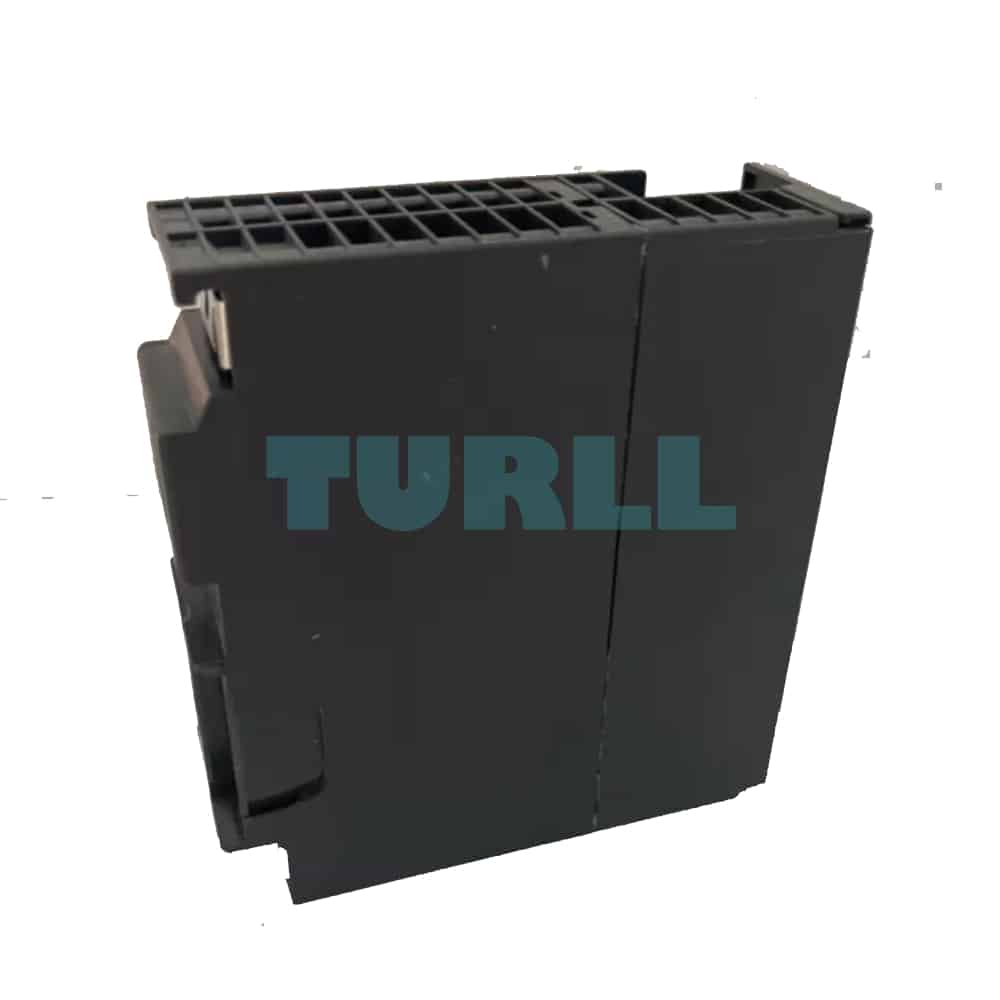

- Rugged plastic enclosure

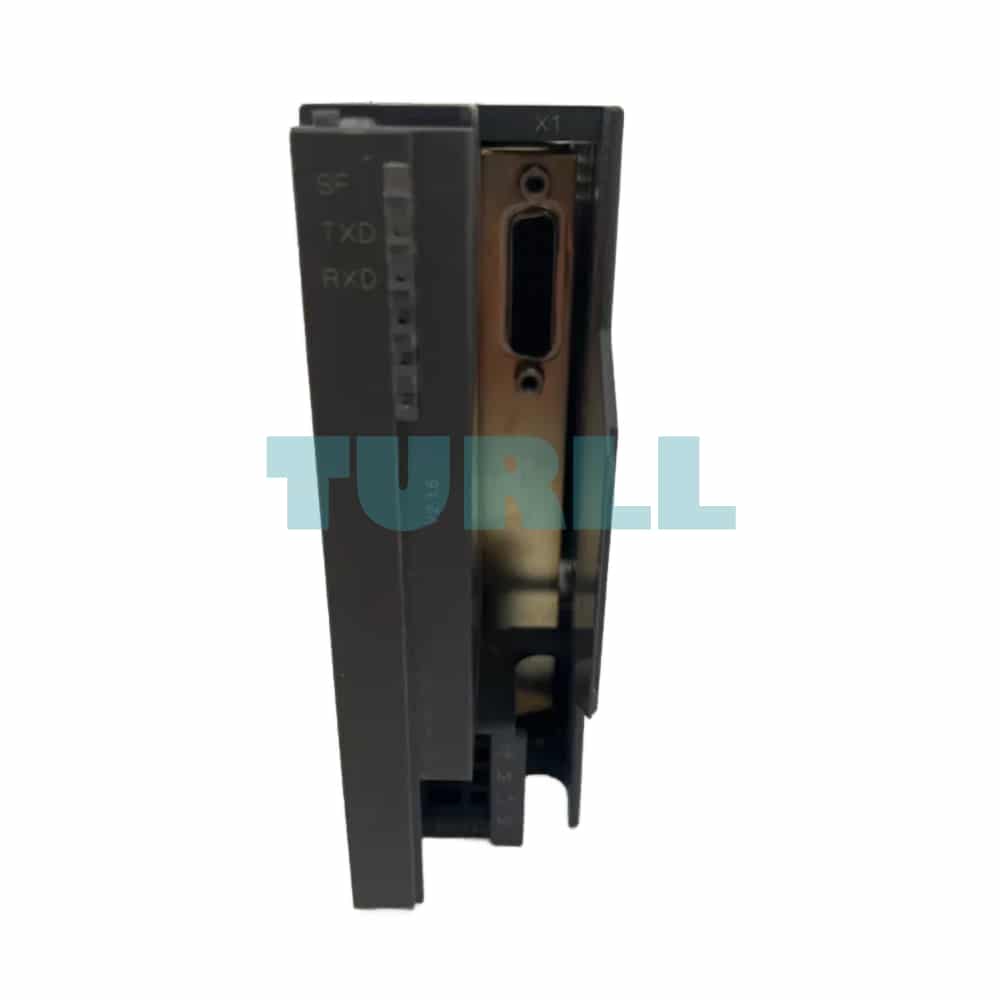

- LEDs, for display of “Transmit”, “Receive” and “Fault”
- Communication interface
This is available in three versions for the following transmission systems:
- RS 232C (V.24)
- RS 422/RS 485 (X.27).
Drivers
Various loadable drivers are available for the CP 341:
- Modbus:
for communication according to the Modbus protocol with RTU format:- Modbus master:
master/slave communication with SIMATIC S7 as master. - Modbus slave:
master/slave communication with SIMATIC S7 as slave, frame traffic from slave to slave not possible.
- Modbus master:
Function
A number of standard protocols are implemented and allow data exchange with a wide variety of nodes:
- ASCII:
For communication with third-party systems using simple transmission protocols, e.g. protocols with start and end characters or protocols with block check characters. The handshake signals of the interface can be scanned and controlled by means of the user program. - 3964(R)
For communication with Siemens devices or third-party components using the standardized, open Siemens protocol 3964(R). A 3964(R) driver with standard values as well as a parameterizable 3964(R) driver are implemented. - RK 512, for computer communication.
- Use of customized protocols (reloadable drivers).
Parameterization
Parameterization of the CP 341 communications processor is particularly user-friendly and simple:
- Users define the module properties using a parameterization tool integrated in STEP 7, e.g.
- which implemented protocol driver is to be used, or
- which driver-specific properties are to be used.
- Parameterization via CPU:
Simply connect the programming device to the CPU. The configuration data is stored in a system data block that is stored in the CPU. - Configuration package (on CD):
with electronic manual, parameterization screen forms and standard function blocks for communication with the CP.
Configuring the drivers
The configuration package for CP 441-2 and CP 341 V4.0 and higher and STEP 7 V4.0 are required to load and configure the drivers.
The drivers are copy-protected by a dongle.
6AG1341-1CH02-7AE0
Siemens SIPLUS S7-300 CP 341 RS-422/485 based on 6ES7341-1CH02-0AE0 with conformal coating, -25…+70 °C,
Visit 6AG1341-1CH02-7AE0
For more our products visit turll.com
| Weight | 0.306 kg |
|---|---|
| Dimensions | 130 × 130 × 47 mm |
