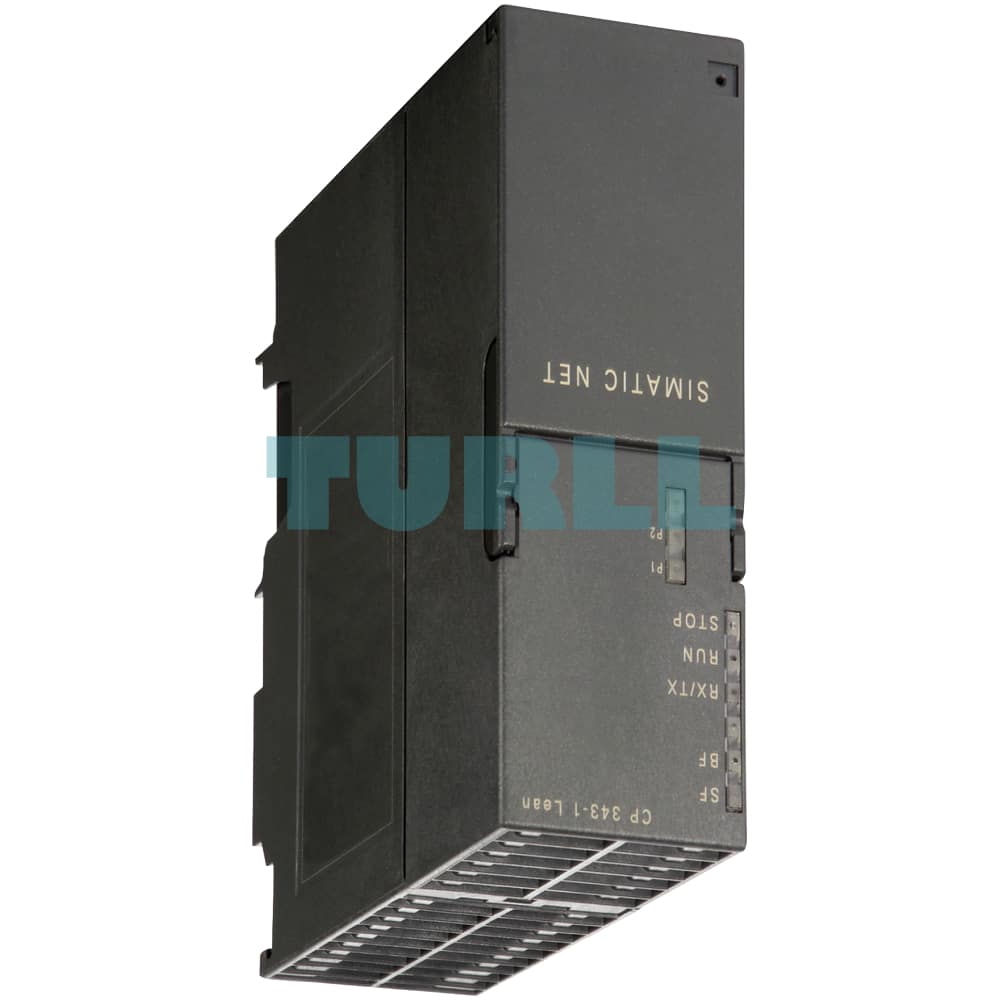

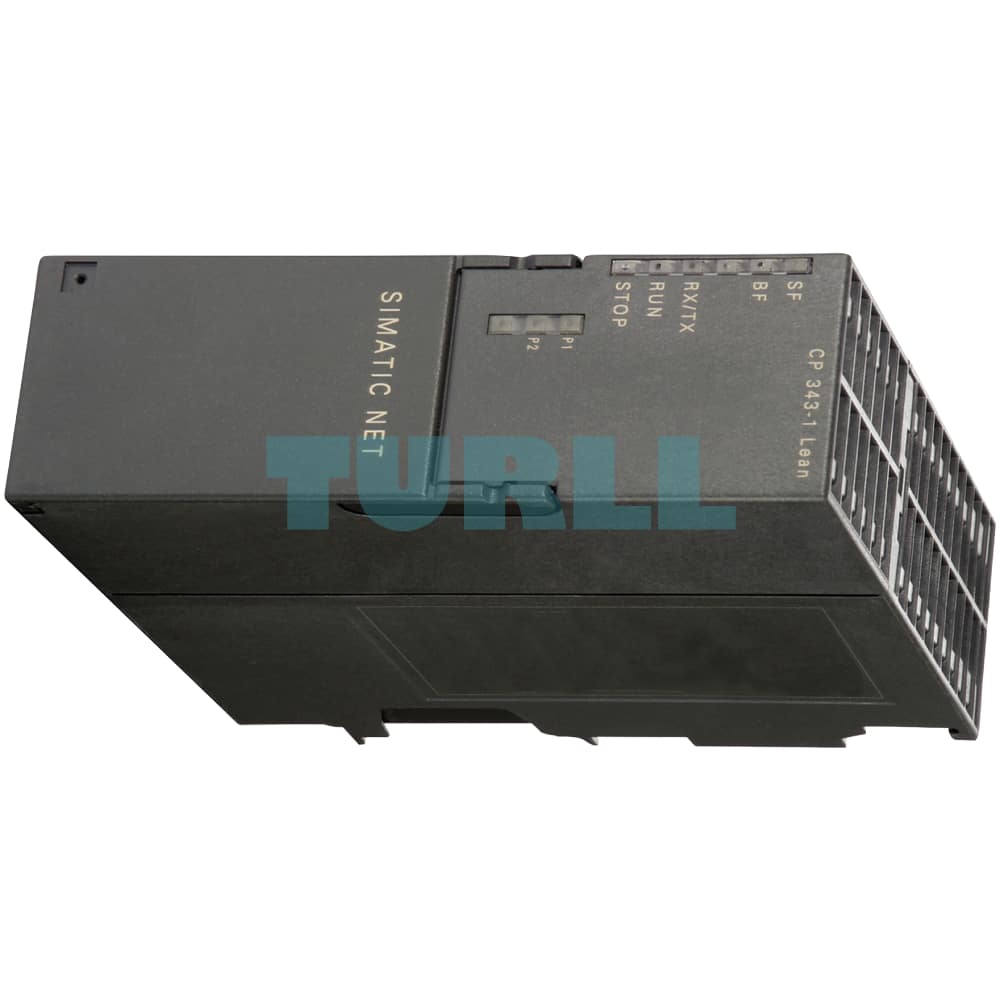

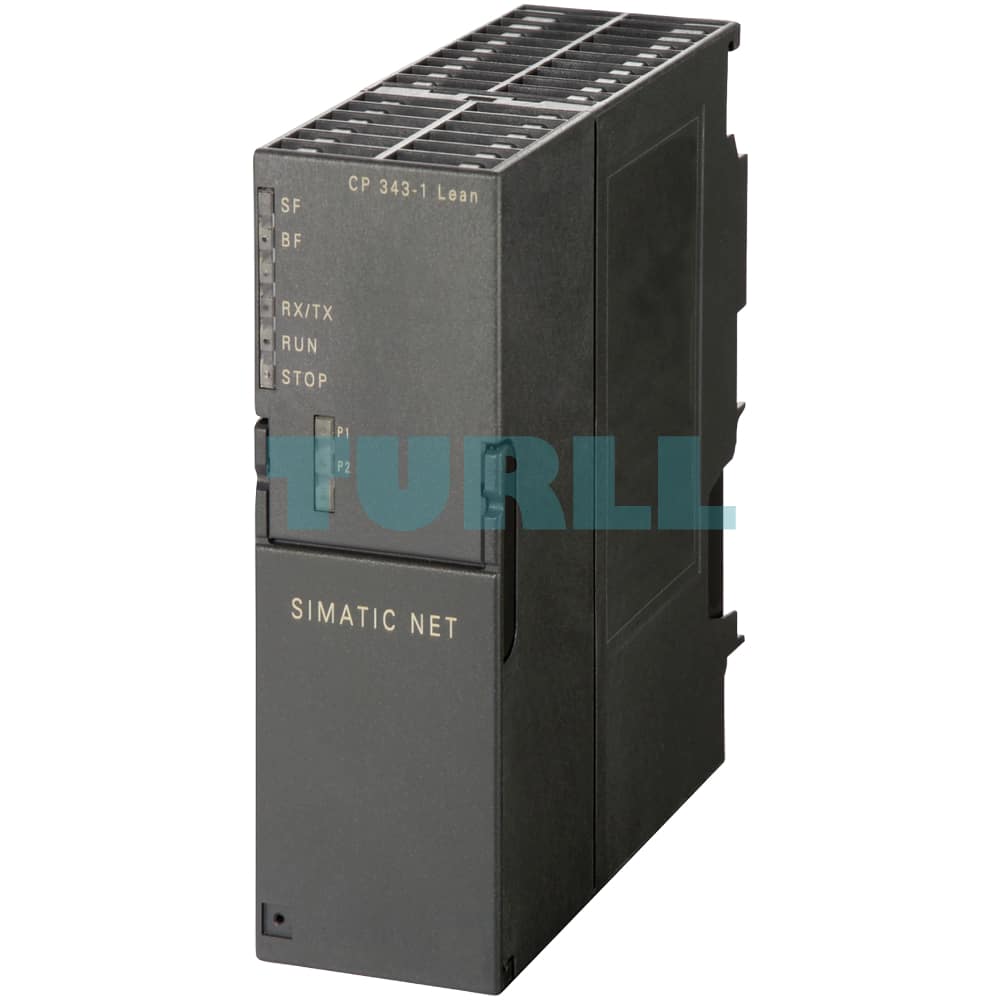

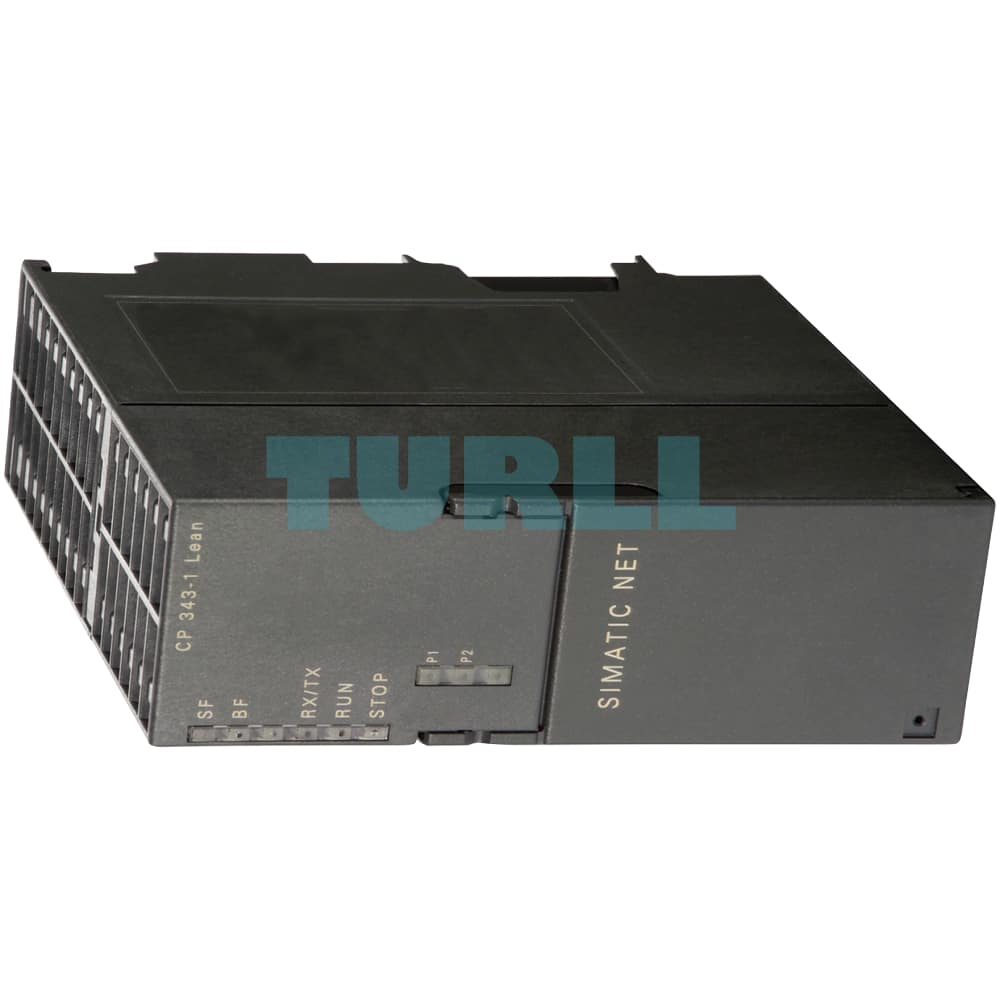

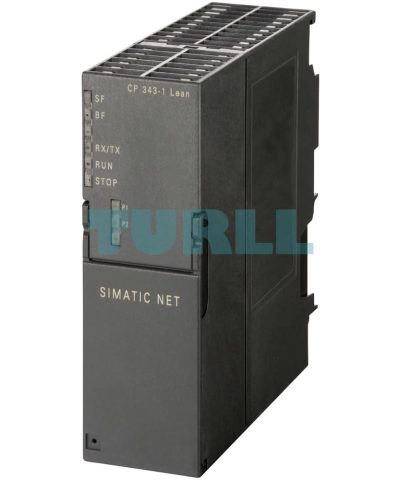

6AG1343-1CX10-2XE0 SIEMENS SIPLUS NET CP 343-1 Lean Original Brand New
$3,889.55
6AG1343-1CX10-2XE0
Siemens SIPLUS NET CP 343-1 Lean based on 6GK7343-1CX10-0XE0 with conformal coating, -25…+60 °C, communications processor for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, multicast, send/receive with and without RFC1006, fetch/ write, S7 communication (server) PROFINET IO device integrated 2-port switch ERTEC 200, module replacement without PG, SNMP diagnostics, initialization via LAN,
[ez-toc]
Overview
- Connection for the SIMATIC S7-300 to Industrial Ethernet (not for SINUMERIK)
- 2 x RJ45 interface for 10/100 Mbps full/half duplex connection (with autosensing for automatic switchover and autocrossover function)
- Integrated 2-port real-time switch ERTEC
- Multi-protocol operation with TCP and UDP transport protocol and PROFINET IO
- Keep Alive function
- Communications services:
- Open communication (TCP/IP and UDP)
- PG/OP communication
- S7 communication (server)
- PROFINET IO device
- Multicast for UDP
- Remote programming and initial commissioning is possible over Industrial Ethernet
- IT communication
- Web function
- Integration into network management through SNMP
- Configuration with STEP 7
- Cross-network PG/OP communication by means of S7 routing
- Diagnostics possibilities in STEP 7 and via web browser
Benefits
- High level of plant availability due to support of media redundancy (MRP)
- Optimum support of maintenance through
- Web-based diagnostics
- Remote programming via WAN or a telephone network (ISDN)
- Monitoring by means of IT network management tools (SNMP)
- Module replacement without programming device thanks to saving of the configuration data on the CPU
- The capability of later connecting existing SIMATIC S7 systems to Industrial Ethernet using the CP 343-1 Lean ensures investment protection
Application
The CP 343-1 Lean is used to connect the SIMATIC S7-300 to Industrial Ethernet networks. With its own processor, it relieves the CPU of communications tasks and facilitates additional connections.
The CP 343-1 Lean offers the communication options of the S7-300 with
- PGs/PCs
- Master computers
- HMI devices
- Other SIMATIC S5/S7 systems
- PROFINET I/O Controllers
Design
The CP 343-1 Lean offers all the advantages of SIMATIC S7-300 system design:
- Compact design;
the rugged plastic casing features on the front:- Two RJ45 sockets for connecting to Industrial Ethernet with automatic detection of transmission rate by means of autosensing;
RJ45 sockets have an industry-compatible design with additional retaining collars for connection of IE FC RJ45 Plug 145/180 - Diagnostic LEDs for each switch port
- 2-pin plug-in terminal strip for connection of the 24 V DC external supply voltage
- Two RJ45 sockets for connecting to Industrial Ethernet with automatic detection of transmission rate by means of autosensing;
- Easy installation;
The CP 343-1 Lean is snap-mounted on the S7-300 DIN rail and connected to adjacent modules through the bus connectors. There are no slot rules. - The CP 343-1 Lean can be operated without a fan. A standby battery is not required.
- In combination with IM 360/361, CP 343-1 Lean can also be used in an expansion rack (ER).
6AG1343-1CX10-2XE0
Siemens SIPLUS NET CP 343-1 Lean based on 6GK7343-1CX10-0XE0 with conformal coating, -25…+60 °C, communications processor for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP, multicast, send/receive with and without RFC1006, fetch/ write, S7 communication (server) PROFINET IO device integrated 2-port switch ERTEC 200, module replacement without PG, SNMP diagnostics, initialization via LAN,
Visit 6AG1343-1CX10-2XE0
For more our products visit turll.com
| Weight | 0.298 kg |
|---|---|
| Dimensions | 150 × 130 × 48 mm |
