6AG1350-2AH01-4AE0 Siemens SIPLUS S7-300 FM350-2 Original Brand New
$5,669.38
6AG1350-2AH01-4AE0

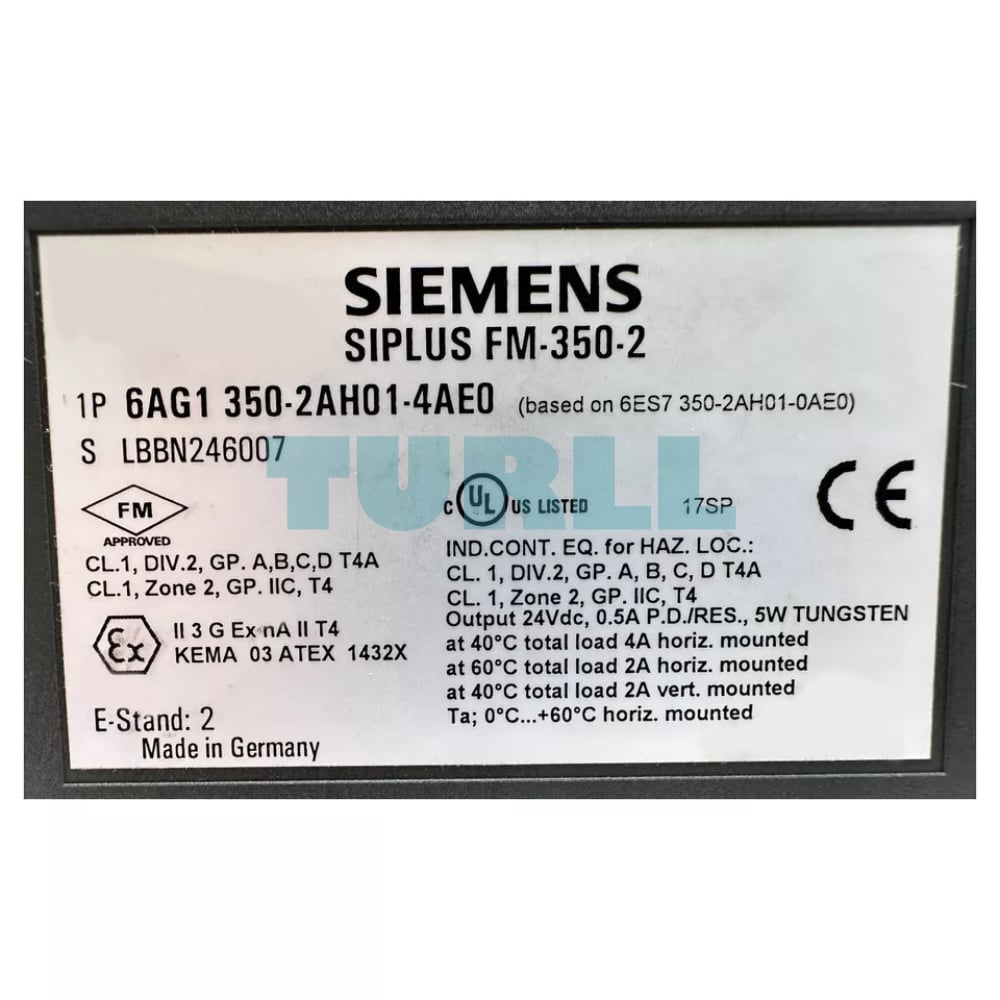

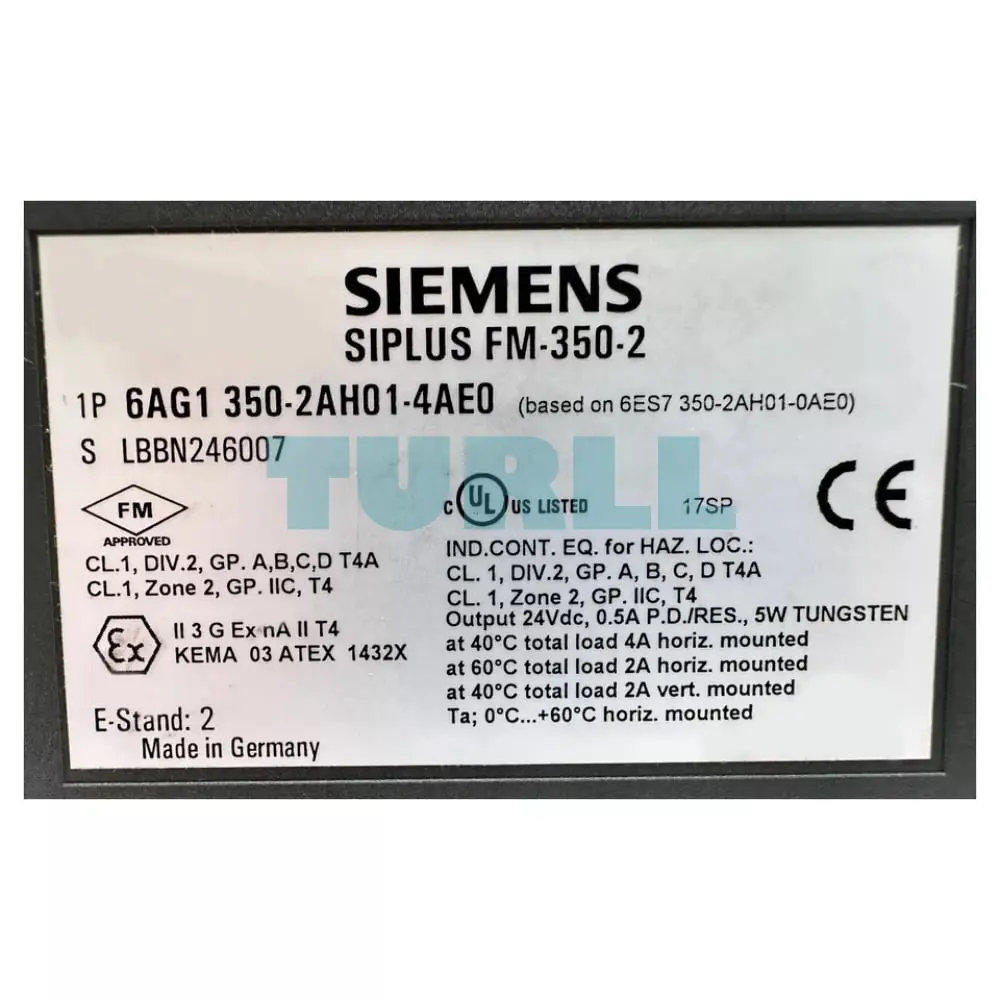

Siemens SIPLUS S7-300 FM350-2 8 channels based on 6ES7350-2AH01-0AE0 with conformal coating, 0…+60 °C, counter module FM 350-2, 8 channels, 20 kHz, 24 V encoder for counting, frequency measurement, speed measurement, cycle duration measurement, dosing incl. configuration package and electronic documentation on CD-ROM
[ez-toc]
Overview
- 8-channel intelligent counter module for universal counting and measuring tasks
- For the direct connection of 24 V incremental encoders, directional encoders, initiators or NAMUR encoders
- Comparison function with predefined comparison values (number depending on operating mode)
- Integrated digital outputs for output of the response on reaching the comparison value
- Operating modes:
- Continuous / single / periodic counting
- Frequency and speed control
- Period measurement
- Dosing
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Application
The SIPLUS FM 350-2 is an intelligent, 8-channel counter module for a wide range of universal counting and measuring tasks. It can be used in SIMATIC S7-300 and ET 200M (with S7-300/-400 as master device).
Areas of application are e.g.:
- Assembly and handling devices
- Rubber and plastics processing machines
- Production machinery
- Woodworking and paper-making machines
- Textile machines
- Packaging machines
- Glass and ceramics industry

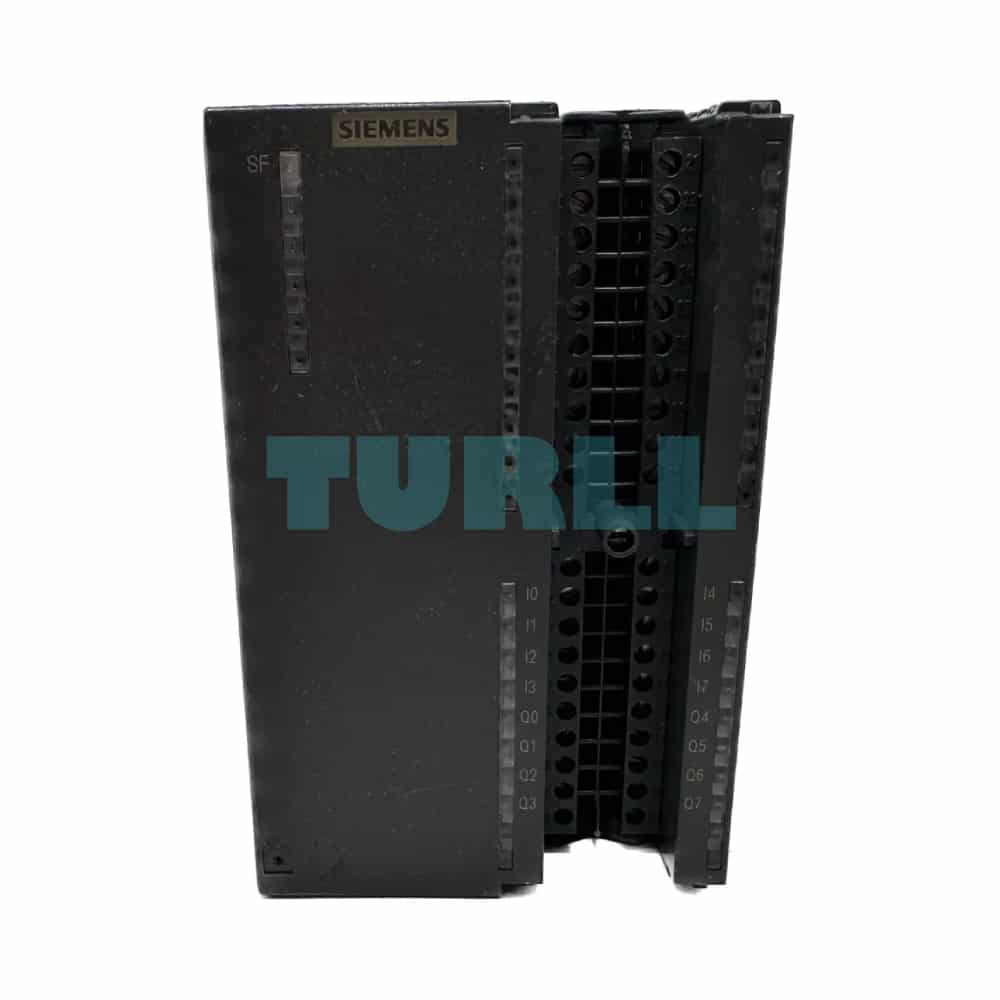

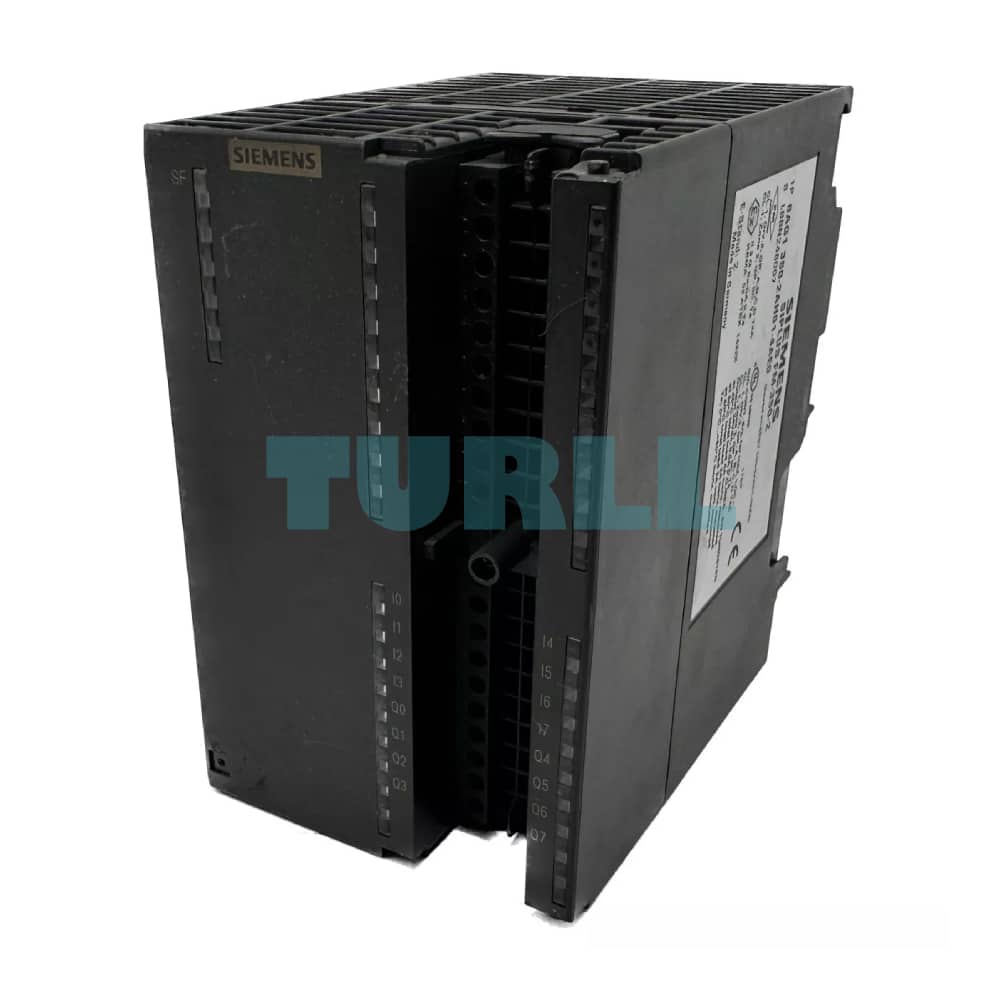

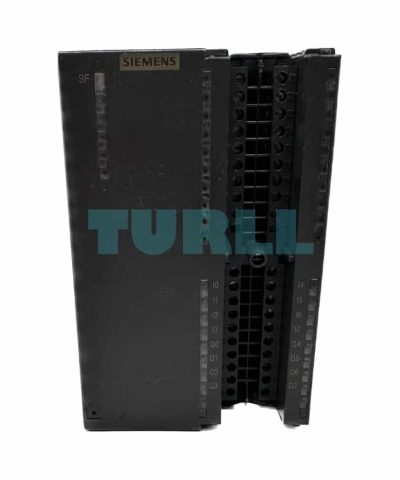

Design
The SIPLUS FM 350-2 counter module provides the sensor supply for the NAMUR sensors.
The module is 80 mm wide and contains:
- 1 red fault LED (SF)
- LEDs for digital inputs and digital outputs
- Slot for the 40-pin front connector, protected by the front cover
- Labeling area on the front cover
Configuring package
The configuring package required for configuration comprises:
- Instructions for commissioning (Getting Started)
- Manual
- Parameter assignment screen forms
- 4 standard function blocks for selective data interchange with the CPU
Function
The module offloads the CPU by:
- Direct connection of 24 V incremental encoders, direction encoders, initiators and NAMUR sensors.
- Direct connection for gate signals (e.g. light barrier) via integral digital inputs.
- Comparison function and output of response via integral digital outputs.
The following functions are available:
- 8 channels for up and down counting; 32 bit
- Counting/measuring frequency up to 10 kHz (for 24 V incremental encoders), up to 20 kHz (for 24 V direction encoders, 24 V initiators, NAMUR sensors)
- Counting range + 31 bit
- Counting: continuous, once-only or periodic
- Measuring: frequency, speed, period
- Dosing
- 1-, 2- or 4-fold evaluation
- For connection of incremental encoders; 24 V encoders, direction encoders, initiators and NAMUR sensors
- Gate control via level at digital input (HW gate) as well as software control (SW gate)
- Loading of counters with defined starting values
- Comparison functions with definable comparison values
- Alarm response on reaching a comparison value or on range violation
- Output signal (24 V level), controlled by the comparison function: as continuous signal from comparison value up to limit of counting range
6AG1350-2AH01-4AE0
Siemens SIPLUS S7-300 FM350-2 8 channels based on 6ES7350-2AH01-0AE0 with conformal coating, 0…+60 °C, counter module FM 350-2, 8 channels, 20 kHz, 24 V encoder for counting, frequency measurement, speed measurement, cycle duration measurement, dosing incl. configuration package and electronic documentation on CD-ROM
Visit 6AG1350-2AH01-4AE0
For more our products visit turll.com
| Weight | 0.502 kg |
|---|---|
| Dimensions | 150 × 130 × 90 mm |
