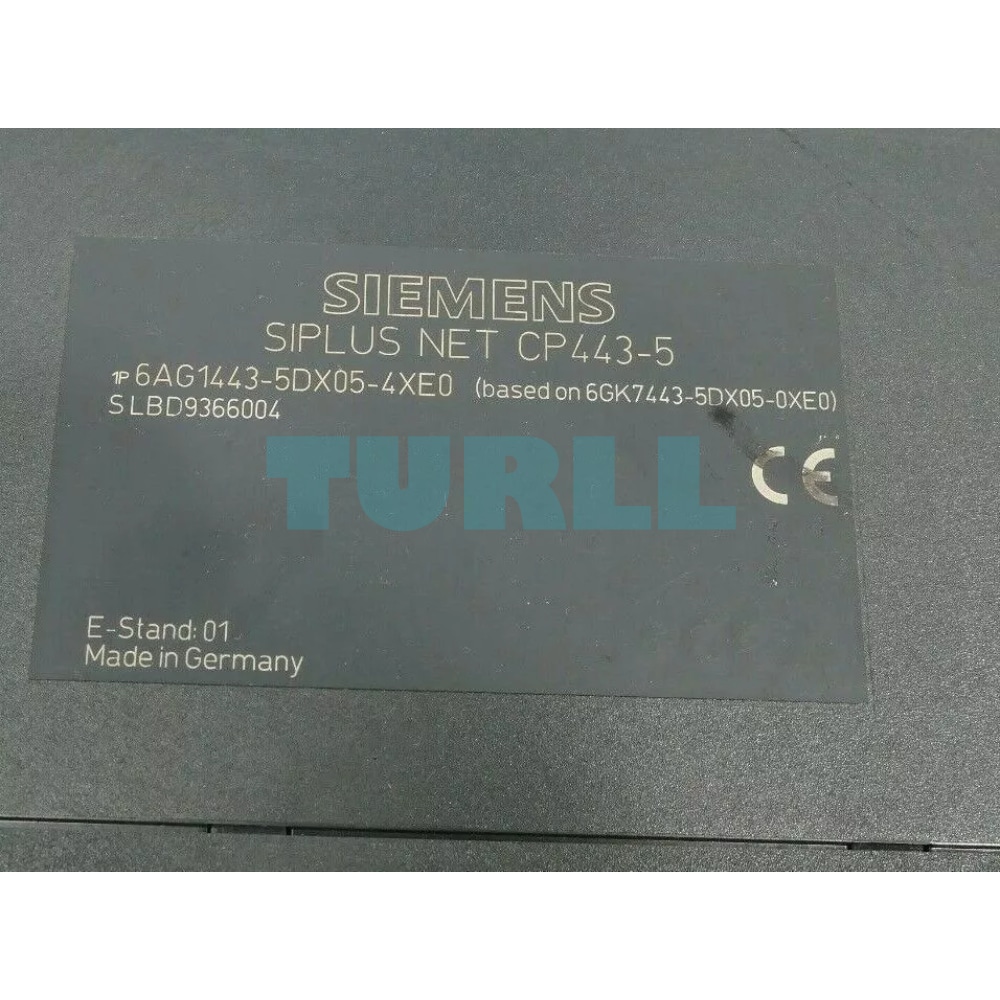

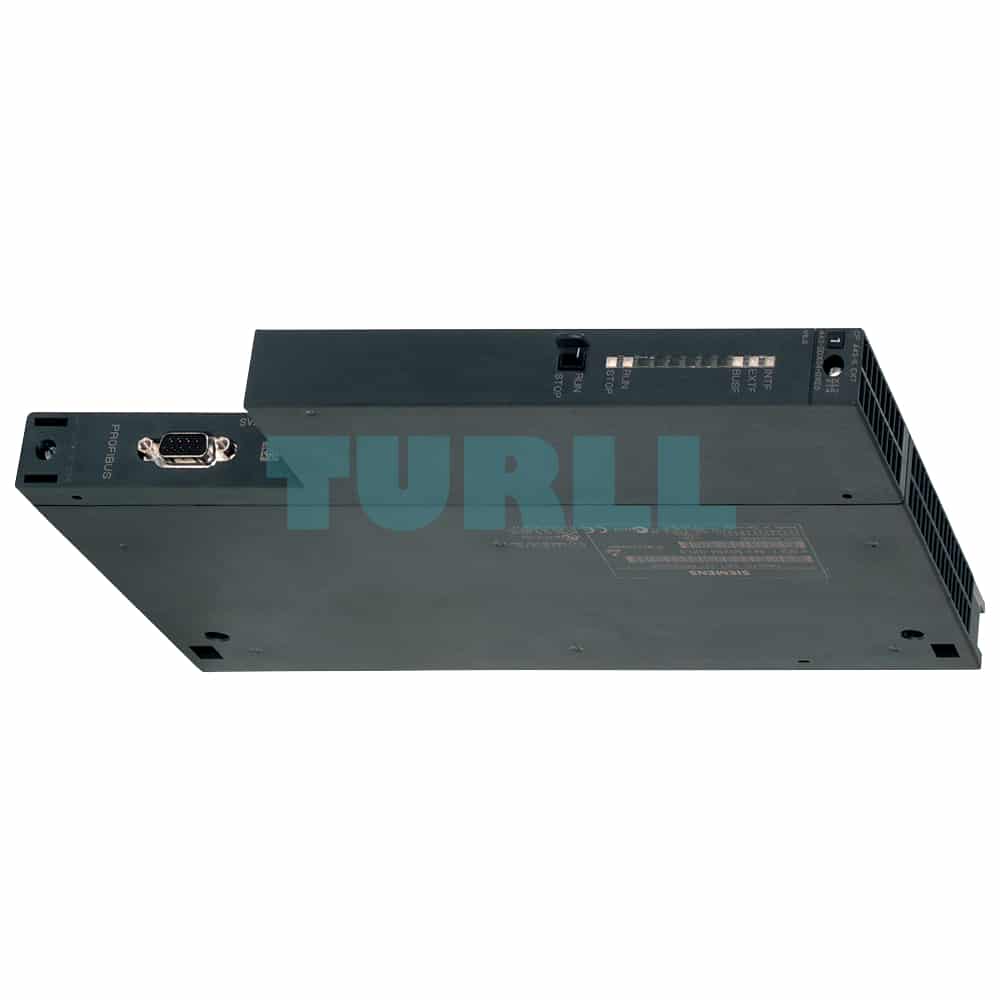

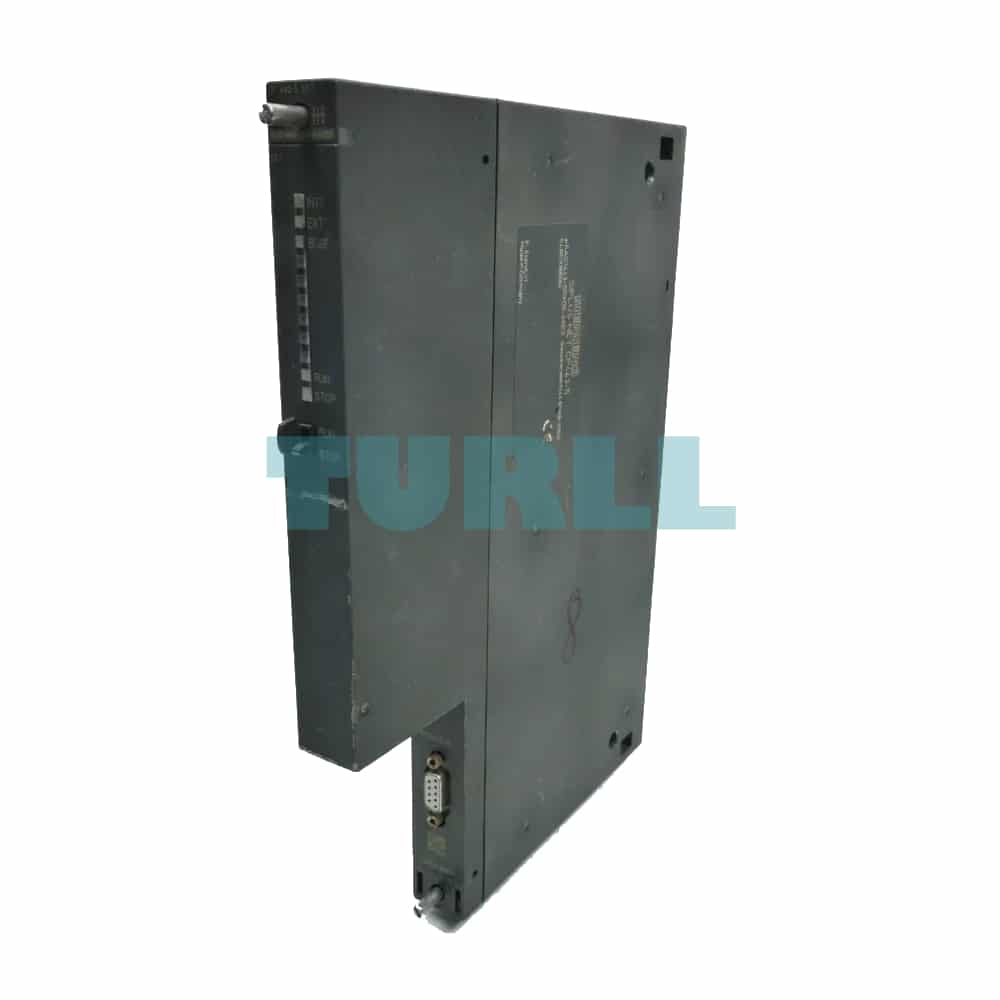

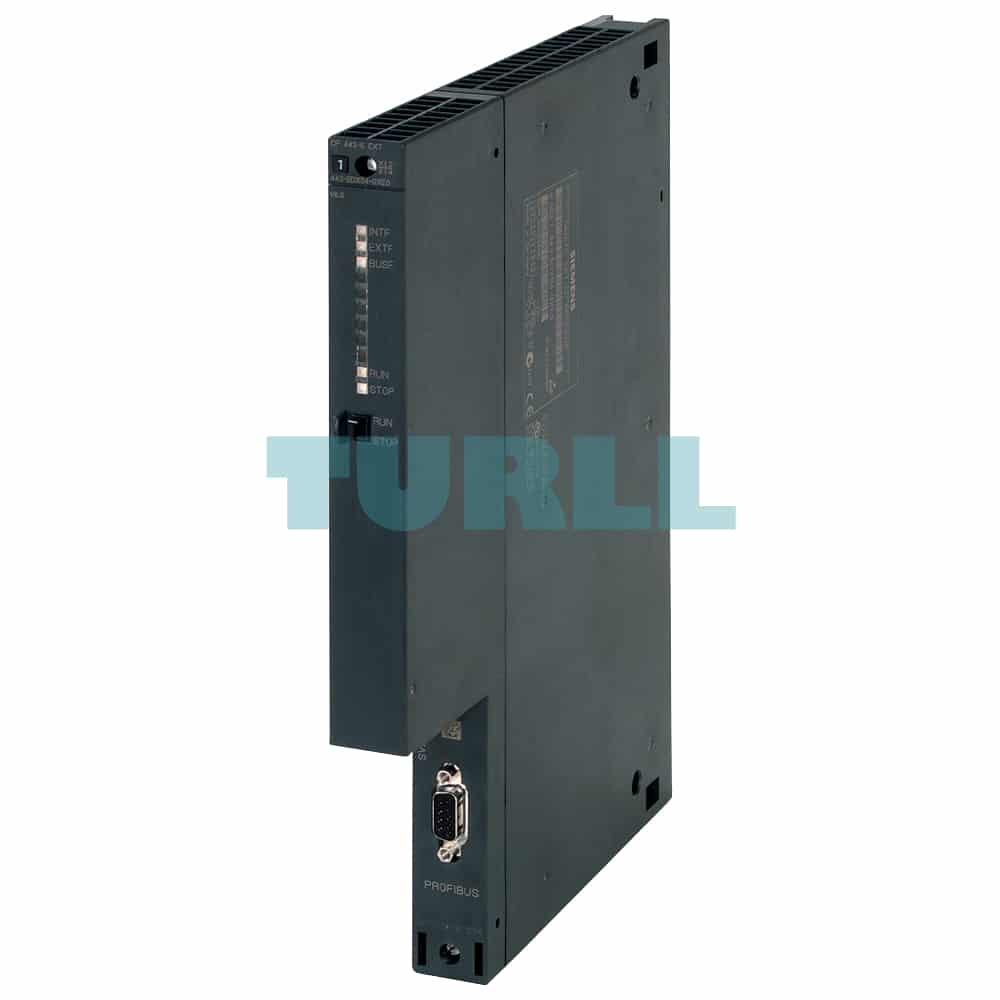

6AG1443-5DX05-4XE0 SIEMENS SIPLUS NET CP 443-5 Original Brand New

The CP 443-5 Extended provides access to different communications services of the PROFIBUS bus system:

• PROFIBUS DP (according to IEC 61158/61784)
• PG/OP communication
• S7 communication (S7 controllers)
• Open communication (SEND/RECEIVE)
• Time synchronization

Master for PROFIBUS DP

The CP 443-5 Extended operates as DP-V1 master. It handles the data transfer completely independently and allows the connection of devices such as CP 342-5 as a DP device, DP device of the distributed I/O system ET 200, etc. This means that the CP 443-5 Extended is able to connect the S7-400 station to PROFIBUS DP and is the ideal addition to the integrated DP master interfaces of the S7-400 CPUs for establishing additional PROFIBUS DP lines.

The CP 443-5 Extended can also be used in the SIMATIC S7 H system as a redundant DP master.

The CP 443-5 Extended is a DP-V1 master, i.e. it also supports the acyclic standard services incl. interrupt handling.

The CP 443-5 Extended also supports the SYNC and FREEZE functions, constant bus cycle time, direct slave-to-slave traffic, data set routing and changes to the configuration of the assigned distributed I/O during normal operation.

In addition, DP devices can be activated or deactivated during operation. This supports the step-by-step start-up of subprocesses, for example.

A diagnostic repeater allows the line to be diagnosed during operation, enabling line faults to be detected at an early stage. The CP 443-5 Extended supports operation with diagnostic repeater (including activation of topology identification in the diagnostic repeater).

The distributed I/O is handled like the centralized I/O from the user’s point of view. This means that there are no differences between the CP 443-5 Extended and the integrated DP master interface of the S7-400 CPU with regard to configuration and parameterization. Depending on the scale of the system, the CP 443-5 Extended has extremely short response times.

PG/OP communication

PG/OP communication allows all S7 stations connected to the network to be remotely programmed.

• S7 routing
  With the aid of routing it is possible to use programming device communication across networks.

S7 communication

S7 communication is used for the coupling

• between SIMATIC S7 automation systems
• to programming devices (PG/OP communication)
• to PCs,
  e.g. CP 5711 with SOFTNET-PB S7, CP 5623 etc.
• to HMI devices (OPs).

For redundant S7 communication, the CP 443-5 Extended can also be used in SIMATIC H systems.

Open communication (SEND/RECEIVE)

SIMATIC S7-400 is integrated into existing systems by means of open communication.

Based on Layer 2 (FDL) of PROFIBUS, the CP 443-5 Extended offers a simple, optimized interface for process or field communication. This interface offers uniform, high-performance communication between SIMATIC S5, SIMATIC S7 and the PC. It provides the services SDA (PLC/PLC connections) and SDN (Broadcast, Multicast).

The communication partners are the programmable controllers

• SIMATIC S7
  with CP 342-5, CP 343-5, CP 443-5 Extended and Basic
• SIMATIC S5
  with S5-95U with PROFIBUS interface, S5-115U/H, S5-135U, S5-155U/H with CP 5431 FMS/DP
• SIMATIC 505
  with CP 5434-FMS
• PCs
  with CP 5512, CP 5611 A2, CP 5621, CP 5613 A3, CP 5613 FO, CP 5614 A3, CP 5623, CP 5624
• Systems of other makes that are equipped with an FDL interface.

To use SEND/RECEIVE, function calls are required (PLC-SEND/PLC-RECEIVE), which must be linked into the STEP 7 user program.

Time synchronization

Time synchronization is used to set the time of day throughout the plant.

The CP 443-5 Extended is capable of forwarding the time of day of the S7-400 CPU to PROFIBUS. Conversely, the CP of the S7-400 CPU can make an existing time of day available on PROFIBUS

The CP 443-5 Extended supports

• The time-stamping of distributed process signals in combination with IM 153
• Time status value, daylight-saving time changeover, synchronization status

Data record routing

The CP 443-5 Extended supports the data set routing function. With this option, the CP can be used as a router for data sets that have to be sent to field devices (DP slaves). SIMATIC PDM (Process Device Manager) is a tool that creates data sets of this type for parameterizing and diagnosing field devices.

Application:
It is possible, for example, to use SIMATIC PDM (on the PC) to set parameters and perform diagnostics for a PA field device over Industrial Ethernet, S7-400 (CP 443-1, CP 443-5 Extended) and DP/PA Coupler/Link.

Diagnostics

Extensive diagnostic options are available via STEP 7, including:

• Status of the CP
• General diagnostics and statistics functions
• Connection diagnostics
• Bus statistics
• Message buffer
• Support of operation with diagnostic repeater

CiR – Configuration in RUN

With CiR, it is possible to add or modify distributed I/O devices during normal operation.

• Adding PROFIBUS DP/PA devices
• Adding/removing modules (e.g. I/O modules) in a modular DP slave (e.g. ET 200M and DP/PA Link)

Configuration

STEP 7 V5.1 SP2 or higher, or STEP 7 Professional V12 (TIA Portal) or higher, is required for configuring the full functional scope of the CP 443-5 Extended.

DP configuration/programming is performed for the CP 443-5 Extended in the same manner as for DP configuration/programming of the integrated DP interfaces of the SIMATIC S7-400 CPUs with STEP 7.

The configuring data of the CPs are always saved on the CPU and are retained even after a PLC failure. A module can therefore be replaced without having to reload the configuration data from a programming device. The CPU transfers the configuration data to the CP during start-up.

Configuration and programming of all SIMATIC S7 controllers connected to the network is possible over the network.

The function blocks for using the open communication (SEND/RECEIVE) can be found in the SIMATIC NET library following installation of STEP 7.
