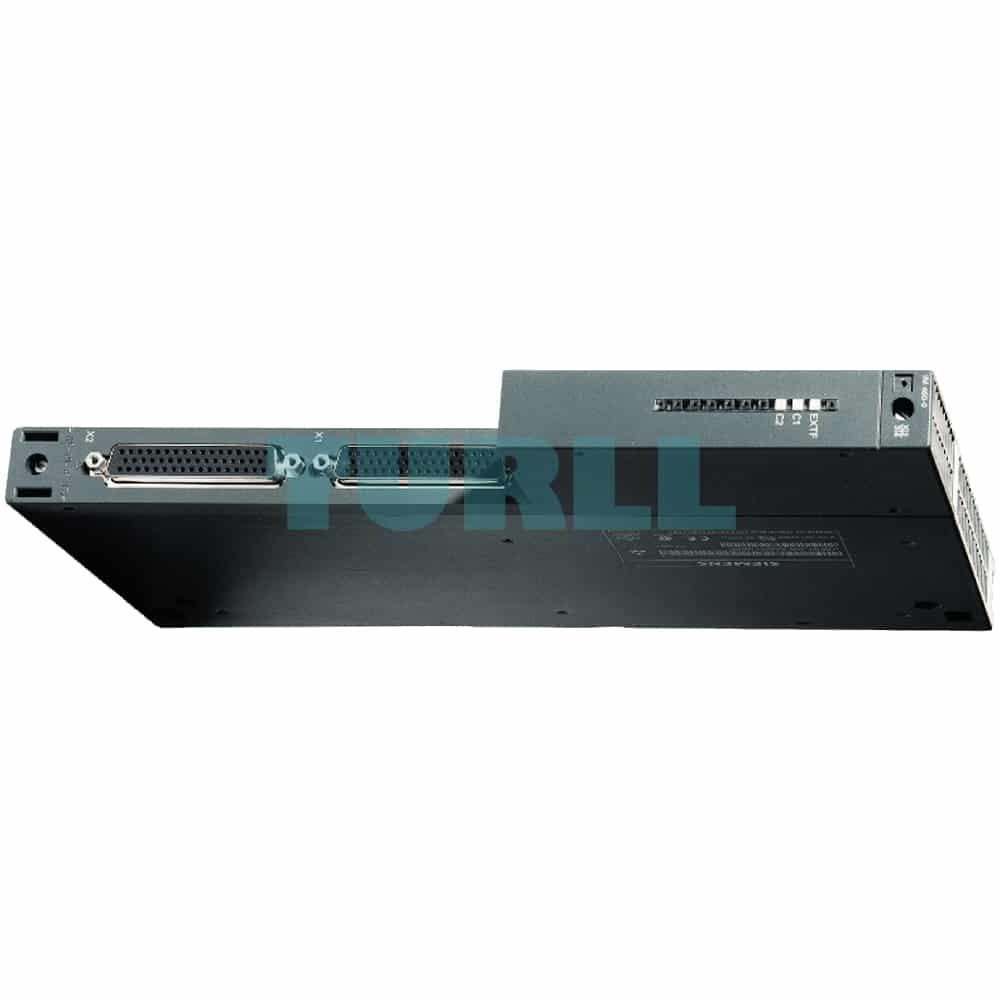

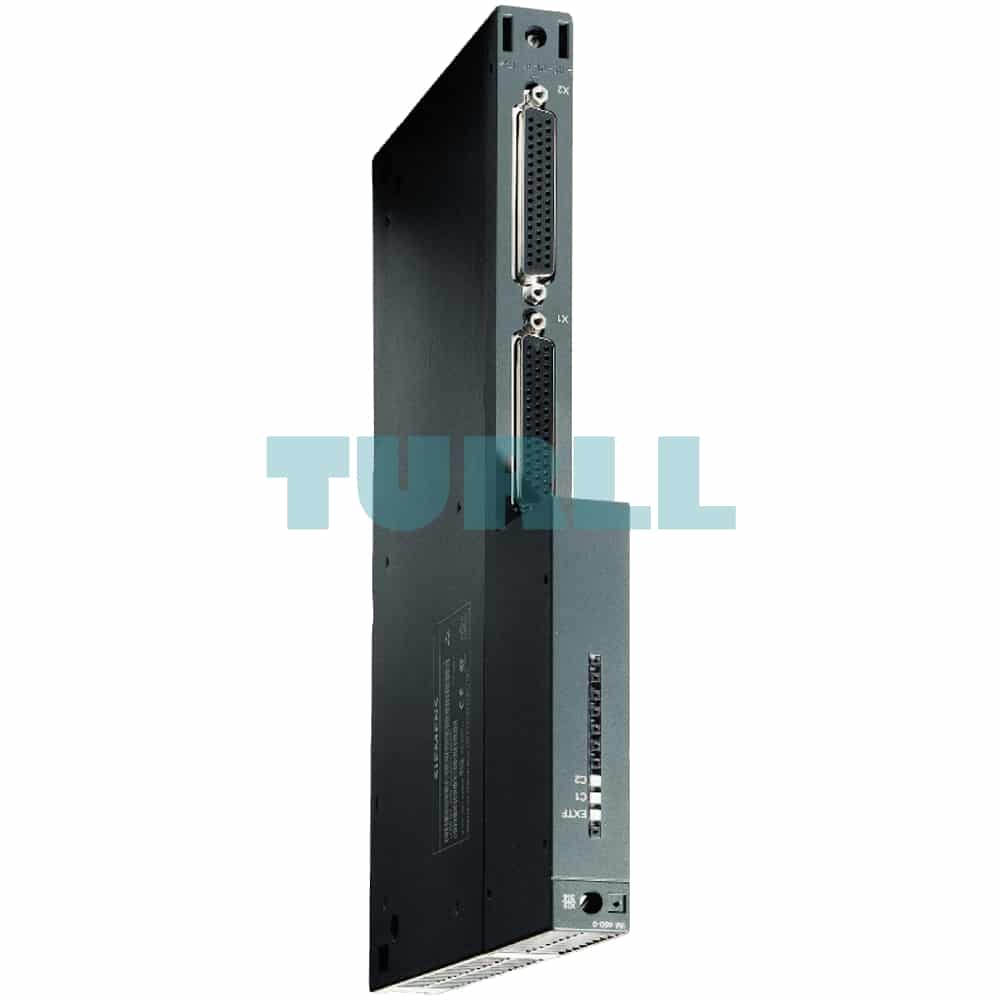

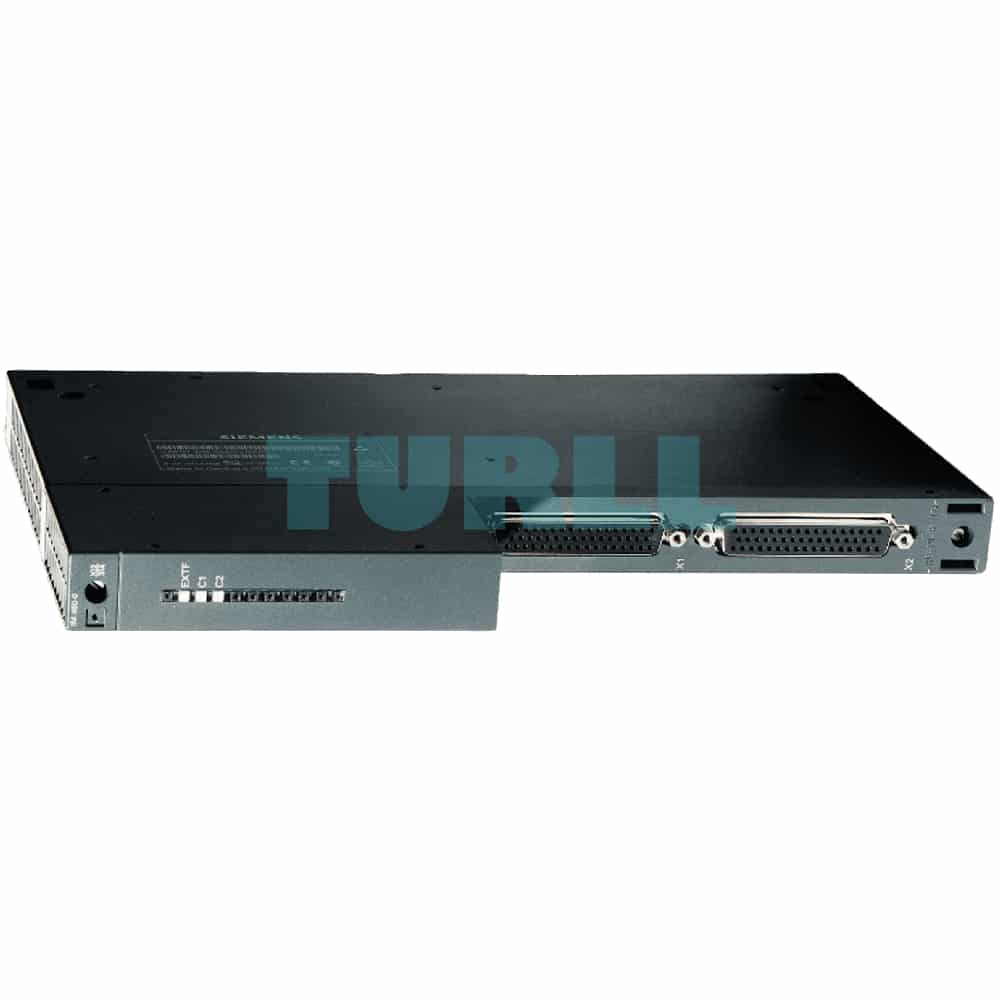

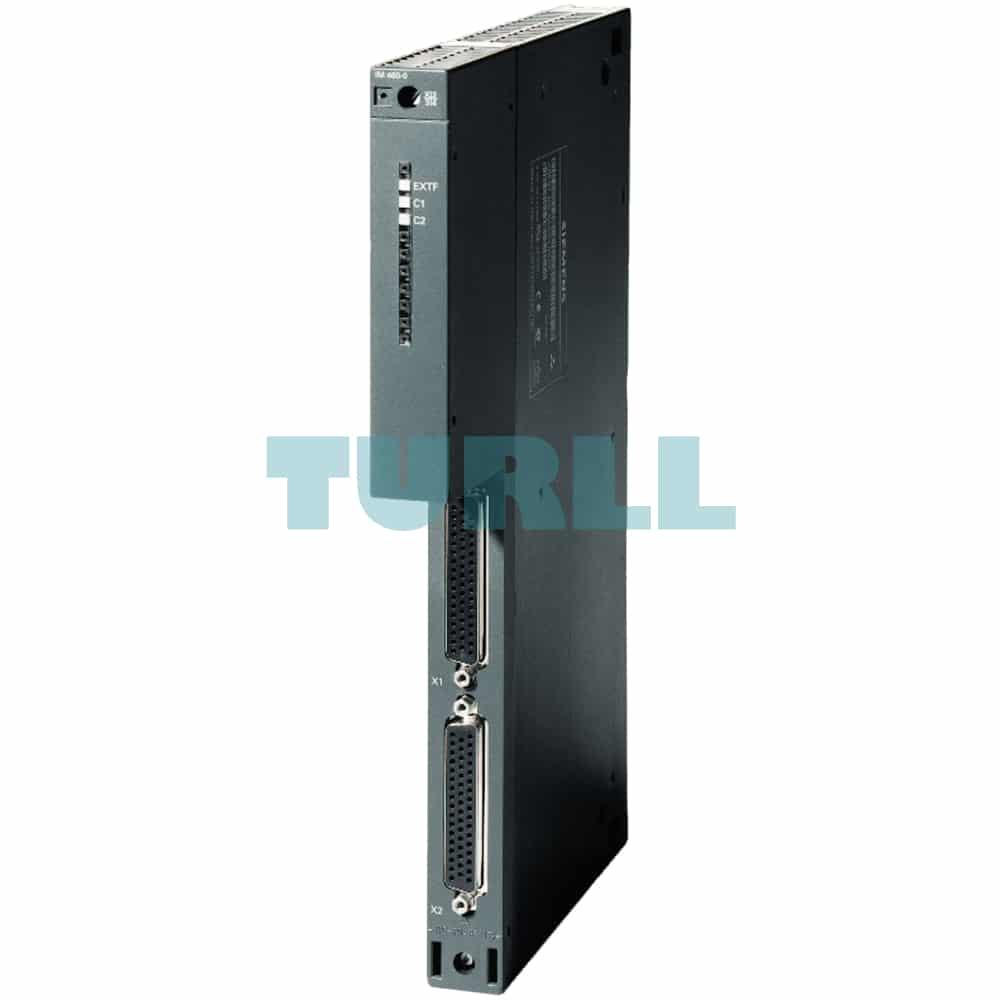

6AG1460-0AA01-2AB0 Siemens SIPLUS S7-400 IM 460-0 TX Original Brand New
$2,135.05
6AG1460-0AA01-2AB0
Siemens SIPLUS S7-400 IM 460-0 TX based on 6ES7460-0AA01-0AB0 with conformal coating, -25…+60 °C,
[ez-toc]
Overview
- Send interface module for centralized expansion up to 5 m
- Transfer from P and K Bus
- Plug into central controller
- You may connect up to 8 expansion units (max. 4 per port)
- Usable exclusively with IM 461-0
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme specific information was added.
Technical documentation on SIPLUS can be found here:
http://www.siemens.de/siplus-extreme
Application
The IM 460-0 interface module is intended for use as a send IM for central connection over short distances of up to 5 m. It transfers data from both the P-bus and the C-bus to the expansion racks.
The IM 460-0 is intended for use only in association with the IM 461-0 interface module (in the expansion racks).
Design
The IM 460-0 interface module can be inserted into the following central controllers:
- UR1,
- UR2 and
- CR2.
Up to 8 expansion units can be connected (up to 4 per interface). Up to 6 IM 460-0 units can be plugged in per central controller.
The module has:
- 3 LEDs for indicating faults.
- 2 interfaces for connecting the expansion lines via 468-1 connecting cable.
6AG1460-0AA01-2AB0
Siemens SIPLUS S7-400 IM 460-0 TX based on 6ES7460-0AA01-0AB0 with conformal coating, -25…+60 °C,
Visit 6AG1460-0AA01-2AB0
For more our products visit turll.com
| Weight | 0.843 kg |
|---|---|
| Dimensions | 230 × 300 × 35 mm |
