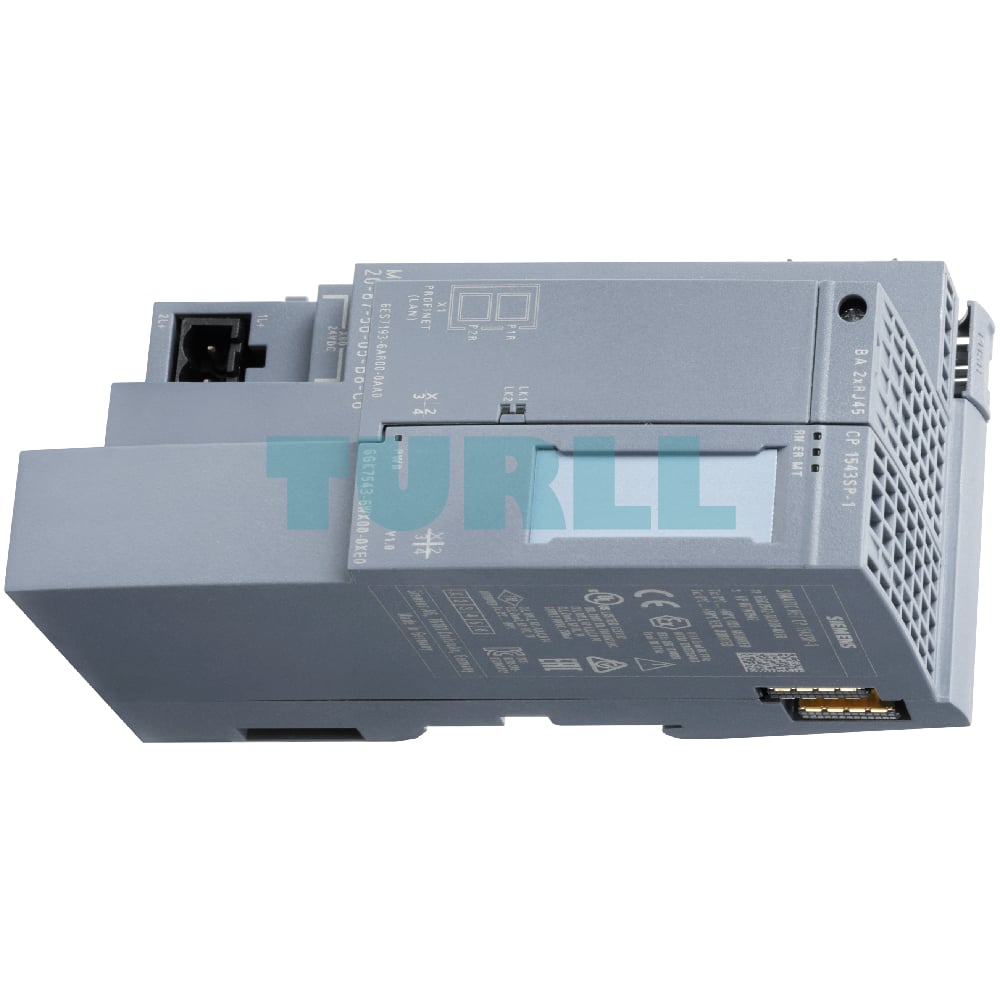

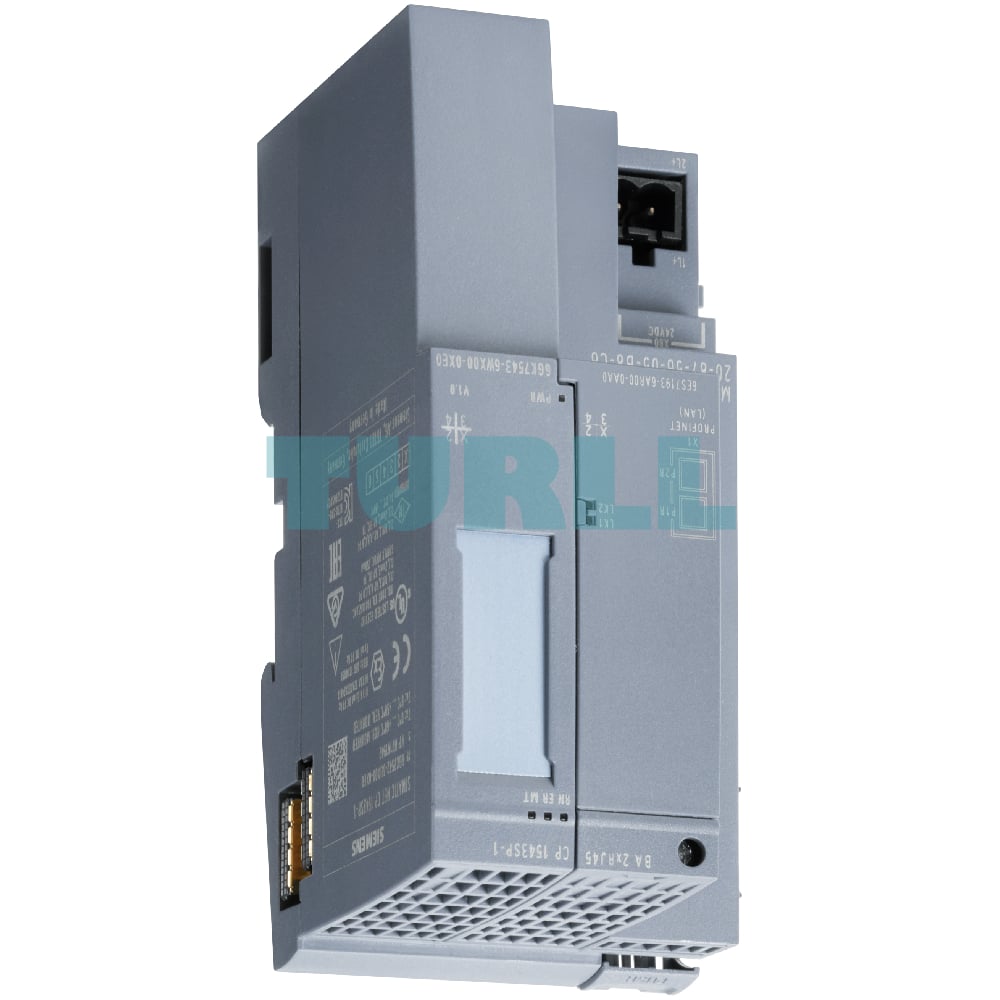

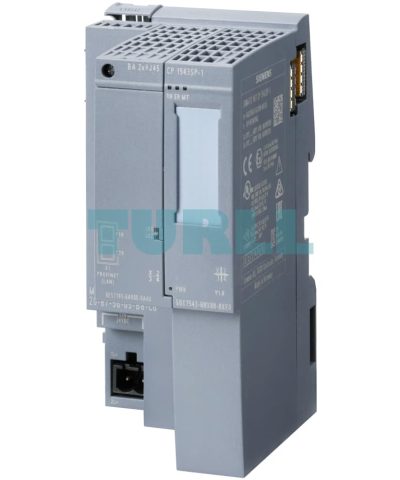

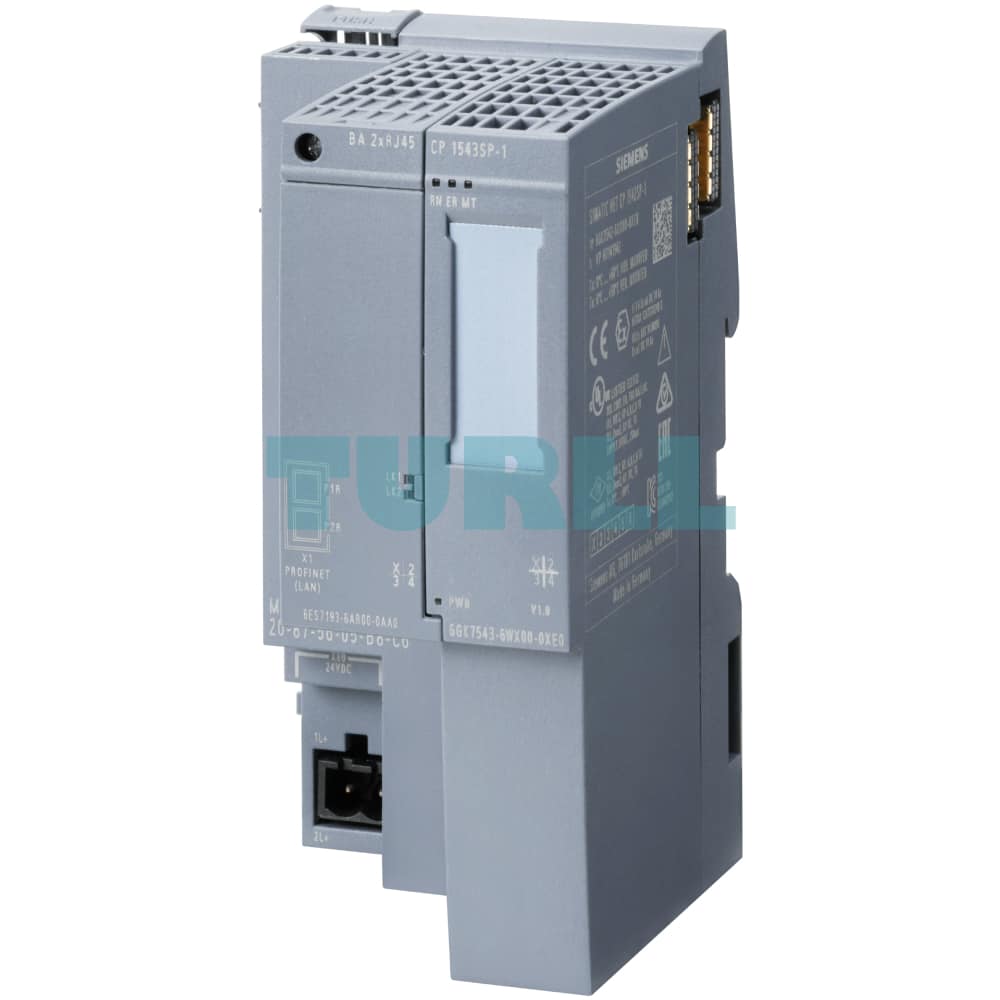

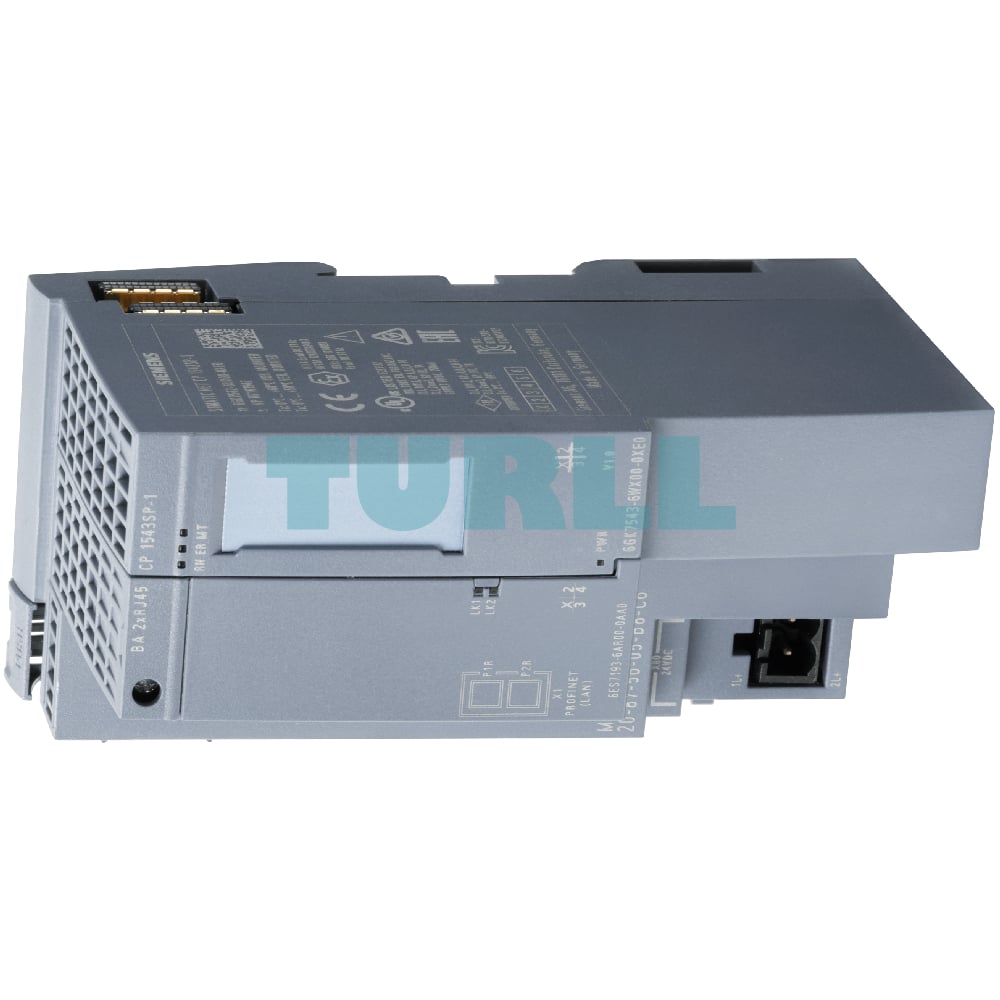

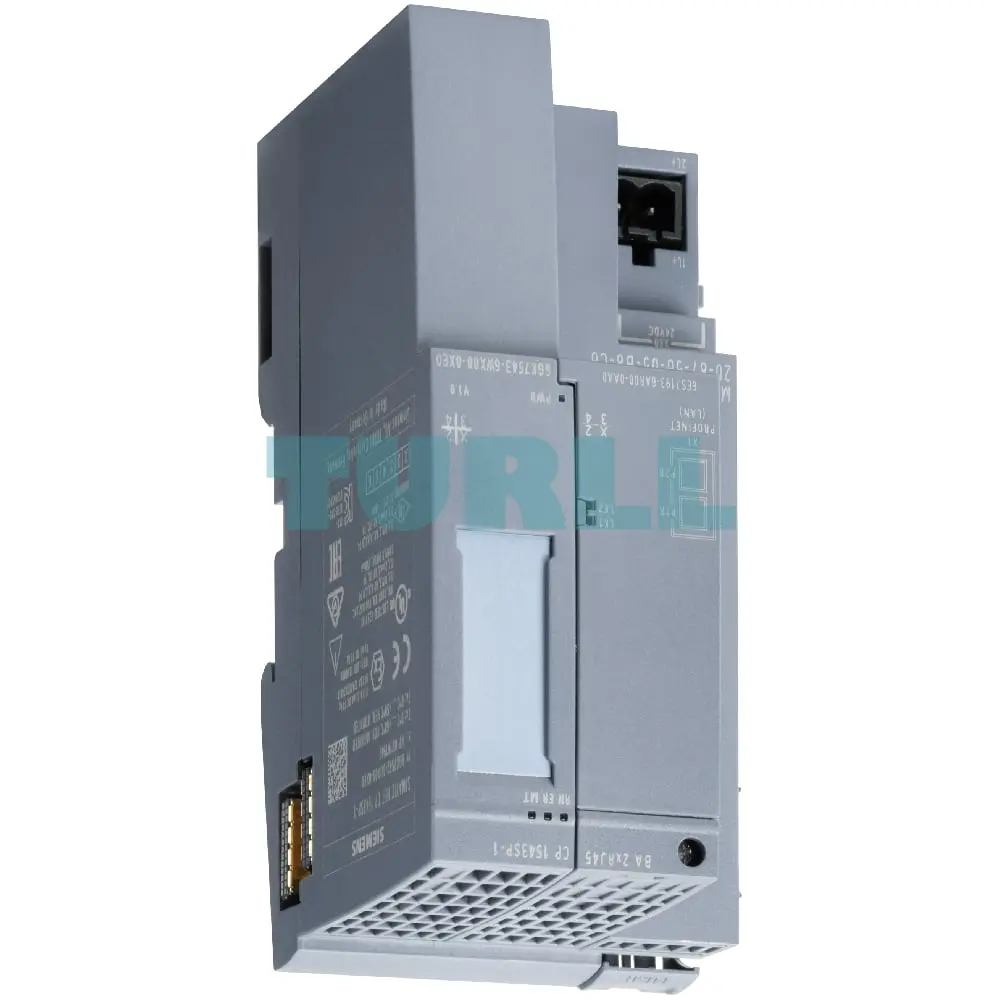

6AG1543-6WX00-7XE0 Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC Original Brand New
$4,374.50
6AG1543-6WX00-7XE0
Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC based on 6GK7543-6WX00-0XE0 with conformal coating, -40…+70 °C, security (firewall and VPN) open IE communication (TCP/IP, ISO-on-TCP, UDP) PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration, time synchronization via NTP, access to web server of CPU, BusAdapter required
[ez-toc]
Overview
The SIPLUS ET 200SP CP 1543SP-1 ISEC communications processor connects the ET 200SP Distributed Controller with Industrial Ethernet networks. By combining a variety of security features such as an SPI (Stateful Packet Inspection) firewall, VPN and data encryption protocols (e.g. SNMPv3), the communications processor protects individual ET 200SP Distributed Controllers or even entire automation cells against unauthorized access.
The module can also be used for integrating the ET 200SP Distributed Controller into an IPv6-based network. All functions can be configured with STEP 7 Professional, V14 (TIA Portal) and higher.
The CP 1543SP-1 supports the following communications services:
- PG/OP communication
- S7 communication
- Open communication (Open User Communication)
- IT communication
- Sending emails via SMTP or ESMTP with “SMTP-Auth” for authentication on an email server (also with IPv6)
- Support of SINEMA Remote Connect with autoconfiguration
- Security Integrated
- Stateful Packet Inspection Firewall
- Secure communication via VPN (IPsec)
- Protocols for secure communication
- Secure access to the web server of the CPU via the HTTPS protocol
- Secure transfer of the time of day (NTP)
- SNMPv3 for tap-proof transfer of network analysis information
- Integration of the ET 200SP Distributed Controller into IPv6-based networks
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Benefits
- Prevention of data loss, production disruptions or machine damage by protecting against unauthorized access to the SIMATIC ET 200SP Distributed Controller and lower-level networks.
- Network segmentation and network separation for setting up identical machines with the same IP addresses
- Connection to SINEMA RC:
With the optional SINEMA Remote Connect, you can benefit from the user-friendly, secure SINEMA Remote Connect management platform for remote maintenance. - Optimum maintenance support thanks to
- Simple diagnostics via the central web server
- Monitoring with IT network management tools (SNMP)
- Module replacement without a PG
- Securing the system against unauthorized access with
- Central access protection for any S7 station
- Secure access to the central web server
- Simple alerting by email
- Protection of investment thanks to easy integration of the ET200SP Distributed Controller in existing networks with SIMATIC S7-300/S7-400/via Industrial Ethernet using the CP 1543SP-1
- Accessibility of the ET 200SP Distributed Controller from an IPv6-based infrastructure
Design
The CP 1543SP-1 has all the advantages of the ET 200SP design:
- Compact, space-saving design:
- Module powered via separate power supply
- Three LEDs for displaying the operating state and communication state of the module as well as LEDs on the bus adapter.
- Simultaneously operable with BA Send module and CM DP module.
- Simple installation:
The CP 1543SP-1 is mounted on the ET 200SP DIN rail and is connected to the adjacent modules via the backplane bus.- The bus adapter (not included in scope of delivery) makes various connection methods possible;
- For standard environmental conditions, BA 2xRJ45 for connection via RJ45 connector
- For mechanical loading during operation and/or increased EMC requirements
BA 2xFC, BA 2xSCRJ, BA SCRJ/RJ45, BA SCRJ/FC - The CP 1543SP-1 can be operated without a fan; no backup battery is required.
- The module can be replaced without the need for a programming device.
- The CP can be equipped with an equipment labeling plate.
- Optional labeling using light gray or yellow labeling strips. There is a choice of two materials:
- Film and roll with 500 strips, for thermal transfer roll printer
- Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
Scope of delivery:
CP 1543SP-1, 24 V DC connector (bus adapter must be ordered separately)
Function
- 2-port interface via BusAdapter with an RJ45 connection with 10/100 Mbps full/half duplex with autosensing functionality
- The CP 1543SP-1 communications processor connects the SIMATIC ET 200SP Distributed Controller to additional Industrial Ethernet networks.
- Communications services:
- Open communication (TCP/IP, UDP, ISO-on-TCP):
Multicast with UDP - PG/OP communication: Inter-network with S7 routing
- S7 communication (client, server)
- S7 routing
- IT communication:
HTTP communication allows access to the web server of the CPU. With the CP 1543SP-1, HTTPS communication is also possible.
The email client function allows e-mails to be sent directly from the user program.
IP address assignment via DHCP for IPv4 or via direct entry in the engineering software and via the T_CONFIG function block
STEP 7 Professional V14 (TIA Portal) or higher
- Open communication (TCP/IP, UDP, ISO-on-TCP):
- Support of SINEMA Remote Connect with autoconfiguration
- Diagnostics and network management:
- Extensive diagnostic functions of all modules in the ET 200SP system
- Integration in network management systems due to support of SNMP v1/v3
- Security mechanisms:
- Access protection with firewall for filtering connections on the basis of their IP and MAC addresses
- Secure communication via VPN (IPsec)
- Encrypted HTML pages using SSL (HTTPS)
- Secure transfer of the time of day (NTPS)
- Configuration of all functions with STEP 7 Professional V14 (TIA Portal) or higher
- Module replacement without programming device: All information can be stored on the memory card of the CPU.
6AG1543-6WX00-7XE0
Siemens SIPLUS ET 200SP CP 1543SP-1 ISEC based on 6GK7543-6WX00-0XE0 with conformal coating, -40…+70 °C, security (firewall and VPN) open IE communication (TCP/IP, ISO-on-TCP, UDP) PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPv4/IPv6, support of SINEMA Remote Connect with autoconfiguration, time synchronization via NTP, access to web server of CPU, BusAdapter required
Visit 6AG1543-6WX00-7XE0
For more our products visit turll.com
| Weight | 0.202 kg |
|---|---|
| Dimensions | 10 × 10 × 10 mm |
