6AG1972-0AA02-7XA0 SIEMENS SIPLUS DP RS-485 Repeater Original Brand New
$1,472.72
6AG1972-0AA02-7XA0

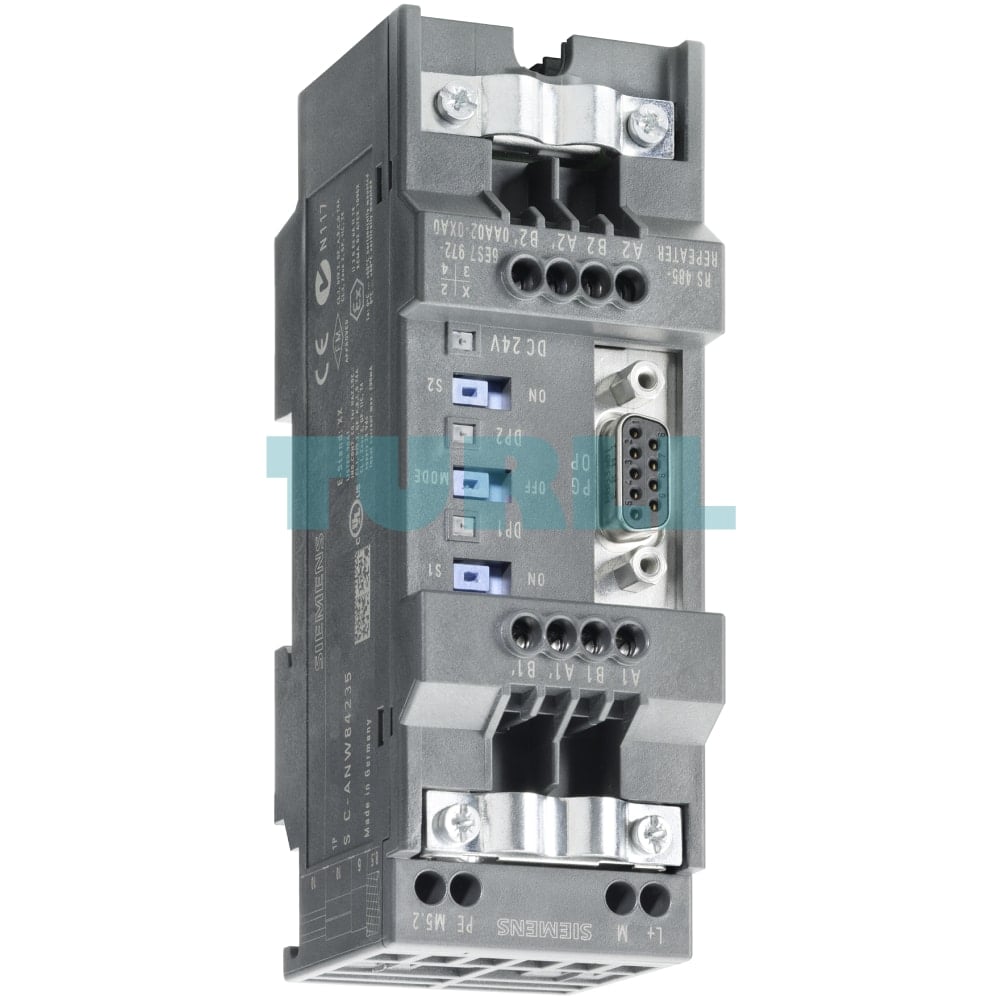

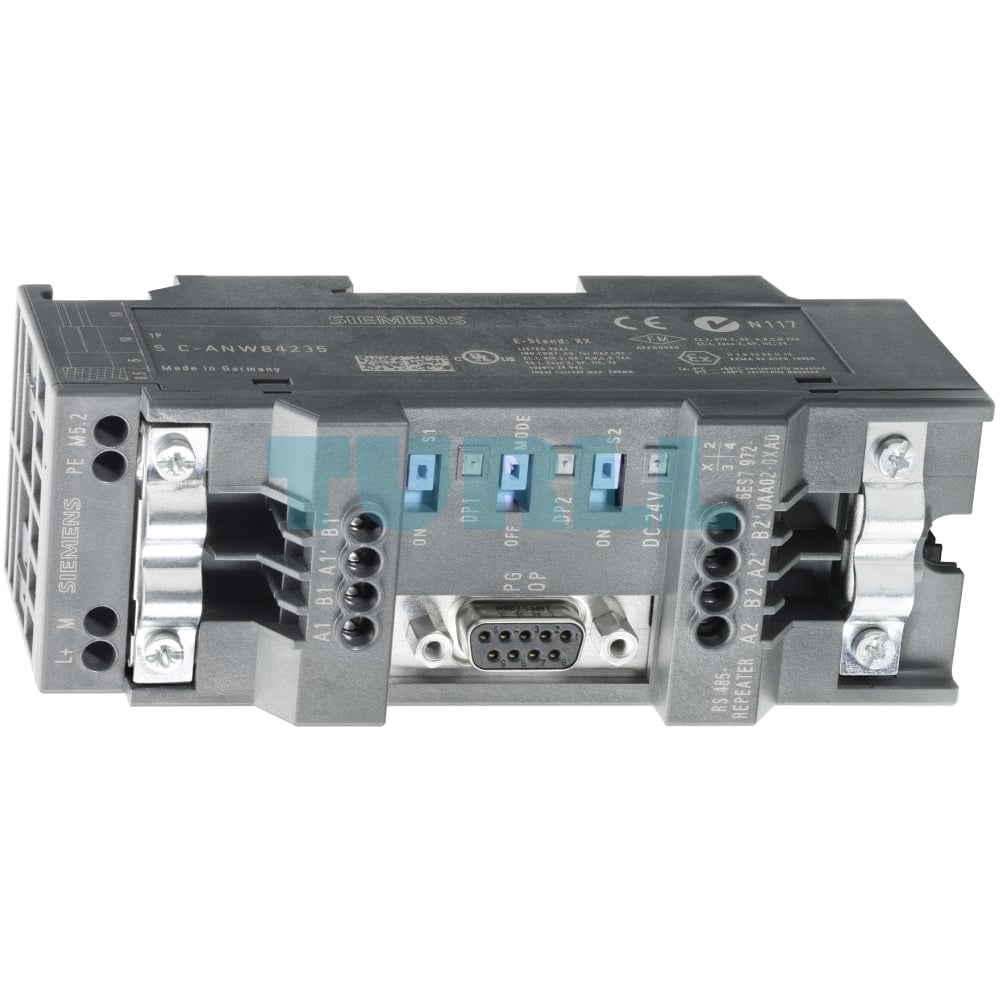

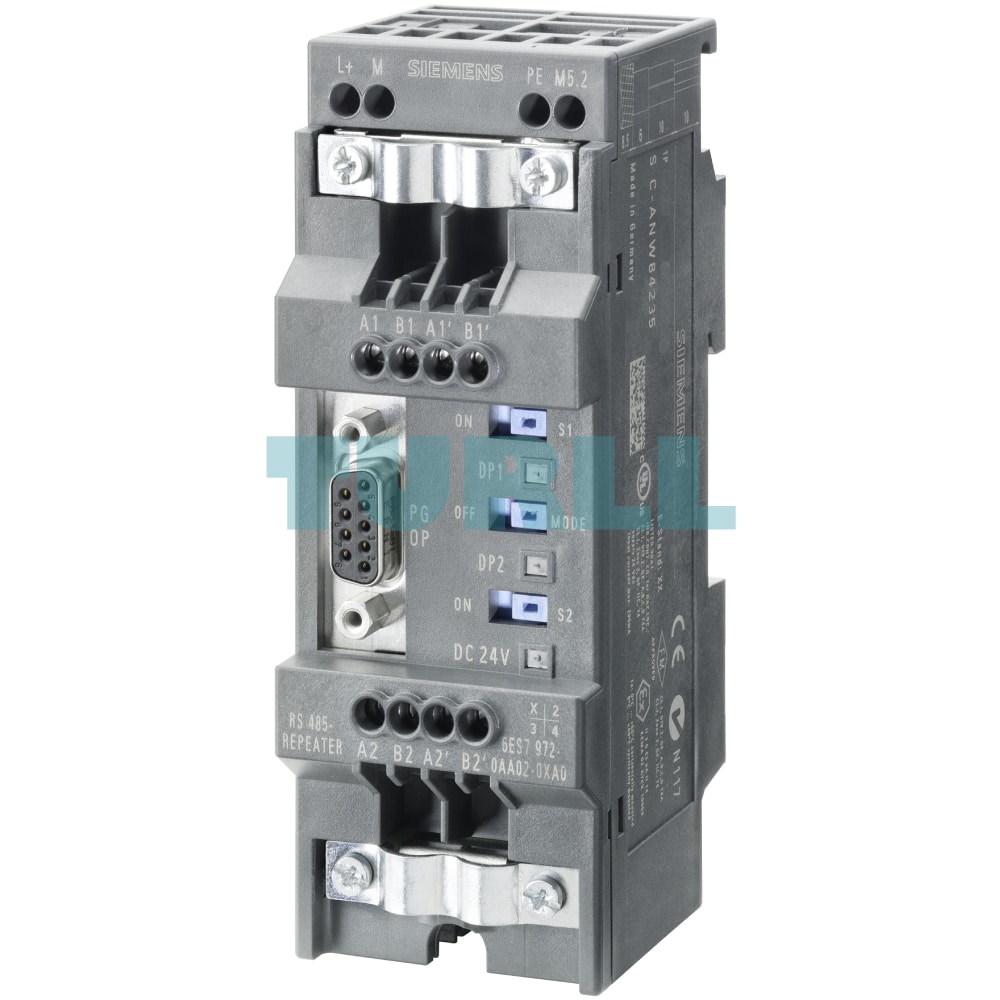

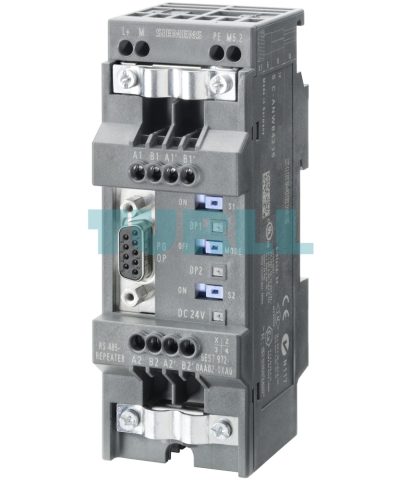

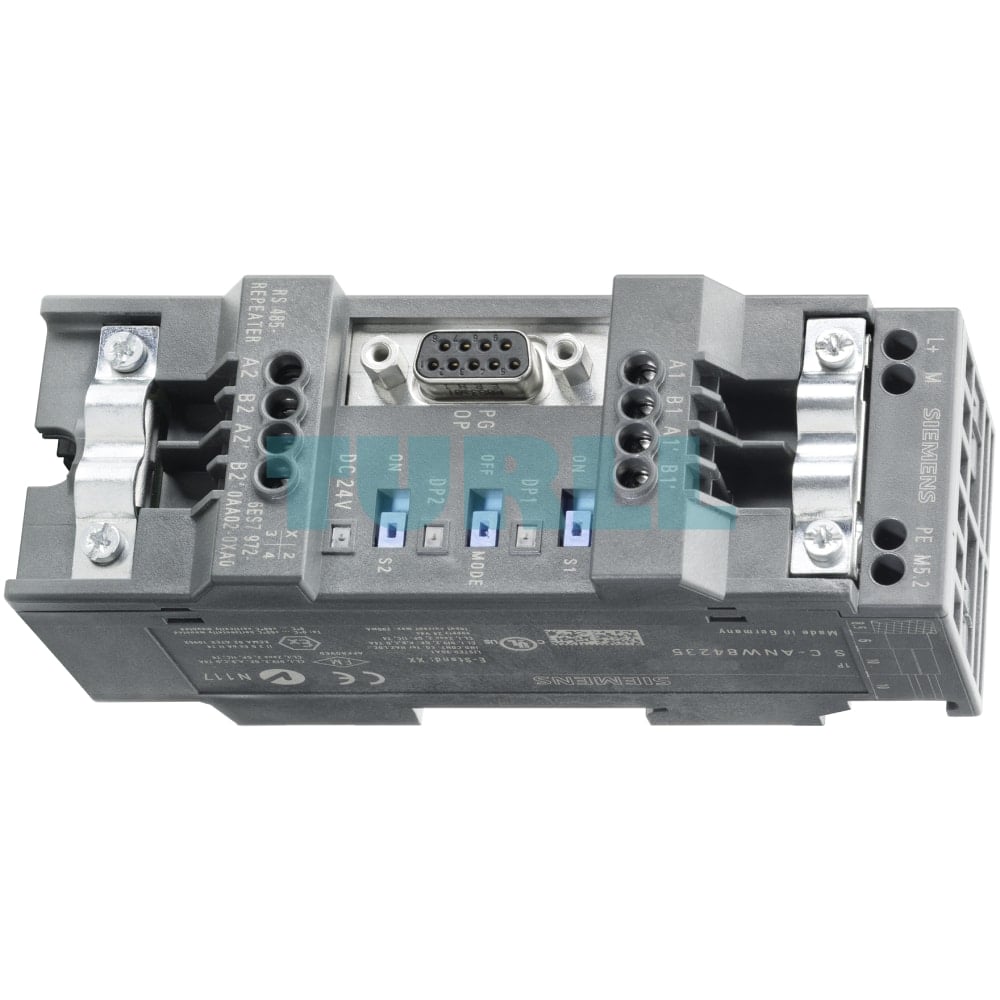

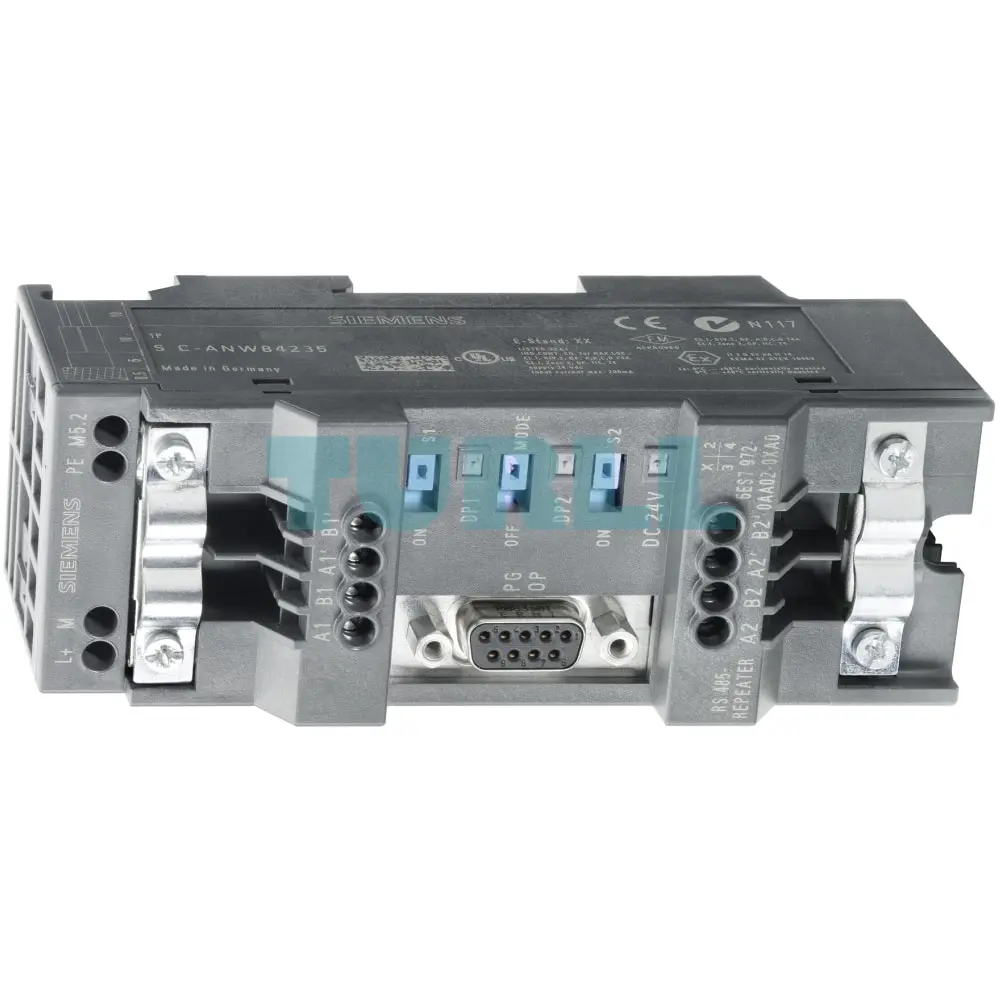

Siemens SIPLUS DP RS-485 repeater based on 6ES7972-0AA02-0XA0 with conformal coating, -25…+70 °C, for connection of PROFIBUS/MPI bus systems with max. 31 nodes max. baud rate 12 Mbps, degree of protection IP20
[ez-toc]
Overview
- Automatic detection of transfer rates
- 45.45 kbps transfer rate is possible
- 24 V DC voltage display
- Indication of segment 1 and 2 bus activity
- The separation of segment 1 and segment 2 by means of switches is possible
- Separation of the right segment with an inserted terminating resistor
- Decoupling of segment 1 and segment 2 in the case of static interference
Designed for Industry
- For increasing the number of participants and the expansion
- Galvanic isolation of segments
- Commissioning support
- Switches for separation of segments
- Bus activity display
- Segment separation in the case of an incorrectly inserted terminating resistor
In this context, please also note the diagnostic repeater that provides extensive diagnostics functions for physical line diagnostics in addition to the normal repeater functionality. This is described in
“Distributed I/O / Diagnostics / Diagnostic repeater for PROFIBUS DP”.
Note:
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were adopted from the respective standard products. SIPLUS extreme-specific information was added.
For technical documentation on SIPLUS, see:
http://www.siemens.de/siplus-extreme
Application
The RS 485 IP20 repeater connects two PROFIBUS or MPI bus segments using the RS 485 system with up to 32 stations. Data transmission rates of 9.6 kbit/s to 12 Mbit/s are then possible.
Design
- Housing to degree of protection IP20.
- 2 terminal blocks for connecting the segment
- Terminal block for supply voltage (24 V DC external).
- PG/OP interface.
Function
Mode of operation
- Increasing the number of stations (max. 127) and the expansion
- Regenerating the signals in amplitude and time
- Electrical isolation of the connected bus systems
6AG1972-0AA02-7XA0
Siemens SIPLUS DP RS-485 repeater based on 6ES7972-0AA02-0XA0 with conformal coating, -25…+70 °C, for connection of PROFIBUS/MPI bus systems with max. 31 nodes max. baud rate 12 Mbps, degree of protection IP20
Visit 6AG1972-0AA02-7XA0
For more our products visit turll.com
| Weight | 0.25 kg |
|---|---|
| Dimensions | 75 × 135 × 66 mm |
