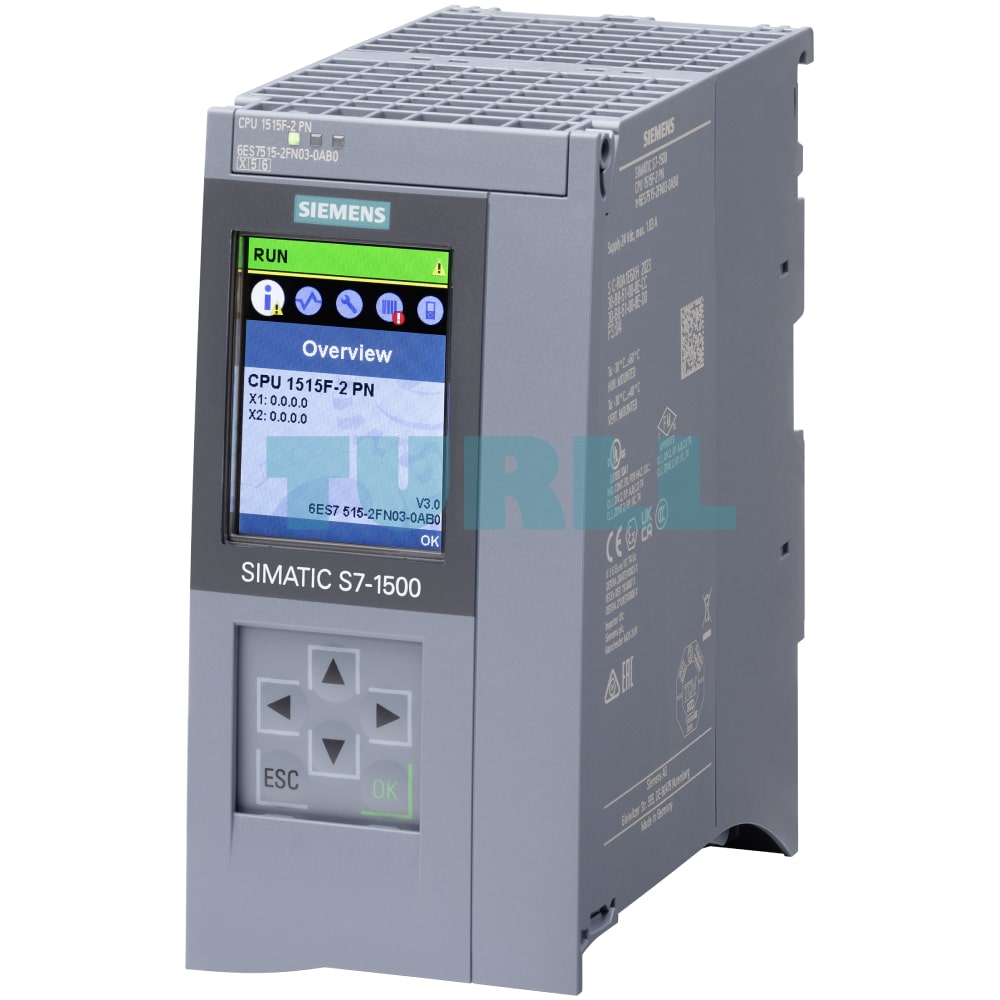

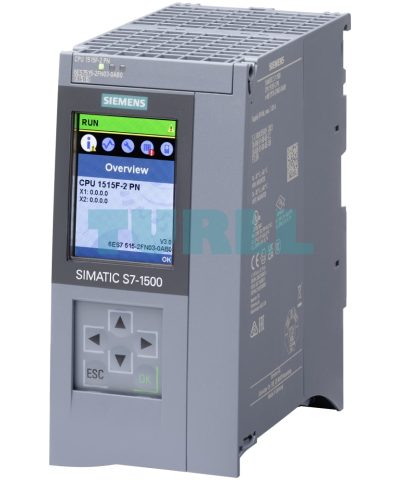

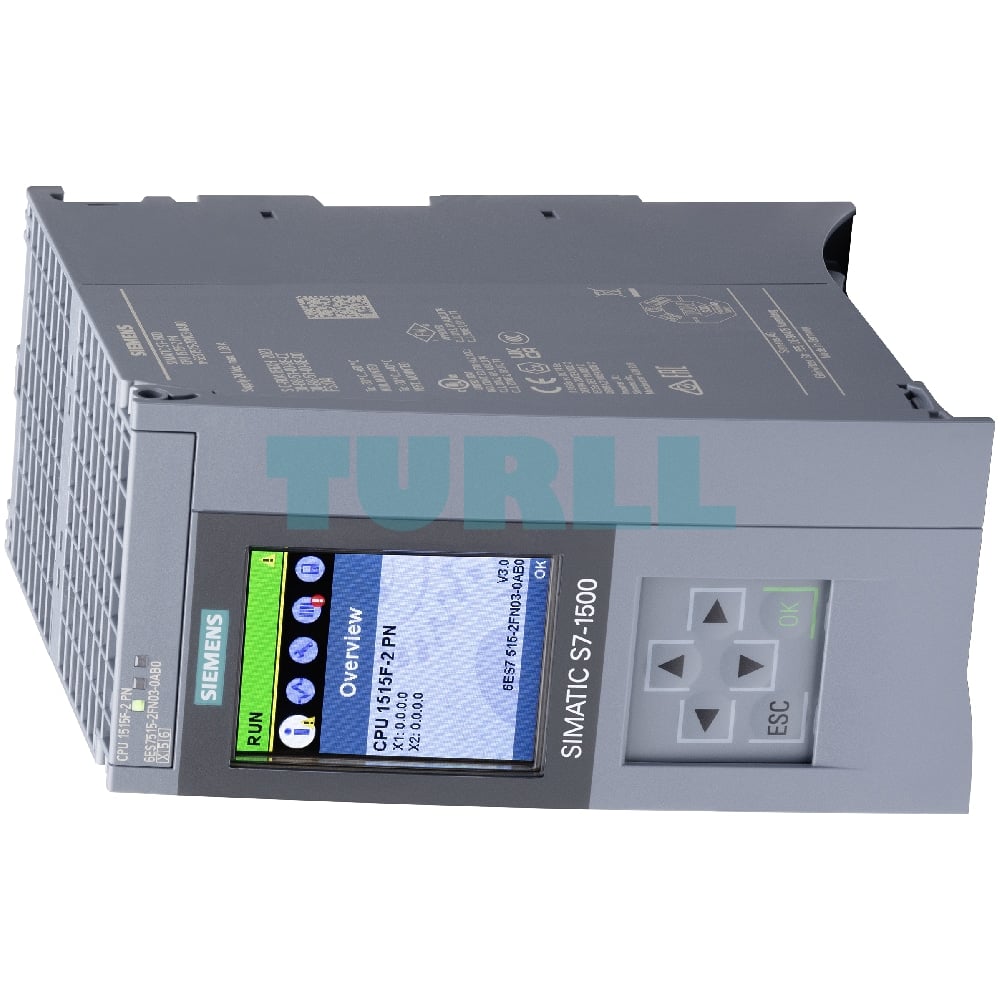

6AG2515-2FN03-4AB0 Siemens SIPLUS S7-1500 CPU 1515F-2 PN Rail Original Brand New
$6,987.32
6AG2515-2FN03-4AB0
Siemens SIPLUS S7-1500 CPU 1515F-2 PN rail based on 6ES7515-2FN03-0AB0 with conformal coating OT4: -40…+70 °C ST1/2: 85 °C for 10 minutes . central processing unit with 1.5 MB work memory for program and 4.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required
[ez-toc]
Overview
- The CPU for applications with medium to high requirements for program/data memory in the S7-1500 Controller product range
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- Can be used for safety functions up to SIL 3 according to IEC 61508 and up to PL e according to ISO 13849
- Medium to high processing speed for binary and floating-point arithmetic
- Used as central controller in production lines with central and distributed I/O
- Supports PROFIsafe in centralized and distributed configurations
- PROFINET IO IRT interface with 2-port switch
- Additional PROFINET interface with separate IP address
- PROFINET IO controller for operating distributed I/O on PROFINET
- PROFINET I-Device for connecting the CPU as an intelligent PROFINET device under a SIMATIC or non-Siemens PROFINET IO controller
- Isochronous mode
- Integrated Motion Control functionalities for controlling speed-controlled and positioning axes, support for external encoders
- Integrated web server with the option of creating user-defined web pages
- SIMATIC Memory Card required for operation of the CPU.
Note
SIPLUS extreme products are based on SIMATIC standard products. The contents listed here were taken from the respective standard products. SIPLUS extreme-specific information was added.
Application
SIPLUS S7-1500 CPU 1515F-2 PN RAIL is the CPU with a medium program and data memory for standard and fail-safe applications that also contain distributed automation structures alongside central I/O. It can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 2-port switch, enabling a linear topology to be set up in the system. The additional integrated PROFINET interface with separate IP address can be used, for example, for network separation. In addition, the CPU offers comprehensive control functionalities as well as the option to connect drives via standardized PLCopen blocks.
Design
SIPLUS S7-1500 CPU 1515F-2 PN T2 RAIL features:
- A powerful processor:
The CPU achieves command execution times as low as 30 ns per binary instruction. - Large work memory:
750 KB for program, 3 MB for data - SIMATIC Memory Cards as load memory;
permit additional functions such as datalog and archives - Flexible expansion capability:
single-tier configuration with max. 32 modules (CPU + 31 modules) - Display with functions for
- Displaying overview information such as IP address of the integrated interface, station name, plant designation, location identifier, etc.
- Displaying safety mode, collective signature and date of the last download with signature change
- Displaying diagnostic information
- Displaying module information
- Showing display settings
- Displaying a user-definable logo
- Setting IP addresses
- Setting the date and time
- Selecting the operating mode
- Resetting the CPU to factory settings
- Disabling/enabling the display
- Enabling protection levels
- PROFINET IO IRT interface for connecting distributed I/O via PROFINET
- PROFINET interface for network separation
Function
- Performance
- Faster command processing, depending on the CPU type, language extensions and new data types
- Even shorter response times of the CPUs due to considerably faster backplane bus
- Powerful network connection:
Each CPU is equipped with PROFINET IO IRT (2-port switch) as standard interface.
- Integrated technology
- Connection of analog and PROFIdrive-capable drives via standardized blocks (PLCopen)
- Support of speed-controlled and positioning axes as well as external encoders
- Trace functions for all CPU tags, both for diagnostics in real time and for sporadic error detection
- Comprehensive control functionalities, e.g. easy to configure blocks for automatic optimization of the control parameters for optimum control quality
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
- 4-level authorization concept:
Communication to the operator panels can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Design and handling
- Display of overview information:
E.g. Station name, plant designation, location identifier, etc., diagnostic information, module information, display settings. - Operator control options on the display:
set addresses of the CPU or connected Ethernet communications processors, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels.
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, operator panels and web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Storage of data blocks and storage/reading of data via SFCs of the user program
- Datalog (archives) and recipes
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
easy access to plant-relevant operating data using Office tools or via a web server - Easy access to configuration data of the machine by means of a web browser or SD card reader (two-way data exchange from and to the PLC)
- Storage of csv files for recipes and archives on the SIMATIC Memory Card;
- Programming of the standard program section
- Programming with STEP 7 Professional, V13 and higher
- Migration tool for migrating from SIMATIC S7-300/S7-400 to S7-1500, converts the standard program code largely automatically. Non-convertible code is logged and can be manually adapted.
- S7-1200 basic programs can be transferred to S7-1500 by copy-paste.
- Programming of the fail-safe program section
- Programming of the safety-related program section with the “STEP 7 Safety Advanced” option package
6AG2515-2FN03-4AB0
Siemens SIPLUS S7-1500 CPU 1515F-2 PN rail based on 6ES7515-2FN03-0AB0 with conformal coating OT4: -40…+70 °C ST1/2: 85 °C for 10 minutes . central processing unit with 1.5 MB work memory for program and 4.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required
Visit 6AG2515-2FN03-4AB0
For more our products visit turll.com
| Weight | 0.582 kg |
|---|---|
| Dimensions | 156 × 160 × 83 mm |
