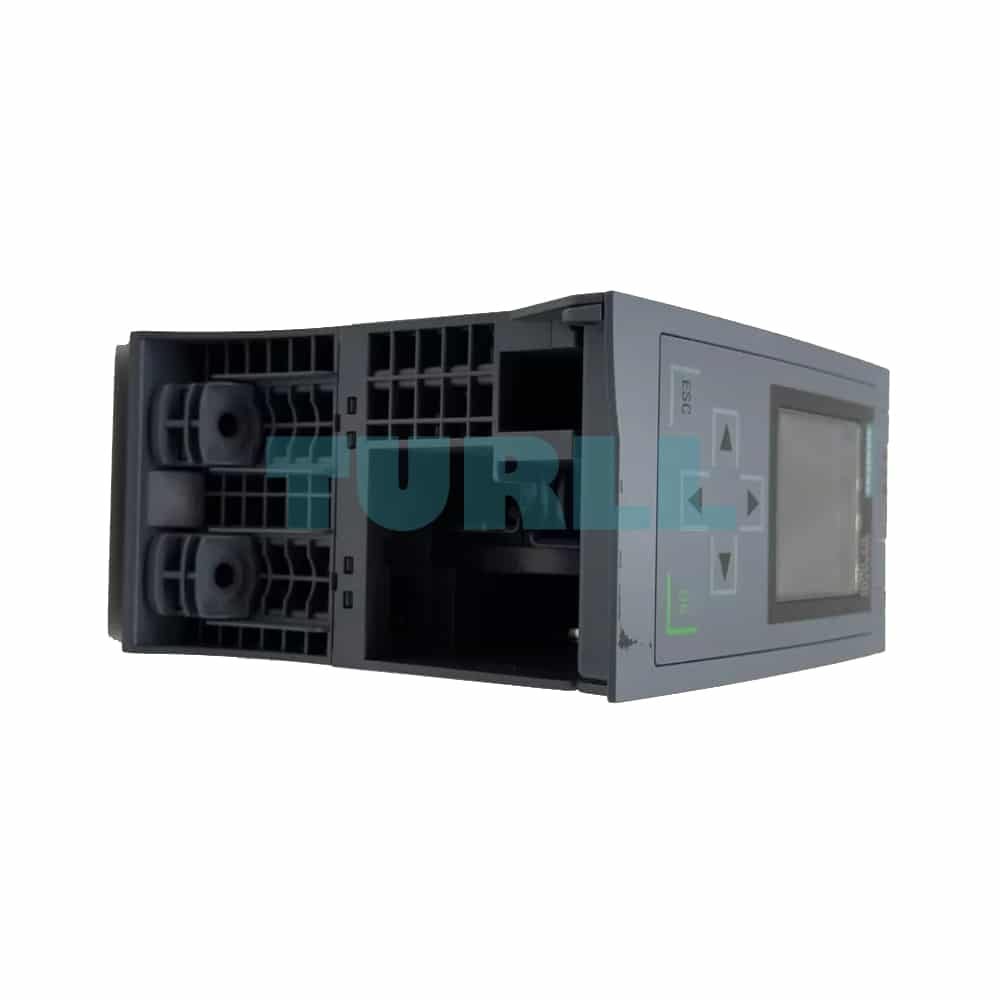

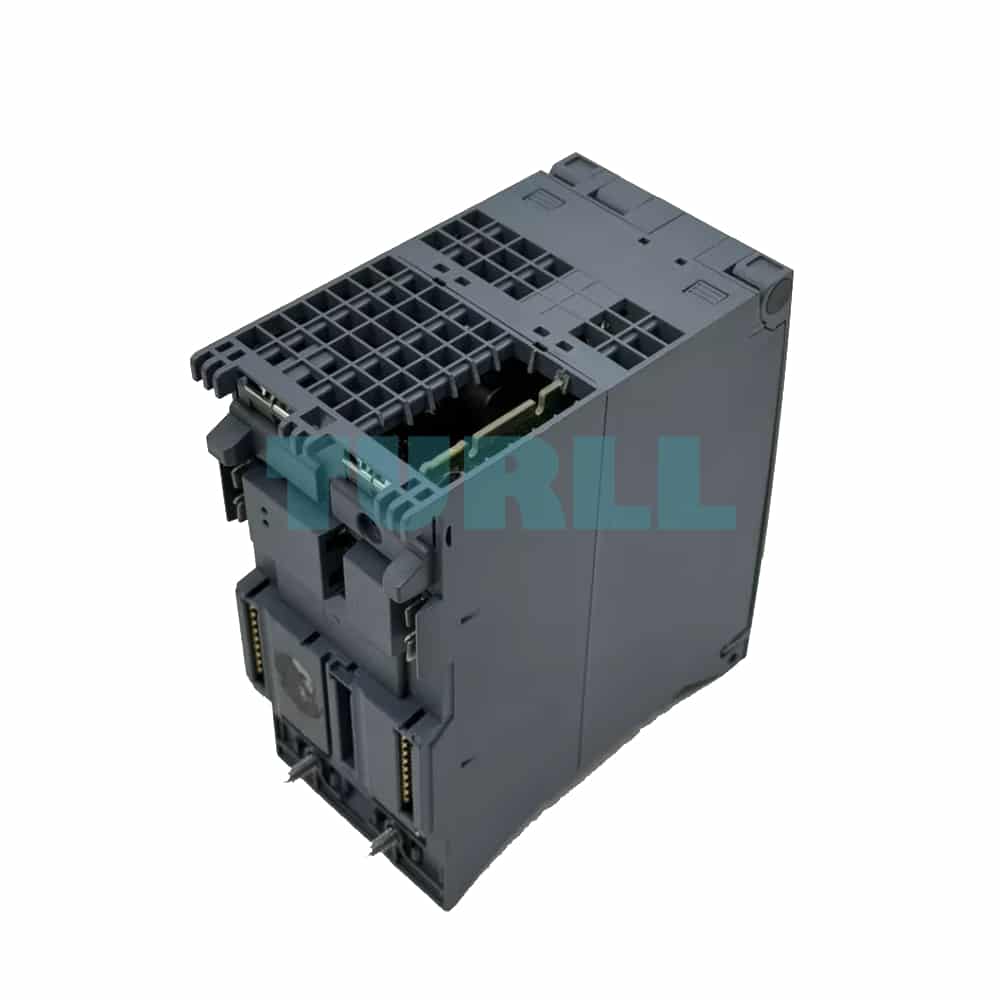

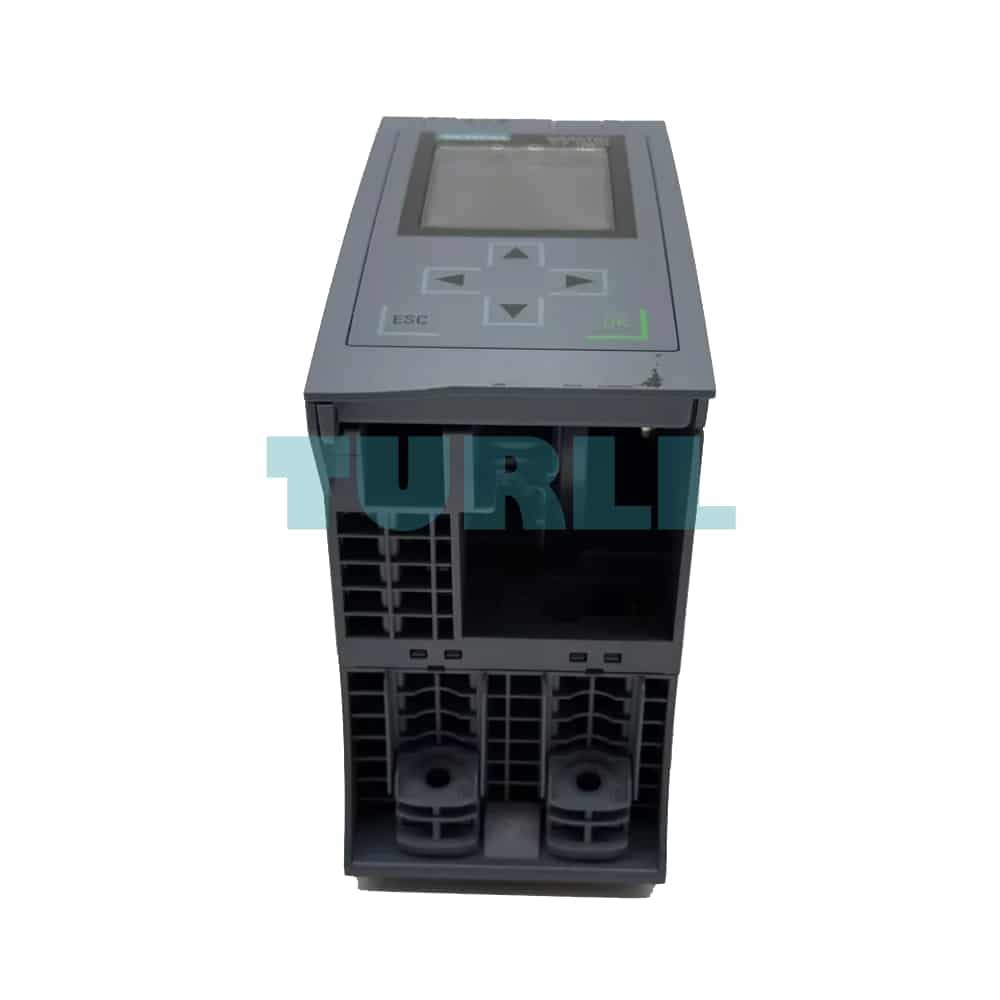

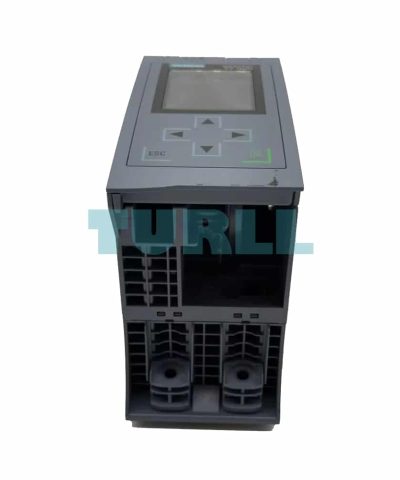

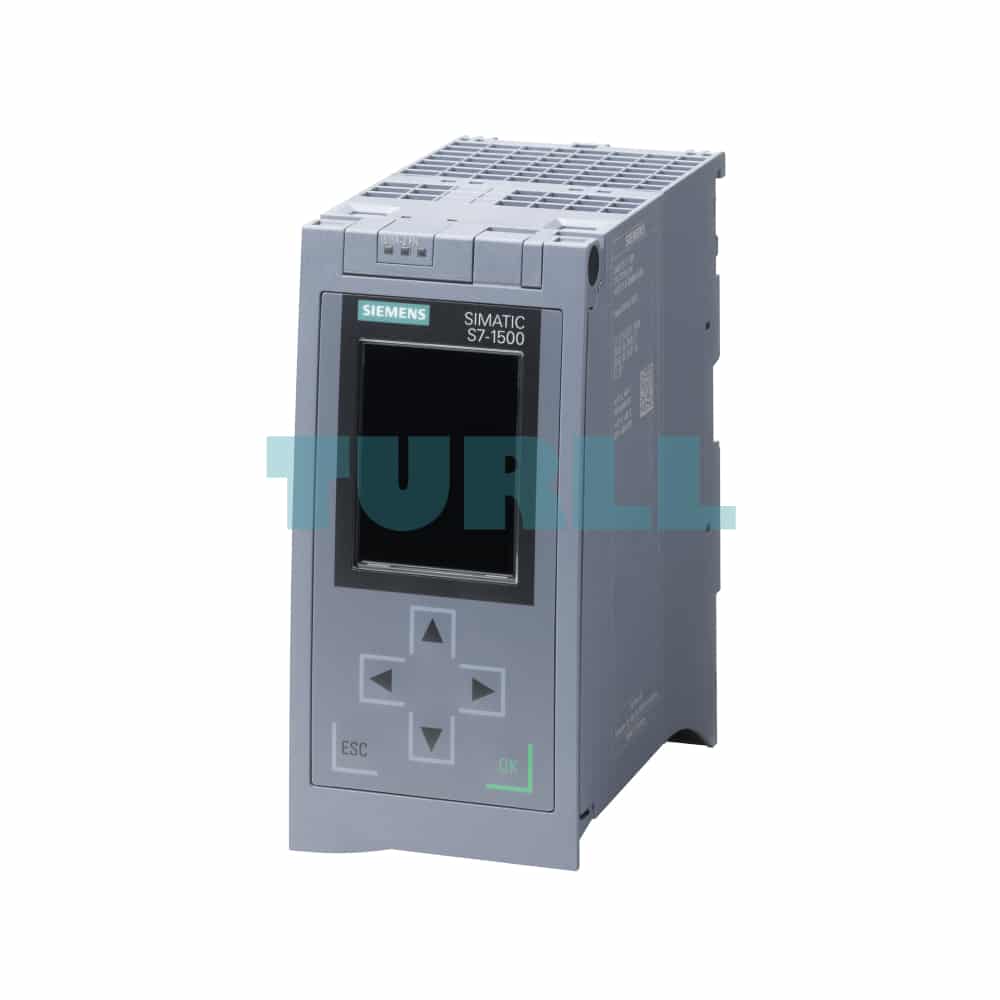

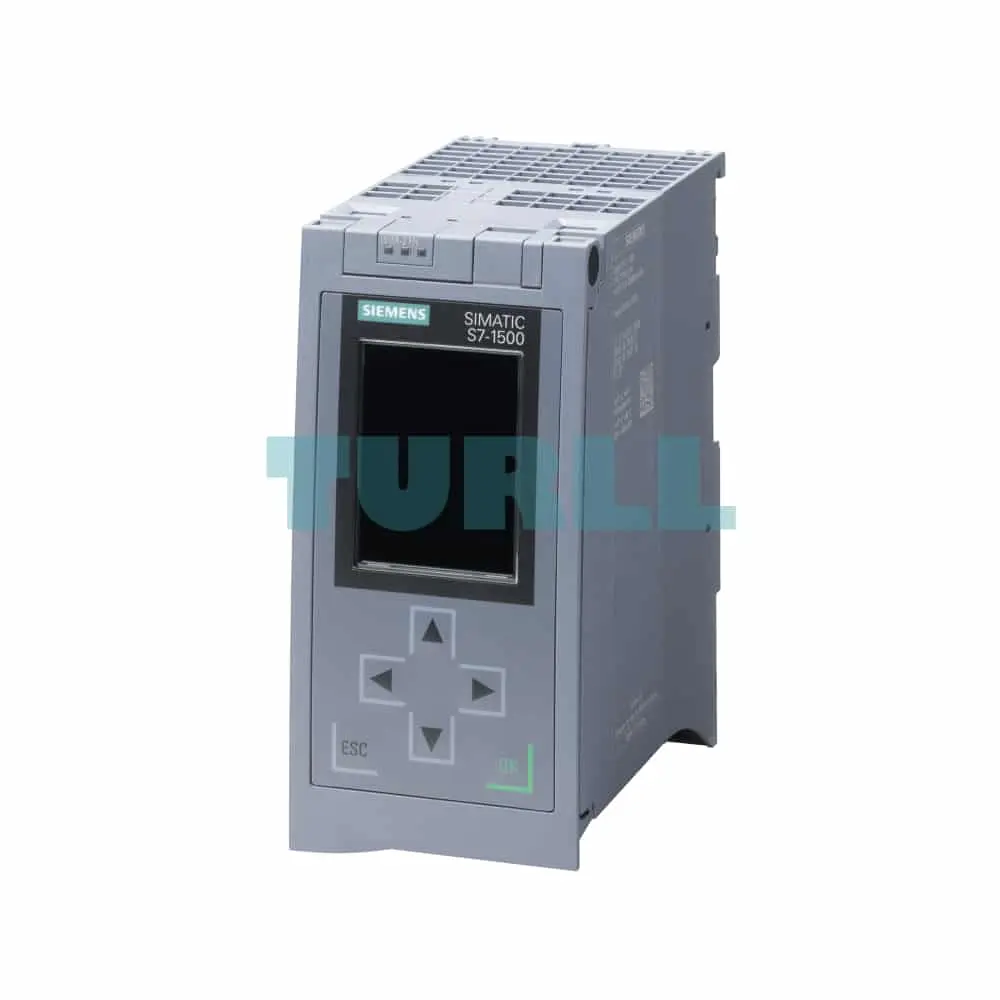

6AG2515-2RM00-4AB0 Siemens SIPLUS S7-1500 CPU 1515R-2 PN TX Rail Original Brand New
$17,165.77
6AG2515-2RM00-4AB0
Siemens SIPLUS S7-1500 CPU 1515R-2 PN TX rail based on 6ES7515-2RM00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), heat sink, no PS usable, central processing unit without display with work memory 500 KB for program and 3 MB for data, 1st interface: PROFINET with 2-port switch, 2nd interface: PROFINET RT, SIMATIC Memory Card required
[ez-toc]
Overview
- The CPU for applications with medium/high requirements for program scope, networking and processing speed, and with increased requirements for availability
- Approved in accordance with the EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 railway standards for use in rail traffic
- High processing speed for binary and floating-point arithmetic
- PROFINET IO RT interface with 2-port switch
- Additional PROFINET interface with separate IP address
- PROFINET IO controller for operating distributed I/O on PROFINET
Note:
SIMATIC Memory Card required for operation of the CPU.
Application
The SIPLUS S7-1500 CPU 1515R-2 PN RAIL is the CPU with a large program and data memory for applications which have higher requirements for availability compared with standard CPUs. It can be used as the PROFINET IO controller. The integrated PROFINET IO RT interface is configured as a 2-port switch, enabling a ring topology required for SIPLUS S7-1500R to be set up in the system. The additional integrated PROFINET interface with separate IP address can be used, for example, for network separation.
Design
The SIPLUS S7-1500CPU 1515R-2 PN RAIL features:
- A powerful processor:
The CPU achieves a command execution time as low as 60 ns per binary command. - Large work memory:
500 KB for program, 3 MB for data - SIMATIC Memory Cards as load memory
- Display with functions for:
- Display of overview information such as station name, higher level designation, location designation, etc.
- Display of diagnostic information
- Display of module information
- Showing display settings
- Setting IP addresses
- Setting date and time
- Displaying operating mode (redundant or non-redundant)
- Displaying status (stop, primary or backup)
- Resetting of CPU to factory settings
- Disabling/enabling the display
- Enabling protection levels
- PROFINET IO RT interface for connecting distributed I/O via PROFINET
Function
- Performance
- Faster command processing, depending on the CPU type, language extensions and new data types
- Even shorter response times of the CPUs due to considerably faster backplane bus
- Powerful network connection:
Each CPU is equipped with PROFINET IO RT (2-port switch) as the standard interface.
- Security Integrated
- Password-based know-how protection against unauthorized read-out and modification of program blocks
- Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted into the CPU.
- 4-level authorization concept:
Communication to the operator panels can also be restricted. - Manipulation protection:
The controller recognizes changed or unauthorized transmissions of the engineering data.
- Design and handling
- Display of overview information:
E.g. Station name, plant identifier, location designation, etc., diagnostic information, module information, display settings. - Possible operations on the display:
set addresses, set date and time, select operating mode of CPU, reset CPU to factory settings, disable/enable display, activate protection levels.
- Display of overview information:
- Integrated system diagnostics
- System diagnostics information is displayed consistently and in plain text in the display, TIA Portal, operator panels and web server, even for messages from the drives, and updated even if the CPU is in STOP mode.
- Integrated in the firmware of the CPU, no special configuration is required
- SIMATIC Memory Card (required for operation of the CPU)
- Used as a plug-in load memory or for updating the firmware.
- Also for storing additional documents or csv files (for recipes and archives)
- Programming of the standard program section
- Programming with STEP 7 V15.1
6AG2515-2RM00-4AB0
Siemens SIPLUS S7-1500 CPU 1515R-2 PN TX rail based on 6ES7515-2RM00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), heat sink, no PS usable, central processing unit without display with work memory 500 KB for program and 3 MB for data, 1st interface: PROFINET with 2-port switch, 2nd interface: PROFINET RT, SIMATIC Memory Card required
Visit 6AG2515-2RM00-4AB0
For more our products visit turll.com
| Weight | 1.314 kg |
|---|---|
| Dimensions | 150 × 154 × 46 mm |
