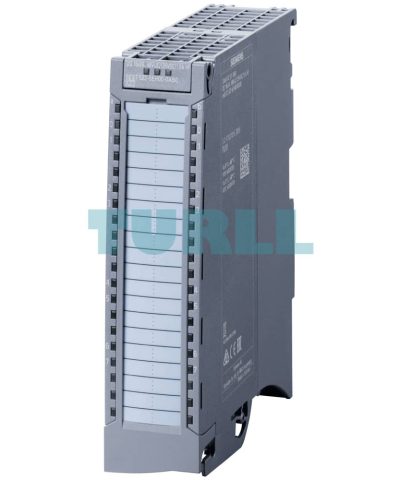

6AG2522-5EH00-4AB0 Siemens SIPLUS S7-1500 DQ 16x110VDC ST TX Rail Original Brand New
$3,375.32
6AG2522-5EH00-4AB0
Siemens SIPLUS S7-1500 DQ 16x110VDC ST TX rail based on 6ES7522-5EH00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), digital output module, 0.5 A; 16 channels in groups of 1, 0.5 A per group; substitute value; observe derating
[ez-toc]
Overview
- 8 and 16-channel digital output modules
- Approved in accordance with the railway standards EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 for use in rail traffic
- For flexible adaptation of the controller to the corresponding task
- For subsequent expansion of the system with additional outputs
Application
Digital output modules switch 24 V DC or 230 V AC voltages in the plant and thus transfer internal signals from the controller to the plant. Solenoid valves, DC contactors, and indicator lights can be connected.
The output modules have settable parameters and diagnostic functions and can thus be adapted flexibly to the respective process requirements.
Design
- Installation on the S7-1500 mounting rail using one single screw
- Standardized 40-pin front connector using screw terminal or push-in technology
- Standardized, harmonized front connector assignment for easier wiring
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16)
- Integrated potential bridges for flexible creation of potential groups
- Front connector can be set to prewiring position
- Front flap with expandable cable compartment, even if fully wired
- Unambiguous labeling on front of module:
- Module type
- Article No.
- Hardware and firmware version
- Channel numbers labeling
- Cabling diagram
Included in the scope of delivery:
- One labeling strip for manual labeling
- One U connector
- Printed front door
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status indicator for signal state log. “0” and log. “1” (green LED) or indication of short-circuit (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- Identification and maintenance data IM0 to IM3
- Firmware update
- Channel-granular parameter assignment (HF modules only)
- Channel-granular diagnostics (HF modules only)
- Isochronous mode (dependent on the module)
- Substitute values can be parameterized for the outputs
6AG2522-5EH00-4AB0
Siemens SIPLUS S7-1500 DQ 16x110VDC ST TX rail based on 6ES7522-5EH00-0AB0 with conformal coating, -40…+70 °C, OT4 with ST1/2 (+85 °C for 10 minutes), digital output module, 0.5 A; 16 channels in groups of 1, 0.5 A per group; substitute value; observe derating
Visit 6AG2522-5EH00-4AB0
For more our products visit turll.com
| Weight | 0.344 kg |
|---|---|
| Dimensions | 149 × 153 × 43 mm |
