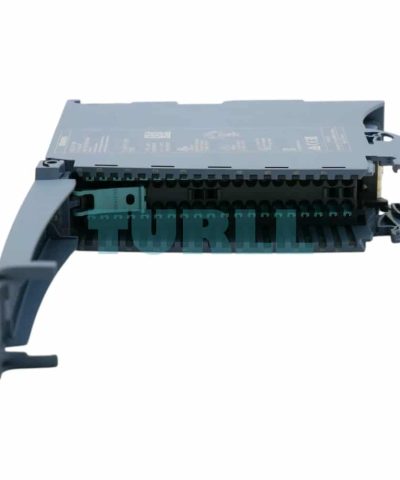

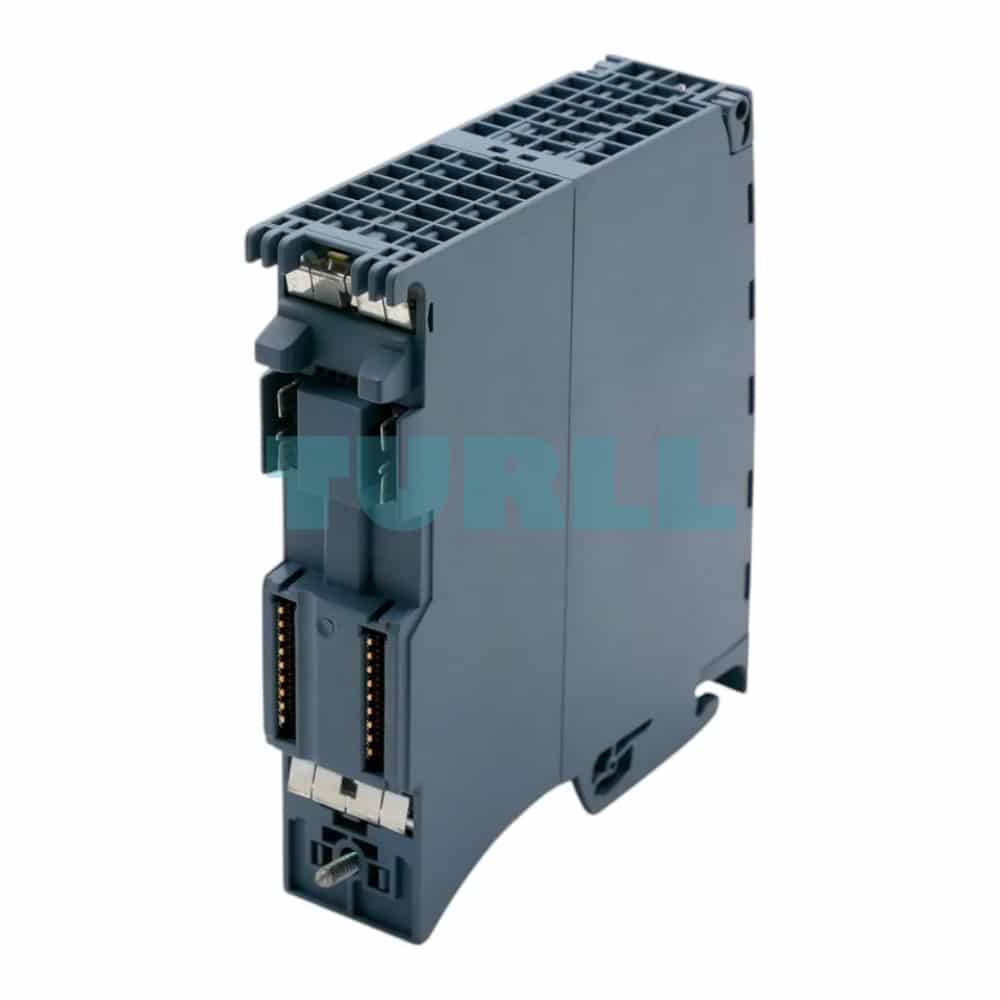

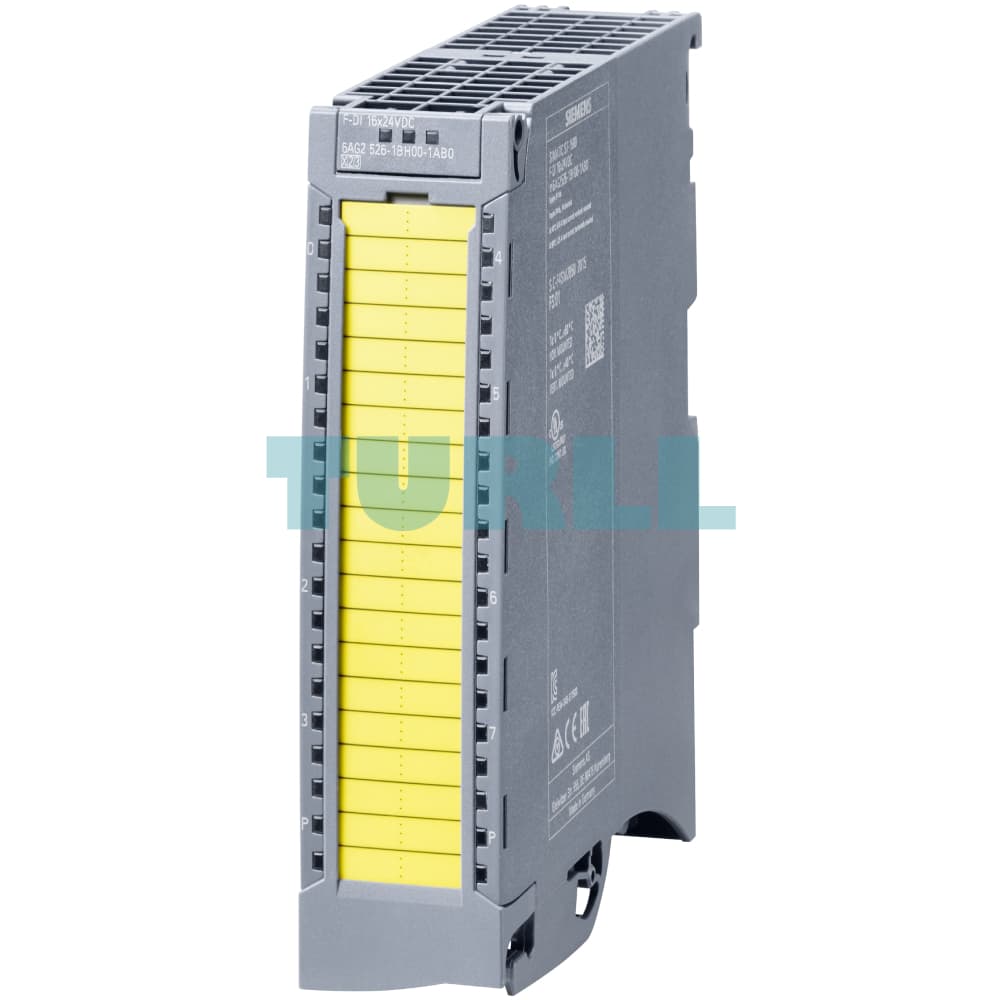

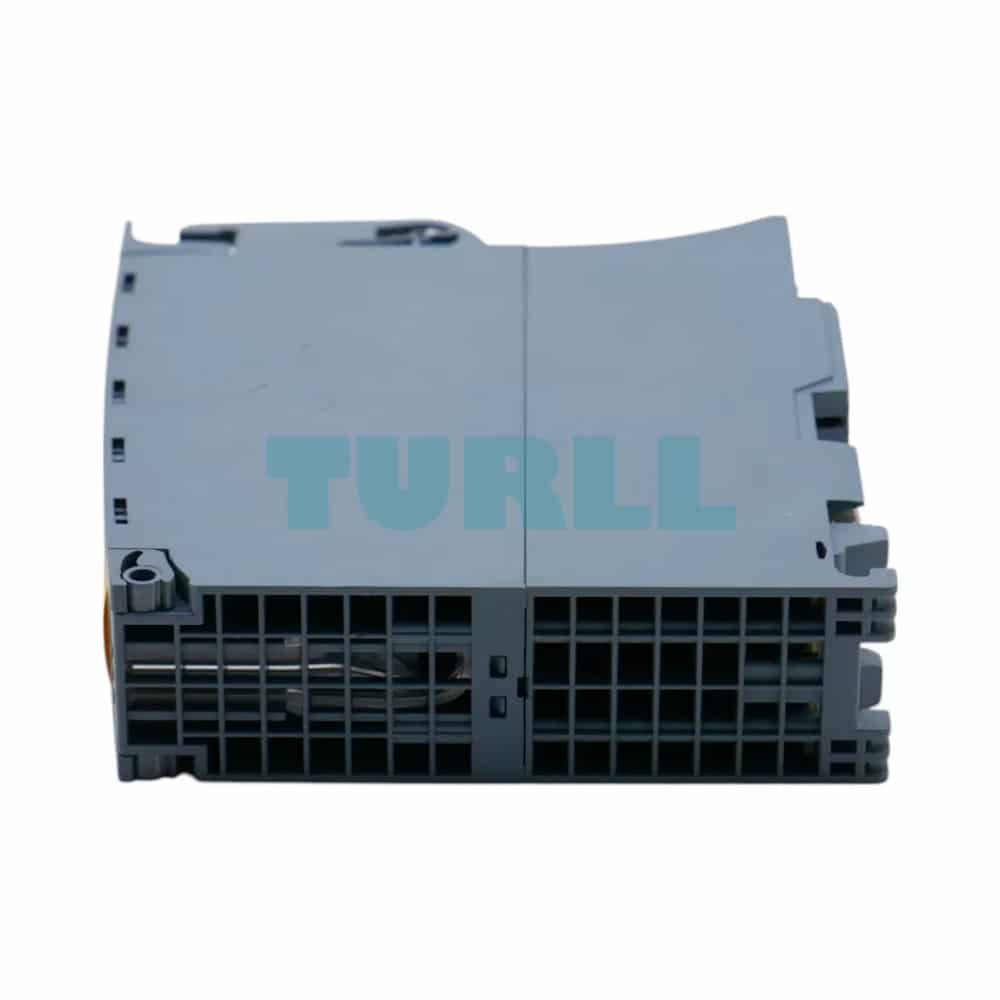

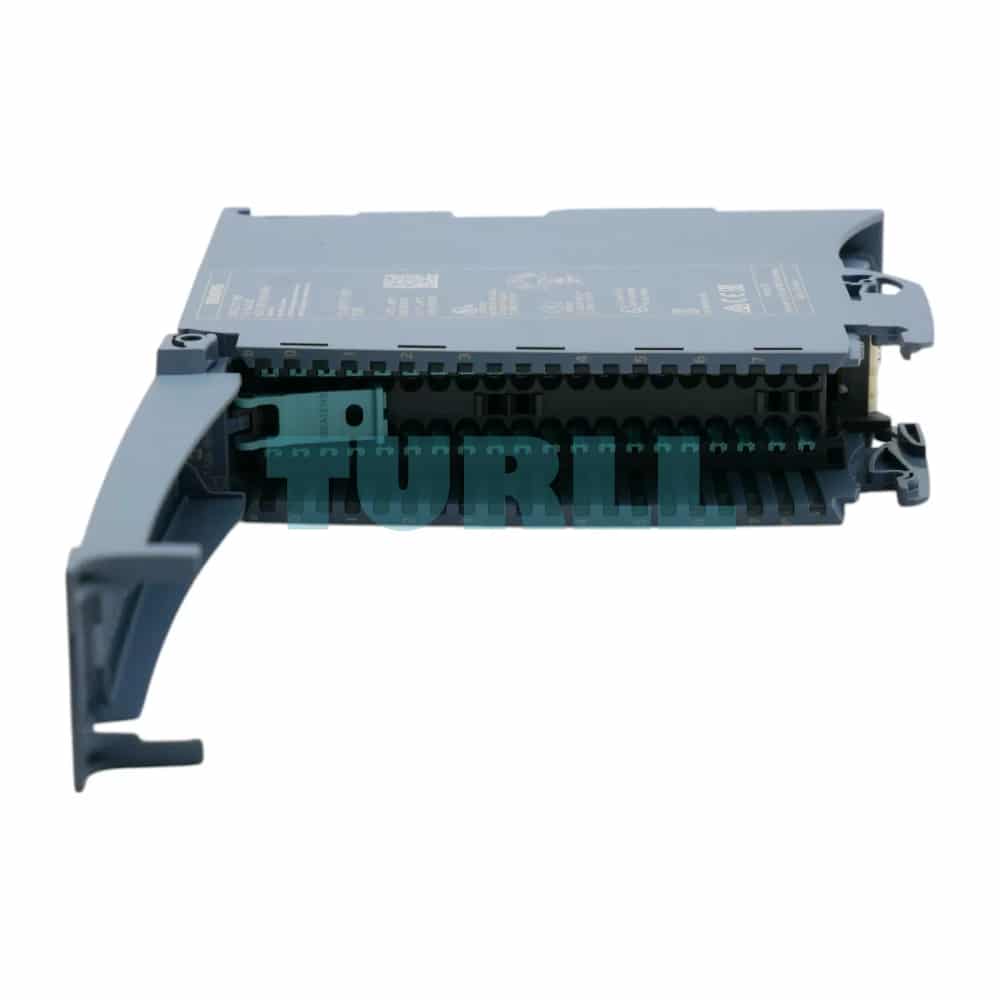

6AG2526-1BH00-1AB0 Siemens SIPLUS S7-1500 F-DI 16x24VDC HF T1 Rail Original Brand New

SIPLUS extreme RAIL digital fail-safe input module:

F-DI 16×24 V DC

Important properties:

• 16-channel fail-safe digital input module for ET 200MP/S7-1500
• Approved in accordance with the railway standards EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 for use in rail traffic
• For fail-safe reading of sensor information (1 or 2 channels)
• Provides integral discrepancy evaluation for 2-out-of-2 signals
• 4 internal sensor supplies (incl. test function) onboard
• Certified up to SIL 3 (IEC 61508), PL e (ISO 13849)
• LED display for error, operation, supply voltage and status
• Clear module labeling
  • Plain text identification of the module type
  • Complete Article No.
  • 2D matrix code (order and serial number)
  • Connection diagram
  • Hardware and firmware version
• Optional labeling accessories
  • Labeling sheets, yellow
• The modules support PROFIsafe in both PROFIBUS and PROFINET configurations. Can be used with all fail-safe SIPLUS extreme RAIL S7-1500 F-CPUs in the central configuration, as well as with all other SIPLUS extreme RAIL S7 F-CPUs, as an ET 200MP distributed I/O.
