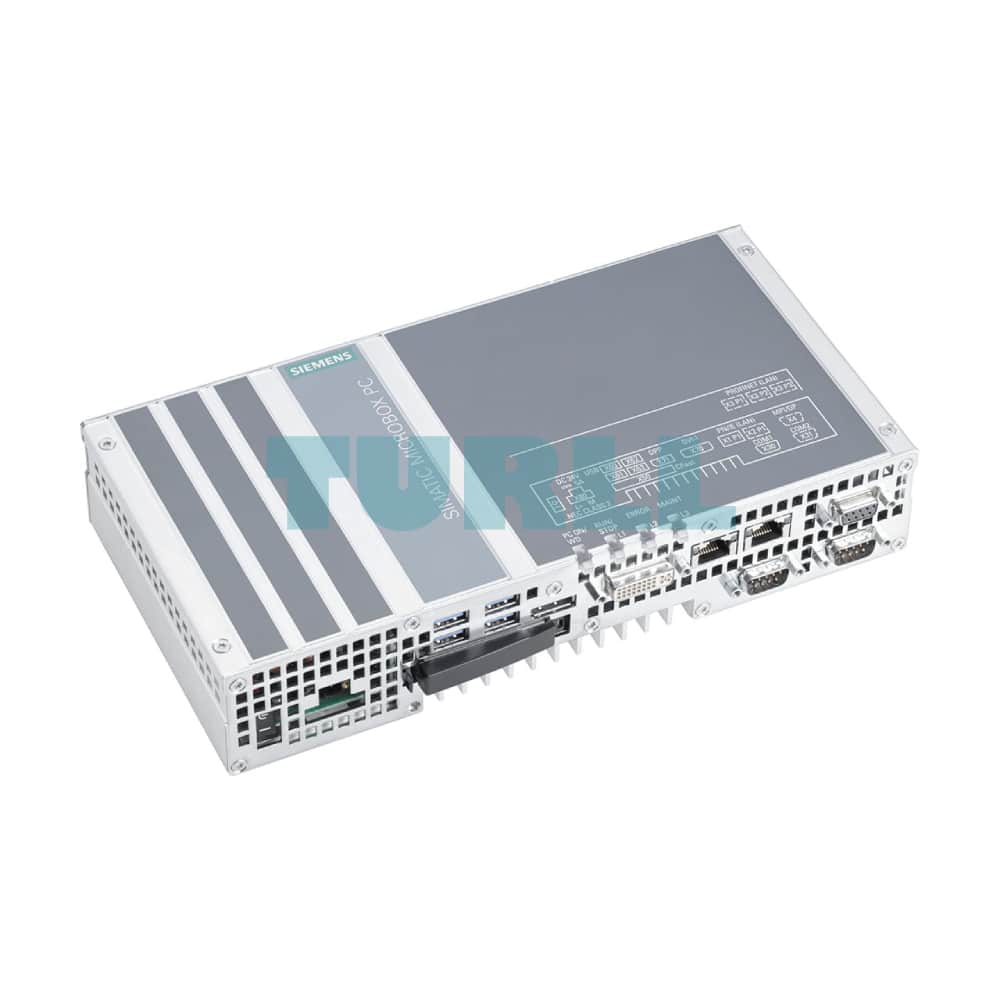

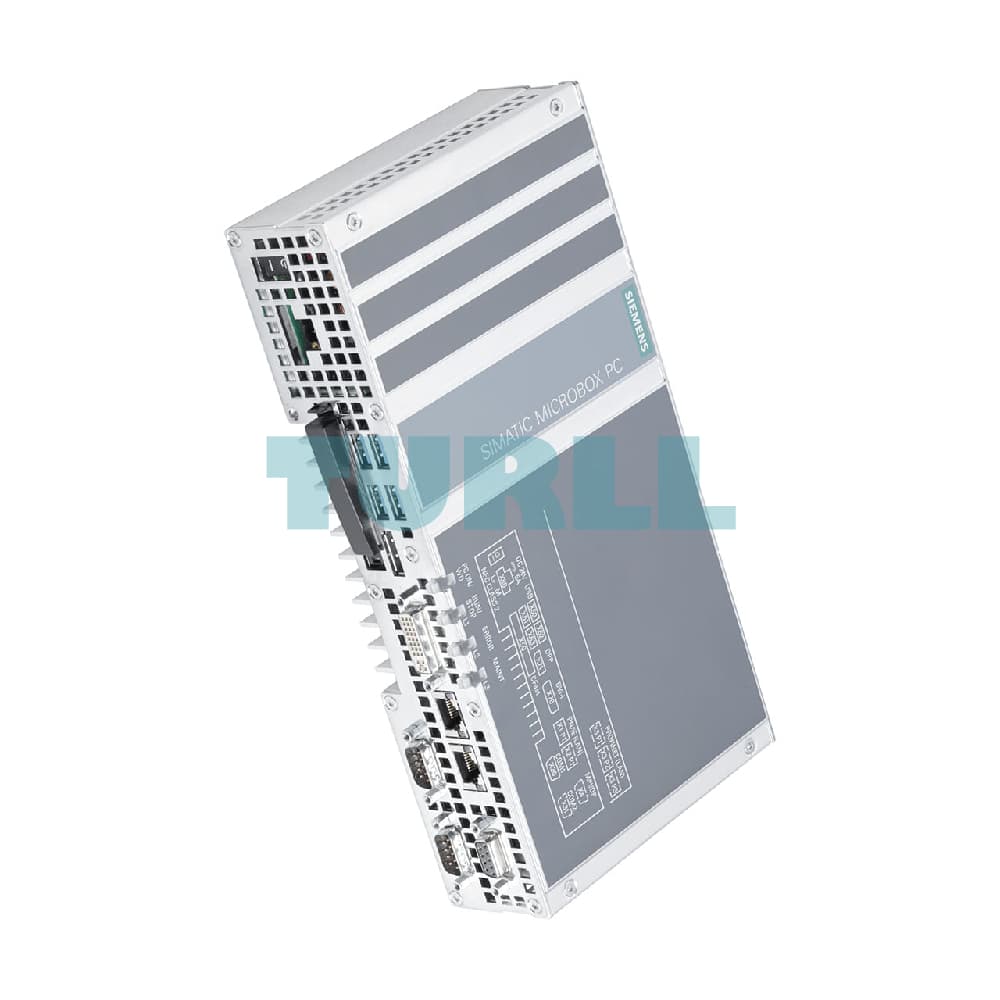

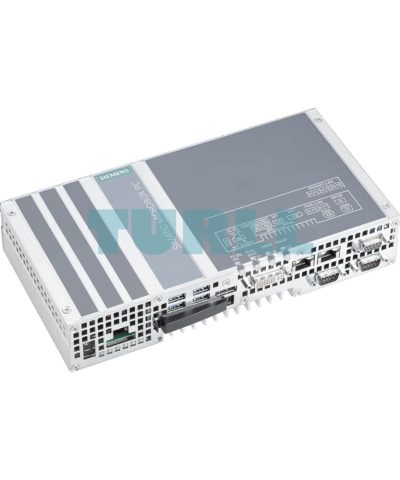

6AG4141-1AA17-0FA0 Siemens SIMATIC IPC427E Microbox PC Original Brand New

The SIMATIC IPC427E Microbox PC is a high-performance, compact PC platform for machine-related and process-related applications in industrial environments. All interfaces for communication are integrated via Ethernet.

The SIMATIC IPC427E Microbox PC is available with the Microsoft Windows 10 IoT Enterprise operating system.

The licenses for the SINUMERIK Operate operating software and the PCU base software must be ordered separately.

• High productivity for data acquisition and data processing thanks to high-performance Intel Atom/Xeon processor technology
• Extremely compact for space-saving installation in all installation and mounting positions
• Outstanding industrial functionality due to the utilization of solid-state drive for mass storage
• High system availability reduces failures due to robustness (highly resistant against vibrations and shocks), low maintenance costs
• Maximum investment security due to extended period of service and support

• Intel Dual Core/Intel Quad Core processor technology:
  • SIMATIC IPC427E with Microsoft Windows 10 Enterprise LTSB 2016/LTSC 2019, 64 bit or Microsoft Windows 10 IoT Enterprise LTSC 2019, 64 bit

    Standard performance: Intel Celeron G3902E 2 MB cache/1.60 GHz/4 GB DDR4 SDRAM

    High performance: Intel Core i5-6442EQ, 6 MB cache/up to 2.70 GHz/8 GB DDR4 SDRAM

  • With internal solid-state drive, 240 GB or 480 GB.

Now also available with preinstalled PCU base software.

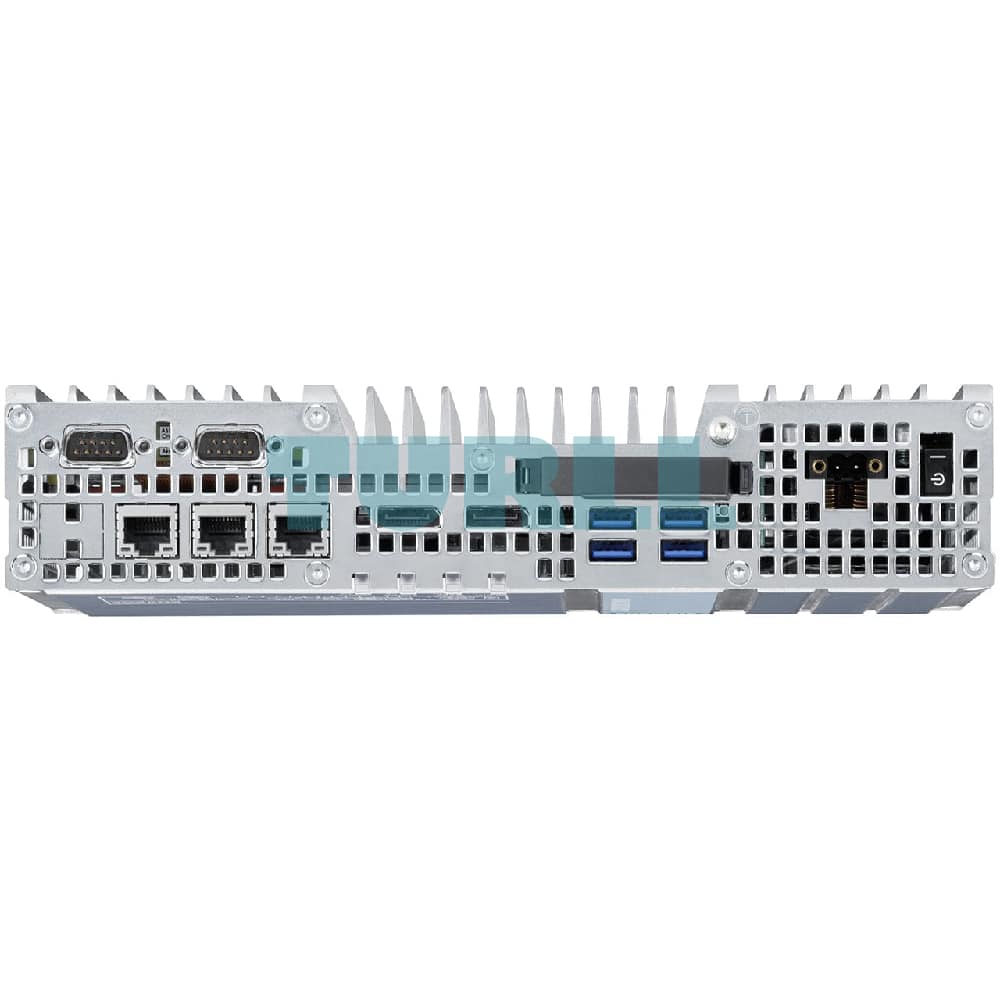

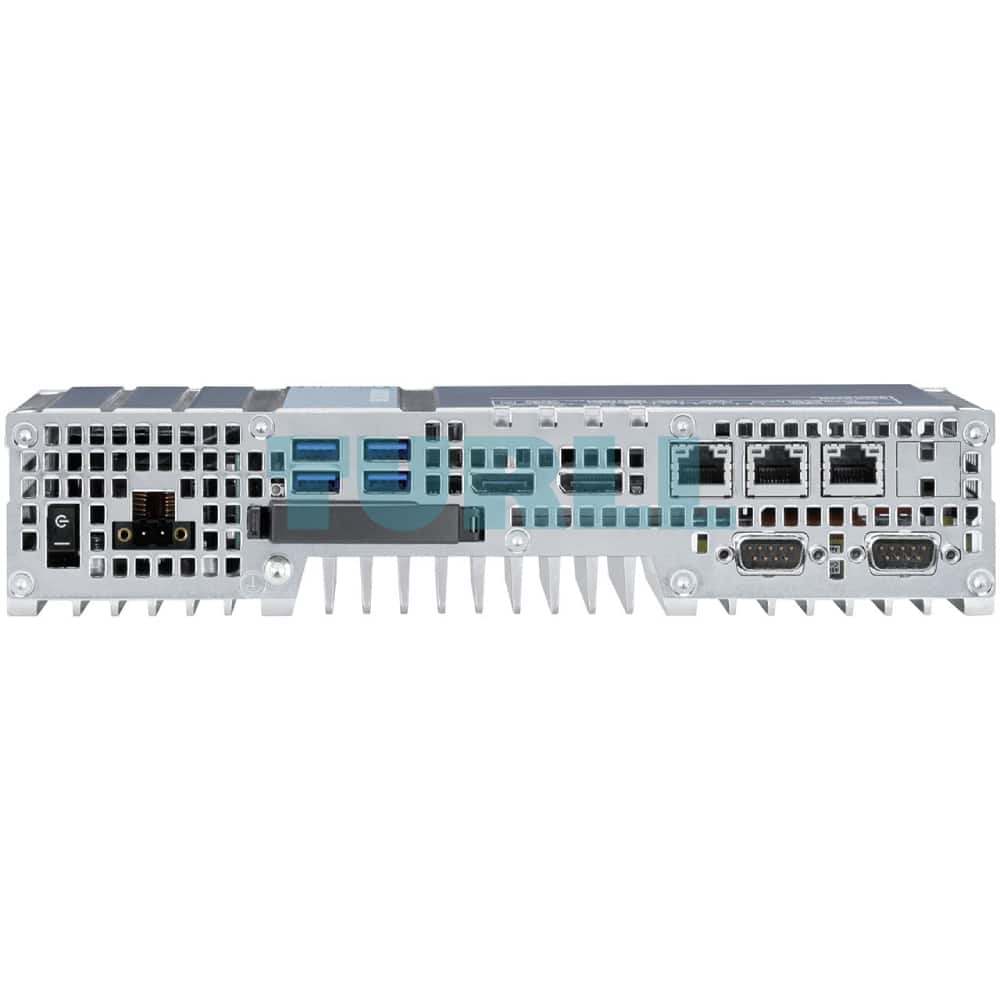

Interfaces (accessible from one side):

• 3 × Industrial Ethernet 10/100/1000 Mbps (RJ45 socket)
• 4 × USB 3.0
• 2 × DisplayPort

• Integrated, parameterizable monitoring functions
• Enhanced reporting (diagnostics/messages) via Ethernet, email, sms text messages

SIMATIC IPC427E can be used for:

• SINUMERIK 840D sl:
  • With CNC control SINUMERIK NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN
  • With SINUMERIK Operate user software, software version 4.8 SP1 and higher
• SIMATIC Flat Panels IFP1500/IFP1900/IFP2200/IFP2400
• SINUMERIK operator panel fronts OP with TCU 30.3 (connection via Ethernet), optionally with the HT 8 handheld terminal
