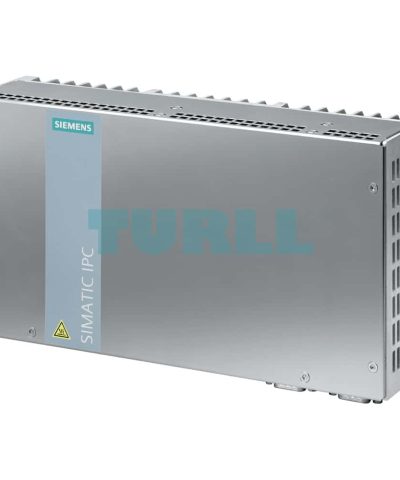

6AG4152-3GA10-0AA1 Siemens SIMATIC IPC BX-32A HD Original Brand New

SIMATIC IPC BX-32A

SIMATIC IPC BX-32A: The cost and function-optimized alternative to SIMATIC IPC BX-39A
Turnkey overall solution:

• Ultra-compact
• Maintenance-free
• Intel CPU technology of the 11th generation

High data processing speed for high productivity:

• Up to Intel® Xeon®, fanless
• DDR4 memory technology up to 32 GB

Maximum compactness and ruggedness for use directly on the machine:

• Low mounting depth, ambient temperature up to 50 °C

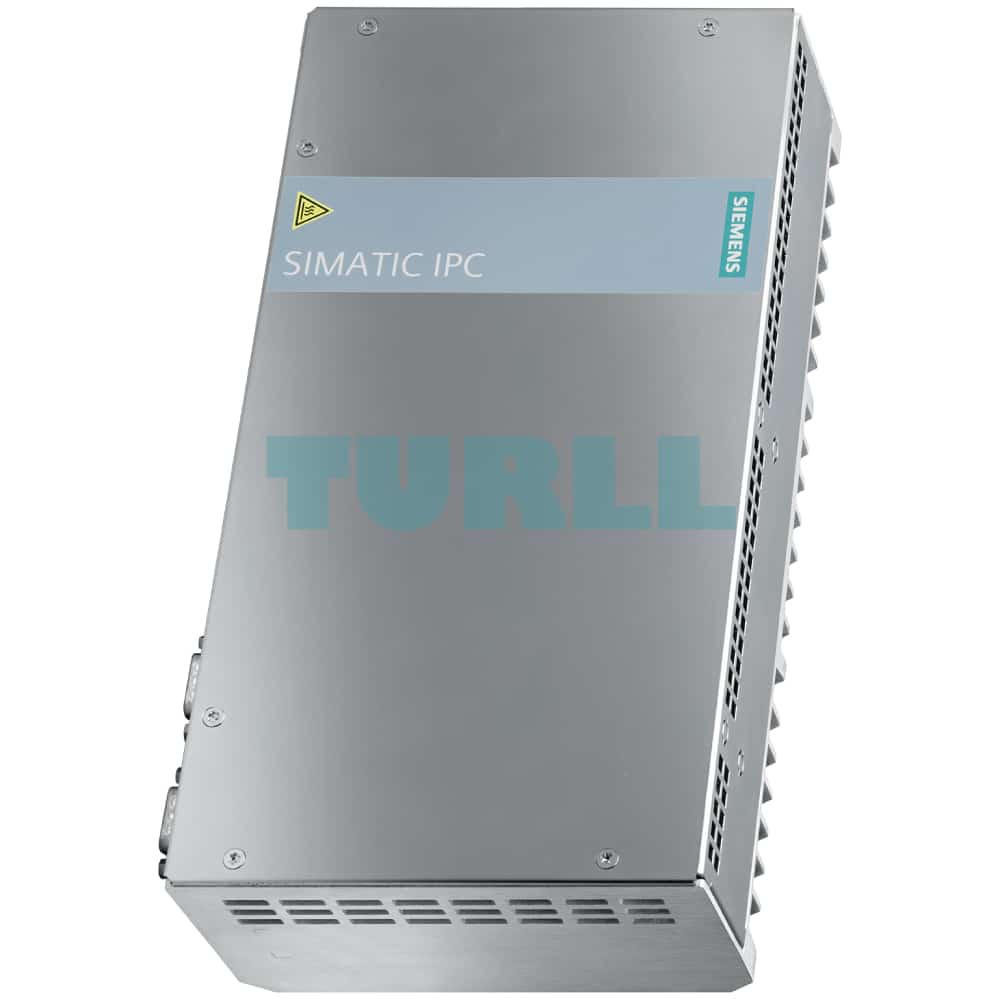

• Front portrait mounting as second standard mounting position
• 256 GB or 512 GB solid-state drive (SSD)

High degree of industrial functionality and flexibility for implementing the embedded solution

• 2 x LAN 10/100/1000 Mbps connections
• PROFINET interface onboard
• 4 x high-speed USB 3.2 Gen2 ports; up to 4 serial interfaces (optional)
• Flexible installation and mounting options (DIN rail, wall, portrait mounting)
• Easy expandability (1 x PCIe slot, 1 x M.2 slot)
• On-off switch

High system availability in order to reduce the risk of potential failures and maintenance costs:

• Maintenance-free since no rotating parts (fans, hard disks) and operation without battery possible
• System-tested SIMATIC Software

High investment security in order to reduce engineering costs:

• Long-term availability: Service and support period of 8 to 10 years after market launch

SIMATIC IPC BX-32A provides machine, plant and control cabinet builders with a high-performance, compact PC platform for use at machine or process level, or in the industrial environment for:

• Measuring and checking, open-loop and closed-loop control of process and machine data
• Acquisition, further processing and visualization of data
• All applications at the machine level, created in C/C++ or with Software Controller/WinCC RT Advanced, which require rugged, ultra-compact IPCs with high computing power
• Additional new applications such as shipbuilding, building automation, water treatment

The application spectrum ranges from automation computers fully integrated in TIA to C/C++-based automation solutions and all the way to “standalone” applications for general IT applications.

SIMATIC IPC BX-32A has the CE marking for use in industrial applications as well as in domestic, business and commercial environments. It can therefore also be used in building automation systems or in public facilities.
Due to the fanless design and use of an SSD, there are no rotating parts, which increases system availability.

Basic design

• All-metal enclosure, resistant to vibrations and shocks, also with high electromagnetic compatibility
• Graphics onboard, 2 x DisplayPort
• Optical drives can be connected externally via USB interface, not included in scope of supply
• Interfaces (accessible from one side):
  • 2 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
  • 4 x high-speed USB 3.2 Gen2
  • Up to 4 x COM (RS232/RS485/RS422)
• Vacant slots (when using the variant with one expansion slot):
  • Up to 1 x PCIe card
  • 1 x M.2 card (internal)
• Wide-range power supply: 9 to 36 V DC

Equipment variants

• Processor:
  • Intel® Celeron® 6600HLE 2 cores/2 threads, 2.1 GHz, 8 MB cache, TCC
  • Intel® Xeon® W-11155MLE 4 cores/8 threads, 1.8 (3.1) GHz, 8 MB cache, ECC, TCC
• Main memory capacity 4 GB (8/16/32 GB optional), DDR4 SDRAM
• Fieldbus
  • PROFINET onboard, 2 x RJ45
• Hardware expansion:
  • Up to 4 x onboard RS232/RS485/R5422 interfaces (COM)
• Drives:
  • 256 GB or 512 GB solid-state drive, rugged alternative to hard disk
• Preinstalled operating systems:
  • Windows 10 IoT Enterprise 2021 LTSC, 64-bit

Integrated interfaces:

• Ethernet
  The four integrated Gigabit Ethernet interfaces (10/100/1000 Mbps) can be used for IT communication and for data exchange with programmable controllers such as SIMATIC S7 (with the “SOFTNET S7” software package).
• PROFINET
  The PROFINET interface can be used for connecting distributed field devices or for controlling drives.
• Further interfaces
  One free slot for a PCIe module, 4 high-speed USB 3.2 interfaces, and up to 4 serial interfaces are available for connecting additional I/O devices.
