6AU1820-2AA20-0AB0 Siemens SIMOTION Technology Option TControl License Original Brand New

Runtime licenses for SIMOTION C and D

For SIMOTION C and D, licenses for runtime software can be ordered individually or as pre-installed software (by order code/Z option) on memory card.

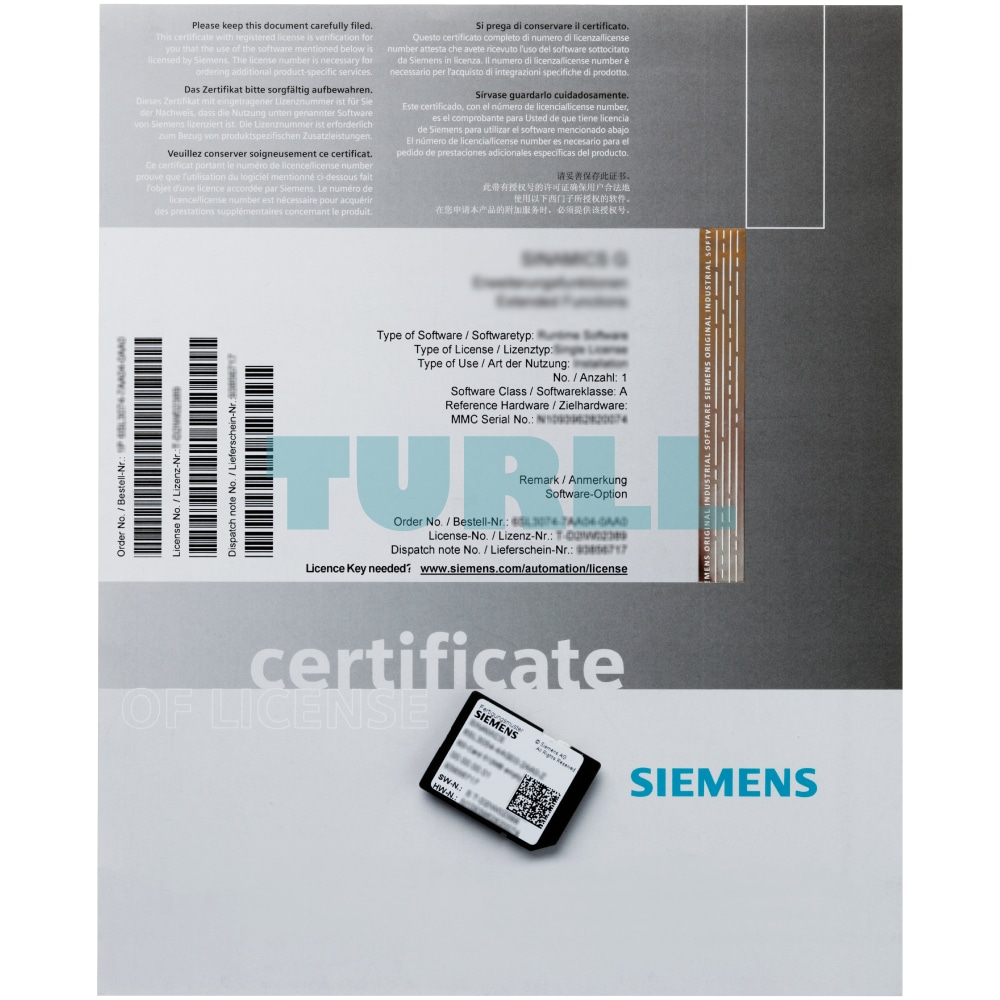

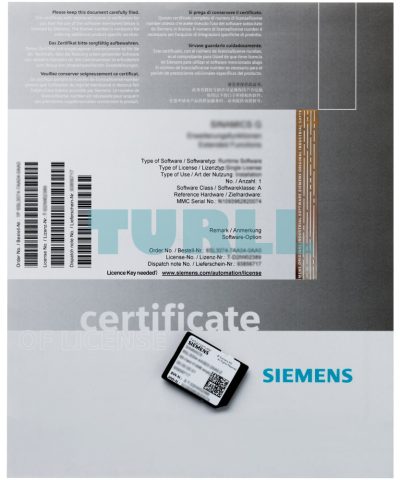

In both cases, the license certificate is enclosed.

Ordering individual licenses

The article numbers can be found in column “Single-user license” in the ordering data table.

If several licenses of the same type are needed, e.g.
3 × POS license, the article number must be repeated for each license.

Example:

A 2 GB CompactFlash card for SIMOTION D4x5-2 has been purchased, but without pre-installed runtime licenses. During the configuring process with SIMOTION SCOUT, a message is displayed to indicate that the following runtime licenses are needed: 1 × POS axis license, 1 × TControl license.

The ordering data table specifies the following:

• POS axis license: 6AU1820-1AA20-0AB0
• TControl license: 6AU1820-2AA20-0AB0

The required software options are assigned to hardware (memory cards) by generating a license key over the Internet at.
Homepage:  http://www.siemens.com/automation/license

Ordering pre-installed licenses

To order pre-installed licenses on memory card, the type and number of required licenses must be specified in the order using order codes (Z options). These order codes are added to the article number for the SIMOTION memory card.

Step 1: The article number of the SIMOTION memory card must be stated first:

• Memory card for SIMOTION C:
  Micro memory card 64 MB: 6AU1720-1KA00-0AA0
• Memory card for SIMOTION D410-2:
  CompactFlash card 2 GB: 6AU1400-1QA20-0AA0
• Memory card for SIMOTION D4x5-2:
  CompactFlash card 2 GB: 6AU1400-2QA20-0AA0

Step 2: The following order codes must be stated in order to specify the type and quantity of required runtime licenses:

Each order code begins with the characters “-Z” and is listed in the column headed “Order codes for pre-installed licenses” in the ordering data table.

Example 1:

64 MB micro memory card for SIMOTION C240 with

• MultiAxes Package license for SIMOTION C2xx:

Article No.: 6AU1720-1KA00-0AA0 -Z M24

Example 2:

2 GB CompactFlash card for SIMOTION D4x5-2 with

• 3 POS licenses
• 2 CAM licenses
• 1 TControl license and
• 1 SINAMICS Safety Integrated Extended Functions license:

Article No.: 6AU1400-2QA20-0AA0 -Z P03 + C02 + T01 + F01

Configurator for runtime licenses

An electronic ordering configurator is available in the Industry Mall for ordering SIMOTION hardware with corresponding runtime licenses.

Homepage: http://www.siemens.com/industrymall

This will guide you step by step through the process of selecting and ordering SIMOTION hardware with pre-installed runtime licenses.
