6AV2124-0QC02-0AX2

6AV2124-0QC02-0AX2 Siemens SIMATIC HMI TP1500 Comfort Original Brand New

Enlarge

Original price was: $9,576.27.Current price is: $3,281.52.

USD

In warehouse stock

Dispatches in 1–3 days

Condition: Original brand new
Warranty: 12 months

Need volume pricing? Request a quote

Review shipping and applicable charges at checkout. Dispatch time excludes transit.

Select a configuration to check its price, availability and supply terms.

Send your model and quantity. We will confirm the price and lead time.

Specifications & documents ↓

Ask about this model on WhatsApp

Payments, shipping & warranty

PayPal
Bank transfer

See available methods at checkout.Payment guide →

PRODUCT DATA

Specifications

Check the full model number and every required specification.

Listed product specifications
SKU / model	6AV2124-0QC02-0AX2
Weight for shipping	5.460 kg
Dimensions for shipping	445.00 × 600.00 × 175.00 mm

No public document is linked for this model.

Ask for technical documentation

Description

[ez-toc]

Overview

SIMATIC HMI Comfort Panels – Standard devices

Excellent HMI functionality for demanding applications
Widescreen TFT displays with 4″, 7″, 9″, 12″, 15″, 19″ and 22″ diagonals (all 16 million colors) with up to 40% more visualization area as compared to the predecessor devices
Integrated high-end functionality with archives, scripts, PDF/Word/Excel viewer, Internet Explorer, Media Player and Web Server
Dimmable displays from 0 to 100% via PROFIenergy, via the HMI project or via a controller
Modern industrial design, cast aluminum fronts for 7″ upwards
Upright installation for all touch devices
Data security in the event of a power failure for the device and for the SIMATIC HMI Memory Card
Innovative service and commissioning concept
Maximum performance with short screen refresh times
Suitable for extremely harsh industrial environments thanks to extended approvals such as ATEX 2/22 and marine approvals
All versions can be used as an OPC UA client or as a server
Key-operated devices with LED in every function key and new text input mechanism, similar to the keypads of mobile phones
All keys have a service life of 2 million operations
Configuring with the WinCC engineering software of the TIA Portal engineering framework

Note:

A 7″ and a 15″ Comfort Outdoor version are available. These devices have been specially designed for outdoor applications in difficult environments. Best display quality, even under sunlight, UV-resistant fronts and much more.

Benefits

Integral component of Totally Integrated Automation (TIA):
Increased productivity, minimum engineering overhead, reduction in life-cycle costs
- Can also be used in a vertical position where installation space is restricted (all touch devices)
Reduction of service and commissioning costs due to:
- Short configuring and commissioning times through efficient engineering and fast project downloading
- Automatic backup via optional SIMATIC HMI memory card
- Long service life of the backlighting
- Maintenance-free design
- Data security in the event of a power failure
Simple and user-friendly representation of process values thanks to, for example, input/output fields, graphics, trend curves, bar charts, text and bitmaps
Graphics library is available with preconfigured screen objects
Can be used worldwide:
- 32 online languages (incl. Asian and Cyrillic character sets) can be configured
- Up to 32 languages can be switched online
- Language-dependent texts and graphics
Standard hardware and software interfaces for increasing flexibility and for saving on additional hardware:
- PROFIBUS and PROFINET onboard (with 7″ and above, two PROFINET ports with integrated switches, with 15″ and above additional interface with gigabit support)
- Two SD card slots for storing archives, user data and for automatic backup
- USB host interfaces for connecting USB flash drive, keyboard, mouse and printer
- With 7″ and above, audio out interface for use with the integrated media player
- Standard Windows storage formats (CSV) for archives and recipes permit further processing with standard tools (e.g. Microsoft Excel)
- Sm@rtServer for remote access between different SIMATIC HMI systems or mobile end devices

Application

The SIMATIC HMI Comfort Panels can be used wherever machines and plants are controlled and monitored locally – in production, process and building automation alike. They may be used in all kinds of industries and applications. They are ideally suited to demanding visualization tasks, and due to the integrated functionality, the right device can be selected for every application.

Design

KTP400 Comfort

4.3″ widescreen TFT display, resolution 480 x 272, 16 million colors
1 PROFINET and 1 PROFIBUS interface
Touch screen and membrane keyboard with 4 tactile function keys
Innovative successor to the TP 177B Touch Panels 4″

KP400 Comfort

4.3″ widescreen TFT display, resolution 480 x 272, 16 million colors
1 PROFINET and 1 PROFIBUS interface
Membrane keyboard with 8 tactile function keys and system keyboard
Innovative successor to the Operator Panels OP77B

TP700 Comfort

7.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Touch screen
Innovative successor to the TP 177B/TP 277 Touch Panels and to the Multi Panel MP 177 6″

KP700 Comfort

7.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Membrane keyboard with 24 function keys and system keyboard
Innovative successor to the OP 177B/OP 277 6″ Operator Panels

TP900 Comfort

9.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Touch screen
Innovative successor to the Multi Panel MP 277 8″ Touch

KP900 Comfort

9.0″ widescreen TFT display, resolution 800 x 480, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Membrane keyboard with 26 function keys and system keyboard
Innovative successor to the Multi Panel MP 277 8″ Key

TP1200 Comfort

12.1″ widescreen TFT display, resolution 1280 x 800, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Touch screen
Innovative successor to the Multi Panel MP 277 10″ Touch

KP1200 Comfort

12.1″ widescreen TFT display, resolution 1280 x 800, 16 million colors
1 PROFINET (2 ports with integrated switch) and 1 PROFIBUS interface
Membrane keyboard with 34 function keys and system keyboard
Innovative successor to the Multi Panel MP 277 10″ Key

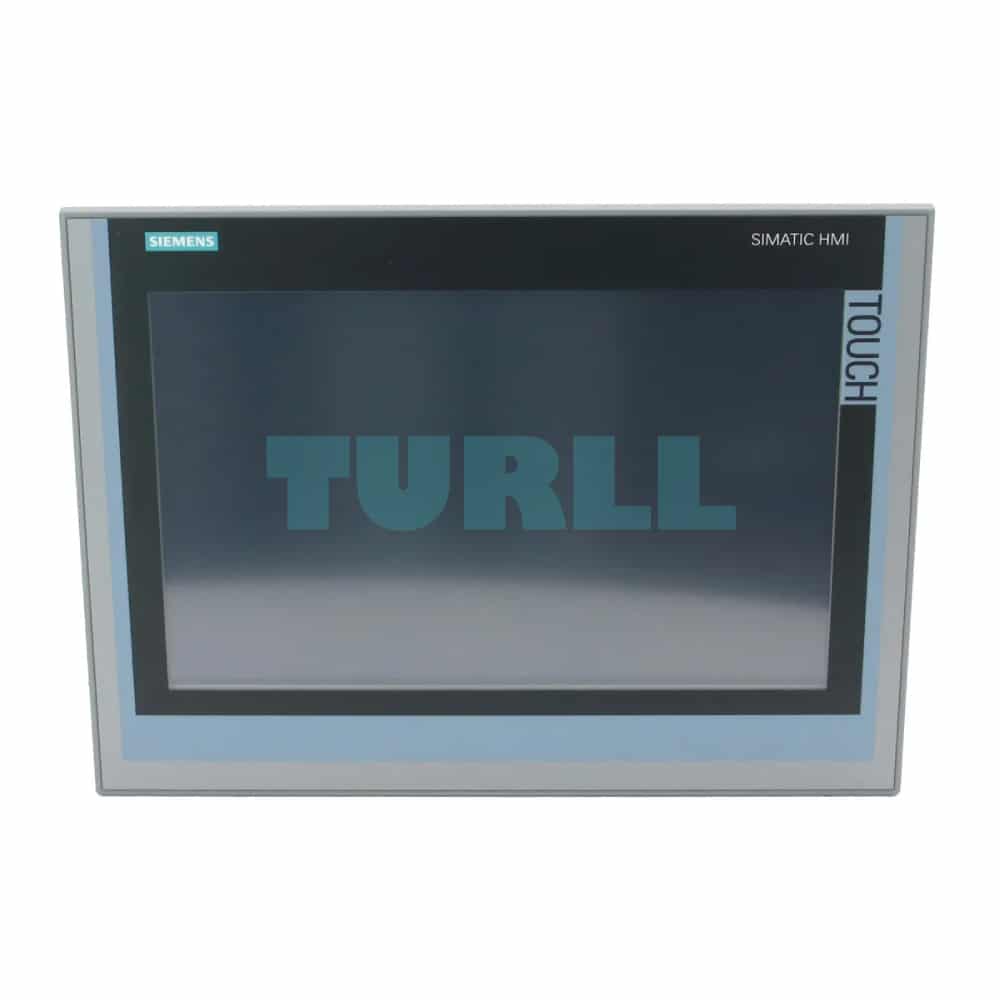

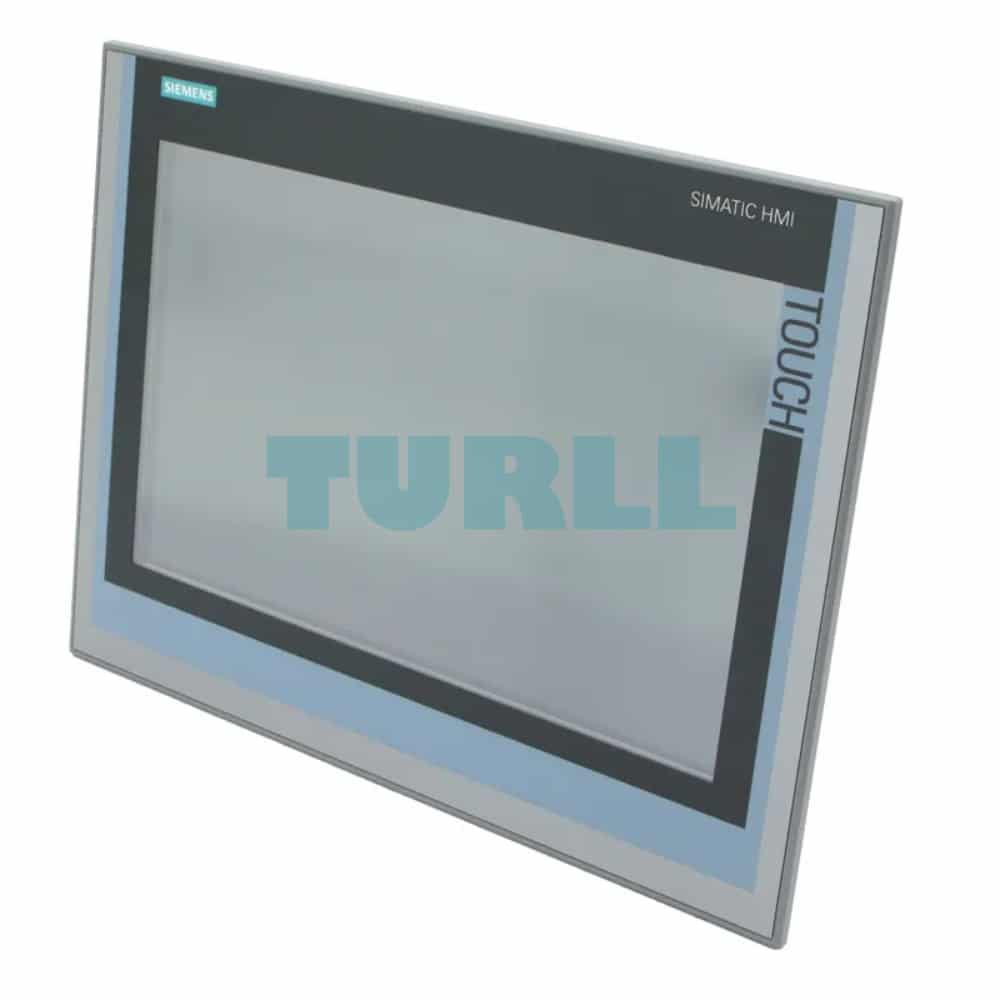

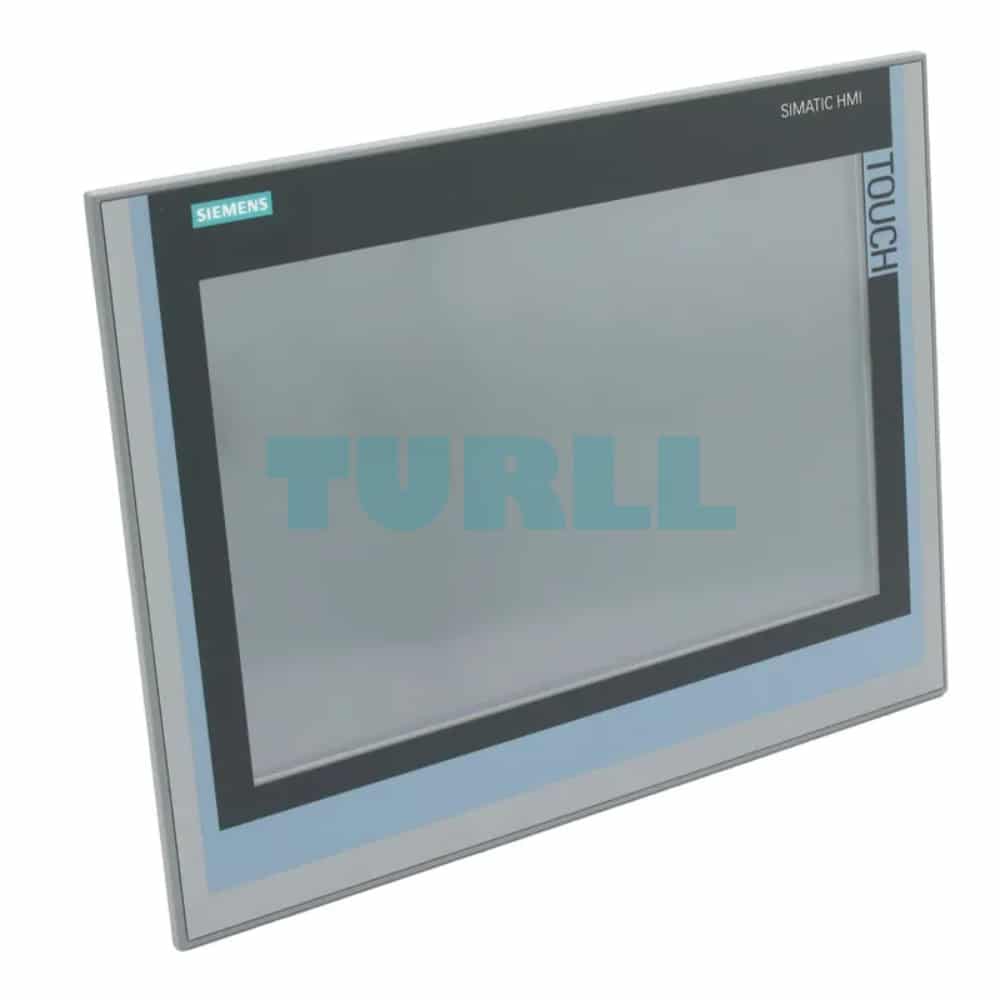

TP1500 Comfort

15.4″ widescreen TFT display, resolution 1280 x 800, 16 million colors
2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
Touch screen
Innovative successor to the Multi Panel MP 377 12″ Touch

KP1500 Comfort

15.4″ widescreen TFT display, resolution 1280 x 800, 16 million colors
2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
Membrane keyboard with 36 function keys and system keyboard
Innovative successor to the Multi Panel MP 377 12″ Key

TP1900 Comfort

18.5″ widescreen TFT display, resolution 1366 x 768, 16 million colors
2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
Touch screen
Innovative successor to the Multi Panel MP 377 15″ Touch

TP2200 Comfort

21.5″ widescreen TFT display, resolution 1920 x 1080, 16 million colors
2 PROFINET (2 ports with integrated switch + additional interface with Gigabit support) and 1 PROFIBUS interface
Touch screen
Innovative successor to the Multi Panel MP 377 19″ Touch

Function

Display and changing of process parameters
Function keys are used for directly triggering functions and actions in the key-operated devices and with KTP400. Up to 16 functions can be configured simultaneously on function keys. The function keys can also be used direct as PROFIBUS DP or PROFINET IO input peripherals.
Process display:
- Vector graphic (various line and plane objects)
- Dynamic positioning and dynamic showing/hiding of objects
- Fully-graphical displays, plots, and bar graph display
- Display of up to 8 trends per trend field; trend curve graphic with scroll and zoom functions for accessing the history and flexible selection of the representation period; read ruler for determining current values and display in a table
- Comprehensive graphics libraries (SIMATIC HMI Symbol Library)
- Icons: slider, gauge, clock
- Cyclic function processing by alarm clock
Multiplex function for variables
Signaling system
- Discrete alarms and analog alarms (limit alarms)
- Freely-definable message classes (e.g. status/fault messages) for definition of acknowledgment response and display of message events
- Status and fault messages with message history
- Preconfigured message screen, message window, and message line
Archiving of messages and process values (on SD/multimedia card/USB flash drive, etc. or network drives via Ethernet)
- Various archive types: Circulating and sequence archive
- Storage of archive data in standard Windows format (CSV)
- Online evaluation of process value archives using trend curves
- External evaluation using standard tools (MS Excel, MS Access) is possible
Alarm log and shift log
Print functions (see “Recommended printers”)
Language change
- 32 online languages, 32 configuration languages including Asian and Cyrillic character sets
Recipe management
- With additional data storage (on SD/multimedia card/USB flash drive, etc.)
- Online/offline processing on the panel
- Storage of recipe data in standard Windows format (CSV)
- External processing using standard tools (MS Excel, MS Access) is possible
PG functionality STATUS/FORCE VAR in combination with SIMATIC S7
Diagnostics display in combination with SIMATIC S7 supports fast troubleshooting
Screen selection from PLC permits operator control from the PLC
Display of HTML documents using MS Internet Explorer
Visual Basic Script offers flexibility through implementing new functions incl. interfacing to tags (comparison operations, loop-through, etc.)
Help texts for process pictures, alarms, and tags
Arithmetic functions
Limit value monitoring for reliable process control of inputs and outputs

Configuration

The configuration is implemented using the engineering software SIMATIC WinCC Comfort (TIA Portal).

Integration

The SIMATIC HMI Comfort Panels can be connected to:

SIMATIC S7 controllers
Third-party controllers
- Allen Bradley DF1, Allen Bradley EtherNet/IP
- Modicon MODBUS RTU, Modicon MODBUS TCP/IP
- Mitsubishi FX, Mitsubishi MC TCP/IP
- Omron Hostlink/Multilink
OPC UA client or OPC DA server
Multi-protocol capability
http communication with other SIMATIC HMI systems
Over Ethernet (TCP/IP) to a higher-level PC, network printer

Note:
Further information can be found under “System interfaces”.

6AV2124-0QC02-0AX2

SIMATIC HMI TP1500 Comfort, Comfort Panel, touch operation, 15″ widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable as of WinCC Comfort V14 SP1 with HSP, ambient temperature up to 45 °C
