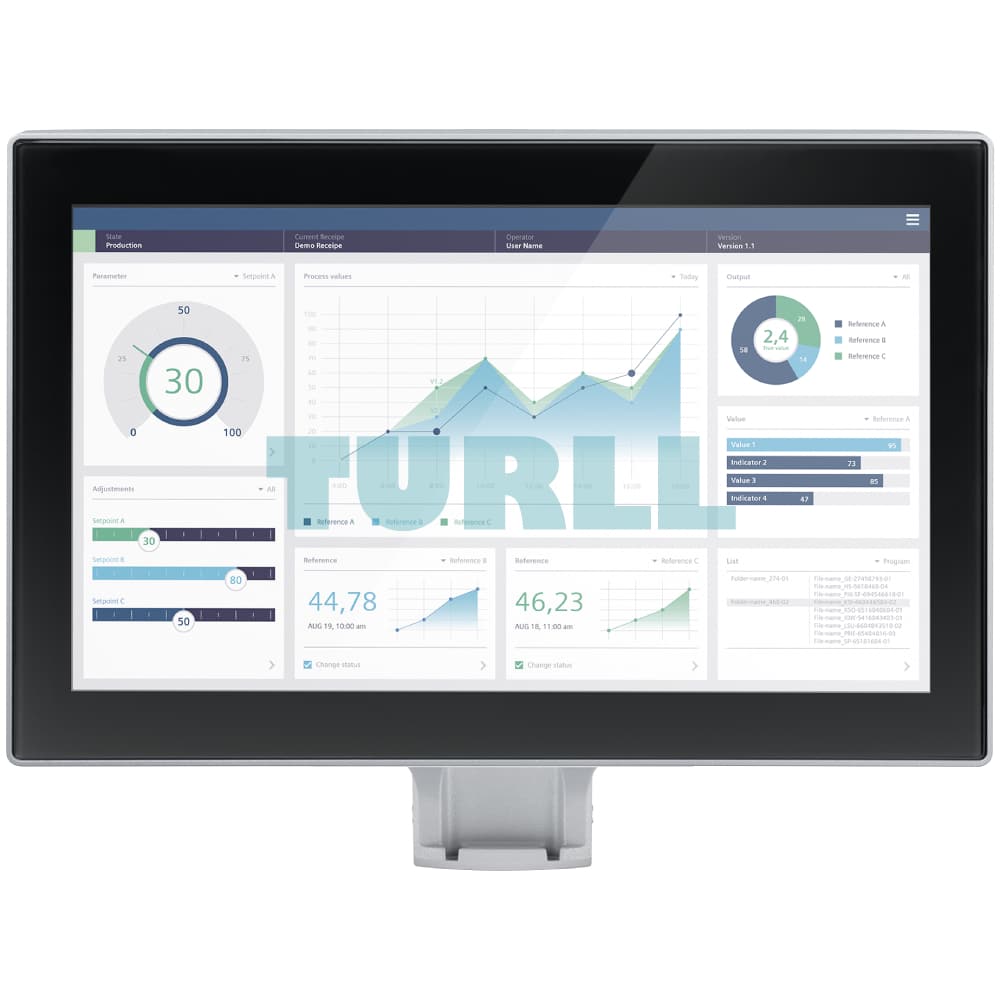

6AV2128-3QB57-1BX0 Siemens SIMATIC HMI MTP1500 PRO Original Brand New
$3,901.35
6AV2128-3QB57-1BX0
Siemens SIMATIC HMI MTP1500 PRO, for supporting foot (expandable, flange at bottom), neutral front, 15.6″ widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V18, contains open-source software, which is provided free of charge
[ez-toc]
Overview
SIMATIC HMI Unified Comfort PRO: fully-enclosed IP65 degree of protection, ready-to-use, can be installed directly at the machine
SIMATIC HMI Unified Comfort Panels PRO in 12″, 15″, 19″ and 22″ widescreen formats expand the Unified Comfort Panel portfolio to include devices with fully-enclosed IP65 protection.
The rugged aluminum enclosure enables it to be used directly at the machine and guarantees durability, even in harsh and extreme operating environments.
Highlights:
- All-round IP65 degree of protection
- 100% Unified Comfort Panel functionality incl. Siemens Industrial Edge
- Identical display resolutions as the SIMATIC HMI Unified Comfort Panels
- Can be adapted to support arm system of various manufacturers
- Extension with hardware operator controls by means of Extension Units
- Fast integration capability
- Mechanical compatibility with SIMATIC HMI Comfort Panel PRO devices (support arm and Extension Unit connection)
- Devices can be ordered in Siemens and neutral design (without Siemens brand)
More information is available at this link
System components for fully-enclosed IP65-protected devices:
System components for PRO devices are only suitable for SIMATIC HMI/IPC PRO devices.
In combination with SIMATIC HMI PRO basic devices, these components enable flexible adaptation to individual customer requirements for operator control and monitoring at the machine level, as well as offering a versatile and attractive solution for cabinet-free visualization and automation.
The following system components are available:
- Fixing elements
- Adapter sets
- Basic adapter
- Round tube adapter
- Extension Units 12″ – 22″ with operator controls
- Extension components
- Stainless steel keyboard
- Tool and keyboard tray
For more detailed information about system components refer to “PC-based Automation” -> “Industrial PC” -> “Devices for special requirements” -> “System components for fully-enclosed IP65-protected devices”.
Benefits
- Assembly directly on machine – without control cabinet
- Enhancement of the machine by the modern, slim design
- Compact design ideal for applications with little space available
- Excellent industrial compatibility due to rugged construction, even when subjected to extreme vibration and shock
- Intuitive operation and more space for visualization, and greater resistance to corrosive cleaning agents
- The different mounting options offer complete flexibility when choosing make and model of the support arm
- Standard connecting cables can be used for easy commissioning and maintenance
- Excellent continuity of components for machine concepts with a long service life without any new engineering costs
- Savings in time and costs due to service-friendly equipment construction
Design
12″, 15″, 19″ and 22″ SIMATIC HMI Unified Comfort Panels PRO are available in three different versions, depending on the application:
- For support arm (extendable, round tube): mounting by means of standard 48 mm round tube or Siemens round tube adapter
- For support arm (not extendable, flange on top): mounting by means of basic adapter and flange on top, included in scope of delivery
- For supporting foot (extendable, flange below): mounting by means of basic adapter and flange below, included in scope of delivery
Furthermore, SIMATIC HMI Unified Comfort Panels PRO can be expanded by up to two Extension Units.
Existing Extension Units are installation-compatible and can be mounted on SIMATIC HMI Comfort Panels PRO as well as SIMATIC HMI Unified Comfort Panels PRO.
Function
SIMATIC HMI Unified Comfort Panels PRO have the identical scope of software functions as SIMATIC HMI Unified Comfort Panels.
The complete functionality and all the details of the devices are thoroughly described in their corresponding manuals.
A comprehensive online help resource is also available for direct support in the TIA Portal.
Integration
The SIMATIC HMI Unified Comfort Panels are integrated in the hardware catalog from TIA Portal V18 and can be configured there.
6AV2128-3QB57-1BX0
Siemens SIMATIC HMI MTP1500 PRO, for supporting foot (expandable, flange at bottom), neutral front, 15.6″ widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V18, contains open-source software, which is provided free of charge
Visit 6AV2128-3QB57-1BX0
For more our products visit turll.com
| Weight | 6.902 kg |
|---|---|
| Dimensions | 335.00 × 468.00 × 144.00 mm |
