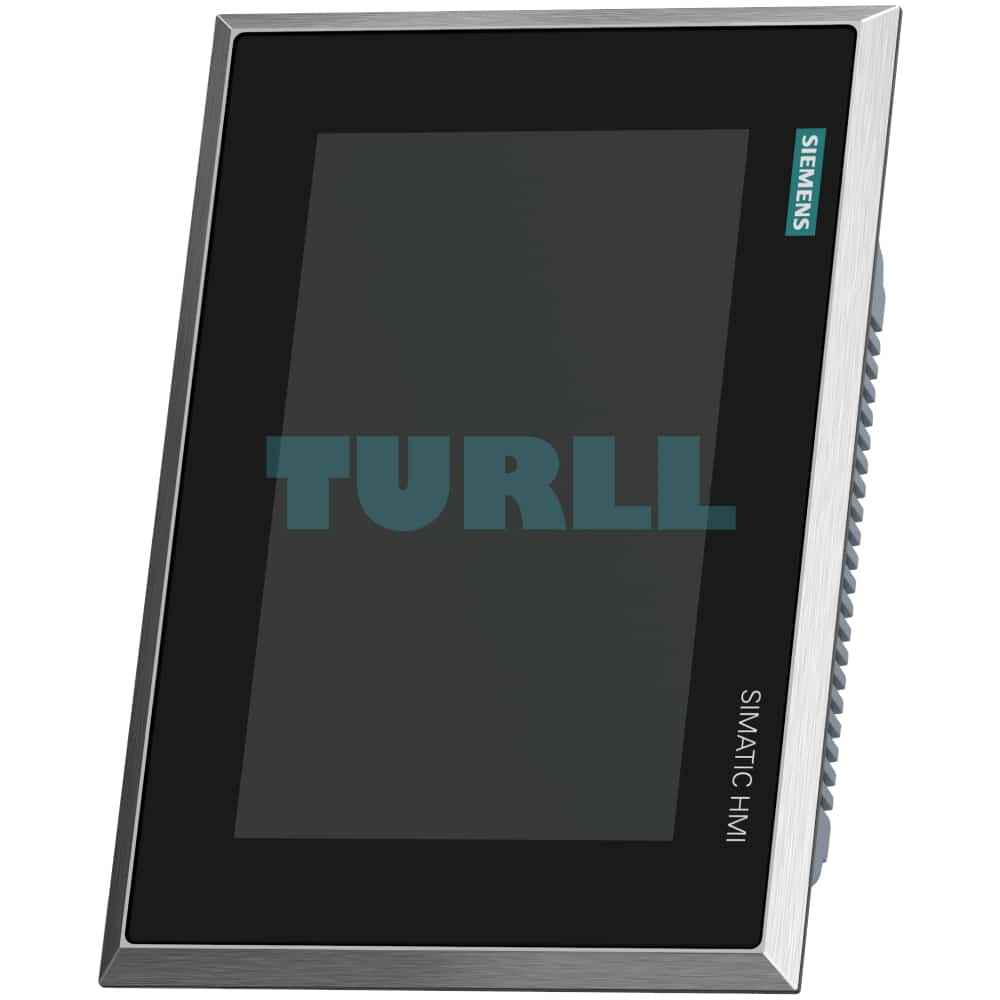

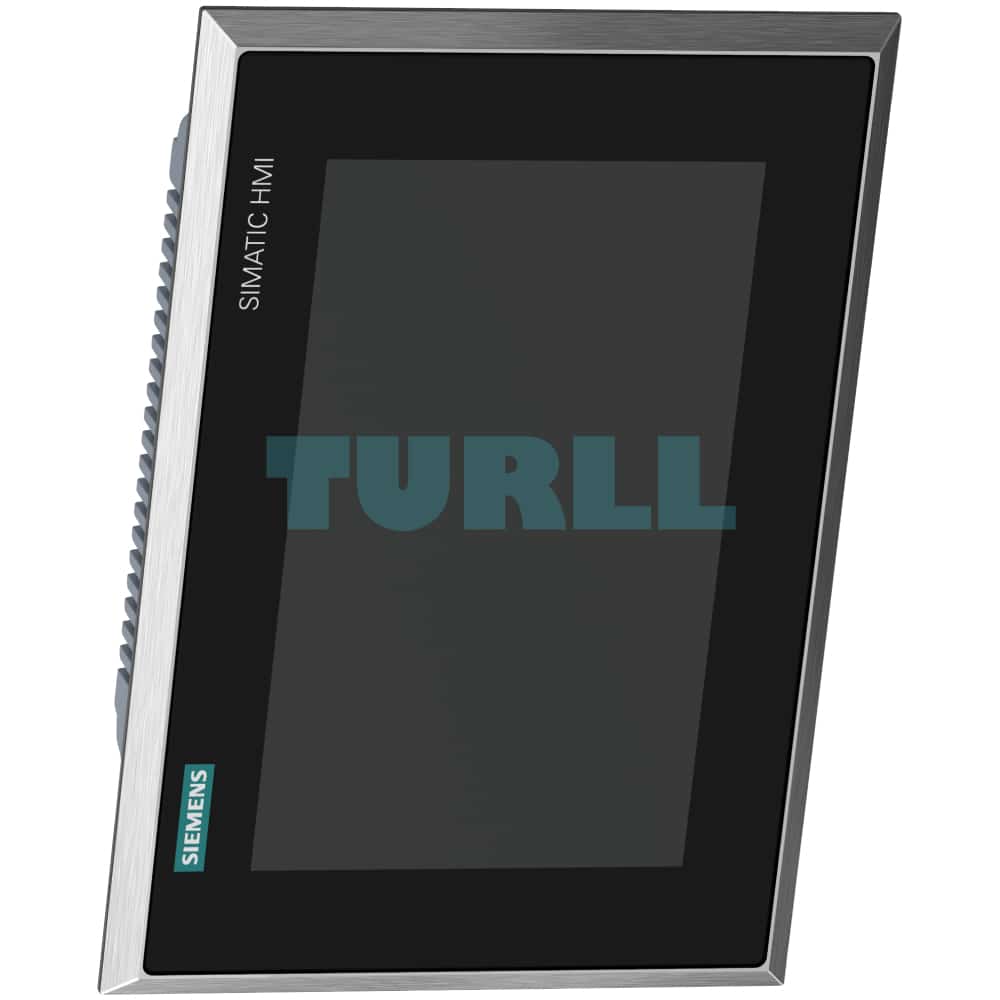

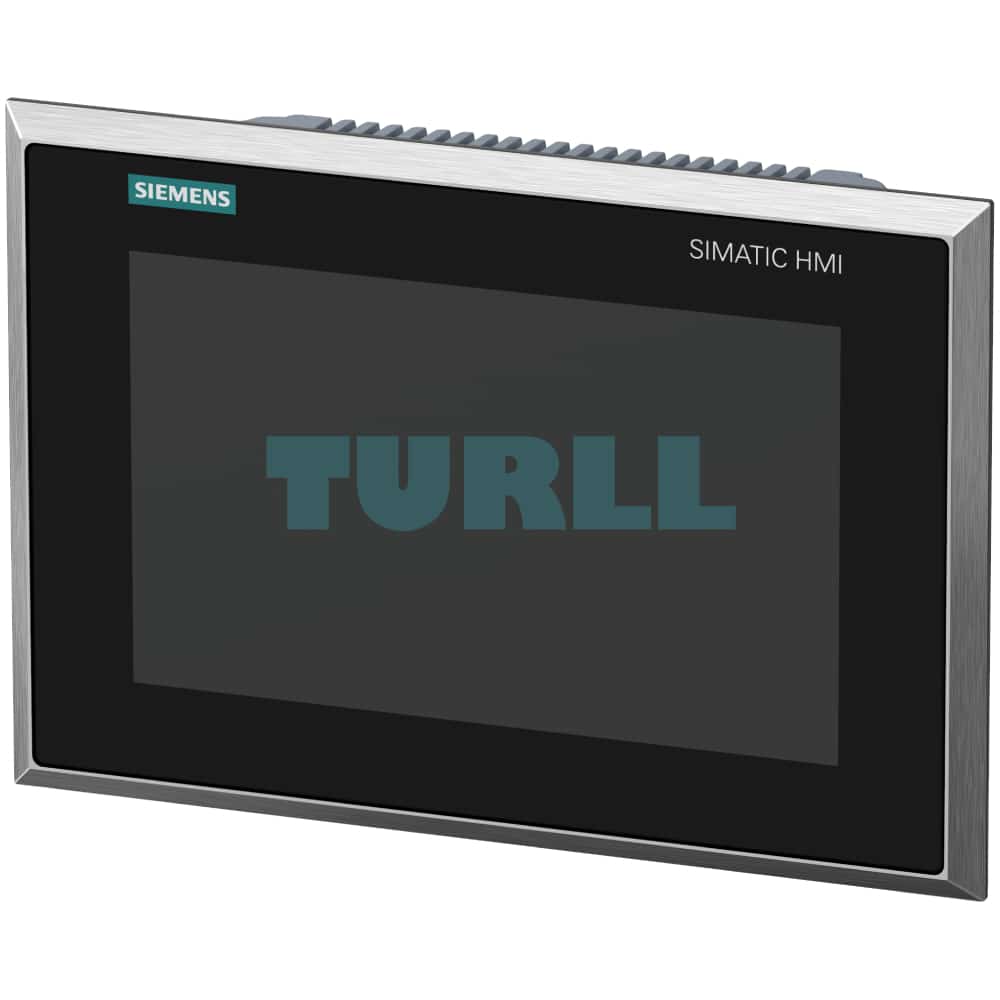

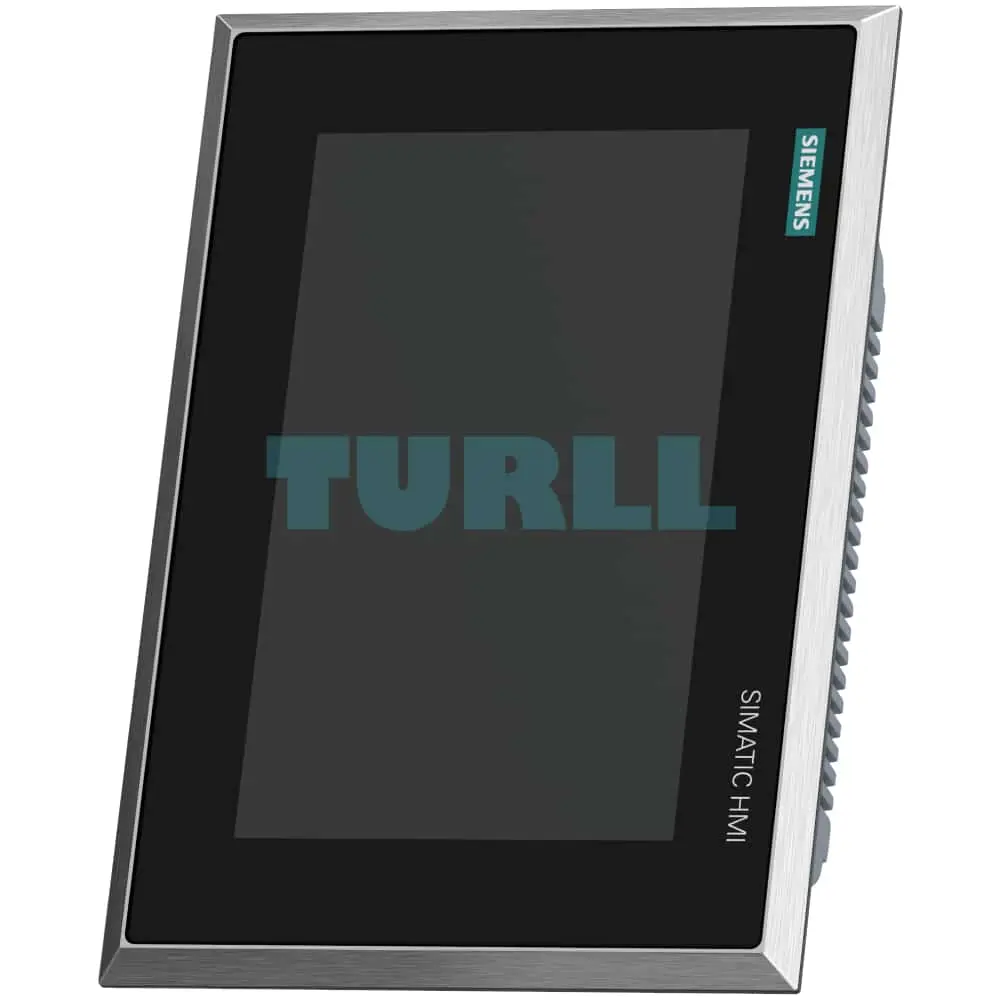

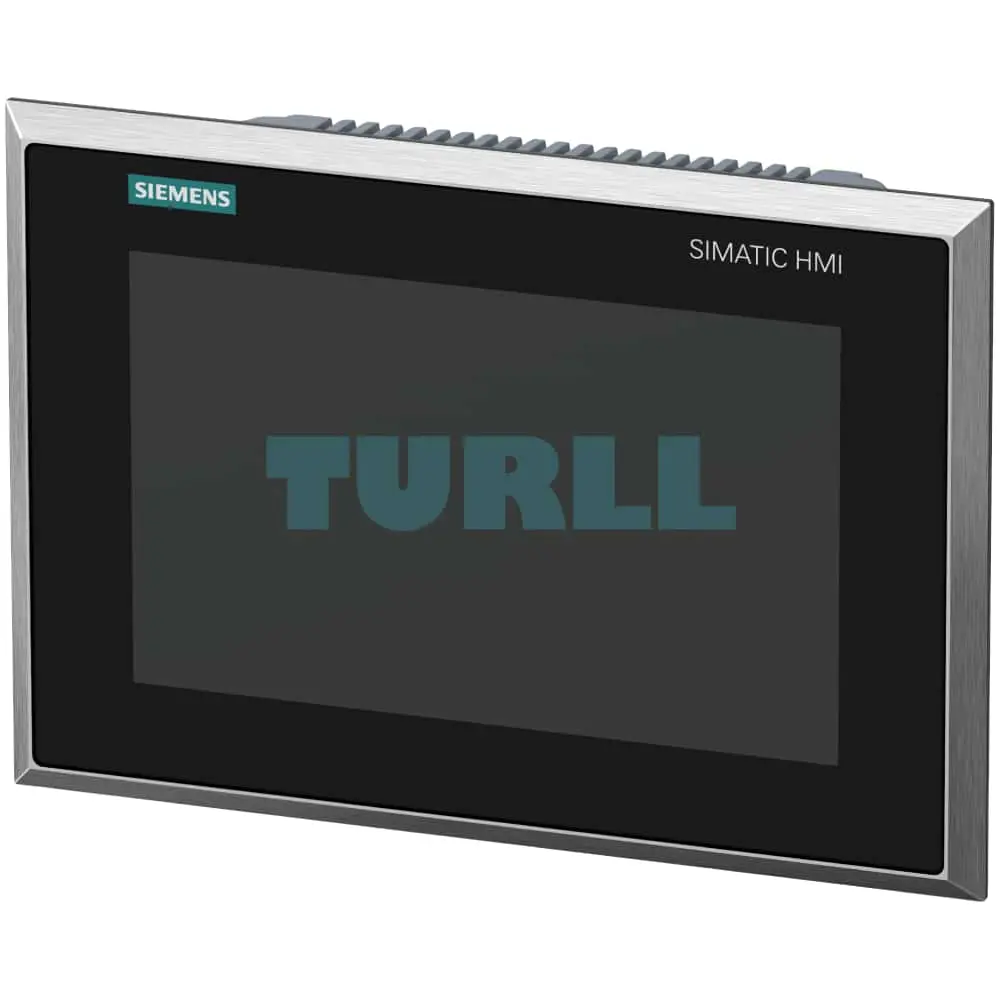

6AV2144-8JC20-0AA0 Siemens SIMATIC HMI TP900 Comfort INOX Original Brand New

With low installation depth and rugged front, the SIMATIC HMI Standard Panels are eminently suitable for industrial and machine-level use.

The panels with stainless steel front are also even better equipped to meet the high requirements presented by the food and beverage production environment. IP66K degree of protection protects against water even with a jet strength of 100 l/min at 10 bar from a distance of 2.5 m to 3 m. Glass-front Comfort Panels INOX PCT have IP69 degree of protection and are even suitable for use in environments subject to high-pressure cleaning.

The optimized frame profile and almost flush-mounting of the device on the control cabinet allow liquids to run off.

The high quality requirements in the food and beverages industry require a high standard of the food processing machinery. There are many relevant regulations, directives, ordinances, standards and laws. Essential here is that all equipment and components is easy to clean and disinfect so that cross-contamination of foodstuffs can be avoided.

The panels with stainless steel front have a 240 grit hairline finish, so they are suitably smooth. The display area of devices with an analog-resistive touch screen is covered with a membrane which is tested with regard to chemical resistance, has minimal grooves and gaps in which micro-organisms could settle, and also provides shatter protection for the display.

SIMATIC HMI TP Comfort Panels INOX

• Simpler cleaning thanks to resistant and rugged stainless steel front with smooth surface and minimal grooves and gaps
• High degree of protection IP66K on the front for increased tightness and ruggedness
• Food-standard sealing material and shatter protection for the display to prevent contamination of foodstuffs
• Optimized rack design with slight projections to the cabinet and for allowing liquids to run off
• Device front developed on the basis of EN 1672-2
• Decorative membrane tested against chemicals according to DIN 42115, Part 2
• Food-standard flat seal in accordance with FDA 21 CFR 177.2600
• Rear clamping frame ensures even application pressure of the seal
• External dimensions, mounting cutout and functionality as for corresponding standard product

SIMATIC HMI TP Comfort Panels INOX PCT

In contrast to the above-mentioned INOX Panels, SIMATIC HMI TP Comfort INOX PCT products feature a glass front with projective-capacitive touch sensors. These allow single-touch operation for Comfort Panels and multi-finger operation for the IFP2200 INOX.

Technical specifications for the glass front (planned):

• High degrees of protection IP69 and IP66K
• Highly shatter-proof (IK08 degree of protection)
• Highly scratch-resistant (6 on Mohs hardness scale)
• High degree of chemical resistance (resistance list available soon)
• DGUV certification (German Social Accident Insurance e.V.) for safe food production
• Clean room Class A certified in compliance with EU GMP, guidelines, Annex 1
• ATEX certification according to Zone 2/22
