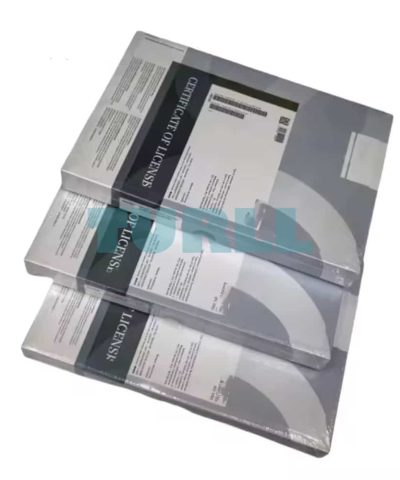

6AV6371-1DR17-5AX0 Siemens WinCC/Connectivity Station Original Brand New
$2,301.94
6AV6371-1DR17-5AX0
Siemens WinCC/Connectivity Station, option for WinCC V7.5 SP2, runtime software, single license, license key on USB flash drive – – content: 1x USB
[ez-toc]
Overview
WinCC/Connectivity Pack & WinCC Connectivity Station
Cross-manufacturer communication in the automation sector has always been of primary importance for WinCC. This is even more true for the exchange of preprocessed production data for higher-level information systems (e.g. MES = Management Execution System, ERP = Enterprise Resource Planning or Office packages = MS Excel, MS Access, etc.).
WinCC has integrated OPC and OPC UA servers that provide access to online and archive data. In addition to OPC, the Connectivity Pack also activates the access options via OLE DB and, as of WinCC V8.0, also MQTT Cloud Connect, REST API, and REST Connector.
- The following OPC access operations are possible with the Connectivity Pack:
- OPC UA server for DA, A&C, and HDA
- OPC server for A&E and HDA
Access via OPC DA is also possible without Connectivity Pack. The Connectivity Station offers OPC UA, OPC and OLE DB access also via a station without WinCC installation.
Licensing
- A Connectivity Pack license is required for each WinCC system to be accessed.
- When using the Connectivity Station it is not necessary to install additional Connectivity Pack licenses on the WinCC systems being accessed.
- In order to use the OPC interfaces of the Connectivity Station on a computer without the WinCC installation, you need the “WinCC Connectivity Station” license.
- For sole use of the OPC interfaces of a WinCC installation, only the “Connectivity Pack” license is required.
The Connectivity Station is configured via the SIMATIC Manager.
You can find more information on the Software Update Service, license types, Online Software Delivery and handling your SW licenses with the Automation License Manager at this link
Benefits
- Access to variables, historical WinCC data, alarm data and user archives from any computer
- Options for analyzing and evaluating process data with specialist tools or user-defined applications
Function
As an OPC HDA server, WinCC makes historical data from the WinCC archive system available to other applications.
An OPC HDA client (e.g. a reporting tool) can define the time interval for the required data by entering a start and end time.
OPC HDA servers also support the generation of a variety of aggregate functions on the server itself (e.g. standard deviation, variance, mean values, integral values, etc.), thereby helping to relieve the load on the network, as only preprocessed data are transmitted.
OPC A&E servers are used to forward WinCC messages (along with all associated process values) to any client at production or enterprise control level.
Filter mechanisms and subscriptions ensure that only selected modified data are transmitted. Acknowledgement is of course also supported.
WinCC OLE DB makes standardized and user-friendly access to WinCC archive data possible (MS SQL Server).
In exactly the same way as access via the OPC HDA and OPC A&E interfaces, access via the WinCC OLE DB Provider makes all WinCC archive data available along with the associated process values and message/user texts. The WinCC OLE DB Provider also supports analysis functions such as minimum, maximum, message hit list, etc.
WinCC Cloud Connect, the REST API and the WinCC REST Connector provide you with additional options for exchanging data with other systems via MQTT and REST. Be it for connecting WinCC to a cloud, such as MindSphere, or for communicating with MES/MOM systems such as Opcenter or other IT systems.
Connectivity Station
If no visualization is required at a station, any Windows computer with access to WinCC via OPC and OLE DB can be configured via the Connectivity Station. This permits access to WinCC stations with server packages from a central computer without WinCC installation. The WinCC stations can be accessed via the following interfaces:
- OPC interfaces of the Connectivity Station
- OLE DB interface of the Connectivity Pack
The two access variants are autonomous access options with different ranges of functions.
OPC interfaces of the Connectivity Station
The Connectivity Station provides interfaces via which you can access the following using an OPC client.
- OPC UA (DA, A&C and HDA)
- OPC (DA, A&E and HDA)
6AV6371-1DR17-5AX0
Siemens WinCC/Connectivity Station, option for WinCC V7.5 SP2, runtime software, single license, license key on USB flash drive – – content: 1x USB
Visit 6AV6371-1DR17-5AX0
For more our products visit turll.com
| Weight | 0.168 kg |
|---|---|
| Dimensions | 184.00 × 270.00 × 32.00 mm |
