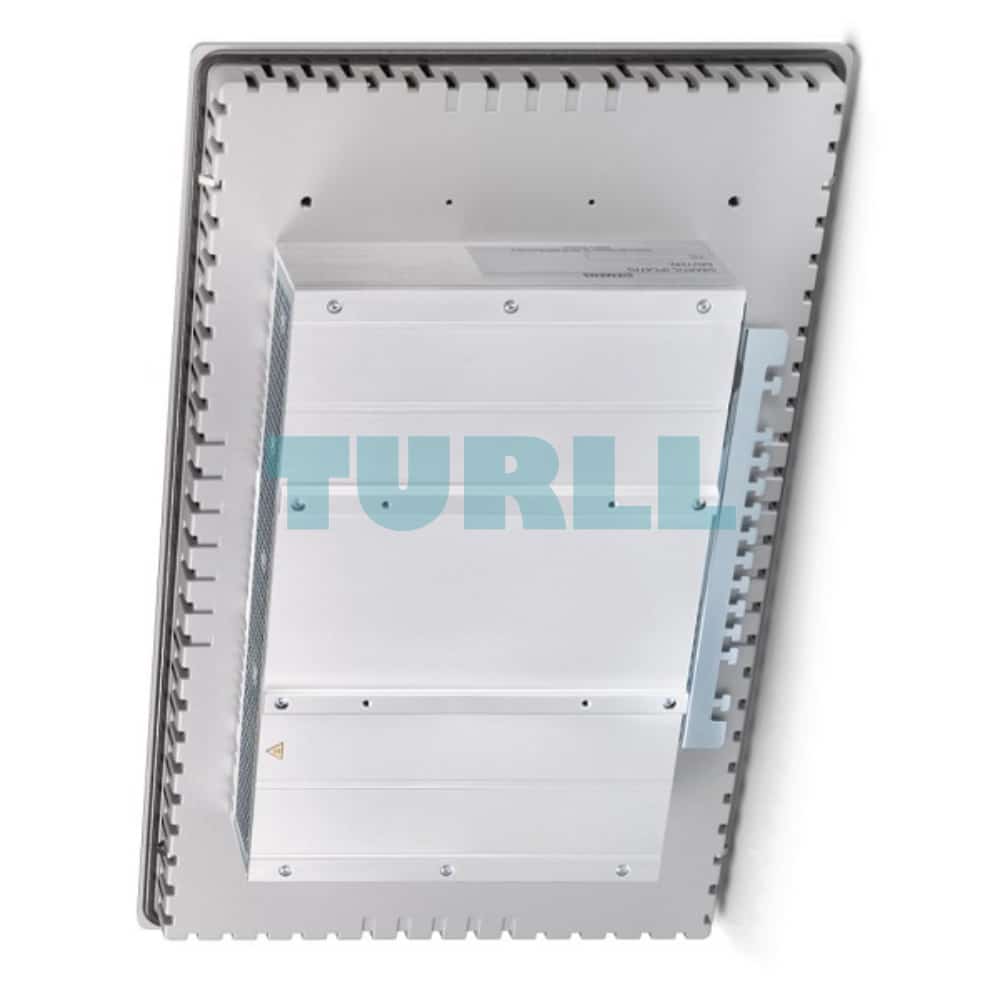

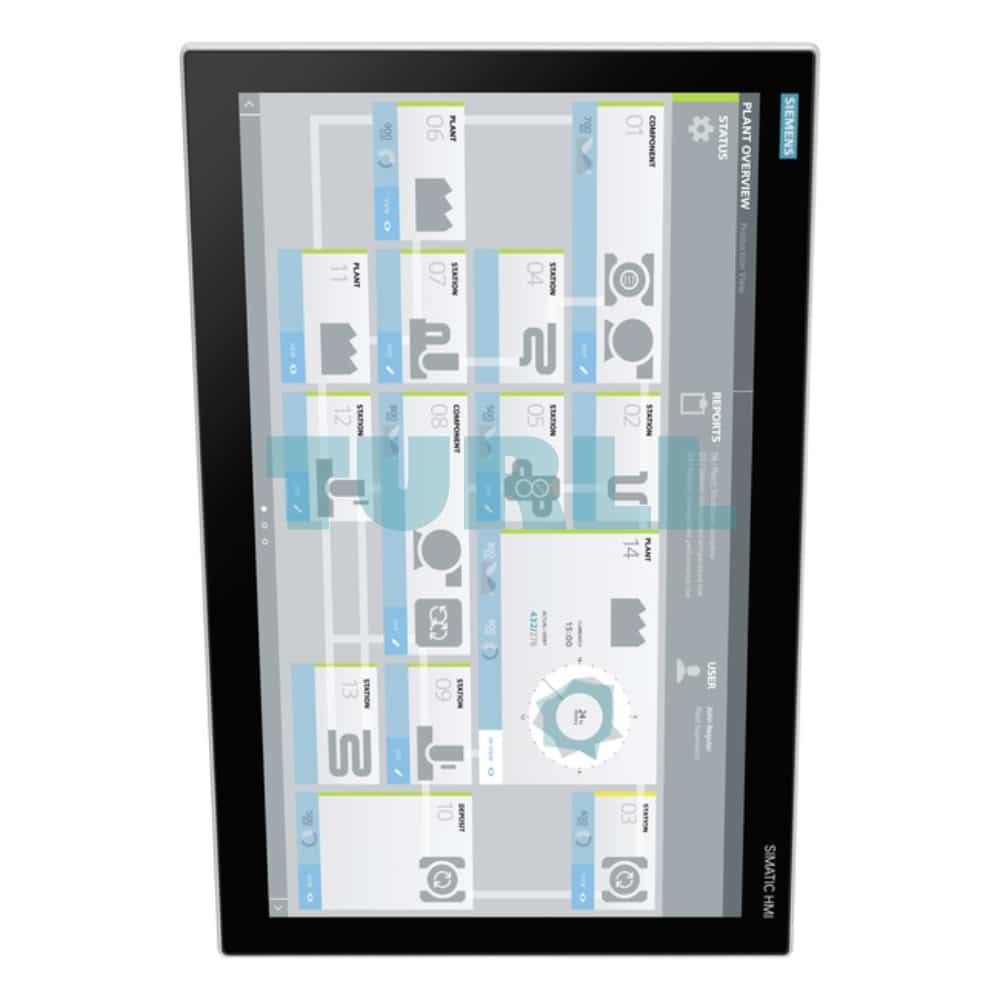

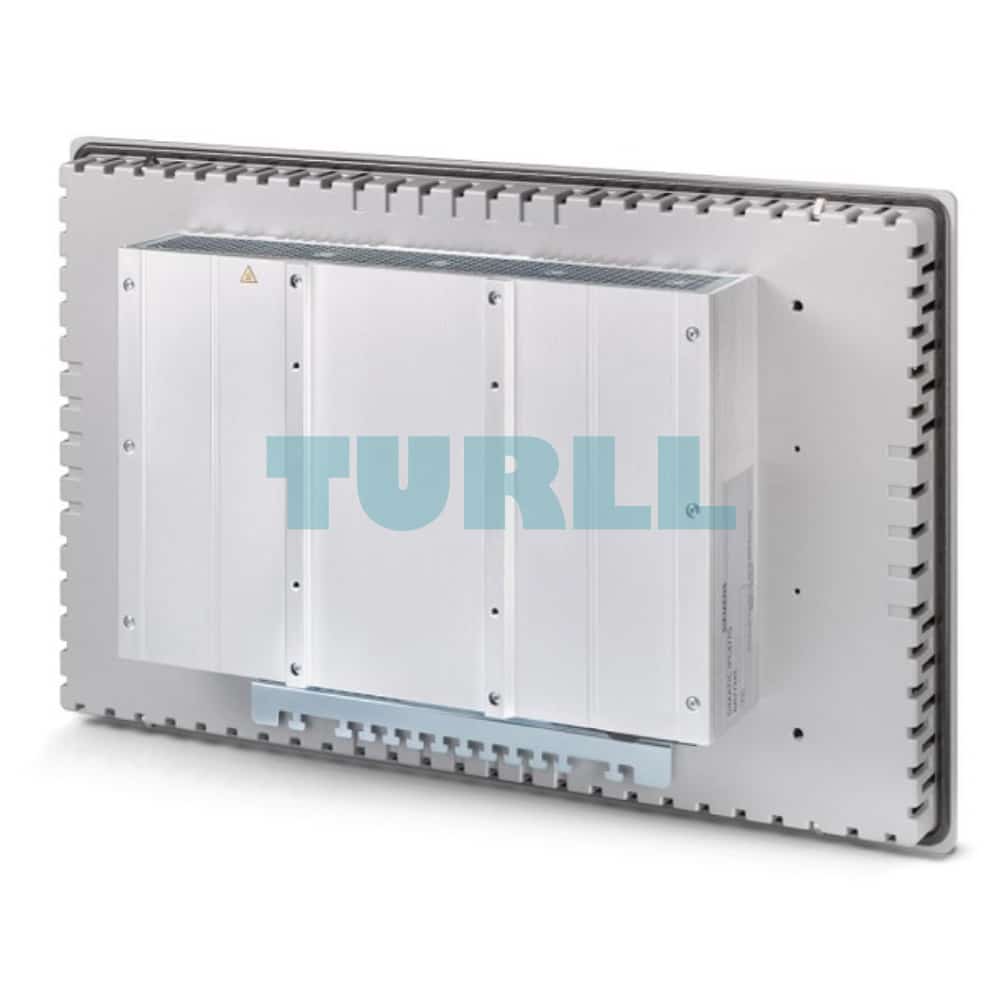

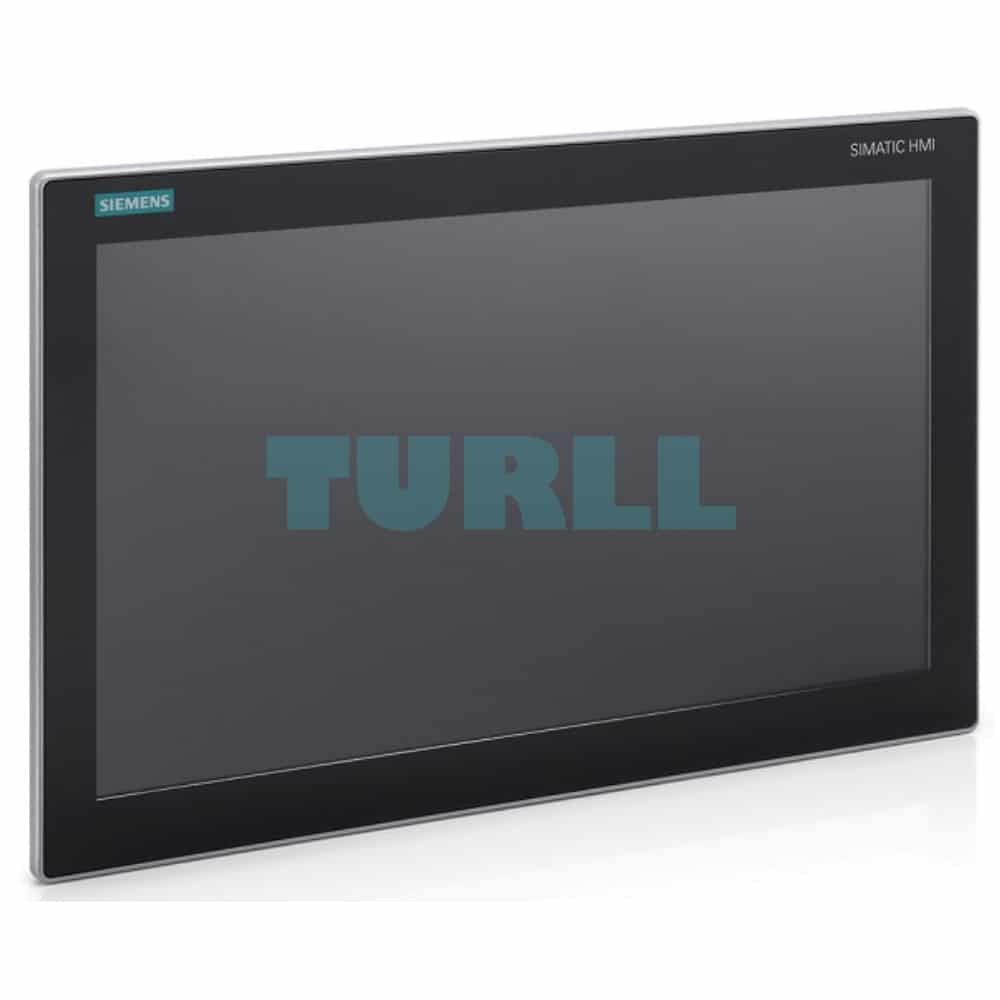

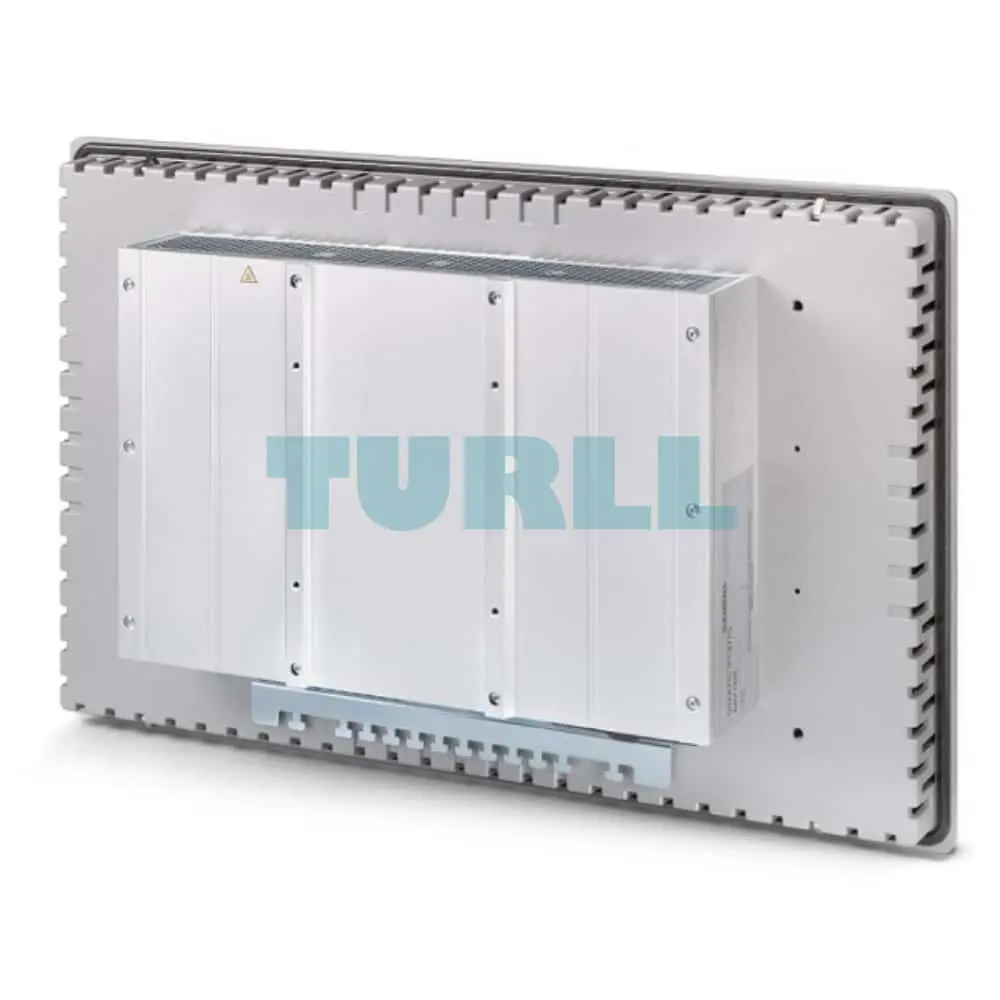

6AV7241-3YA05-0FA0 Siemens SIMATIC IPC 477E 22″ Multi-touch Original Brand New
$7,260.31
6AV7241-3YA05-0FA0
Siemens SIMATIC IPC 477E 22″ multi-touch (1920 x 1080); neutral front; 4 USB (back), Ethernet (10/100/1000); Ethernet (10/100/1000); Core i3-6102E; 3x Gigabit Ethernet (IE/PN); 4 GB without RS232/RS485; without PCIe; Windows 10 Enterprise 2019 LTSC (64-bit), MUI (en,de,fr,it,es) for Celeron, I3 and I5; without exchangeable mass storage; 240 GB solid-state drive SATA; without SIMATIC software; 24 V DC industrial power supply
[ez-toc]
6AV7241-3YA05-0FA0
Siemens SIMATIC IPC 477E 22″ multi-touch (1920 x 1080); neutral front; 4 USB (back), Ethernet (10/100/1000); Ethernet (10/100/1000); Core i3-6102E; 3x Gigabit Ethernet (IE/PN); 4 GB without RS232/RS485; without PCIe; Windows 10 Enterprise 2019 LTSC (64-bit), MUI (en,de,fr,it,es) for Celeron, I3 and I5; without exchangeable mass storage; 240 GB solid-state drive SATA; without SIMATIC software; 24 V DC industrial power supply
Overview
The SIMATIC IPC477E is a high-performance compact unit comprising an operating unit (SIMATIC Flat Panel) with an integrated computing unit. SIMATIC IPC477E is rugged and reliable, provides the openness of a PC, and is designed for use on the machine. The operating unit is available as a 15″, 19″, 22″ or 24″ multi-touch display.
The licenses for the operating software SINUMERIK Operate and the PCU base software must be ordered separately.
Benefits
- Highly suitable for use in industrial applications due to robust and compact construction, withstanding intense vibration and shock loads
- Maximum investment security for long-term machine concepts due to guaranteed availability of spare parts for all components
- High system availability minimizes downtimes through efficient self-diagnostics and no maintenance requirements for components such as fans and hard disks
- Outstanding industrial functionality due to integrated PROFINET interface
Design
The SIMATIC IPC477E is connected to the SINUMERIK NCU via Ethernet.
Panel PC variants for SINUMERIK
- SIMATIC IPC477E with Microsoft Windows 10 Enterprise LTSB 2016, 64 bit
- 15″ multi-touch device (capacitive glass touch), HD ready
Intel Celeron G3902E 2 MB cache/1.60 GHz/4 GB
Internal solid-state drive 240 GB - 19″ multi-touch device (capacitive glass touch), HD ready
Intel Core i3-6102E 3 MB cache/1.90 GHz/8 GB
Internal solid-state drive 240 GB - 22″ multi-touch device (capacitive glass touch), full HD
Intel Core i3-6102E 3 MB cache/1.90 GHz/4 GB
Internal 240 GB solid-state drive - 24″ multi-touch device (capacitive glass touch), full HD
Intel Core i5-6442EQ 6 MB cache/up to 2.70 GHz/8 GB
Internal 240 GB solid-state drive
- 15″ multi-touch device (capacitive glass touch), HD ready
Interfaces:
- 3 × Ethernet 10/100/1000 Mbps (RJ45 socket)
- 4 × USB 3.0
- 1 × DisplayPort
- 1 slot for external CFast card
Integration
SIMATIC IPCs can be used for:
- SINUMERIK 840D sl: NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN
- SIMATIC Panel for SINUMERIK Microsoft Windows 10
Visit 6AV7241-3YA05-0FA0
For more our products visit turll.com
| Weight | 7.9 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
