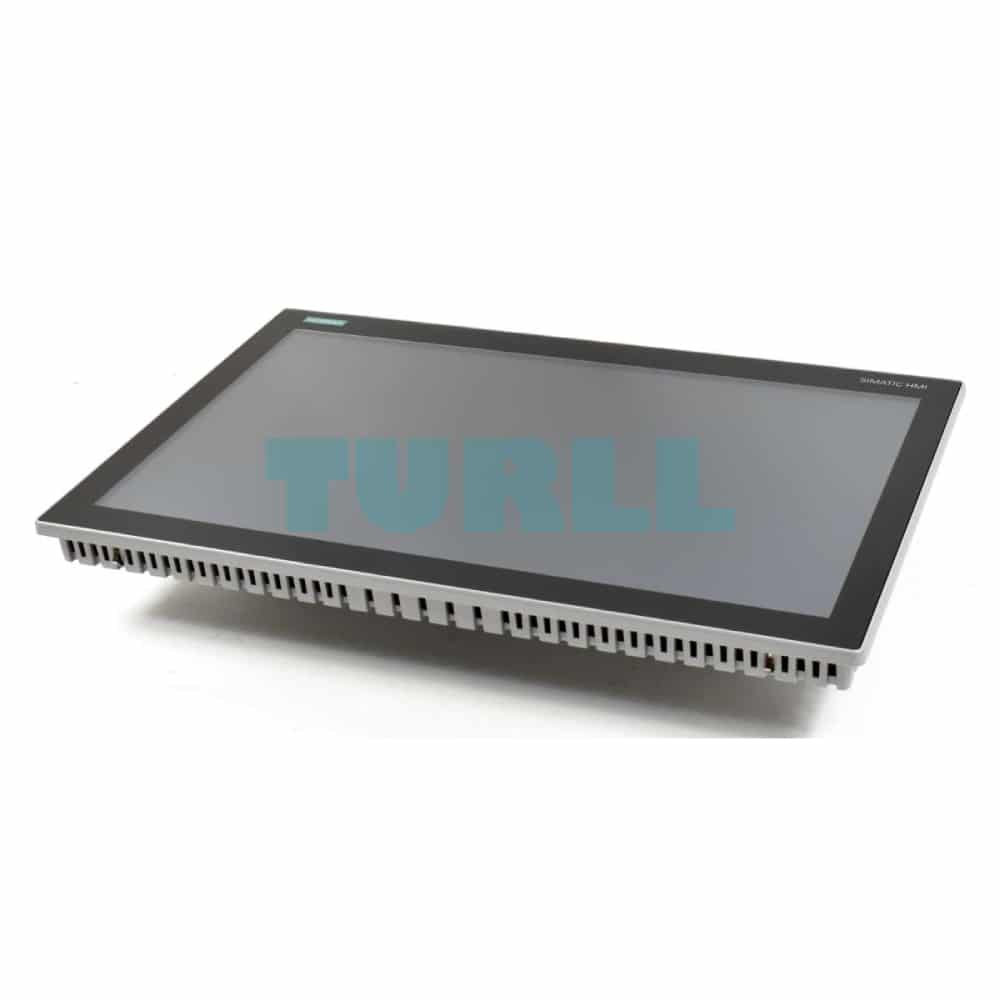

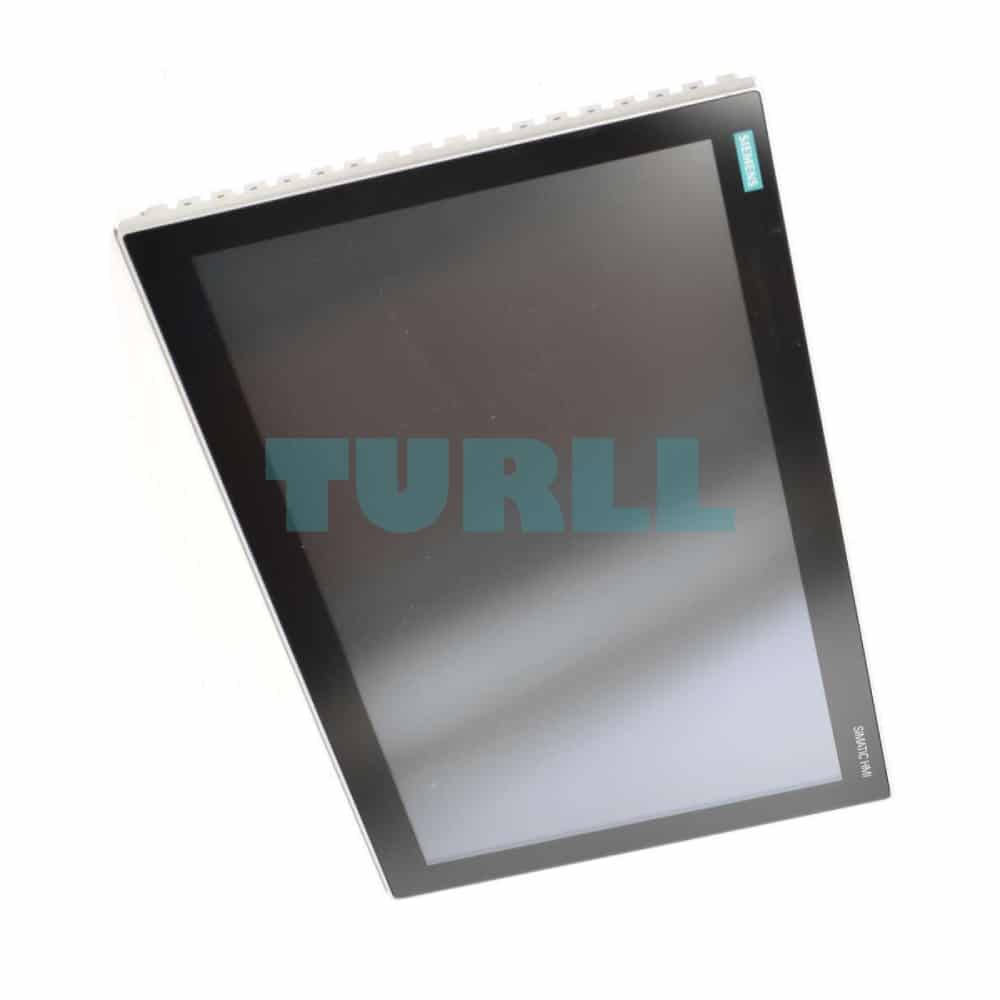

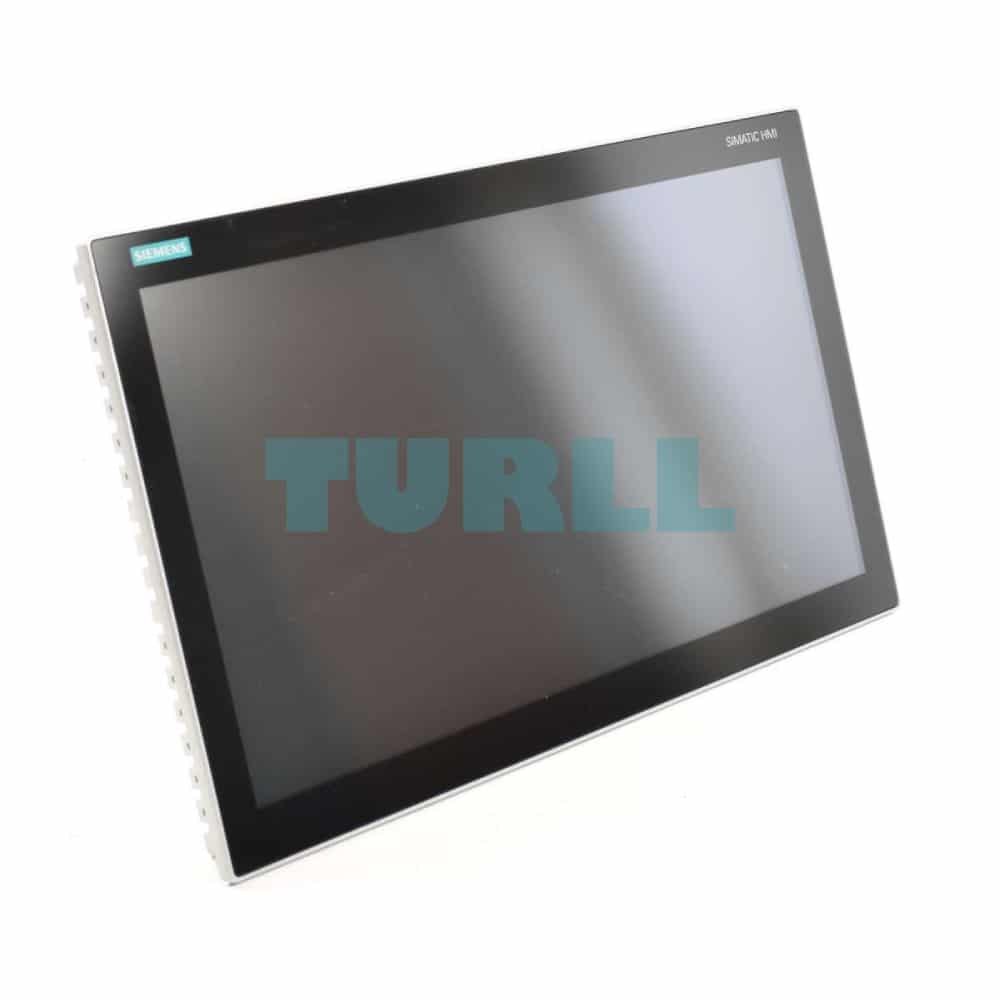

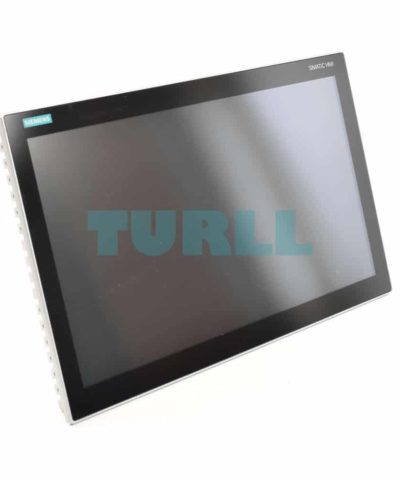

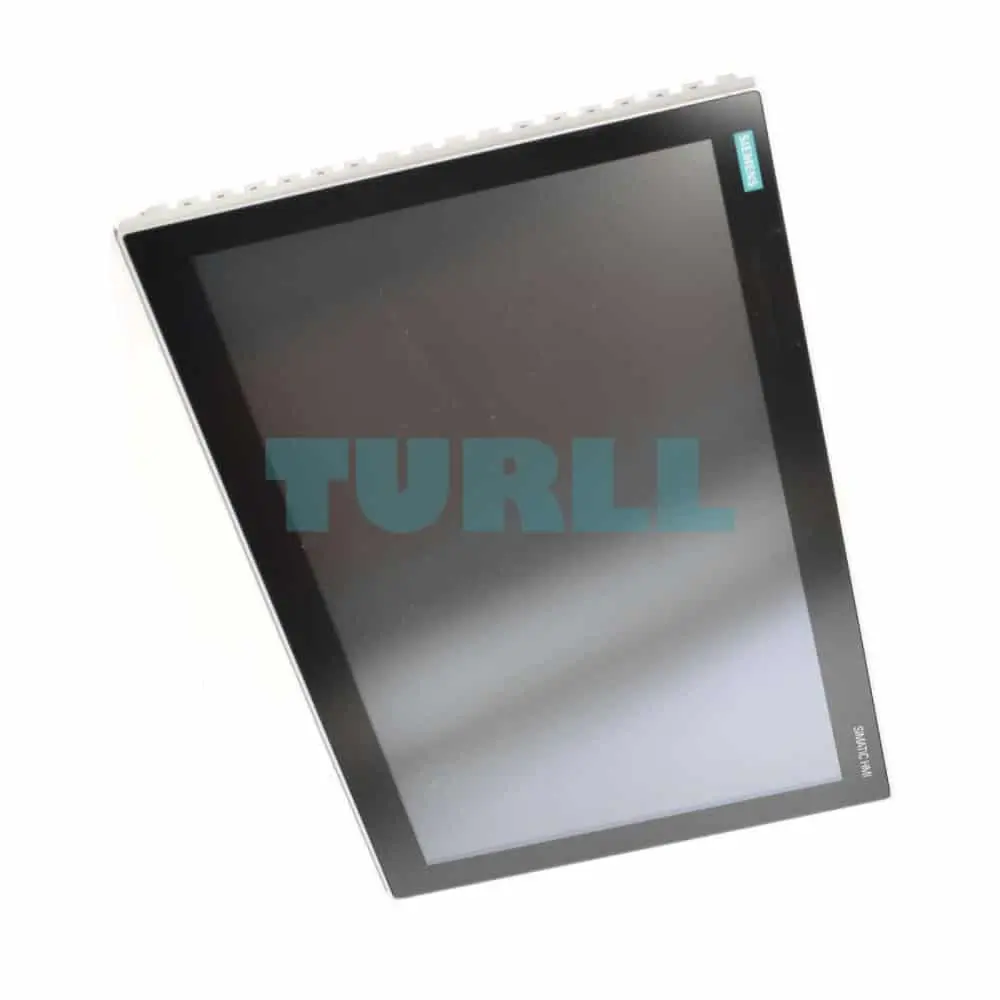

6AV7241-5EB00-0FA2 Siemens SIMATIC IPC477E Original Brand New
$6,477.99
6AV7241-5EB00-0FA2
Siemens SIMATIC IPC 477E 22″ Touch (1920 x 1080); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 8 GB; without RS 232/RS485; without PCIe; without operating system; Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 110/230 V AC industrial power supply unit with NAMUR; power supply cord Europe; ******************************* no BIS certificate for India for 110/230 V AC PS,
[ez-toc]
Overview
SIMATIC IPC477E: The powerful embedded Panel PC – maintenance-free with versatile configuration
- Embedded PC platform with extremely high industrial compatibility for demanding tasks in the field of PC-based automation
- Maintenance-free (no rotating components such as fan and hard disk)
- Rugged construction: The PC is resistant to even the harshest mechanical stress and extremely reliable in operation
- Compact design
- Battery-independent retentive memory onboard
- High degree of investment security
- Fast integration capability
- Built-in versions
- 15″ TFT touch
- 19″ TFT touch
- 22″ TFT touch
- 15″ TFT multi-touch
- 19″ TFT multi-touch
- 22″ TFT multi-touch
- 24″ TFT multi-touch
Benefits
- Excellent industrial compatibility due to rugged construction, even when subjected to extreme vibration and shock
- High degree of investment protection thanks to assured availability of spare parts for a period of 5 years following the end of active marketing
- Excellent component continuity for long-life machine concepts without any new engineering costs
- Savings in time and costs due to service-friendly equipment construction:
- USB interfaces on the front and rear for quick and easy connection of additional hardware components
- High degree of industrial functionality thanks to integral PROFINET interface
- Maintenance-free due to absence of rotating components (fan and hard disk)
- Highly flexible thanks to expansions (optional) such as PCIe, two RS232/RS485
- Minimization of downtimes thanks to high system availability
- Efficient self-diagnostics (DiagBase and SIMATIC IPC DiagMonitor)
- High reliability and security of an embedded platform
- Integral component of Totally Integrated Automation (TIA):
- Enhanced productivity, minimization of engineering costs, reduction of lifecycle costs
Application
The SIMATIC IPC477D is designed for use directly on the machine, where the combination of ruggedness and maximum reliability is a major priority (the reliability of an embedded platform) and the openness of a PC is also required (e.g. module expansion and the connection of I/O devices such as printers, keyboards, etc.).
Due to the minimal mounting depth, it can also be used in confined spaces.
The PC can be used in factory automation as well as in process automation and can be mounted in control cabinets, control desks or 19″ cabinets/racks.
The SIMATIC IPC477D is the ideal platform for PC-based Automation:
- PC-based visualization on-site at the machine with SIMATIC WinCC Advanced or WinCC Professional
- PC-based control with SIMATIC WinAC RTX
- SIMATIC WinCC Client (standard or multi client) for distributed operator control and monitoring
- SIMATIC WinCC as single-user station solution for centralized operator control and monitoring (also in combination with WinCC WebNavigator server)
Siemens offers the complete modular system of harmonically matched automation components.
Design
The SIMATIC IPC477E is a compact device comprising an operator control unit with integrated computer unit.
Basic design
- Rugged metal installation housing, resistant to vibration and shock, with high electromagnetic compatibility
- Graphics onboard for additional monitor/flat panel, 2 x DisplayPorts
- Interfaces:
- 3 x LAN 10/100/1000 Mbps Ethernet interface (RJ45)
- 4 x high-speed USB V3.0
- Isolated power supply: 24 V DC (19.2 to 28.8 V)
Computer unit design versions
- Processor:
- Intel® Celeron® processor G3902E (2 MB cache, 1.60 GHz)
- Intel® Core™ i3-6102E processor (3 MB cache, 1.90 GHz)
- Intel® Core™ i5-6442EQ processor (6 MB cache, up to 2.70 GHz)
- Intel® Xeon® processor E3-1505L v5 (8 MB cache, 2.00 GHz)
- Main memory capacity 4 GB (4/8/16 GB optional), DDR4 SDRAM
- Fieldbus
- PROFINET onboard, 3 x RJ45
- Hardware expansion:
- Two RS232/RS485 interfaces onboard
- Drives:
- Solid-state drive, 256 GB, 240 GB or 480 GB, rugged alternative to hard disk
- Flash drive (replaceable, accessible): 2 GB, 4 GB, 8 GB, 16 GB or 128 GB
- FlashDrive (internal, not accessible): 8 GB, 16 GB, 128 GB
- Hard disk serial ATA, 2.5″
- Preinstalled operating systems:
- Windows 7 Ultimate MUI
- Windows Embedded Standard 7
- Windows 10 Enterprise LTSB 2016, 64-bit
- Windows 10 IoT Enterprise 2019 LTSC (64-bit) for Celeron, Core i3 and Core i5 processors
- Windows 10 IoT Enterprise 2019 LTSC (64-bit) for Xeon processor
Components of the operator control unit:
The operator control units are available in the following versions:
15″ touch
- 15″ TFT color display, 1280 x 800 pixels
- Resistive analog touch screen
- USB V3.0 port (on the front)
19″ touch
- 19″ TFT color display, 1 366 x 768 pixels or 1 920 x 1 080 pixels
- Resistive analog touch screen
- USB V3.0 port (on the front)
22″ touch
- 22″ TFT color display, 1920 x 1080 pixels
- Resistive analog touch screen
- USB V3.0 port (on the front)
15″ multi-touch
- 15″ TFT color display, 1 366 x 768 pixels
- Touch screen capacitive glass touch
19″ multi-touch
- 19″ TFT color display, 1 366 x 768 pixels or 1 920 x 1 080 pixels
- Touch screen capacitive glass touch
22″ multi-touch
- 22″ TFT color display, 1 920 x 1 080 pixels
- Touch screen capacitive glass touch
24″ multi-touch
- 24″ TFT color display, 1 920 x 1 080 pixels
- Touch screen capacitive glass touch
Expansion components
- 1 x PCIe-x4 expansion card can be used. Max. permissible power loss: 8 W
- For connecting additional I/O devices, 4 high-speed USB 3.0 interfaces and up to two serial interfaces are available
SIMATIC IPC DiagMonitor
- PC diagnostics/alarm software for early detection and diagnosis of PC problems
- Comprehensive monitoring of temperature, watchdog
- Operating hours counter for preventive maintenance
- Integrated log functions, comprehensive text messages, online help (English/German)
- Network-wide monitoring via SNMP and OPC interface possible
SIMATIC IPC Image & Partition Creator
- Software tool for preventive data backup of the contents of mass storage devices (CF cards, hard disks)
- High-speed restoring of system and data partitions with bit accuracy; user software and special installations are also backed up
- Software tool for adaptation of mass storage partitioning
SIMATIC IPC USB FlashDrive
- Mobile memory medium for SIMATIC PC/PG
- Fast data transfer (USB 3.0) and high memory capacity
- Ultra-compact and rugged
SIMATIC IPC Service USB FlashDrive
- Mobile memory medium for backing up/restoring mass memories
- Pre-installed Image & Partition Creator and BIOS Manager
- Ultra-compact and rugged
Note:
For more information, see “Expansion components”.
Function
Diagnostics
- DiagBase: Integrated, parameterizable monitoring functions (program execution/watchdog, internal enclosure temperature, DIAG bit for CFast cards similar to S.M.A.R.T for hard disks)
- Expanded diagnostics/messages via Ethernet, e-mail, text message and for direct transfer to SIMATIC software via OPC (optionally via SIMATIC IPC DiagMonitor)
Integration
Integral interfaces:
- Ethernet
The integrated PROFINET interfaces (10/100/1000 Mbit/s) can be used for IT communication and for data exchange with PLCs such as SIMATIC S7 (with “SOFTNET S7” software packages). - Other interfaces
4 USB (Universal Serial Bus) interfaces and one serial interface are available for connecting additional I/O devices.
6AV7241-5EB00-0FA2
Siemens SIMATIC IPC 477E 22″ Touch (1920 x 1080); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 8 GB; without RS 232/RS485; without PCIe; without operating system; Without replaceable mass storage; 240 GB solid-state drive SATA Without SIMATIC software; 110/230 V AC industrial power supply unit with NAMUR; power supply cord Europe; ******************************* no BIS certificate for India for 110/230 V AC PS,
Visit 6AV7241-5EB00-0FA2
For more our products visit turll.com
| Weight | 9.800 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
