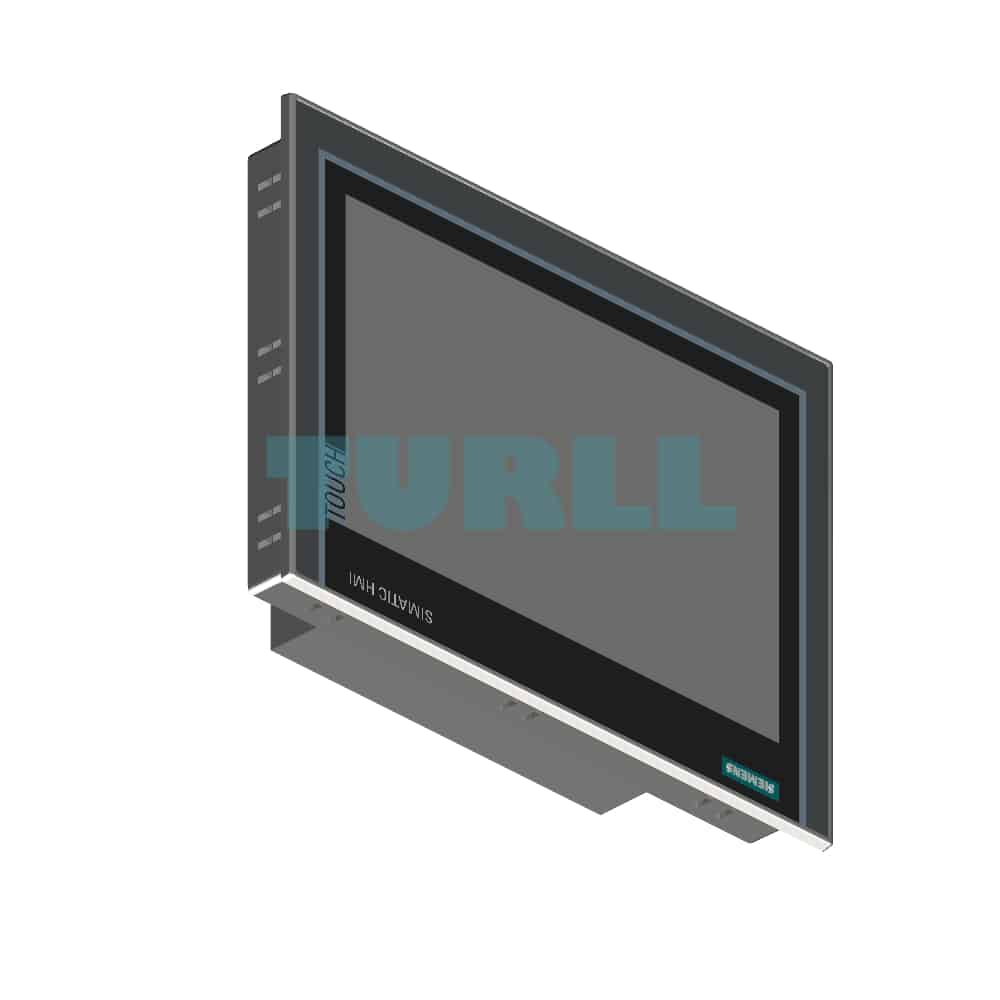

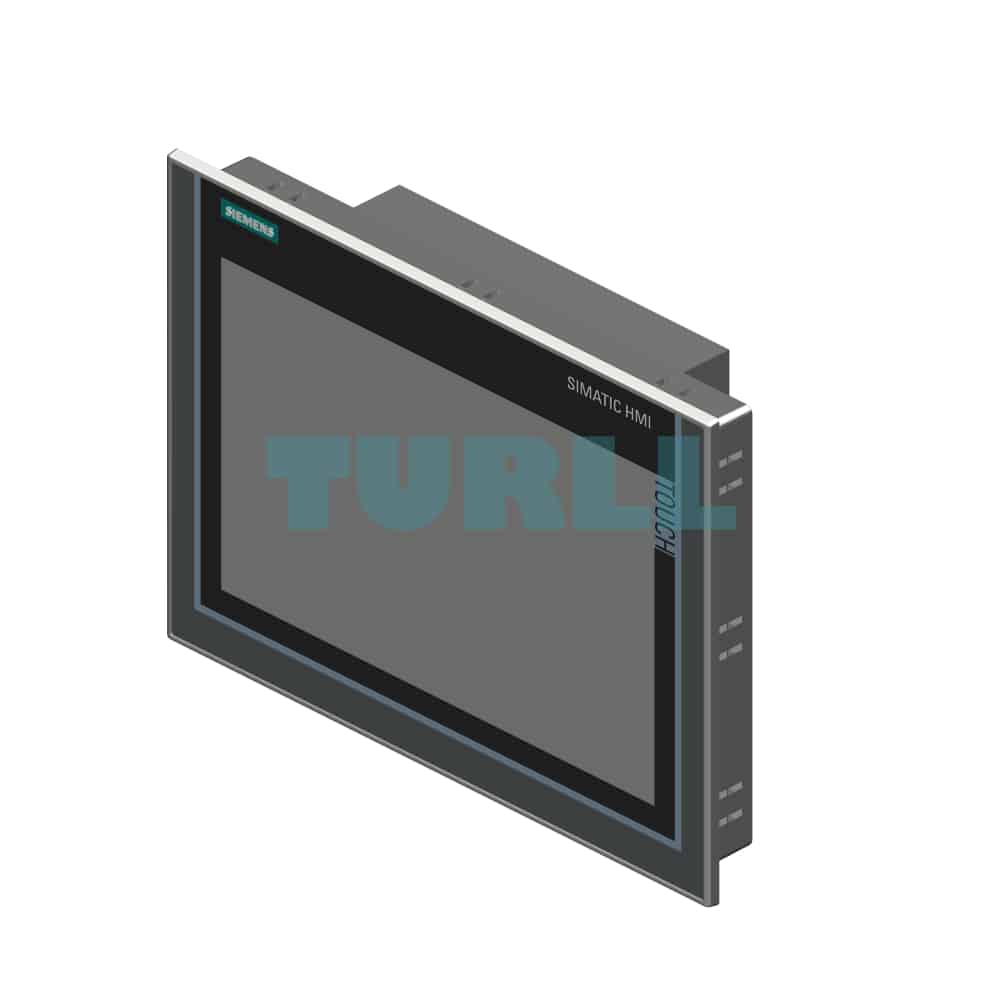

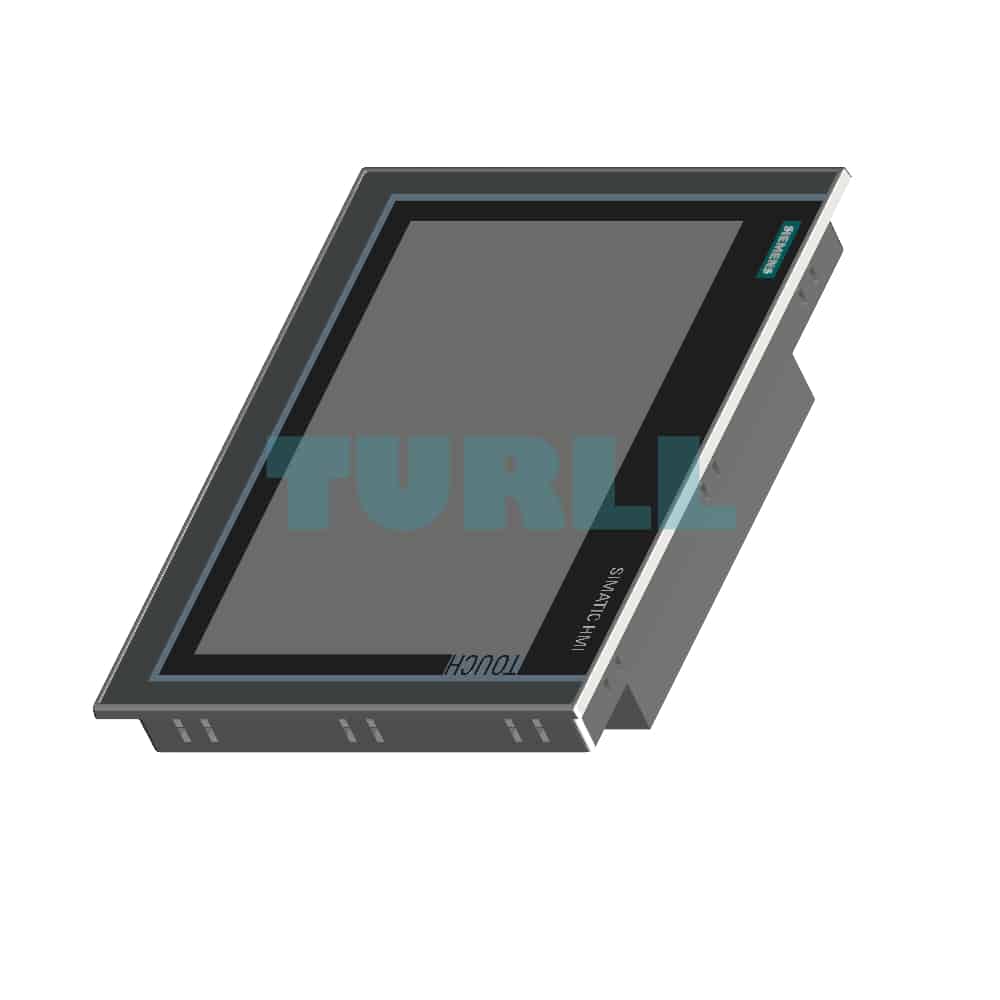

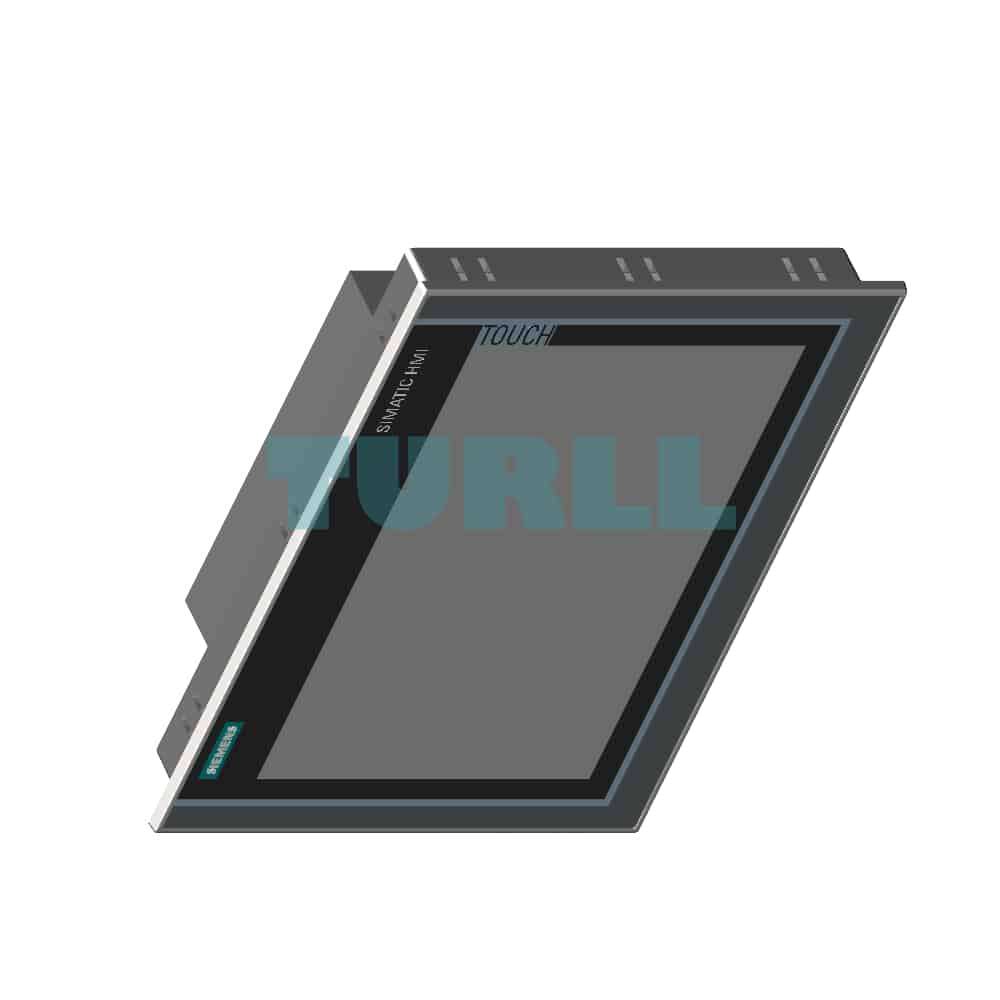

6AV7863-1MA10-2AA0 Siemens SIMATIC IFP1200 V2 Extended Original Brand New

Industrial Flat Panels are rugged industrial monitors.

The devices are suitable as built-in devices and, in the PRO variant, for direct mounting on a support arm/pedestal. Various display sizes of 12″, 15″, 19″, 22″ and 24″ are available.

Depending on requirements, the monitors can be installed up to 100 m away from the IPC. Convenient operation of modern user interfaces is possible thanks to multi-touch.

Rugged industrial design:

• High EMC & shock resistance
• Many certifications such as ATEX and shipbuilding
• Various installation options in portrait or landscape format
• 3 variants for different requirements:
• Standard – up to 5 m from IPC
• Extended – up to 100 m from monitor via HDBaseT
• Ethernet – up to 100 m away via Ethernet cable

The Industrial Flat Panels are used wherever the computing unit (IPC) and the operator/display unit must be installed remotely from one another for technical or application-related reasons. SIMATIC Flat Panels are suitable for direct connection to any PC, but particularly for use with the SIMATIC Box PC or SIMATIC Rack PC, also as a second operating unit on a SIMATIC Panel PC.

• Rugged aluminum front, multi-touch devices with glass front
  • 12″ with 1 280 x 800 pixels
  • 15″ with 1 920 x 1 080 pixels
  • 19″ with 1 920 x 1 080 pixels
  • 22″ with 1 920 x 1 080 pixels
  • 24″ with 1 920 x 1 080 pixels

Special functions of the extended variants or Ethernet monitor

• Can be located up to 100 m from the computing unit
• A host module is necessary for remote operation with HDBaseT
