6BK1623-0AA00-0AA0

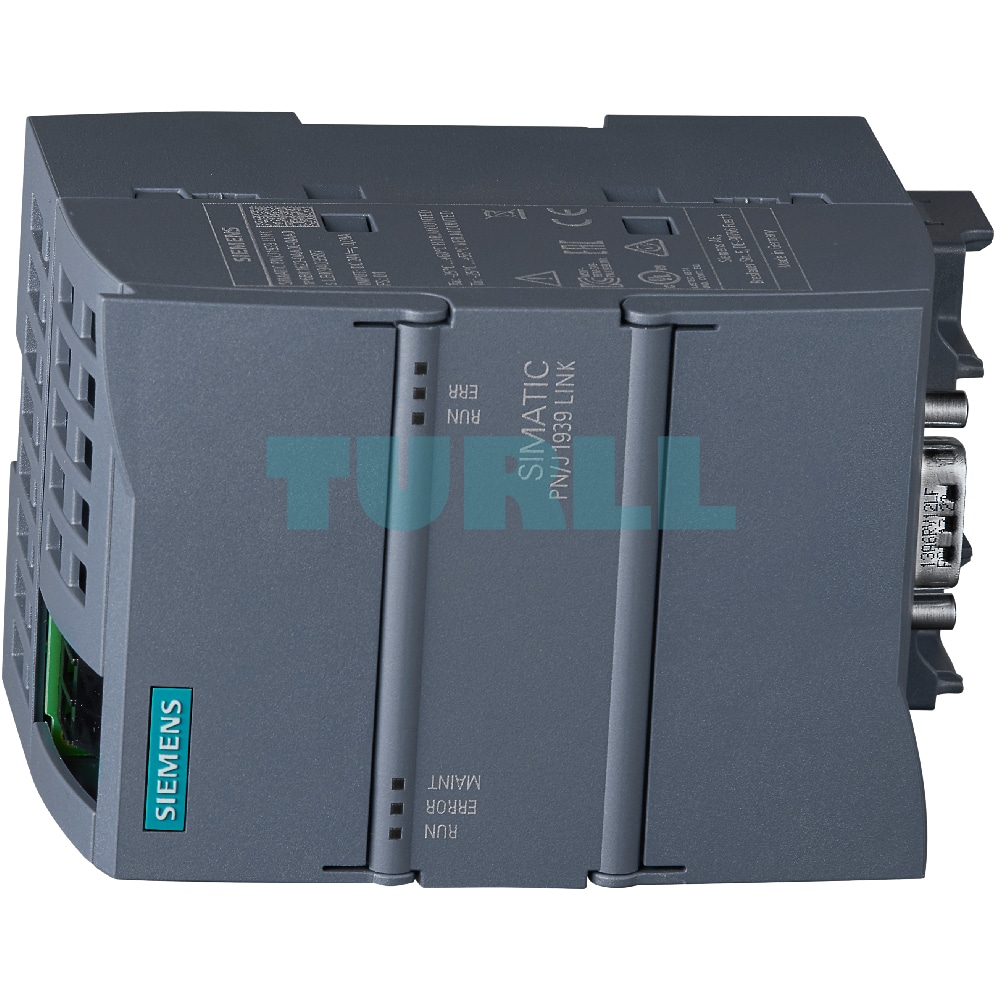

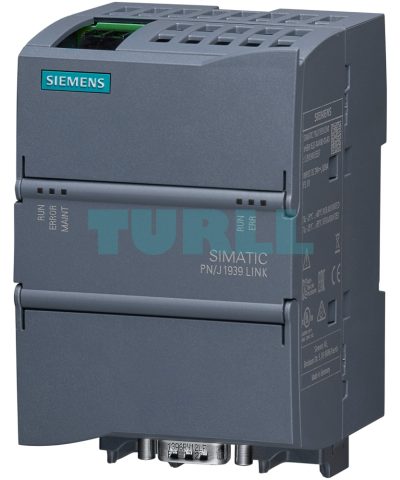

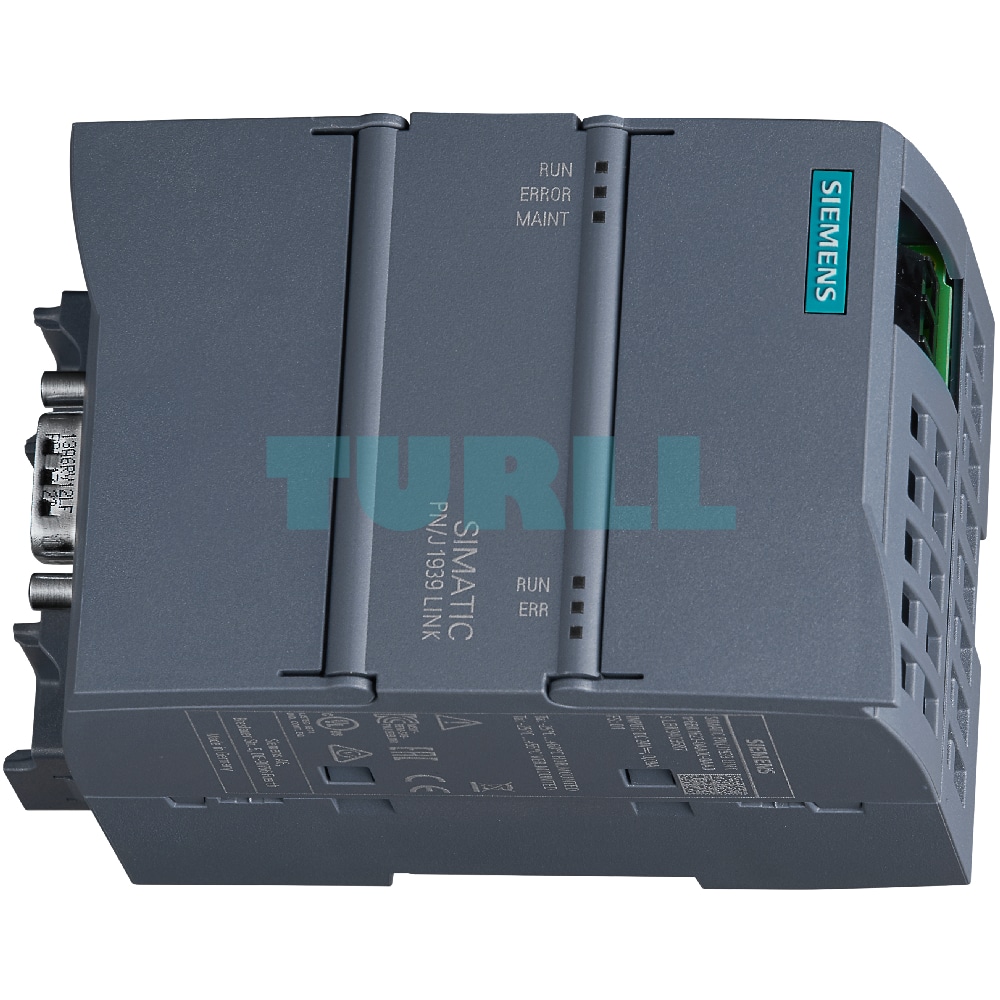

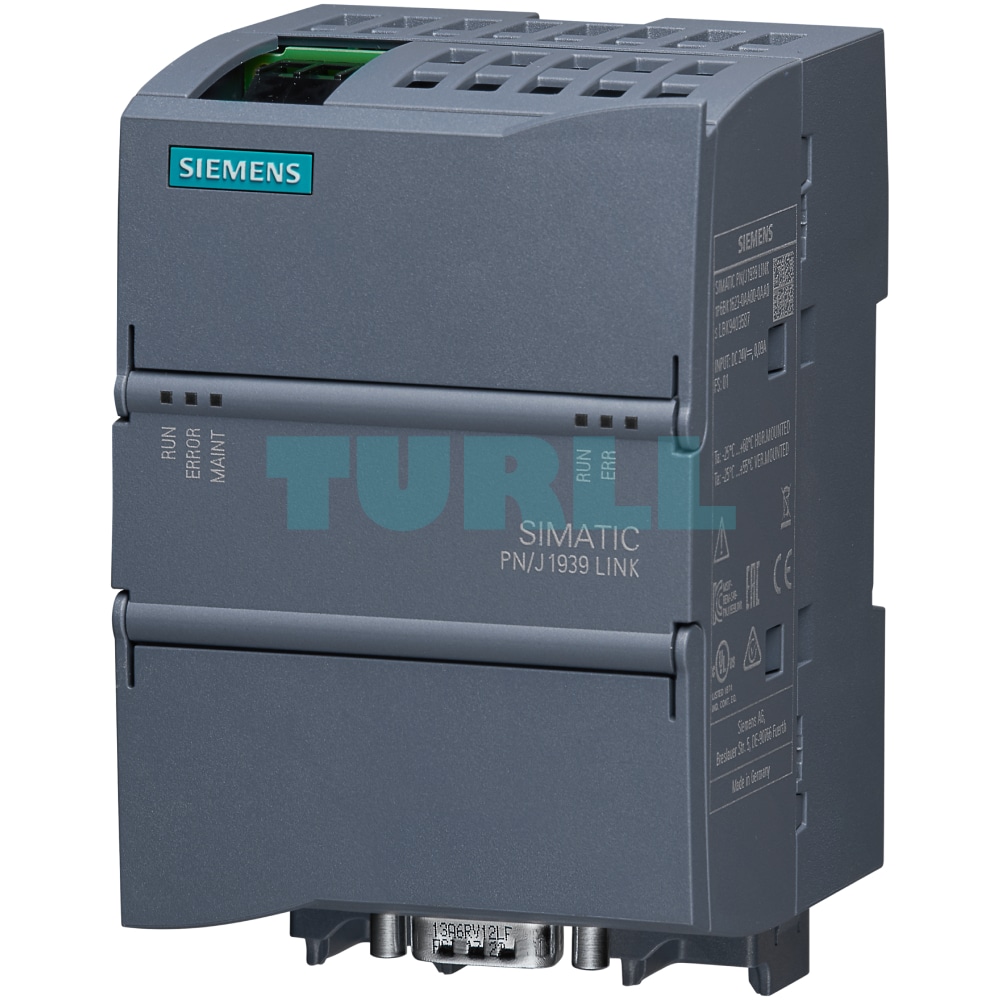

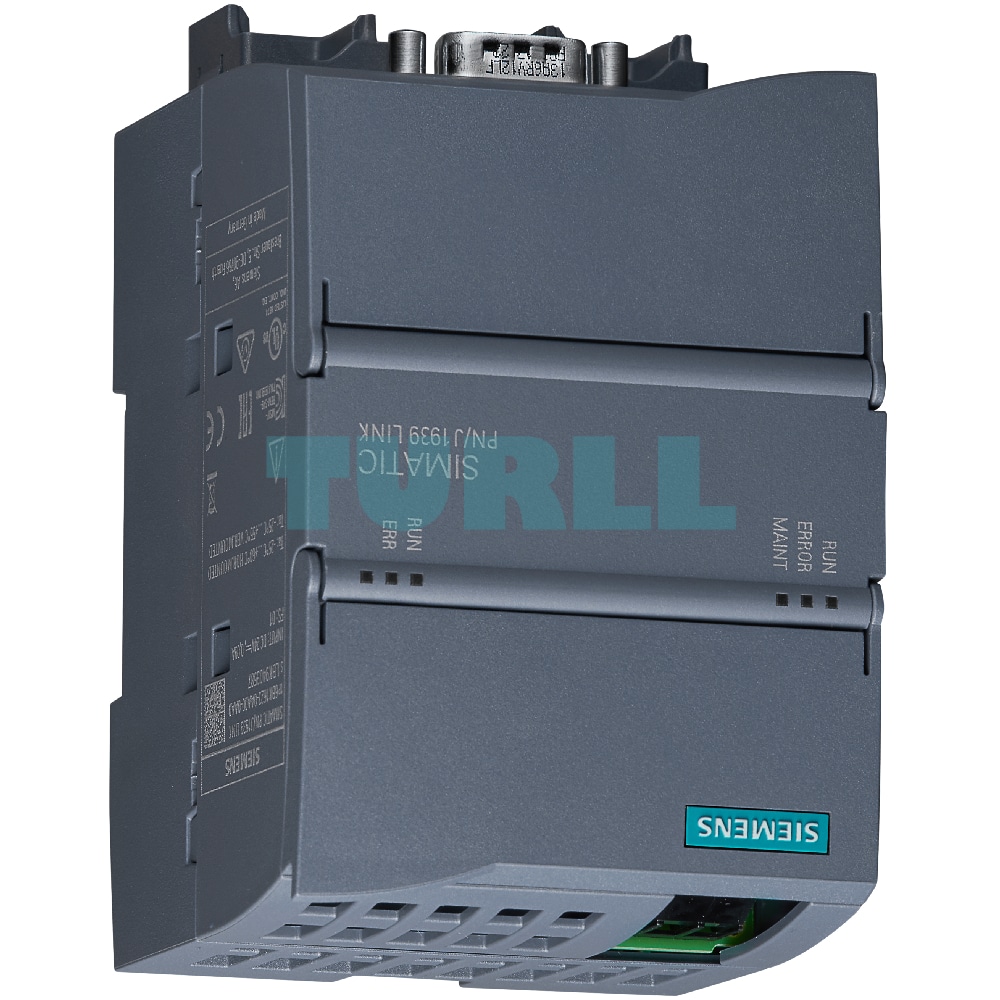

Siemens SIMATIC PN/J1939 Link, gateway from PROFINET to J1939 networks, IP20
Overview
- For data exchange between PROFINET and SAE J1939 networks
- J1939 functions:
- Broadcast Announce Message (BAM)
- Connection Mode Data Transfer (CMDT)
- PDU 1 & 2
- Integrated into Totally Integrated Automation via gsdml file in TIA Portal. No separate software required
- Integrated PROFINET switch with 9-pin Sub-D socket for J1939
- Up to 253 logical nodes
- Up to 30 addressable ECUs
- Galvanic isolation between the two networks
- Diagnostic interrupts
- Controllers supported: S7-1200, S7-1500, ET 200SP, Open Controller
Application
The SIMATIC PN/J1939 LINK integrates seamlessly into PROFINET networks and facilitates data exchange between the network and the SAE J1939 fieldbus. Communication with up to 253 logical nodes is possible.
Design
- S7-1200-type enclosure, width 70 mm
- Can be mounted on a standard DIN rail or a control panel
- LEDs for visualizing the operating states for J1939, PROFINET and PROFINET ports
- Internal PROFINET switch
- Connection to PROFINET PN IO networks exclusively via PROFINET with RJ45 plugs.
- Connection to SAEJ1939 bus via 9-pin Sub-D
- 3-pin connection of the external 24 V DC supply voltage
- Operation without fans or batteries
- Maximum permissible cable length of the J1939 network up to 1 000 m (depending on data transmission rate, cable cross-section, number of participants). Baud rates of 100 kbaud, 250 kbaud and 500 kbaud are supported.
Function
- PROFINET IO device
- Controllers supported: S7-1200, S7-1500, ET 200SP, Open Controller
- Easy engineering and extensive diagnostics options due to optimum TIA integration
- Update mechanisms via TIA Portal and the Siemens Automation Tool (SAT)
- J1939 functions:
- Broadcast Announce Message (BAM)
- Connection Mode Data Transfer (CMDT)
- PDU 1 & 2
