6DL1134-6JH00-0PH1 SIEMENS Exclusive SIMATIC ET 200SP HA Analog Input Module Original Brand New
For price details, please contact our customer service — SIEMENS SIMATIC ET 200SP HA analog input module with 16×TC/8×RTD, 16-bit, ±0.05%, with channel diagnostics.
6DL1134-6JH00-0PH1 SIEMENS Exclusive SIMATIC ET 200SP HA Analog Input Module Original Brand New
For price details, please contact our customer service

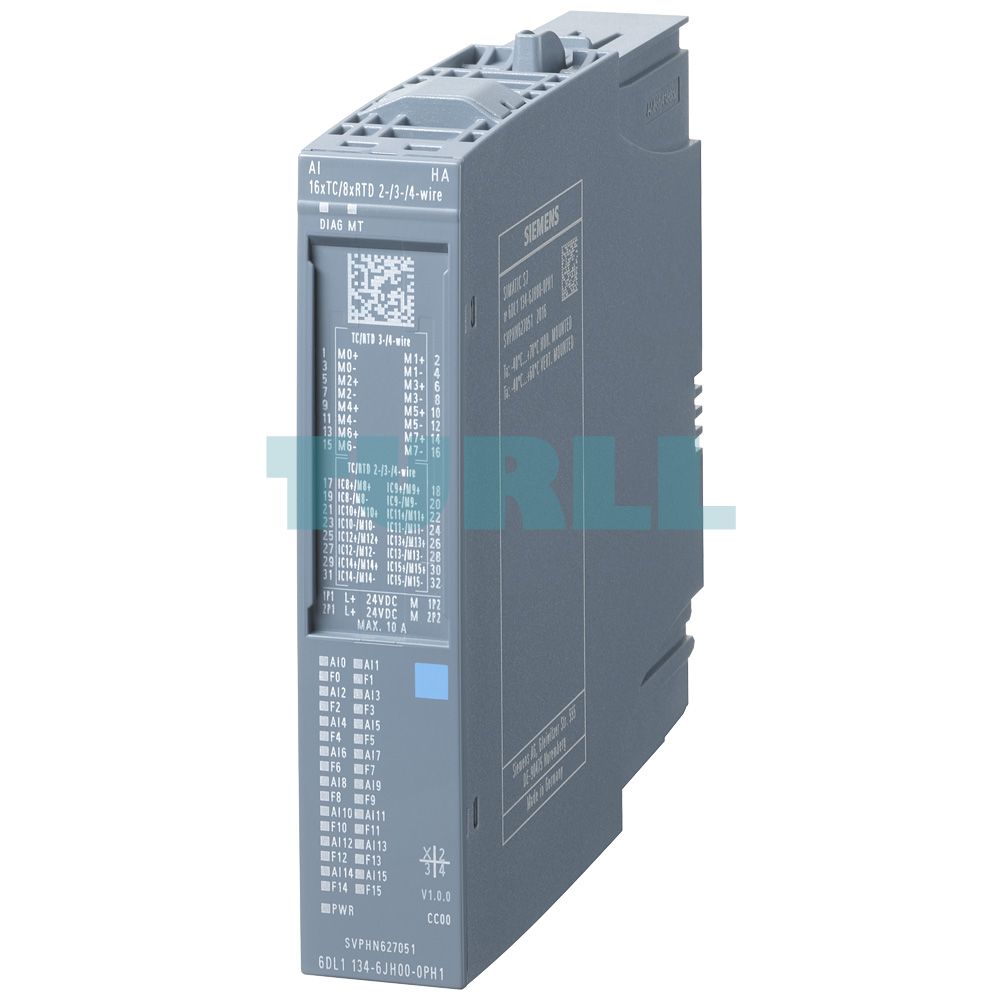

The SIEMENS 6DL1134-6JH00-0PH1 is a high-performance analog input module designed for the SIMATIC ET 200SP HA system. This module offers up to 16 thermocouple (TC) or 8 resistance temperature detector (RTD) inputs in 2-, 3-, or 4-wire configurations, providing excellent flexibility and precision for demanding industrial applications. With a measurement accuracy of ±0.05% and a resolution of 16 bits, this module ensures accurate signal acquisition and reliable diagnostics. It is compatible with a wide range of temperature sensors and resistance measurement ranges, making it an essential component in automation and process control systems.
Overview
Engineered for the most critical measurement applications, the 6DL1134-6JH00-0PH1 supports multiple sensor types, including thermocouples and RTDs, and operates with high stability even in harsh industrial environments. Suitable for terminal blocks H1 and M1 with CC00 color coding, the module supports comprehensive channel diagnostics, ensuring system integrity and easy maintenance. This AI module integrates seamlessly into SIMATIC ET 200SP HA systems, enabling efficient temperature monitoring and control across various industrial sectors, from process industries to factory automation.
- Analog input module for SIMATIC ET 200SP HA
- Supports 16×TC or 8×RTD with 2-/3-/4-wire connections
- High-precision 16-bit measurement with ±0.05% accuracy
- Compatible with various sensor types (TC: B, C, N, E, R, S, J, L, T, K, U, TXK; RTD: Pt100, Pt500, Ni1000, etc.)
- Supports resistance measurements up to 6000 Ohm
- Comprehensive channel diagnostics included
- Suitable for terminal blocks H1 and M1, color code CC00
- Ideal for precise temperature monitoring in industrial automation
Design
- Compact module design with modular SIMATIC ET 200SP HA system integration
- Supports a wide range of thermocouple and RTD sensors
- Factory-calibrated for high measurement reliability
- Channel diagnostics for proactive maintenance and monitoring
- Simple installation and configuration using standard terminal blocks
Product Link: 6DL1134-6JH00-0PH1
| Weight | 0.3 kg |
|---|---|
| Dimensions | 35 × 150 × 130 mm |
