6DR5010-0EM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5010-0EM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

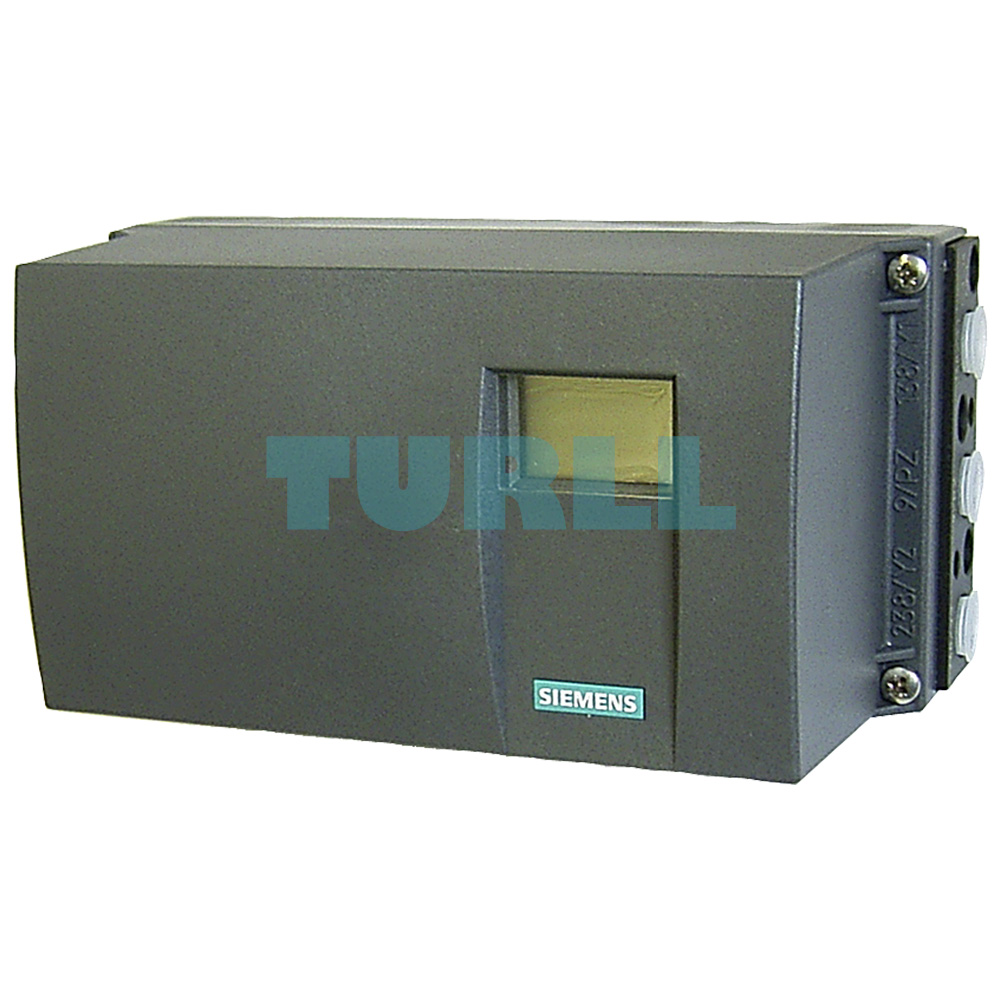

The SIEMENS 6DR5010-0EM00-0AA0 SIPART PS2 is a smart electropneumatic positioner designed to deliver precise control of pneumatic actuators in demanding industrial applications. This single-acting, intrinsically safe positioner operates on a 4–20 mA signal and features a durable polycarbonate enclosure suitable for both linear and part-turn actuators. Utilizing non-contacting sensor (NCS) technology, the device ensures wear-free position detection, increasing long-term reliability and reducing maintenance.

It is equipped with standard/fail-safe functionality, which depressurizes the actuator during auxiliary power failure, enhancing operational safety. Without a limit monitor or manometer block, this model offers a compact, effective solution where external modules are unnecessary. Output isolator SITRANS I200 and option modules can be ordered separately for extended functions.

Overview

SIPART PS2 positioners are designed to accurately control valve positioning based on analog or digital input signals. These intelligent devices support advanced diagnostics both online and offline, ensuring reliable performance in critical process environments. Diagnostic capabilities can be further expanded with optional pressure sensors for detailed monitoring.

Design

The SIPART PS2 digital positioner is comprised of several integrated components:

• Polycarbonate enclosure with base plate and optional inspection window
• Electronics compatible with 4–20 mA, HART, PROFIBUS PA, and FOUNDATION Fieldbus
• Non-contacting sensor (NCS) for feedback signal acquisition
• Pneumatic block with supply and actuation pressure connections

It supports modular expansion including:

• Analog Output Module for 4–20 mA feedback
• Digital I/O Module (3 digital outputs, 1 digital input) for limit signaling and alarms
• Inductive Limit Switches (NAMUR standard) and Mechanical Limit Switches (MLS)

Modules are electrically isolated, self-monitoring, and easy to retrofit. The device also supports remote mounting, enabling installation in protected areas when valve environments are harsh, such as those with vibration, radiation, or extreme temperatures.

Product Code: 6DR5010-0EM00-0AA0
