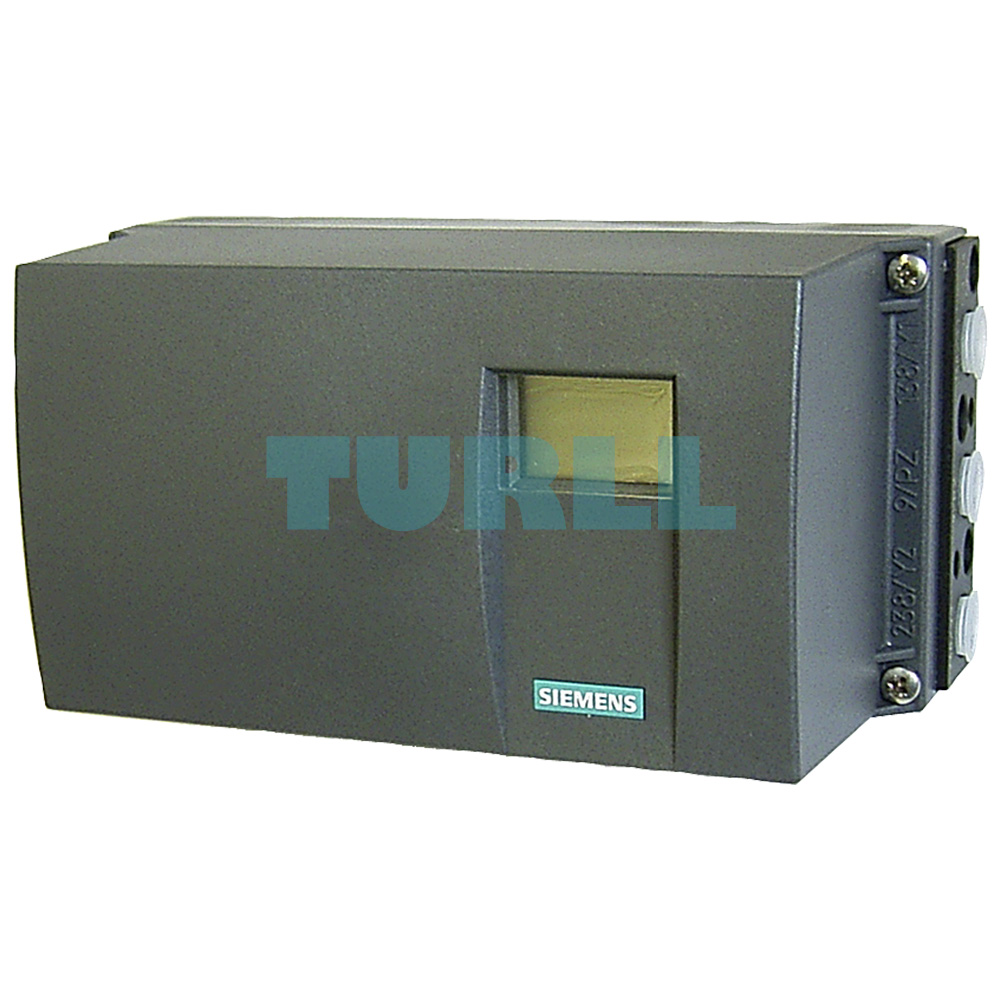

6DR5010-0NM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

6DR5010-0NM00-0AA0 SIEMENS Exclusive SIPART PS2 Electropneumatic Positioner Original Brand New

The SIEMENS 6DR5010-0NM00-0AA0 SIPART PS2 is a smart electropneumatic positioner, engineered for precision control in pneumatic linear or part-turn actuators. Operating on a 4–20 mA signal, this single-acting unit features a polycarbonate enclosure and non-contacting wear-free position detection (NCS). It is designed without explosion protection, limit monitor, or option module, offering a dependable, streamlined solution for standard industrial applications.

Ideal for accurate valve positioning, the SIPART PS2 provides reliability, minimal maintenance, and advanced diagnostics. It supports fail-safe functionality—depressurizing the actuator in case of auxiliary power failure—and is supplied with multilingual brief instructions for ease of use.

Overview

The SIPART PS2 electropneumatic positioner regulates valve positions based on setpoint signals. It offers both online and offline intelligent diagnostics, with optional expansions via internal pressure sensors. Integrated into pneumatic systems, this positioner enhances automation reliability and process efficiency.

Design

The design consists of:

• Robust base plate with lid (optionally with inspection window)
• Electronic interface with 4–20 mA, HART, PROFIBUS PA, or FOUNDATION Fieldbus (FF)
• Non-contacting sensor (NCS) or potentiometer-based position feedback
• Right-side pneumatic block for connection to gauge block, booster, or solenoid valve

Mounting kits are available for both linear and part-turn actuators, with flexible configuration options to adapt to varying industrial environments.

Optional Expansions

• Analog Output Module (AOM): Provides 4–20 mA feedback.
• Digital I/O Module (DIO): Includes 3 digital outputs and 1 digital input for alarms, safety triggers, or status indication.
• Inductive Limit Switches (ILS): Two NAMUR-compliant limits with built-in fault detection.
• Mechanical Limit Switches (MLS): Two physical limit switches for maximum versatility and fault indication.

All modules are electrically isolated and retrofit-ready, offering flexible, future-proof integration.

Remote Installation

SIPART PS2 allows separate mounting of the positioner and position detection components, beneficial in high-vibration, magnetic, or otherwise harsh environments. Electrical and pneumatic connectivity ensure smooth communication between remotely located devices.

Product Code: 6DR5010-0NM00-0AA0
