6EP1964-2BA00

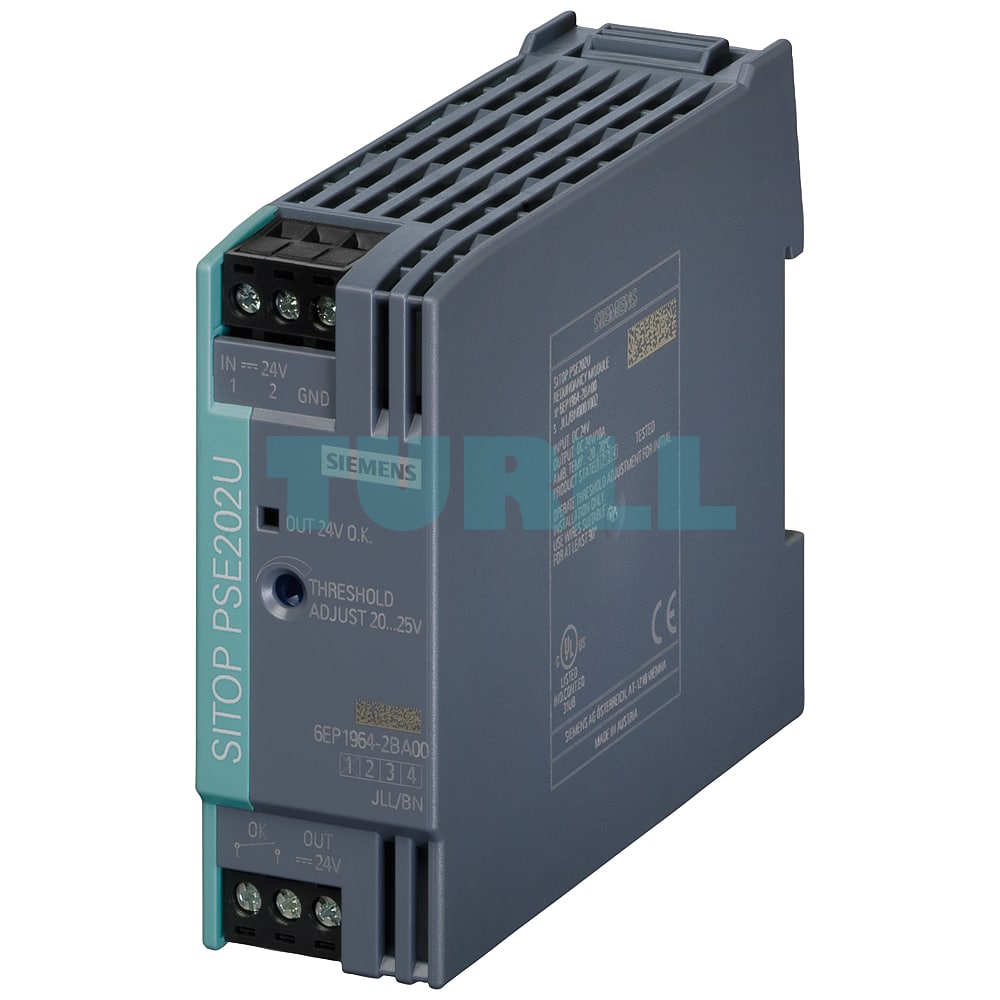

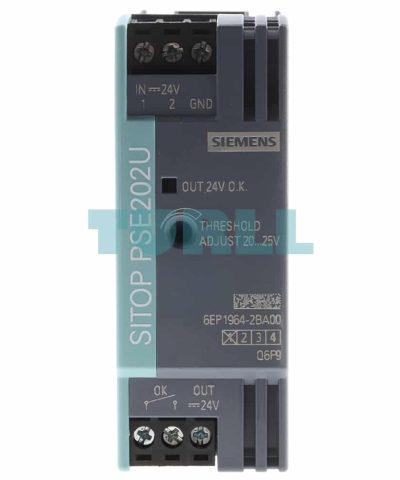

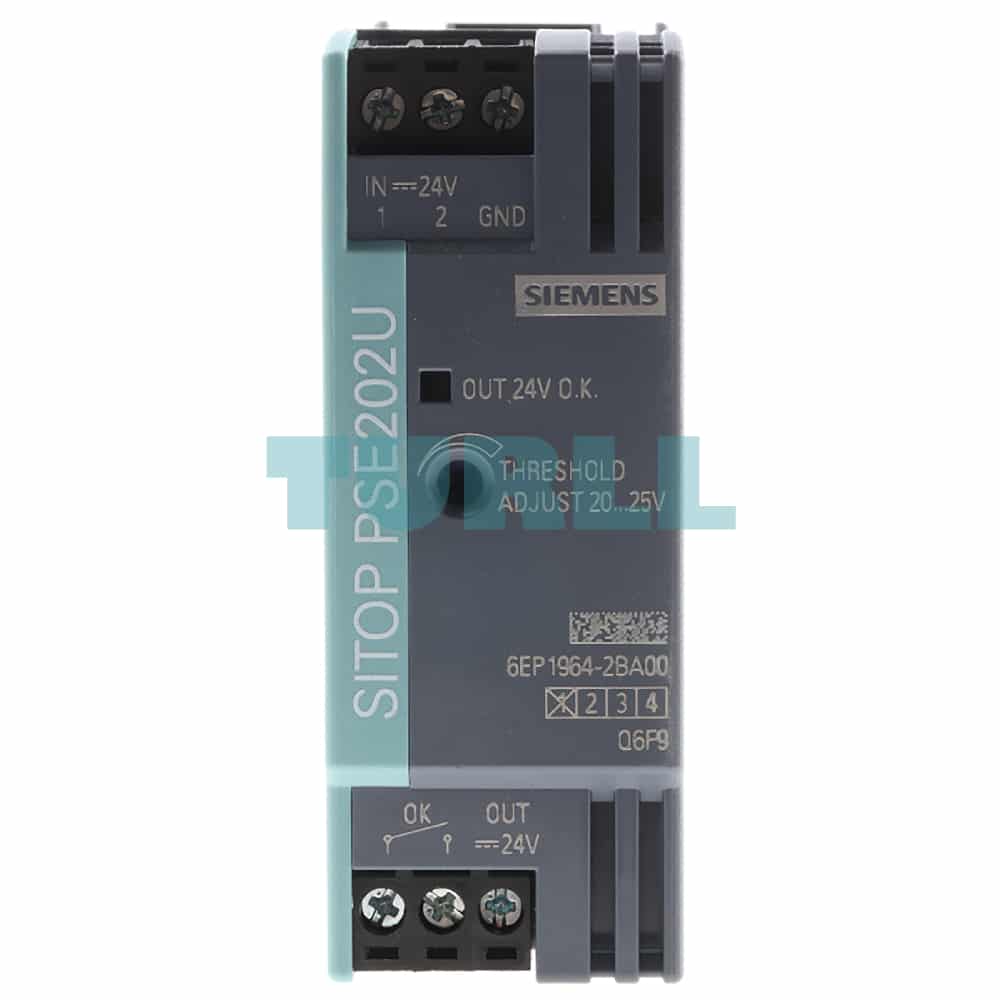

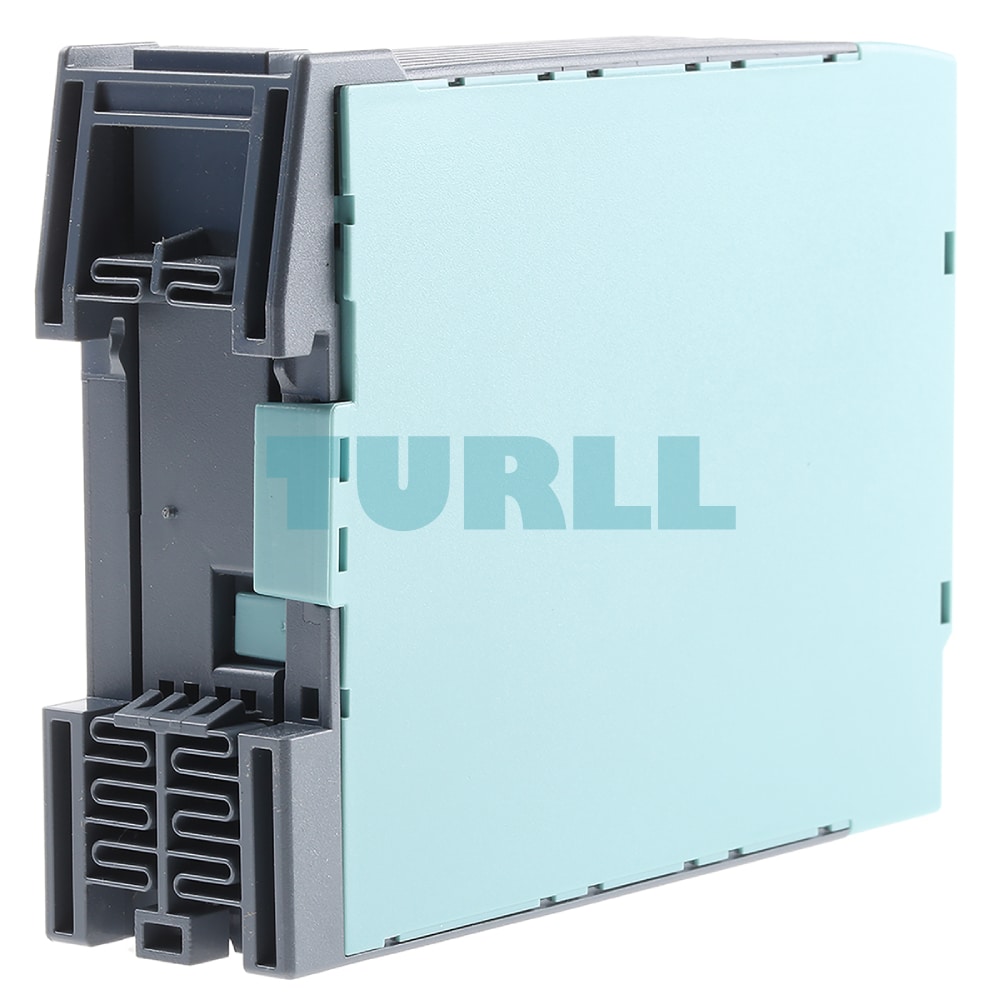

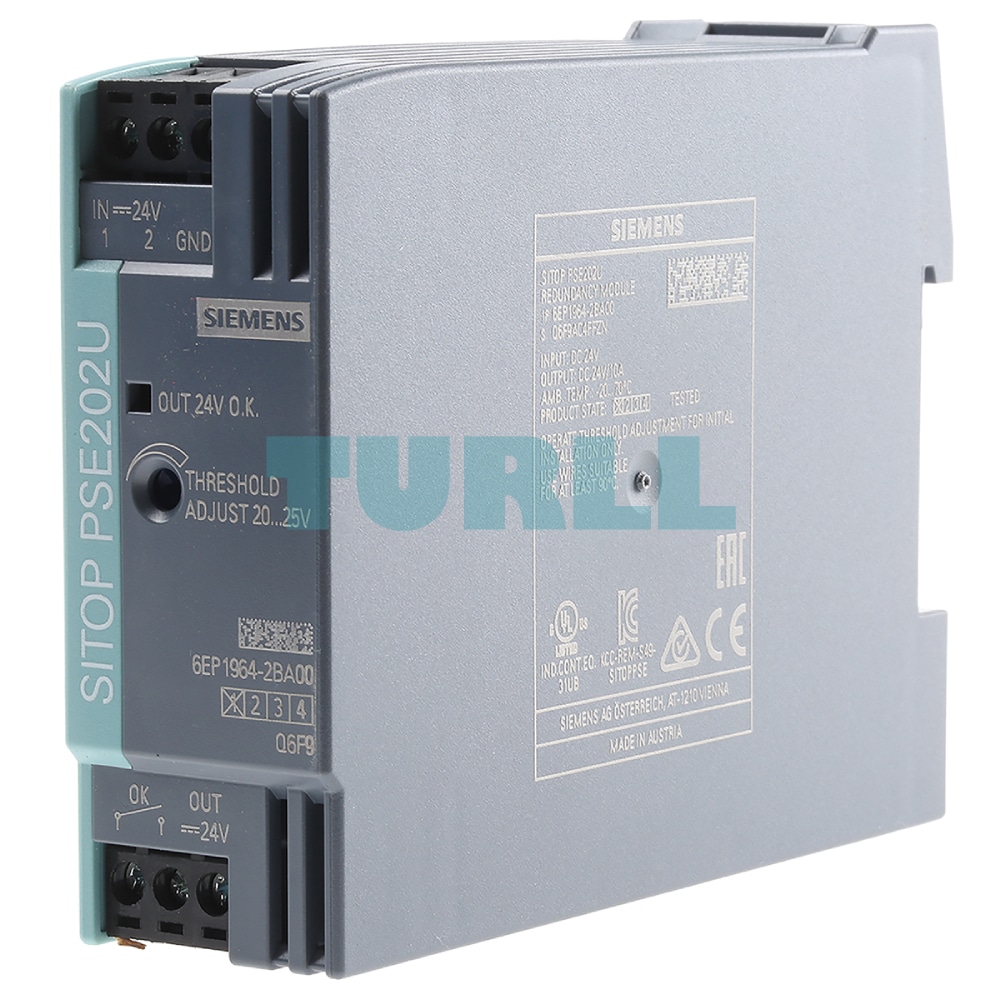

6EP1964-2BA00 Siemens SITOP PSE202U Original Brand New
Original price was: $150.46.$50.09Current price is: $50.09.
USDIn warehouse stock
Dispatches in 1–3 days
- Condition
- Original brand new
- Warranty
- 12 months
Review shipping and applicable charges at checkout. Dispatch time excludes transit.
Select a configuration to check its price, availability and supply terms.
Send your model and quantity. We will confirm the price and lead time.
Specifications & documents ↓Payments, shipping & warranty
PayPal- Bank transfer
See available methods at checkout.Payment guide →
PRODUCT DATA
Specifications
Check the full model number and every required specification.
| SKU / model | 6EP1964-2BA00 |
|---|---|
| Weight for shipping | 0.125 kg |
| Dimensions for shipping | 100 × 115 × 34 mm |
No public document is linked for this model.
Ask for technical documentationDescription
Overview
The SITOP redundancy modules are the optimal extension for all power supplies to ensure additional protection from failure of the control voltage. The redundancy module decouples the feeding power supply units and, in case of failure of one unit, the other one automatically takes over the DC supply. SITOP RED1200 redundancy modules compensate for the missing signal function when power supplies with diagnostic signals are used. If a fault occurs, the signal from the defective power supply remains off. The error message is still generated. The rugged RED1200 add-on modules decouple power supply units with output voltages from 10 to 58 V.
Benefits
- High safety of the control voltage due to redundant design
- Power is reliably supplied even when a power supply fails
- Compact redundancy modules for power supplies up to 40 A
- Redundancy module 24 V/NEC Class 2 with limiting to 100 VA
- SITOP PSE202U 24 V: Diagnostic message via LED and signaling contacts with adjustable switching thresholds
- SITOP RED1200 12 V, 24 V, 48 V: Compact and high dielectric strength
Design
For redundant design, the redundancy module decouples two SITOP power supplies of the same type from each other in parallel mode via diodes. Depending on the output current of the power supplies, 1 to 2 redundancy modules may be required.
Function
Monitoring by SITOP PSE202U redundancy modules
The PSE202U redundancy module continuously monitors the output voltage of connected power supply units. The switching threshold can be set from 20 to 25 V on the device. If the output voltage of one of the two power supply units sinks to the set value or below, this is signaled by an LED on the device and a changeover contact.
6EP1964-2BA00 Siemens
SITOP PSE202U 10A Redundancy module Input/output: 24 V DC suitable for decoupling two SITOP power supplies with maximal per 5 A output current
