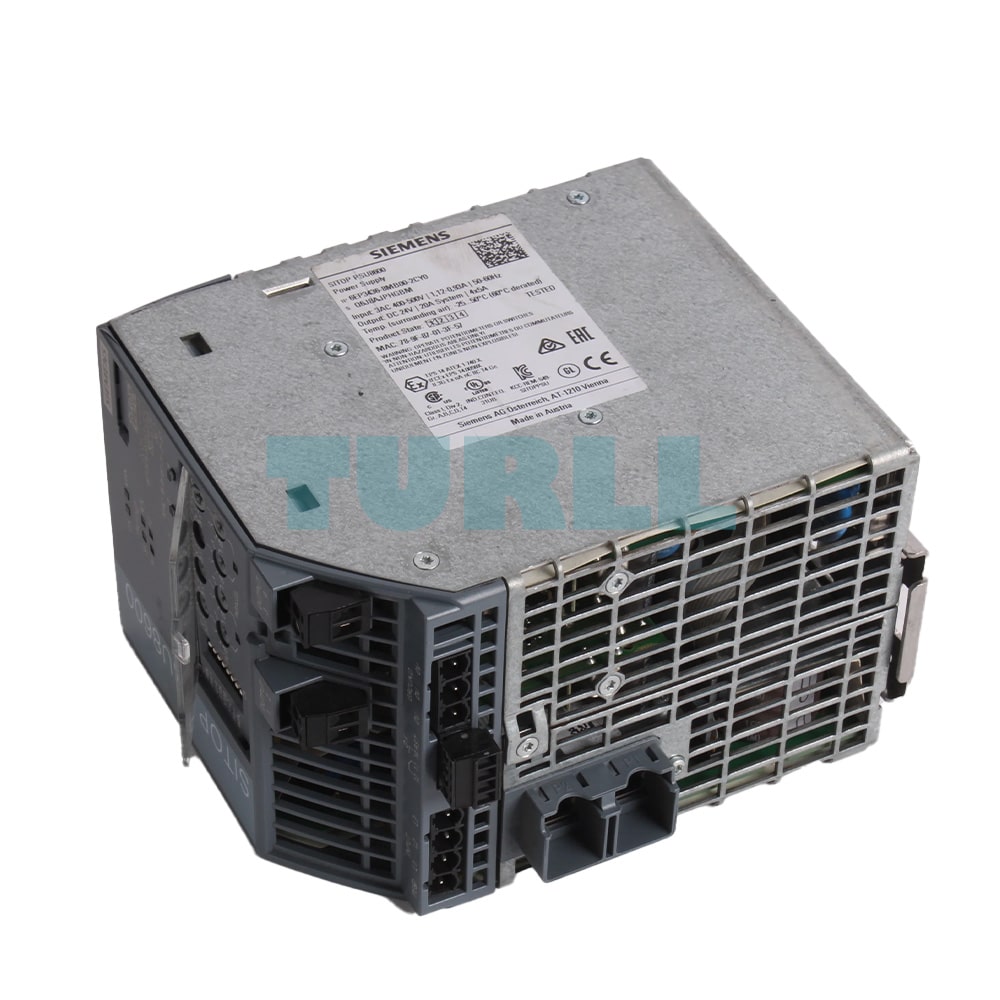

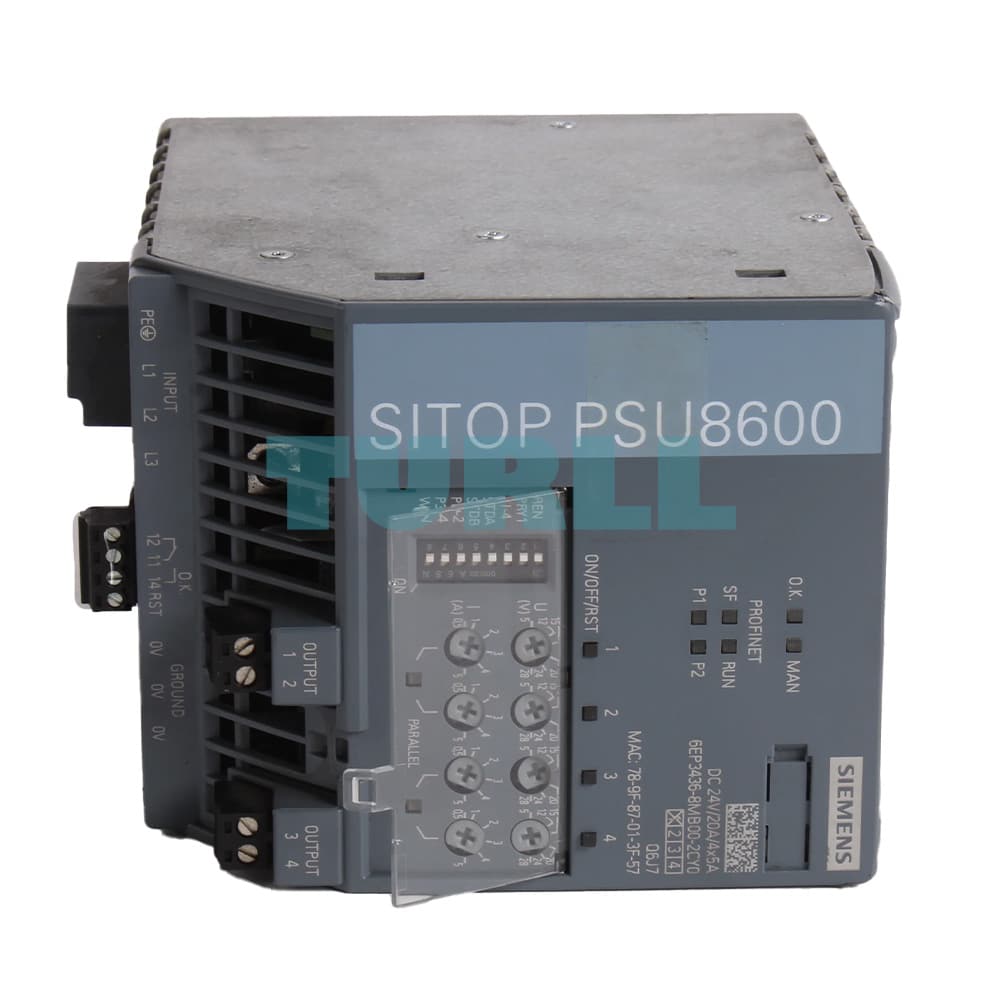

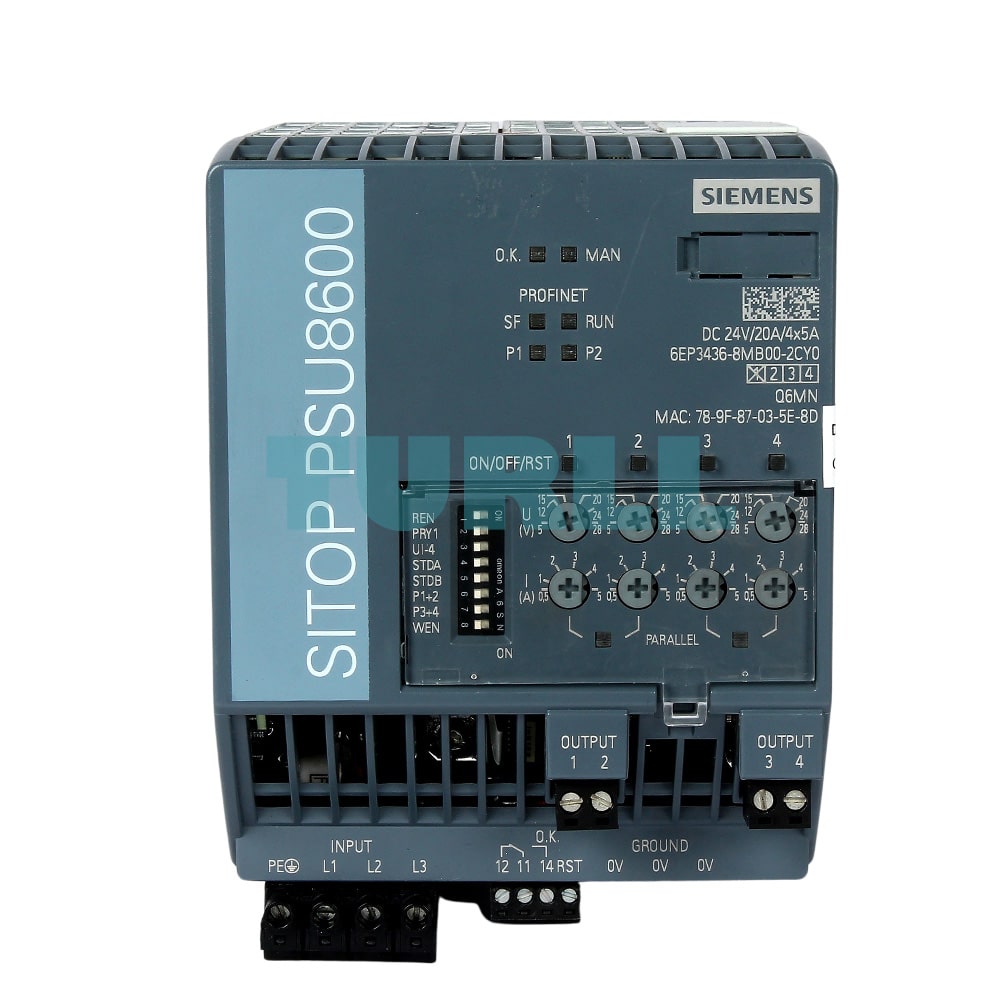

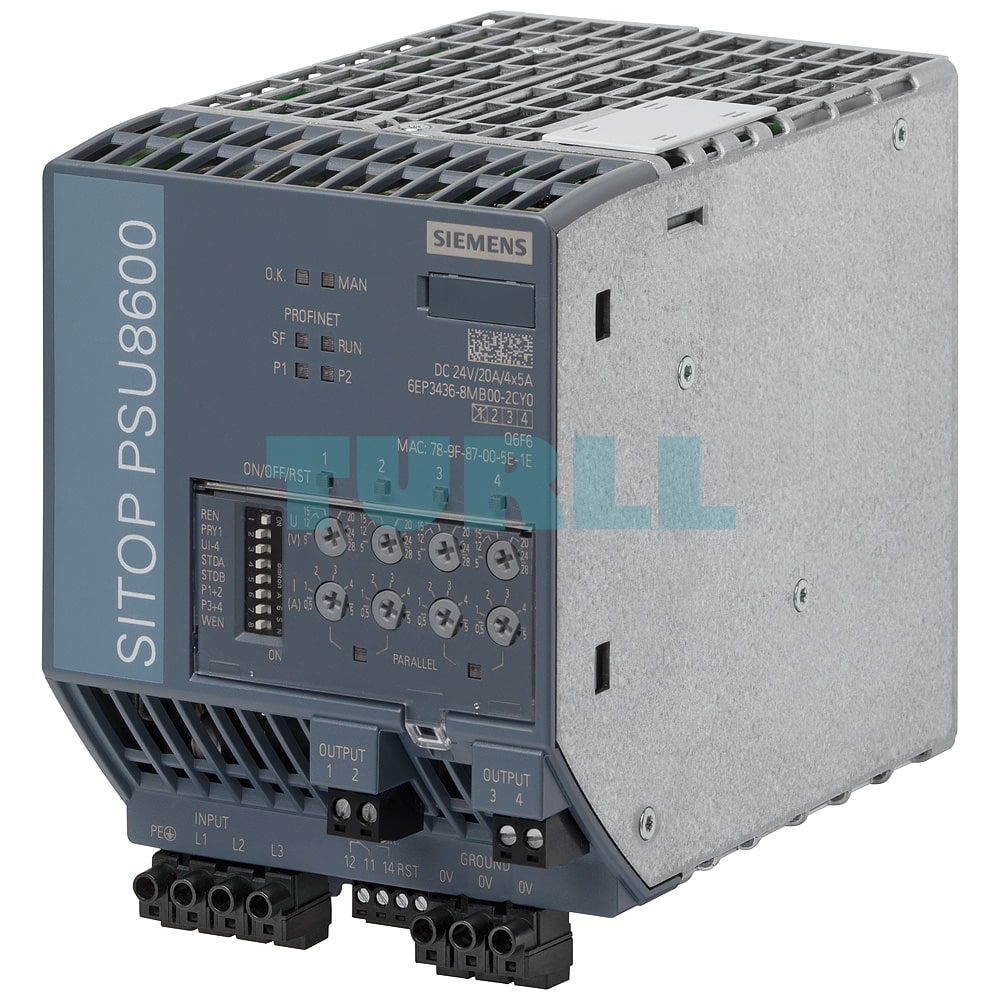

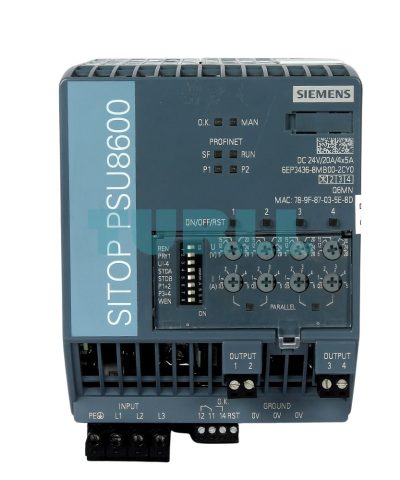

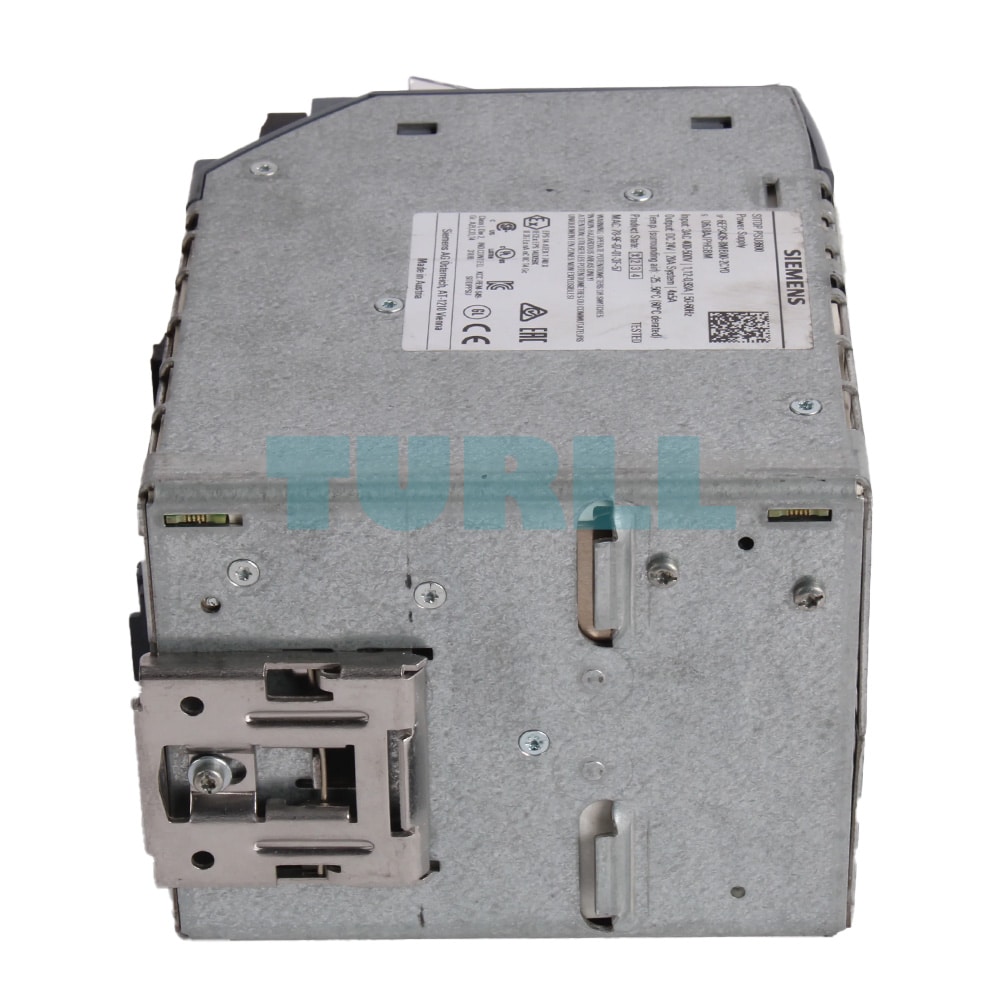

6EP3436-8MB00-2CY0 SIEMENS SITOP PSU8600 3AC 20 A/4×5 A PN stabilized power supply Original Brand New

Despite their compact overall width, the 1-phase and 3-phase basic units of the SITOP PSU8600 power supply system include one Ethernet/PROFINET or EtherNet/IP interface, as well as one or four configurable outputs (voltage and current threshold) with selective monitoring. If needed, additional modules from the modular system can be added to the basic unit without any wiring effort in order to increase the number of outputs (CNX8600) or to extend the power buffering time (BUF8600, UPS8600). Comprehensive diagnostic and maintenance information is available via PROFINET. It can be evaluated directly in SIMATIC S7 and visualized in SIMATIC WinCC. Energy management is also optimally supported through the acquisition of energy data for each output as well as individual activation and deactivation of the outputs via PROFIenergy.

Multi-vendor transfer of parameters and diagnostic data is also possible via the open communications interface OPC UA.

Product highlights

• Extremely slim design with very high efficiency of up to 94%
• Voltage and current threshold can be set separately and are infinitely adjustable for each output
• Extra power with 1.5 times the rated current (5 s/min) for brief, operational overload
• Integrated Ethernet/PROFINET interface (2 ports)
• Easy configuration in the TIA Portal
• Integrated web server for remote diagnostics
• Outputs can be deactivated and activated in a targeted manner with PROFIenergy
• Variant with integrated EtherNet/IP interface (2 ports), integrated in Rockwell Automation's Studio 5000 design software
