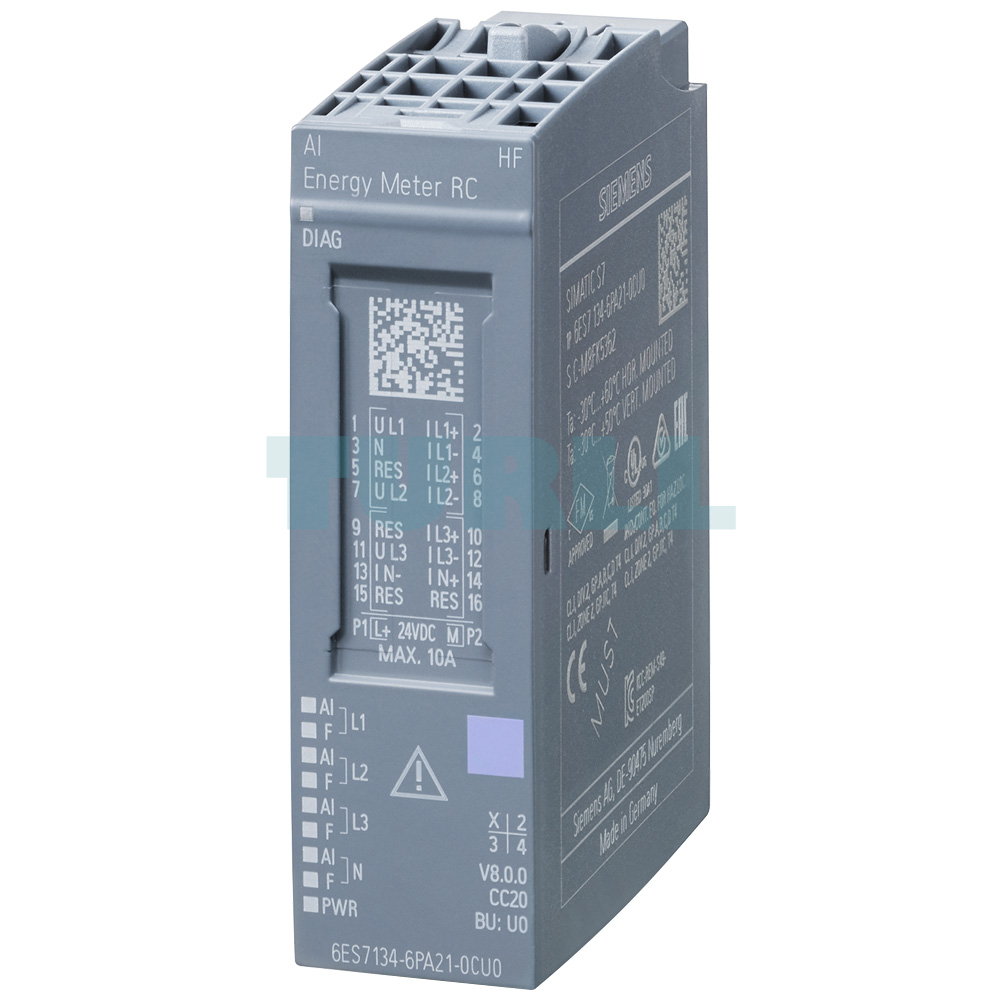

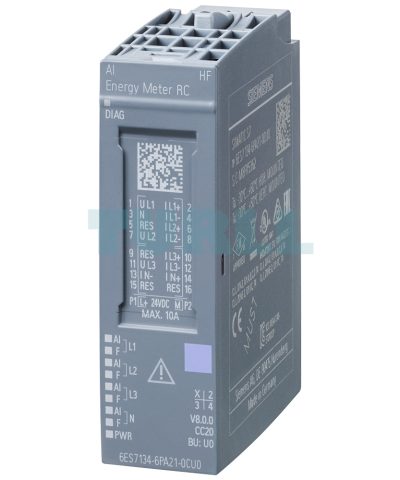

6ES7134-6PA21-0CU0 Siemens SIMATIC ET 200SP Analog Input Module Original Brand New

6ES7134-6PA21-0CU0

Siemens SIMATIC ET 200SP Analog Input Module (6ES7134-6PA21-0CU0) is another component from the ET 200SP series, designed for efficient data acquisition in automation systems.

Overview

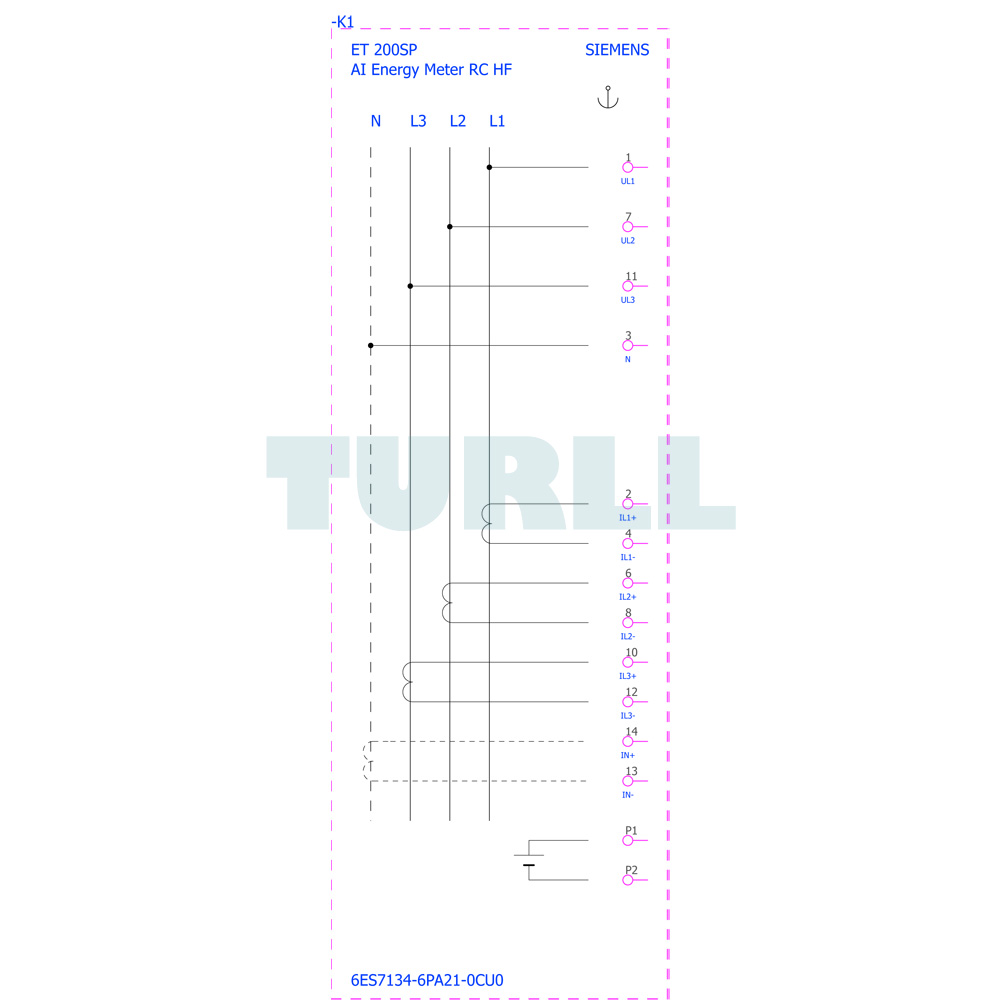

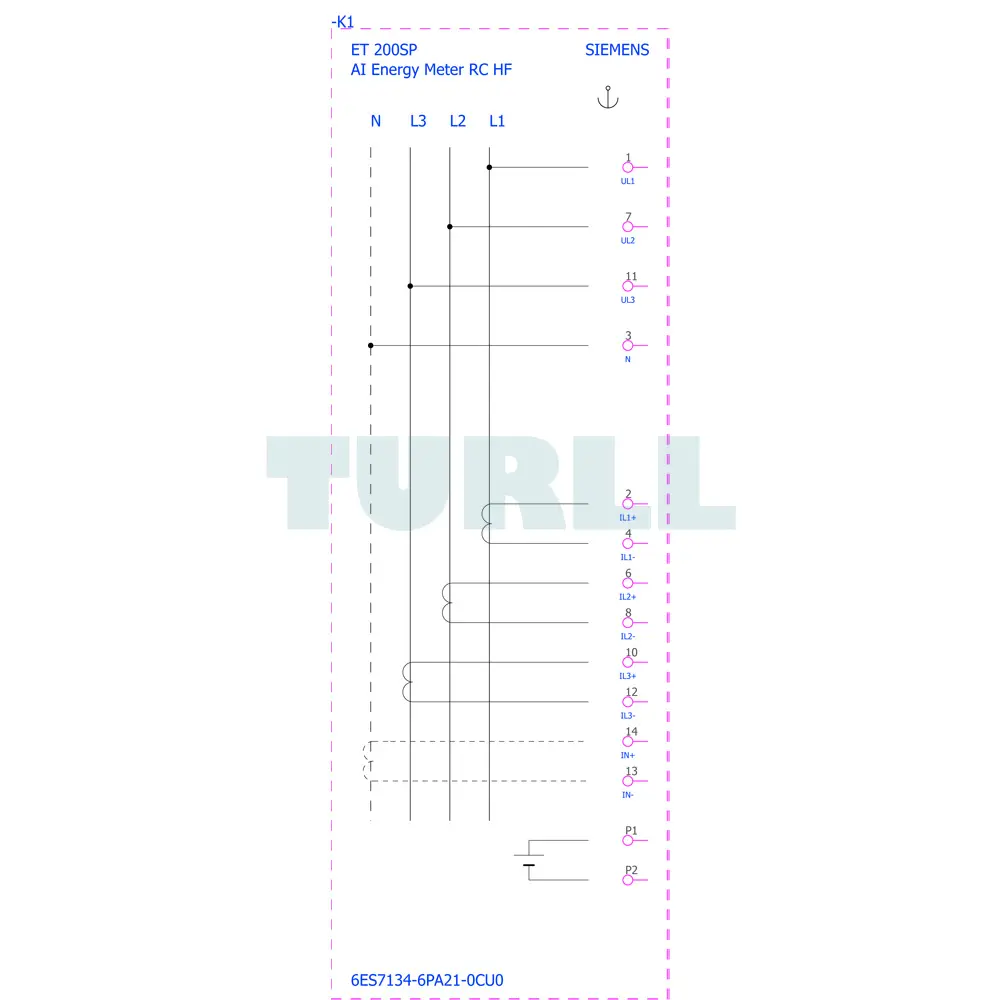

Siemens SIMATIC ET 200SP, analog input module, AI Energy Meter RC HF, for Rogowski coils or current/voltage transformer 333 mV, with network analysis functions, suitable for BU type U0, channel diagnostics

• 2, 4 and 8-channel analog input (AI) modules
• Apart from the standard type of delivery in single-unit packaging, selected I/O modules and BaseUnits are also available in a pack of 10 units. The pack of 10 units enables the amount of waste to be reduced considerably, as well as saving the time and cost of unpacking individual modules.

For different requirements, the analog input modules offer:

• Function classes Basic, Standard, High Feature and High Speed
• BaseUnits for single or multiple-conductor connection with automatic slot coding
• Potential distributor modules for system-integrated expansion with potential terminals
• Individual system-integrated potential group formation with self-assembling voltage busbars (a separate power module is no longer required for ET 200SP)
• Option of connecting current, voltage and resistance sensors, as well as thermocouples
• Option of connecting force and torque sensors
• Energy Meter for recording up to 600 electrical variables
• Clear labeling on front of module
• LEDs for diagnostics, status, supply voltage and faults
• Electronically readable and non-volatile writable nameplate (I&M data 0 to 3)
• Extended functions and additional operating modes in some cases
  • MSI operating mode (simultaneous reading of input data from as many as three other controllers)
  • Oversampling operating mode (n-fold isochronous acquisition of analog values within one PN cycle for increasing the time resolution for slow CPU cycles)
  • Isochronous mode (simultaneous equidistant reading in of all analog values)
  • Scalable measuring range (adaptation of measuring range, increase of the 16-bit resolution by adapting the measuring range to a limited section)
  • Scaling of the measured values (transmission of the analog value normalized to the required physical value as a 32-bit floating point value)
  • Internal compensation of the line resistance for thermocouples by means of terminal temperature measurement in the BaseUnit for BU type A1
  • Internal compensation also for 2-wire resistance test by means of adjustable line resistance
  • Calibration during runtime
  • Single-channel galvanic isolation
  • HART communication
  • Re-parameterization during operation
  • Firmware update
  • Diagnostics of wire break, short-circuit, overflow, underflow
  • Two upper and lower hardware interrupts in each case, interference frequency suppression, smoothing
  • Value status (optional binary validity information of the analog value in the process image)
  • Supports the PROFIenergy profile
• Optional accessories
  • Labeling strips (film or card)
  • Equipment labeling plate
  • Color-coded label with module-specific CC code
  • Shield terminal
