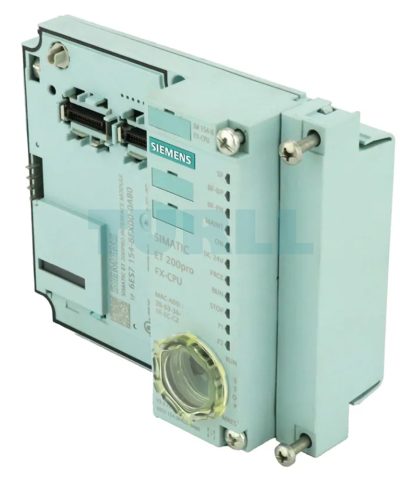

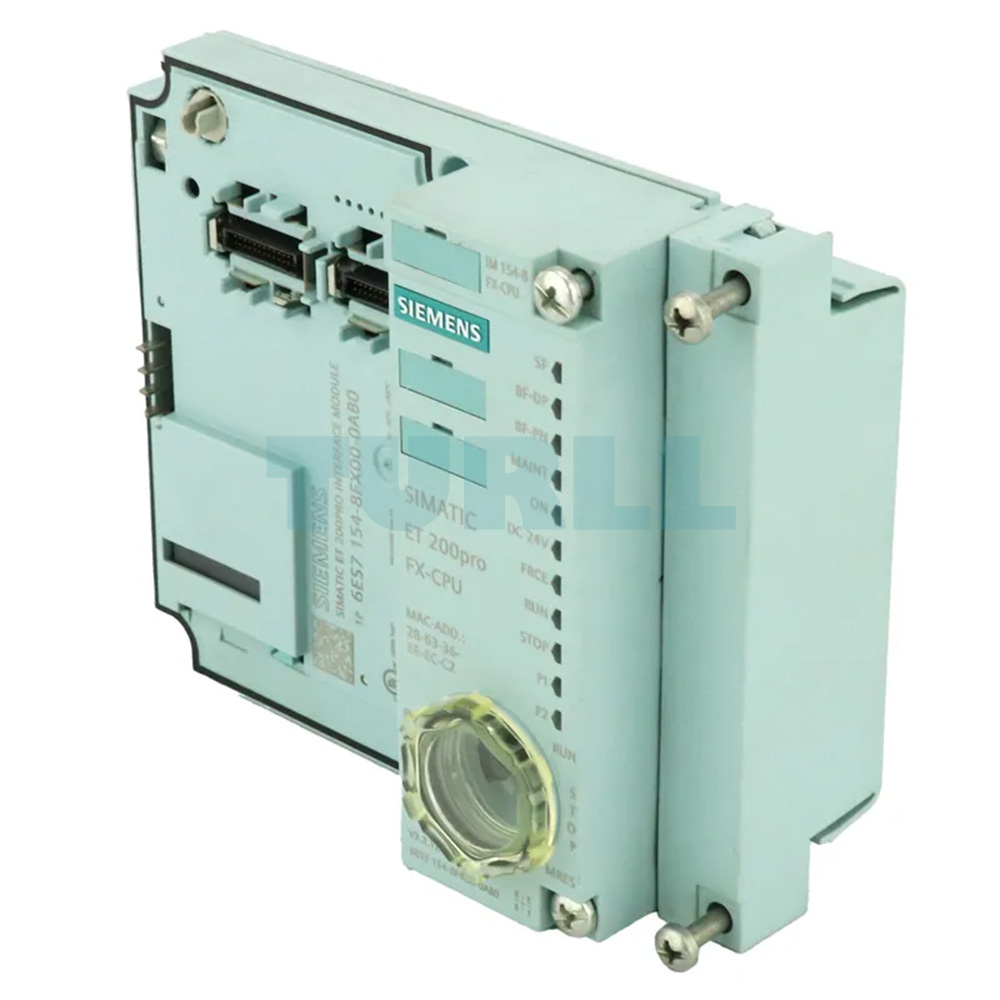

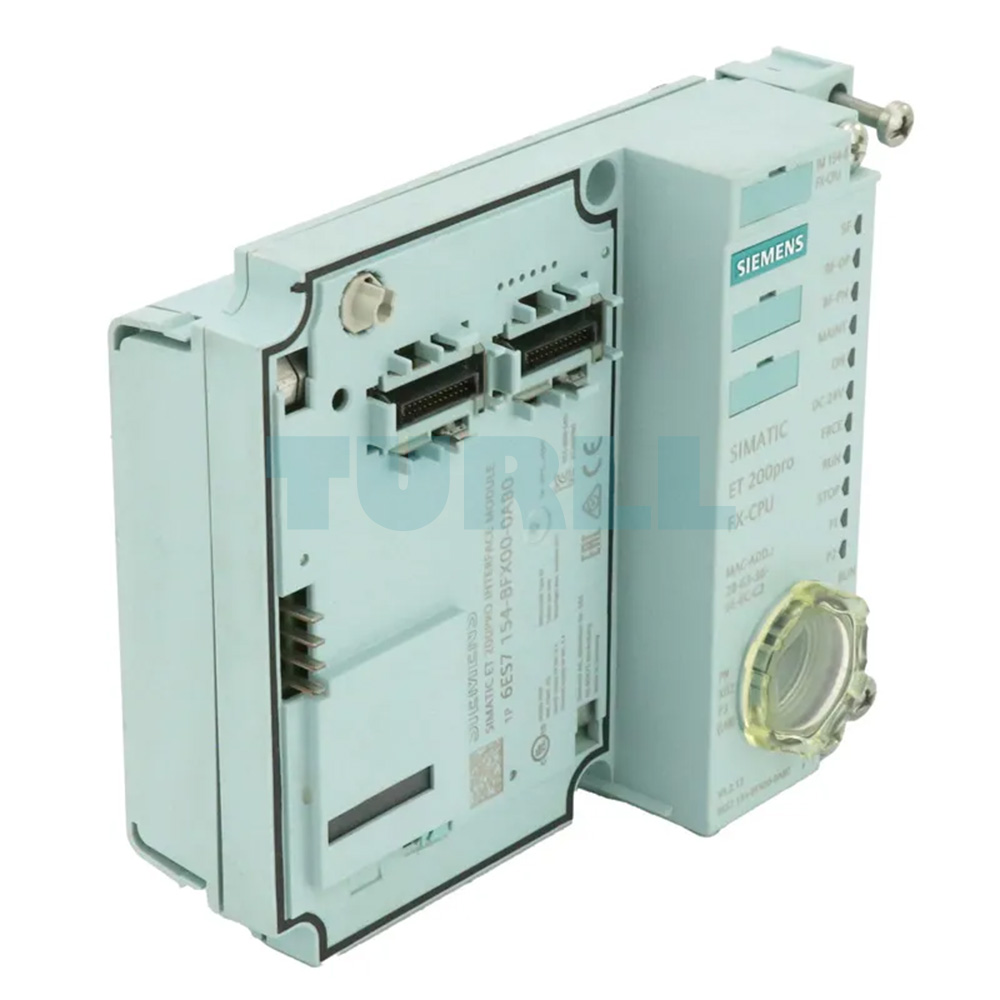

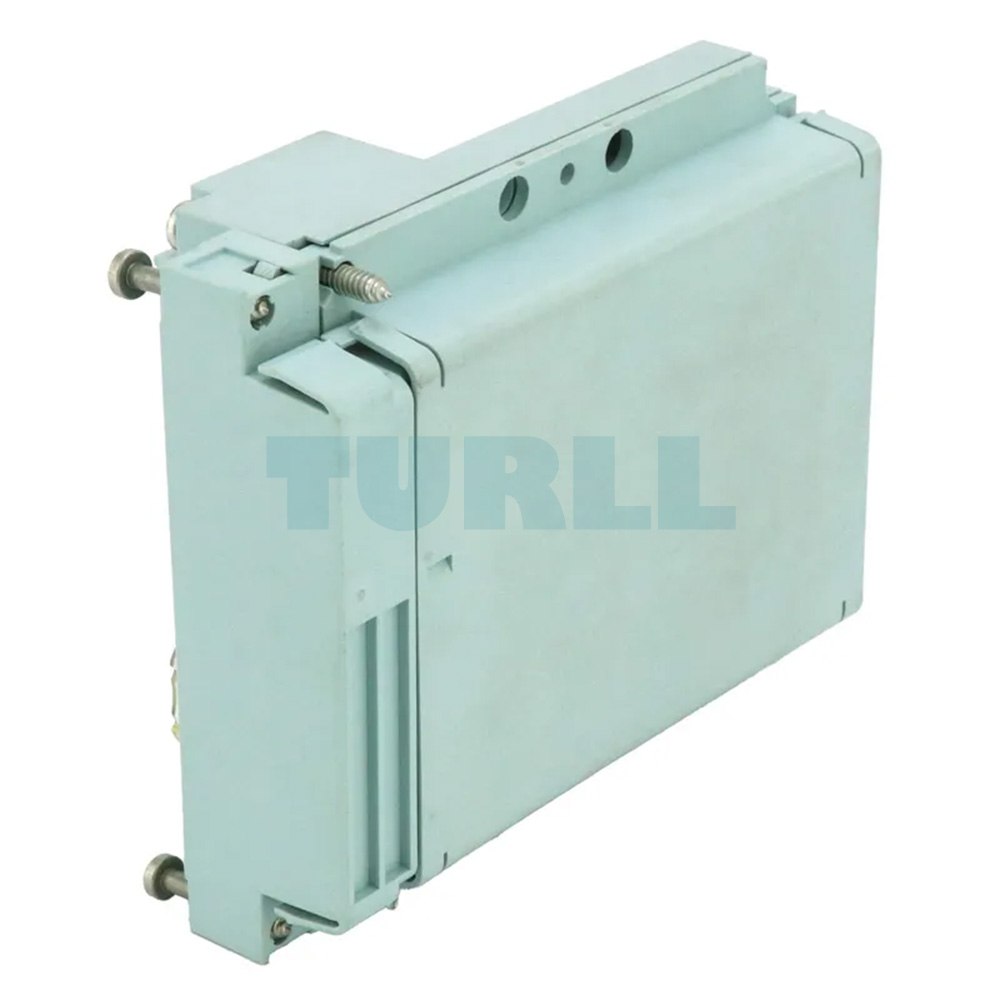

6ES7154-8FX00-0AB0 Siemens SIMATIC DP IM154-8FX PN/DP CPU Original Brand New
$5,633.85
6ES7154-8FX00-0AB0
Siemens SIMATIC DP, IM154-8FX PN/DP CPU f. ET200 PRO, 1.5 MB work memory, Int. PROFINET interface, Int. PROFIBUS DP master/slave interface Degree of protection IP65/67, Micro Memory Card and Connection module required
6ES7154-8FX00-0AB0
Siemens SIMATIC DP, IM154-8FX PN/DP CPU f. ET200 PRO, 1.5 MB work memory, Int. PROFINET interface, Int. PROFIBUS DP master/slave interface Degree of protection IP65/67, Micro Memory Card and Connection module required
Overview
- Interface module for SIMATIC ET 200pro with integrated fail-safe CPU
- CPU with PLC functionality equivalent to CPU S7-315F PN/DP;
with distributed intelligence for preprocessing - For constructing a fail-safe automation system for plants with increased safety requirements
- Complies with safety requirements up to SIL 3 according to IEC 61508, IEC 62061 and PL e according to ISO 13849.1:2006
- For high-performance control solutions in ET 200pro
- Increase in availability of systems and machines
- Integral web server with the option of creating user-defined web pages
- Isochronous mode on PROFIBUS or PROFINET
- PROFINET IO controller for up to 128 IO devices
- PROFINET interface with integrated 3-port switch
- With multiple communication options:
PG/OP communication, PROFINET IO, PROFINET CBA, open IE communication (TCP, ISO-on-TCP and UDP), web server and S7-communication (with loadable FBs) - Fast, simple and end-to-end programming of a system with modular programs via STEP 7
- Compact SIMATIC Micro Memory Card (MMC)
Note:
SIMATIC Micro Memory Card required for operation of CPU.
Application
The intelligent interface module IM 154-8 F PN/DP CPU features integrated PLC functionality. The functions included correspond to those of the S7-300 CPU 315F PN/DP.
The IM 154-8 F PN/DP CPU can be used simultaneously as an IO Controller and as an I-Device on PROFINET via the integral PROFINET interface.
This interface module allows the ET 200pro to be used as a control for autonomous technological functional units, such as:
- Conveyor systems, switches
- Lifting stations
- Positioning tasks
Further distributed I/Os can be connected via the additionally available PROFIBUS interface. In doing so, the IM 154-8 F PN/DP CPU can be used as master or slave on PROFIBUS.
In this way, applications in extensive manufacturing cells are possible with preprocessing; stand-alone operation is also possible. Cabinet-free installations are possible due to the high IP67 rating.
Design
The IM 154-8 F PN/DP CPU intelligent interface module consists of two components:
- IM 154-8 F PN/DP CPU (6ES7 154-8FB01-0AB0 or 6ES7 154-8FX00-0AB0) and
- CM IM PN DP M12 7/8″ connection module (6ES7 194-4AN00-0AA0)
Both components are sold separately.

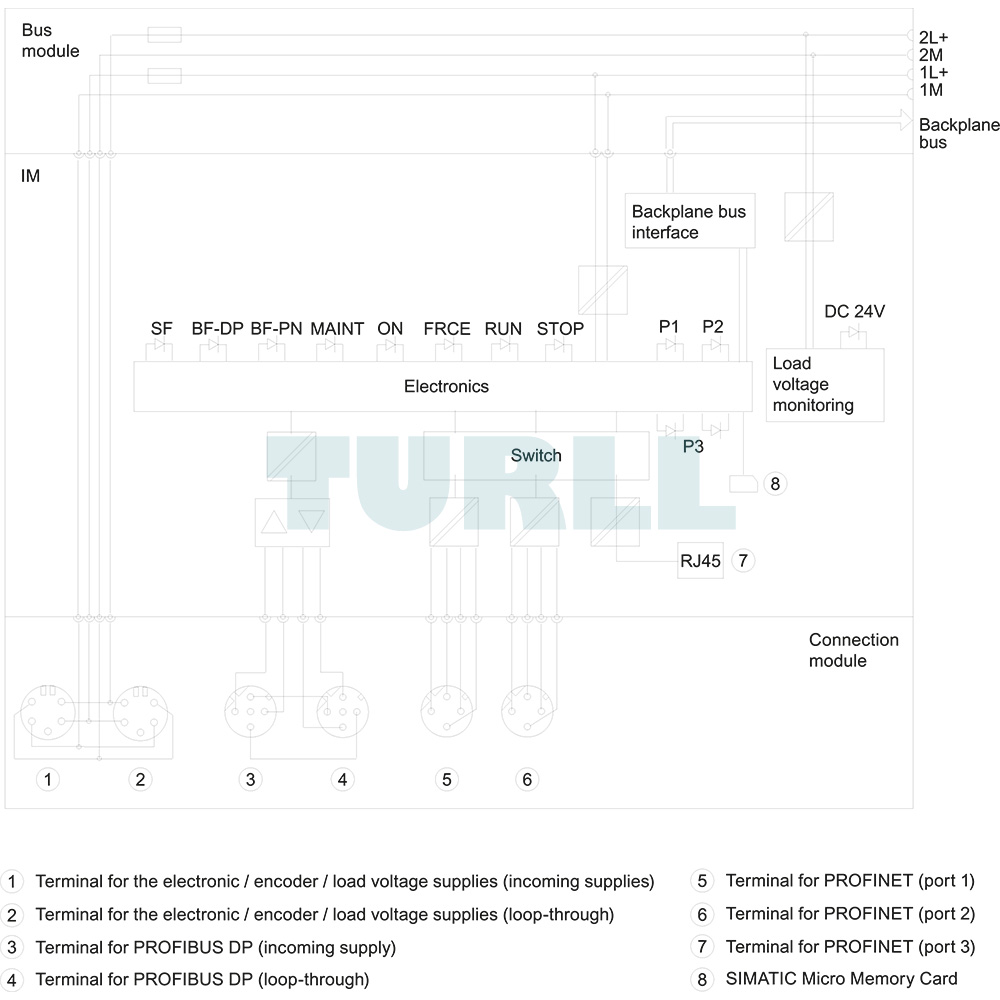

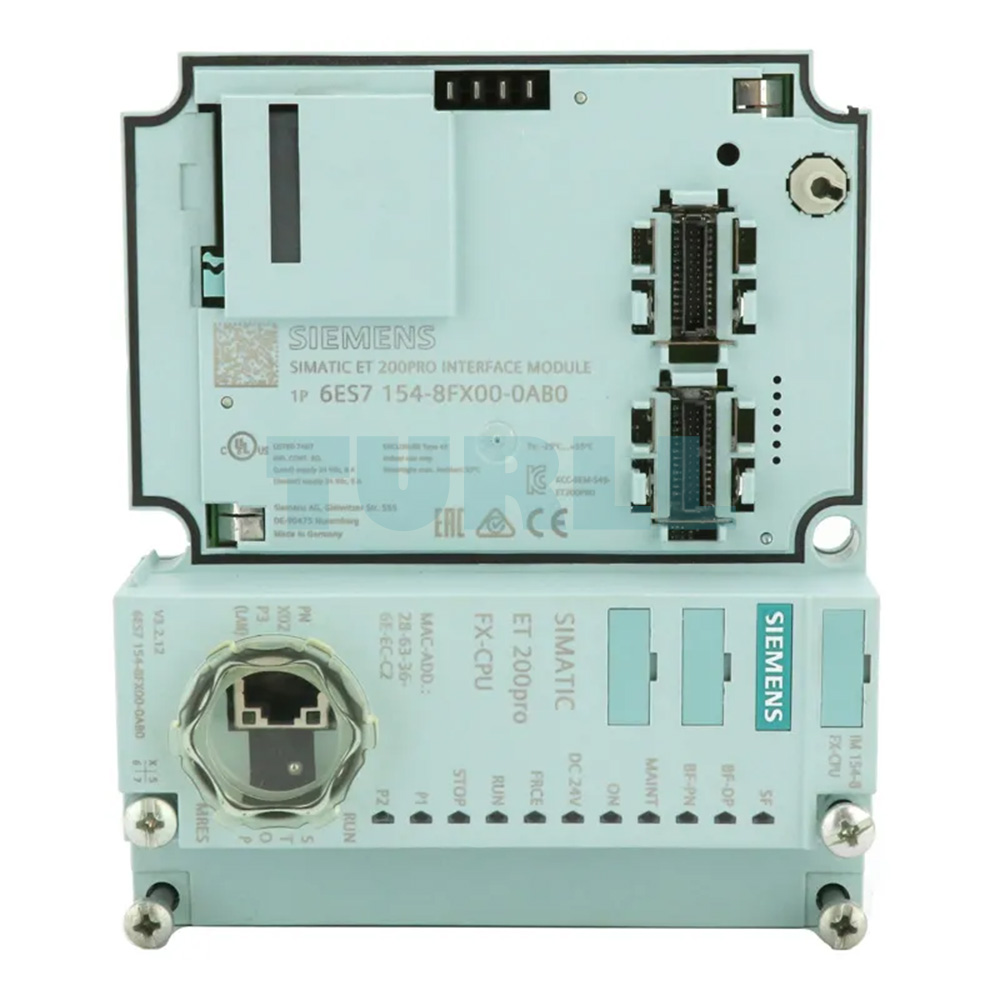

The IM 154-8 F PN/DP CPU interface module features the following:
- 3 PROFINET ports (2 x M12, 1 x RJ45)
- 2 MPI/PROFIBUS connections (input and output, M12)
- Integral CPU with the performance power of an S7-300-CPU 315F PN/DP
- RUN/STOP switch and RJ45 PROFINET port behind a sealed cover
- Micro Memory Card below the connection module
Download
Visit 6ES7154-8FX00-0AB0
For more our products visit turll.com
| Weight | 0.762 kg |
|---|---|

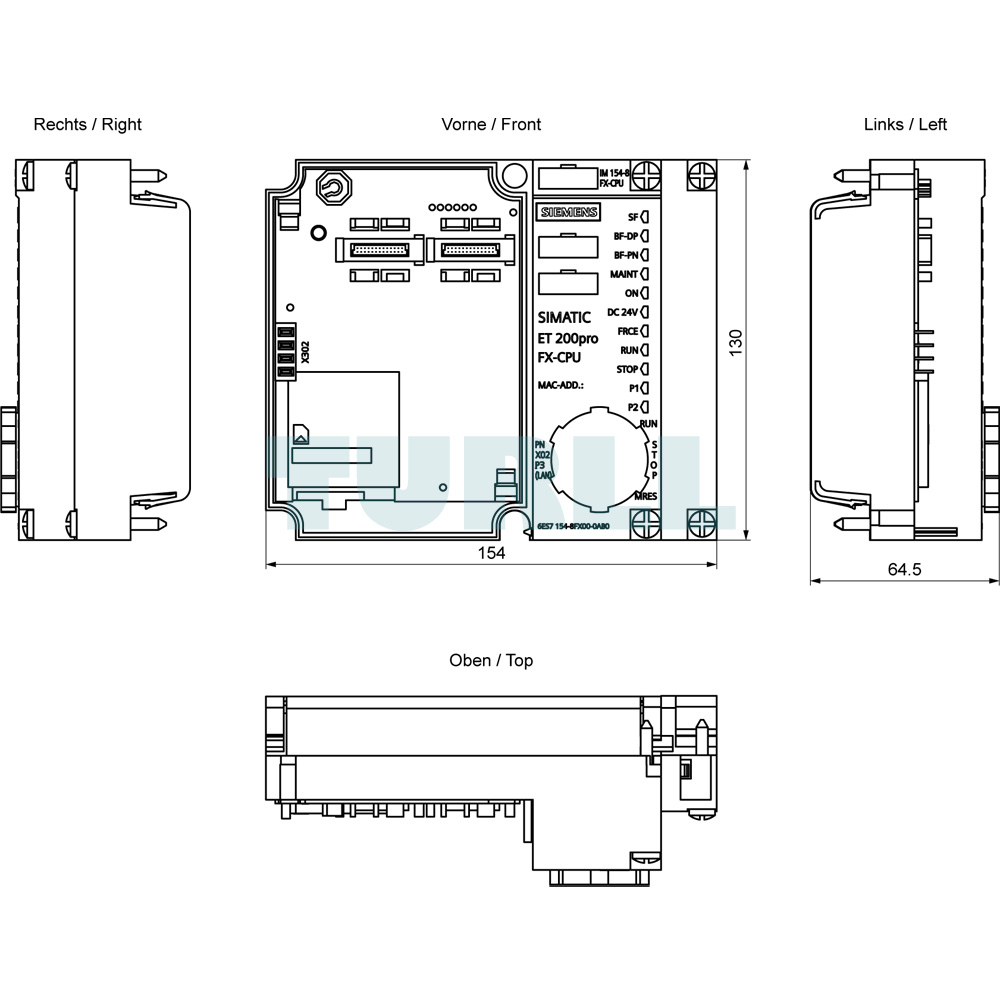

| Dimensions | 144.00 × 161.00 × 76.00 mm |
