6ES7155-6BA01-0CN0

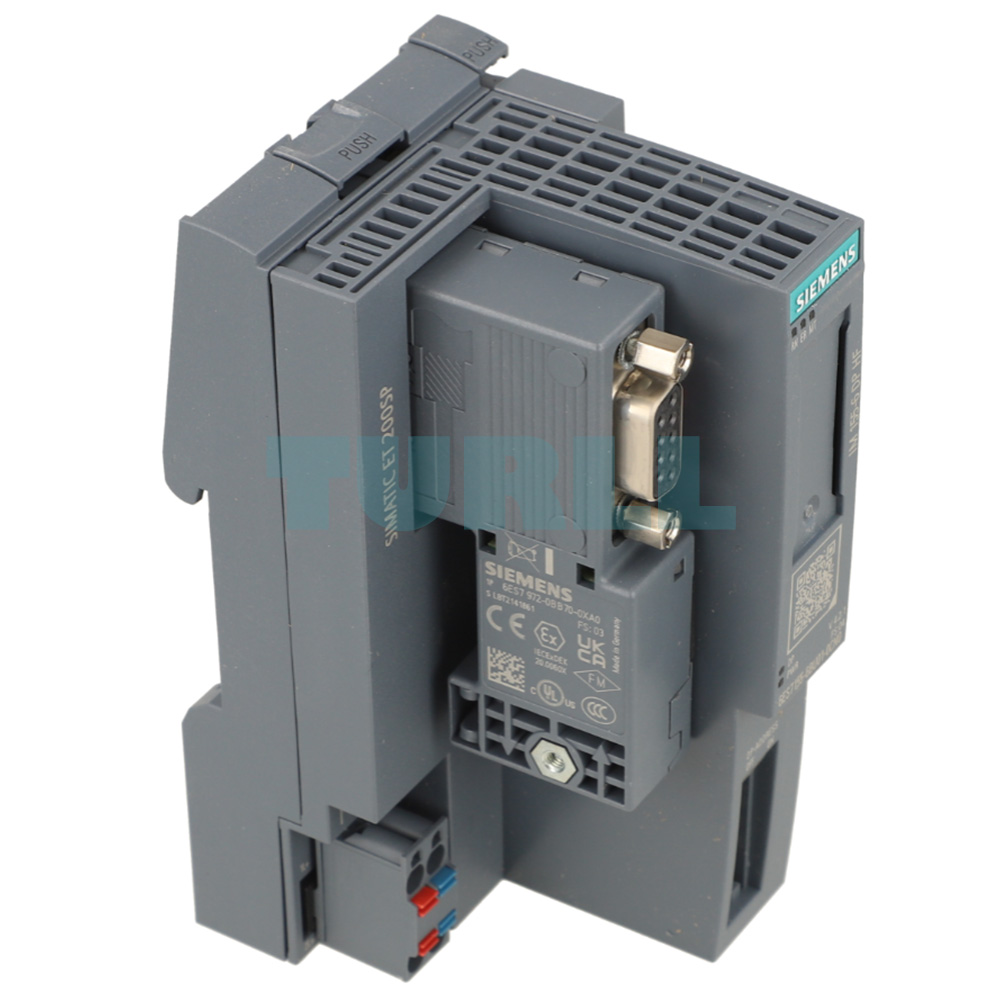

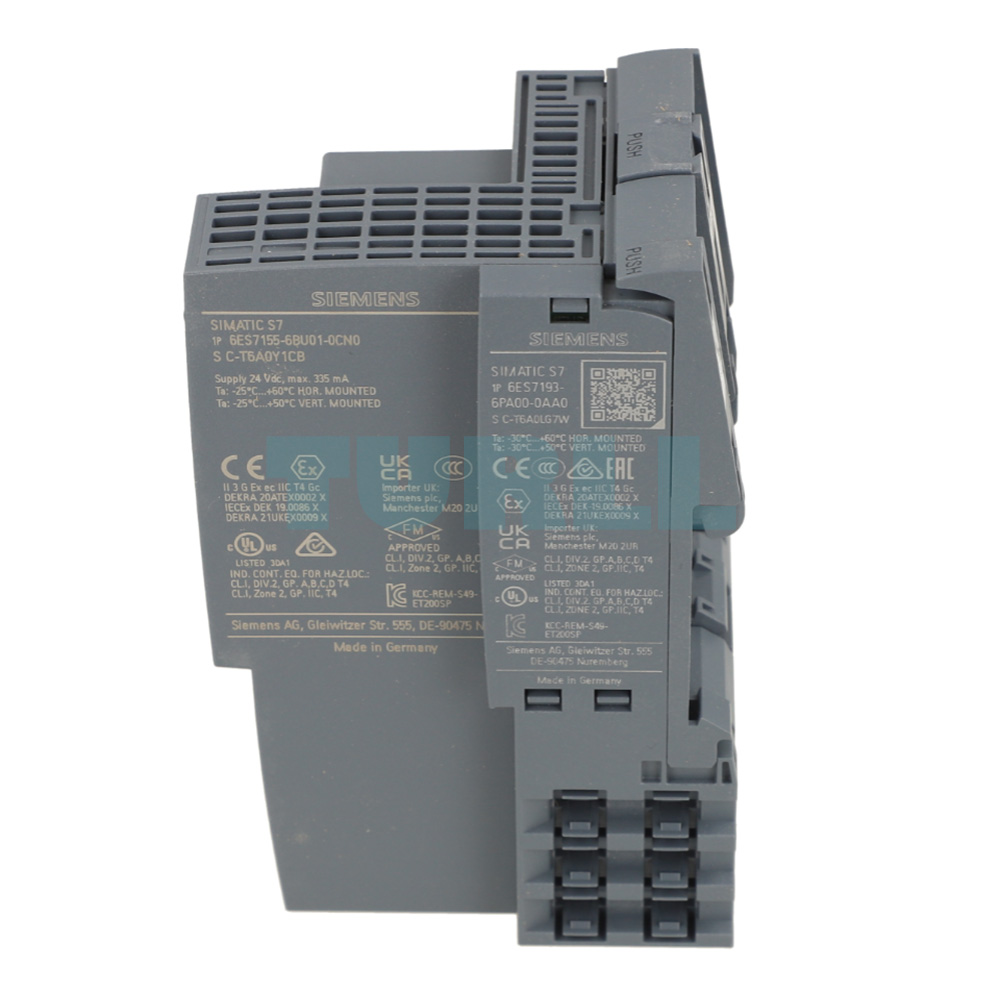

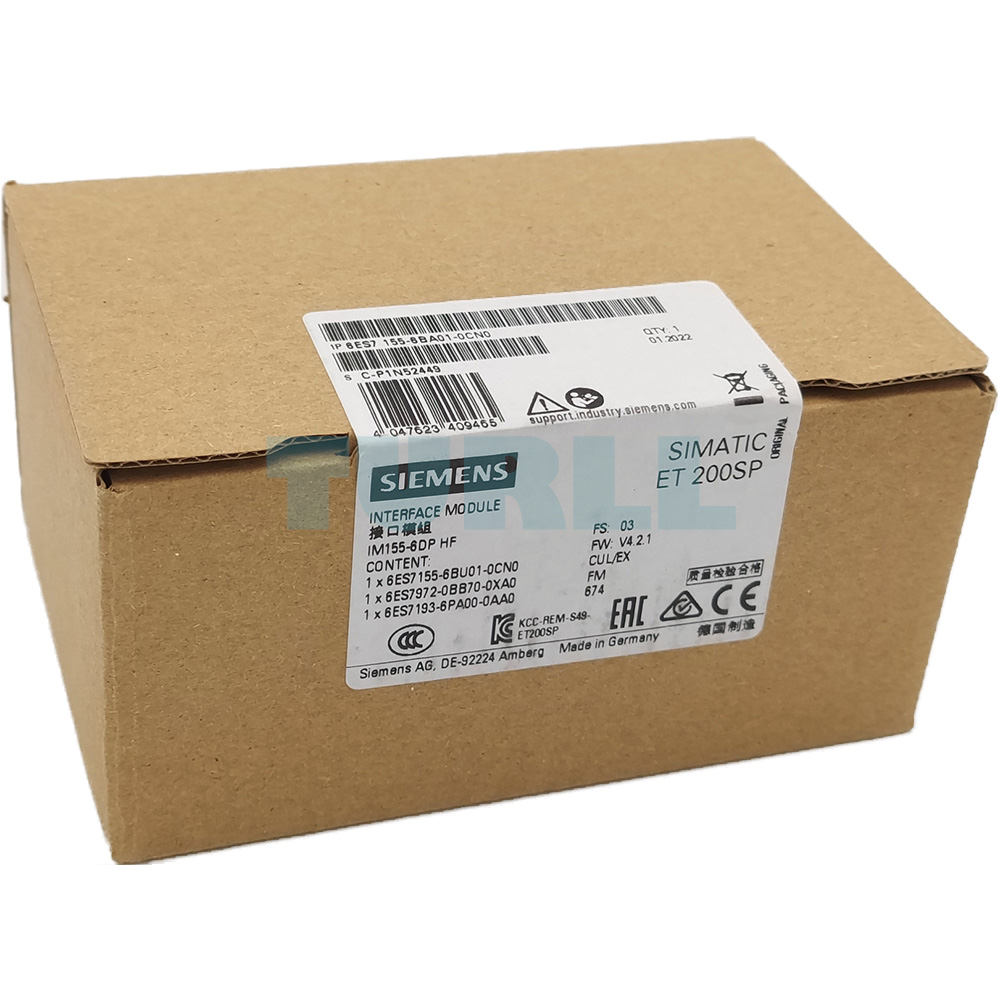

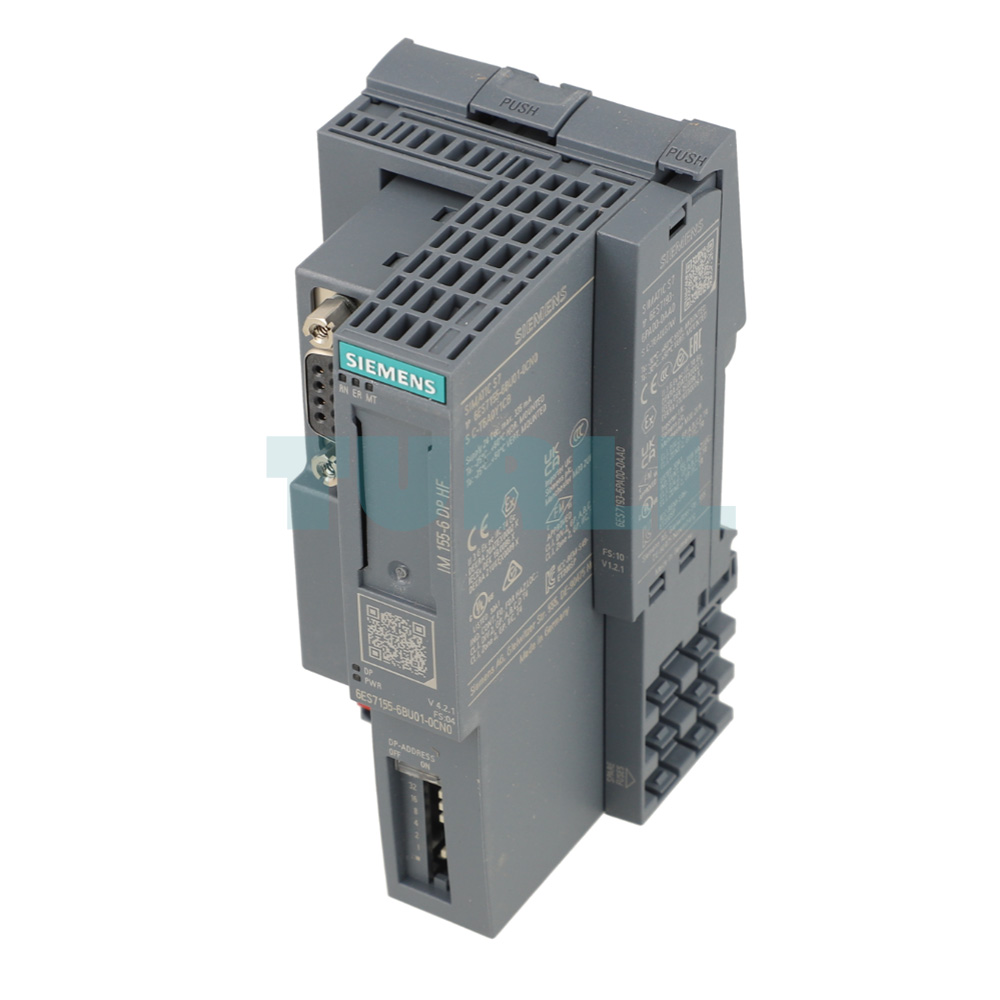

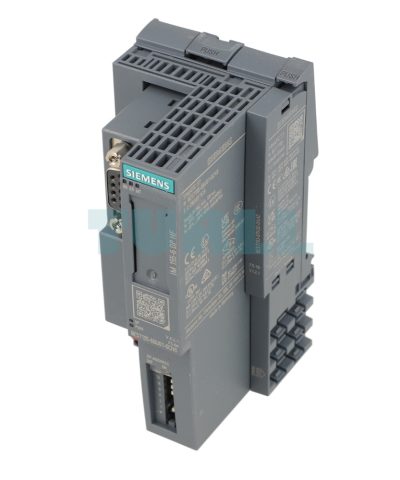

Siemens SIMATIC ET 200SP, PROFIBUS bundle IM, IM 155-6DP HF, max. 32 I/O modules and 16 ET 200AL modules, Multi-hotswap, bundle consists of: Interface module (6ES7155-6BU01-0CN0), Server module (6ES7193-6PA00-0AA0), PROFIBUS connector (6ES7972-0BB70-0XA0)
Overview
Thanks to their wide scope of functions, the interface modules of the scalable SIMATIC ET 200SP I/O system, even in their basic versions, cover a wide range of applications. The basic functions of the interface modules include:
- Short data update times of typically 1Â ms
- Single Hot Swap (withdrawing and insertion of an I/O module during operation without impairing the communication with the remaining modules)
- Operation with gaps (empty BaseUnits)
- Complete diagnostic support, extending to channel-by-channel diagnostics
- Configuration control / option handling (adaptation of the actual configuration via user program)
- Device replacement without programming device, with automatic re-initialization, with and without topological configuring
- I&M data 0 to 3 (electronic rating plate with non-volatile storage of plant data)
- Firmware update
- Pluggable 24Â VÂ DC supply connection
- Mains/voltage failure buffering time of at least 5 ms or 10Â ms
- Labeling option via optional labeling strips and equipment labeling plates
The IM 155-6 interface module is snapped directly onto the DIN rail (7.5 x 35 mm or 15 x 35 mm) or onto the SIMATIC system rail.
- Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
- Film strips on a roll with 500 strips, for thermal transfer roll printer
- Card (180Â g/m2), DIN A4 sheets with 100 strips each, for laser printer
- Optional equipment marking using slide-in equipment labeling plates
- Different connection types of the fieldbus by means of SIMATIC BusAdapter for PROFINET or MultiFieldbus interface modules in Standard function class or above
- Under ambient conditions in accordance with SIMATIC standard using BA 2xRJ45 for connection via RJ45 plug
- In the case of mechanical loading during operation and/or increased EMC requirements, the use of BusAdapters with M12, FC or fiber-optic cable interface is recommended.
- For increased potential differences, BusAdapters with fiber-optic interface can be used. These are also available as hybrid variants with copper interface (integrated media converter). For larger distances, BusAdapters are also available with LC and LC-LD glass fiber-optic connections.
- Cable
- The High Feature interface modules can optionally be equipped with the system-integrated strain relief for the PROFINET cables.
