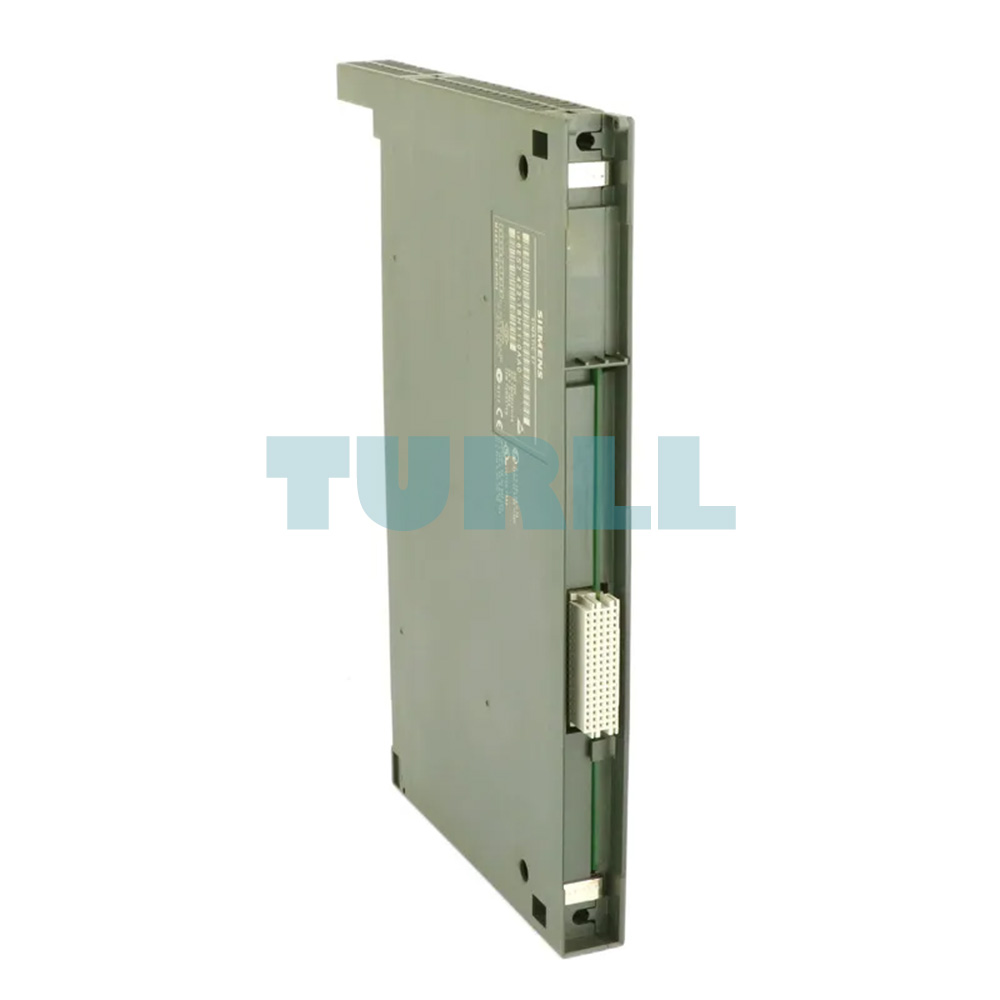

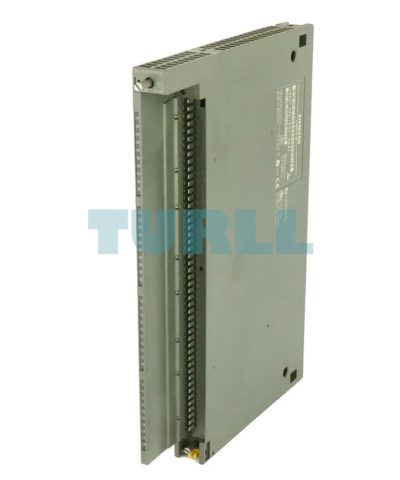

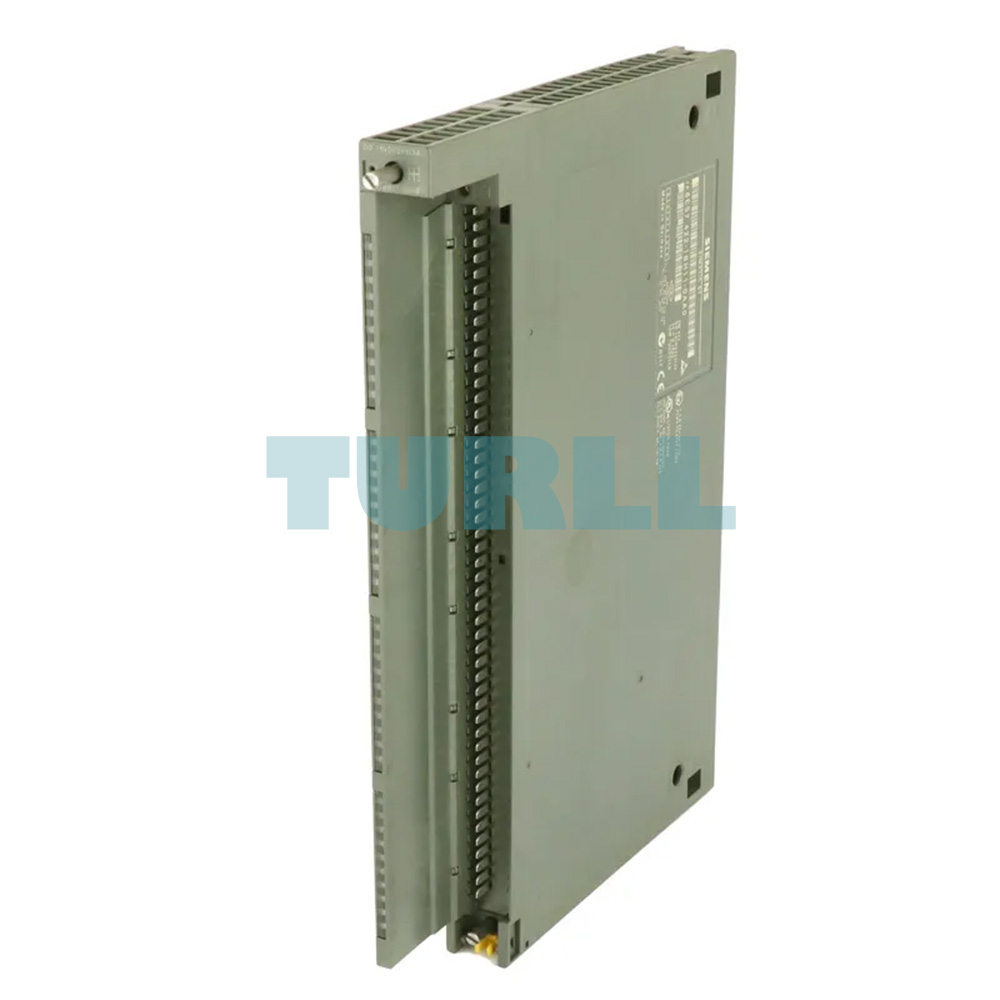

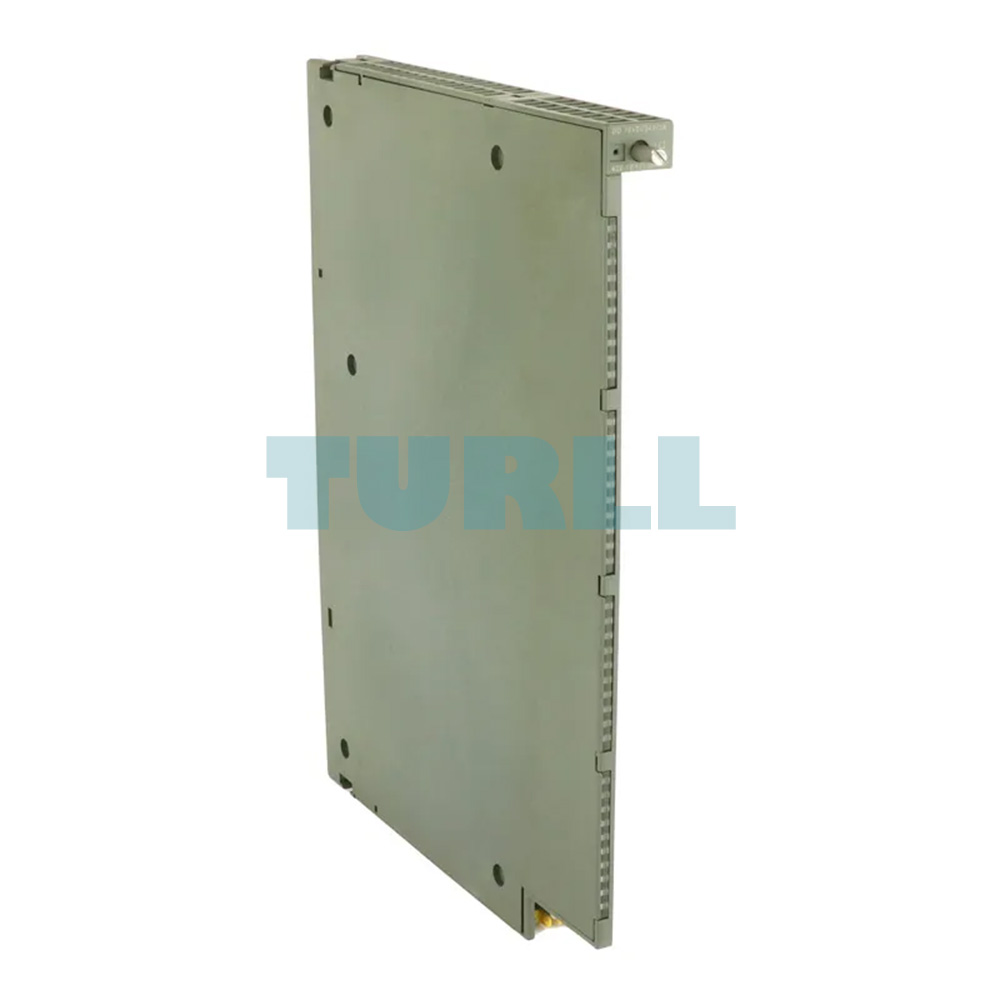

6ES7422-1BH11-0AA0 SIEMENS Exclusive Digital Output SM 422 Original Brand New

6ES7422-1BH11-0AA0 SIEMENS Exclusive Digital Output SM 422 Original Brand New

The 6ES7422-1BH11-0AA0 is a robust and reliable digital output module from SIEMENS, tailored for the SIMATIC S7-400 automation platform. As part of the SM 422 family, this module delivers 16 isolated digital outputs, designed to operate at 24 V DC with a current rating of 2 A per channel. Engineered for industrial efficiency, it enables direct connection to devices such as solenoid valves, contactors, motor starters, small motors, and lamps, offering flexible and durable control for your automation systems.

This module combines performance and safety with its built-in fault detection and load monitoring capabilities. Diagnostic LEDs, including green indicators for signal states and red LEDs for fault alerts or blown fuses, provide quick and efficient troubleshooting. Its rugged housing and plug-in front connector design ensure straightforward installation and maintenance, making it ideal for complex industrial environments requiring continuous uptime and dependable output control.

Overview

• Digital output module for SIMATIC S7-400 systems
• Suitable for controlling solenoid valves, lamps, contactors, small-power motors, and motor starters
• Provides 16 isolated digital outputs at 24 V DC, 2 A

Design

• Compact, durable plastic housing with integrated diagnostic LEDs
• Green LEDs show signal status for each output channel
• Red LEDs signal internal/external faults, blown fuses, or missing load voltage
• Integrated labeling strips for channel identification
• Easy assembly and wiring via plug-in front connector

Download

Data Sheet (PDF)

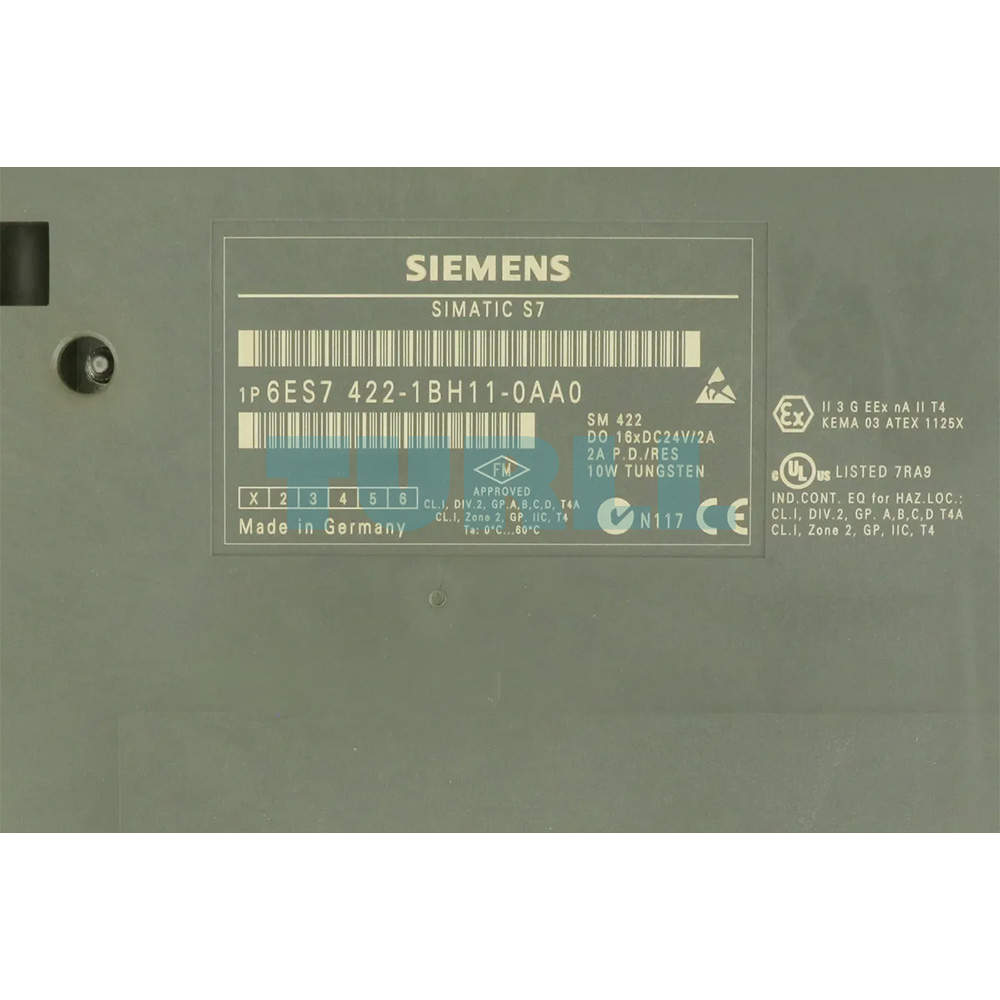

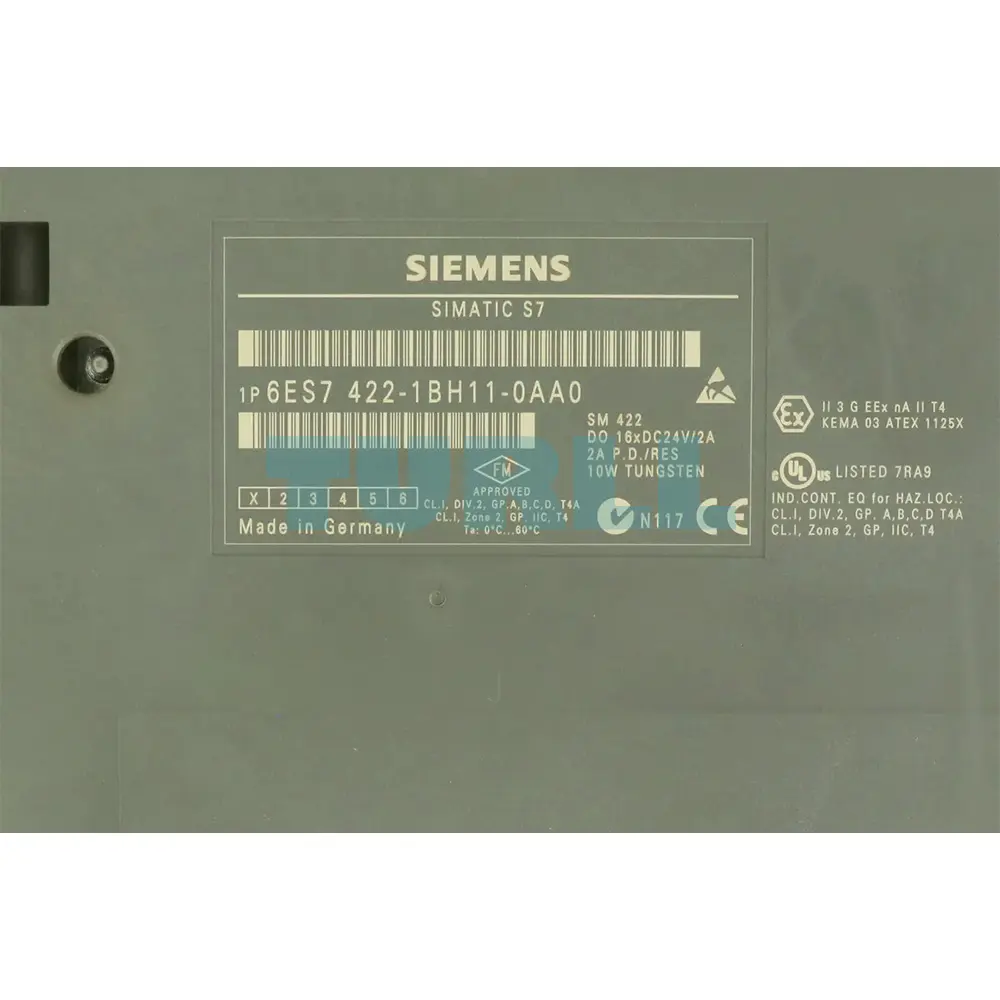

Product Code: 6ES7422-1BH11-0AA0
