6ES7422-1FH00-0AA0 SIEMENS Exclusive Digital Output Module Original Brand New

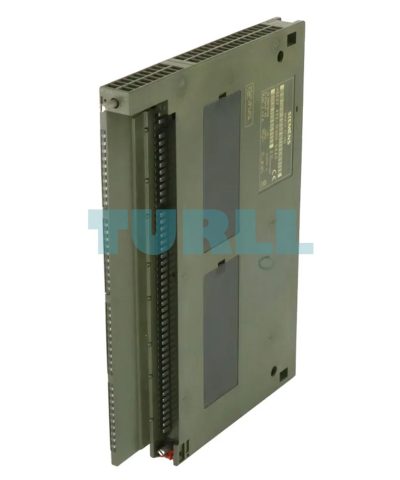

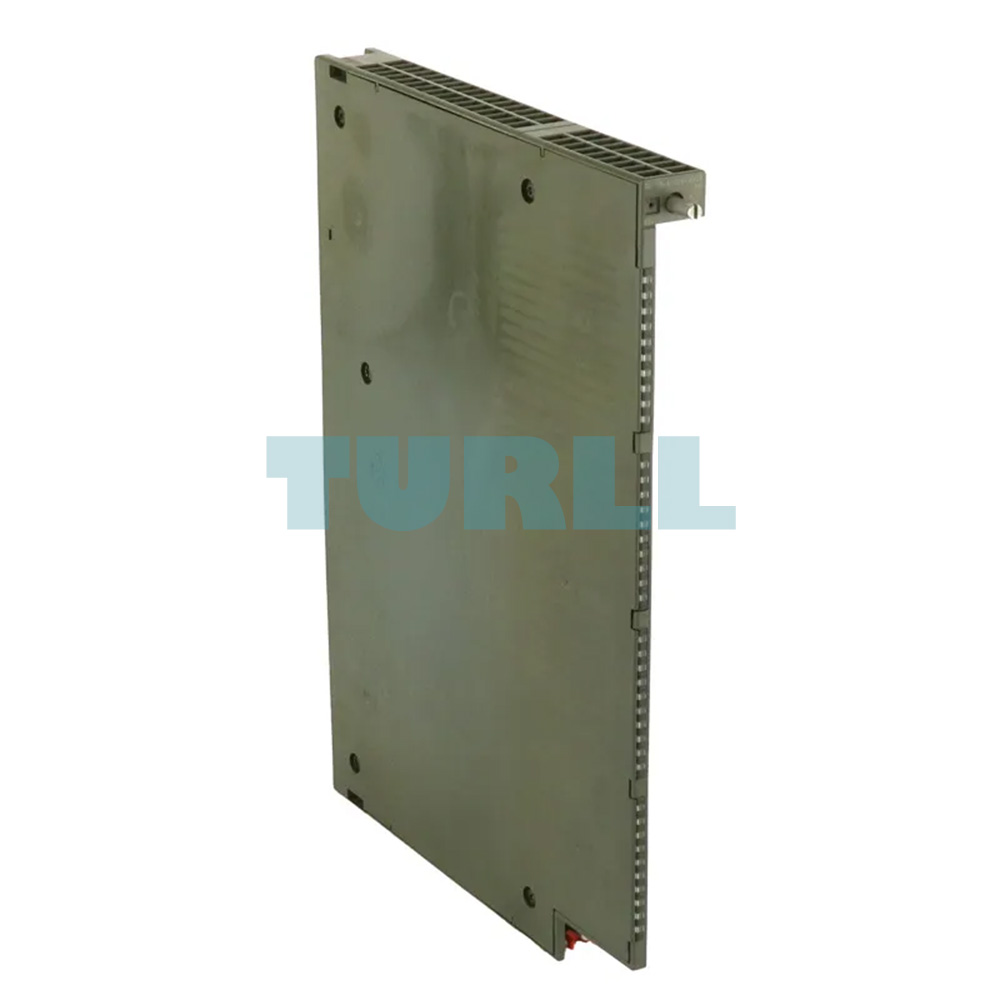

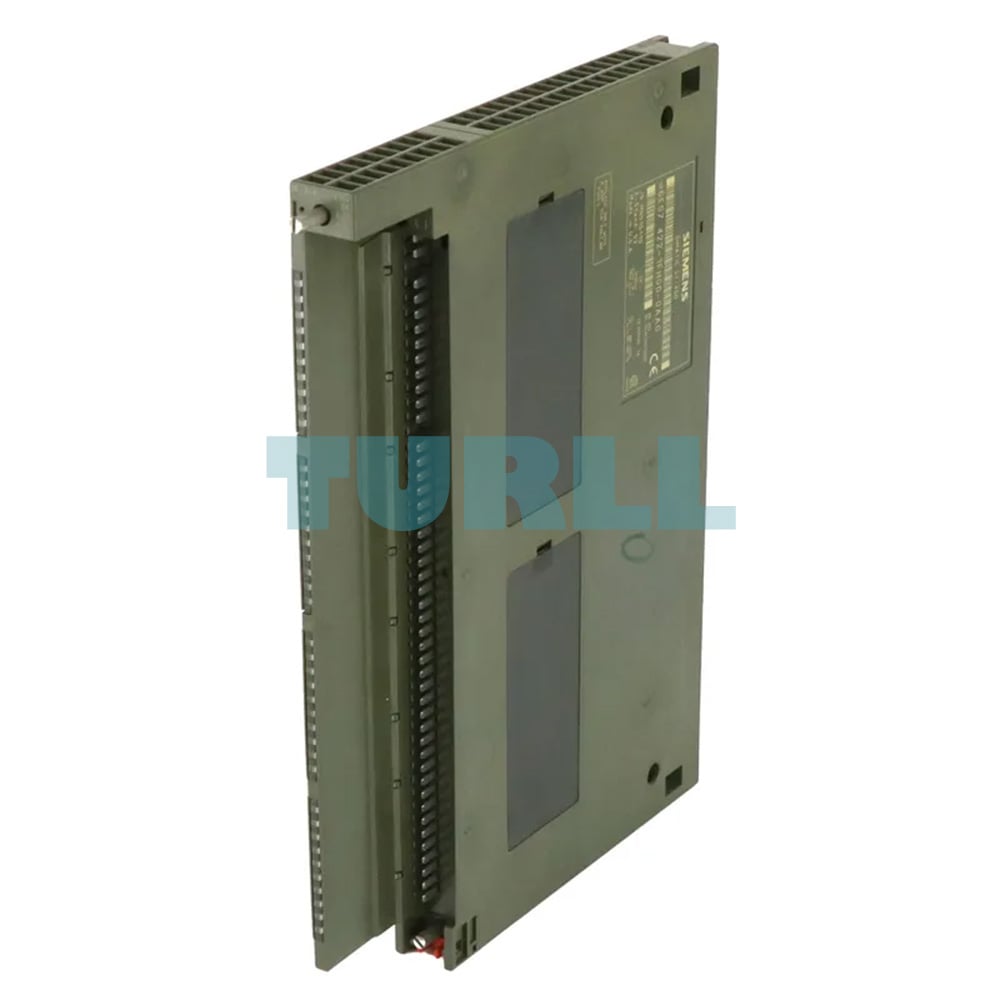

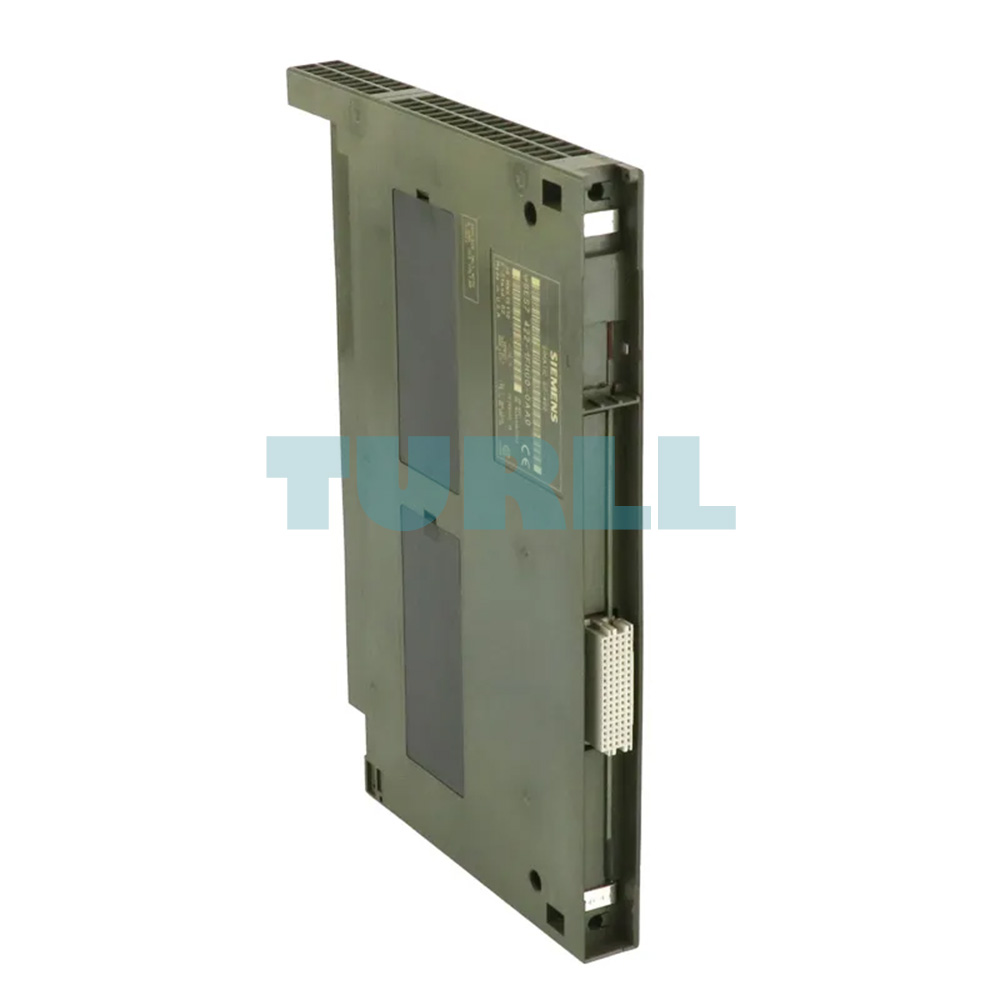

6ES7422-1FH00-0AA0 SIEMENS SIMATIC S7-400 Digital Output Module Original Brand New

The SIEMENS 6ES7422-1FH00-0AA0 is a high-performance digital output (DO) module from the SIMATIC S7-400 series. It features 16 isolated digital outputs designed for 120/230 V AC operations at 2 A per output, ideal for use in robust automation environments.

Overview

This SM 422 digital output module is engineered to reliably switch solenoid valves, contactors, small motors, lamps, and motor starters. As part of the modular and expandable SIMATIC S7-400 PLC family, it supports seamless integration into complex control systems.

• Suitable for industrial applications
• 16 isolated outputs for safe signal separation
• Rated for 120/230 V AC, 2 A per channel
• Connects actuators directly for efficient power control

Design

The SM 422 module is housed in a rugged, compact plastic casing designed for easy installation and maintenance. It comes with:

• Green LEDs to indicate output statuses
• Red LEDs to show internal/external faults, missing load voltage, and blown fuses

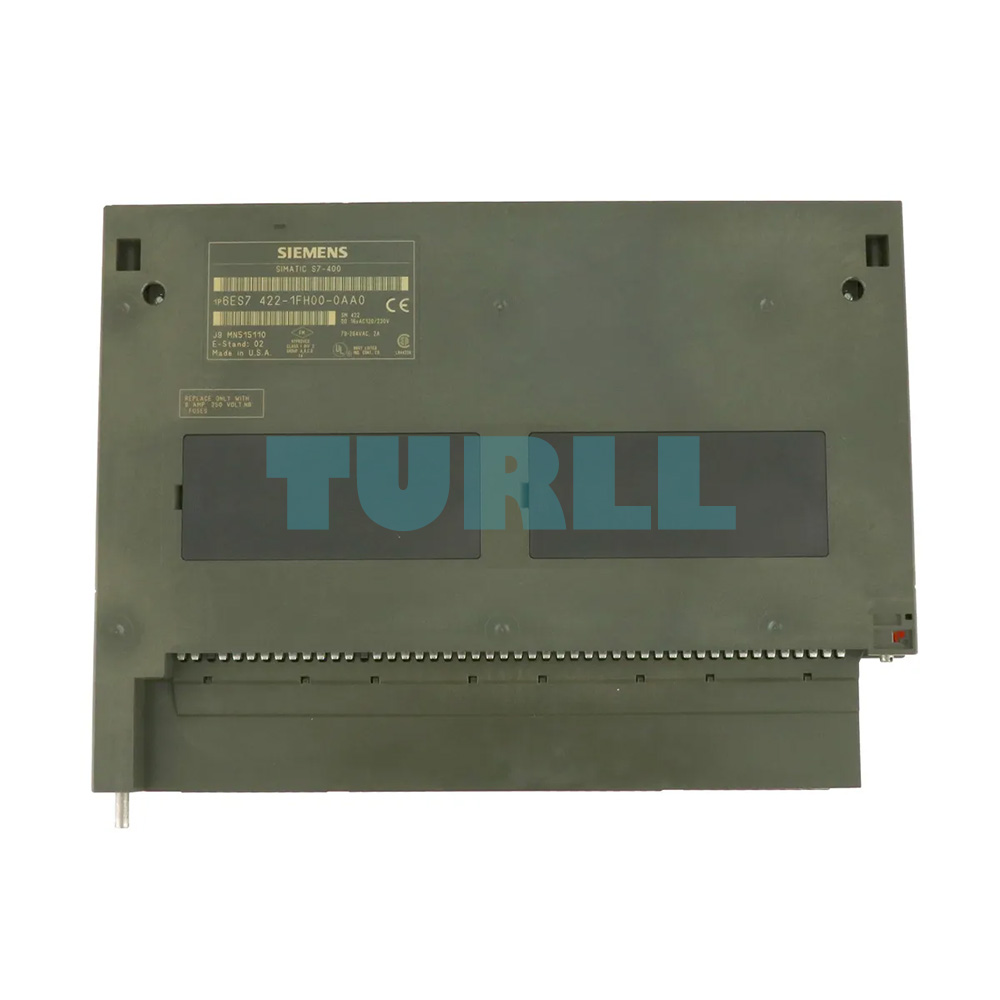

• Front labeling strip for quick identification
• Plug-in front connector for user-friendly wiring

Download

Data Sheet (PDF)

Product Code: 6ES7422-1FH00-0AA0
