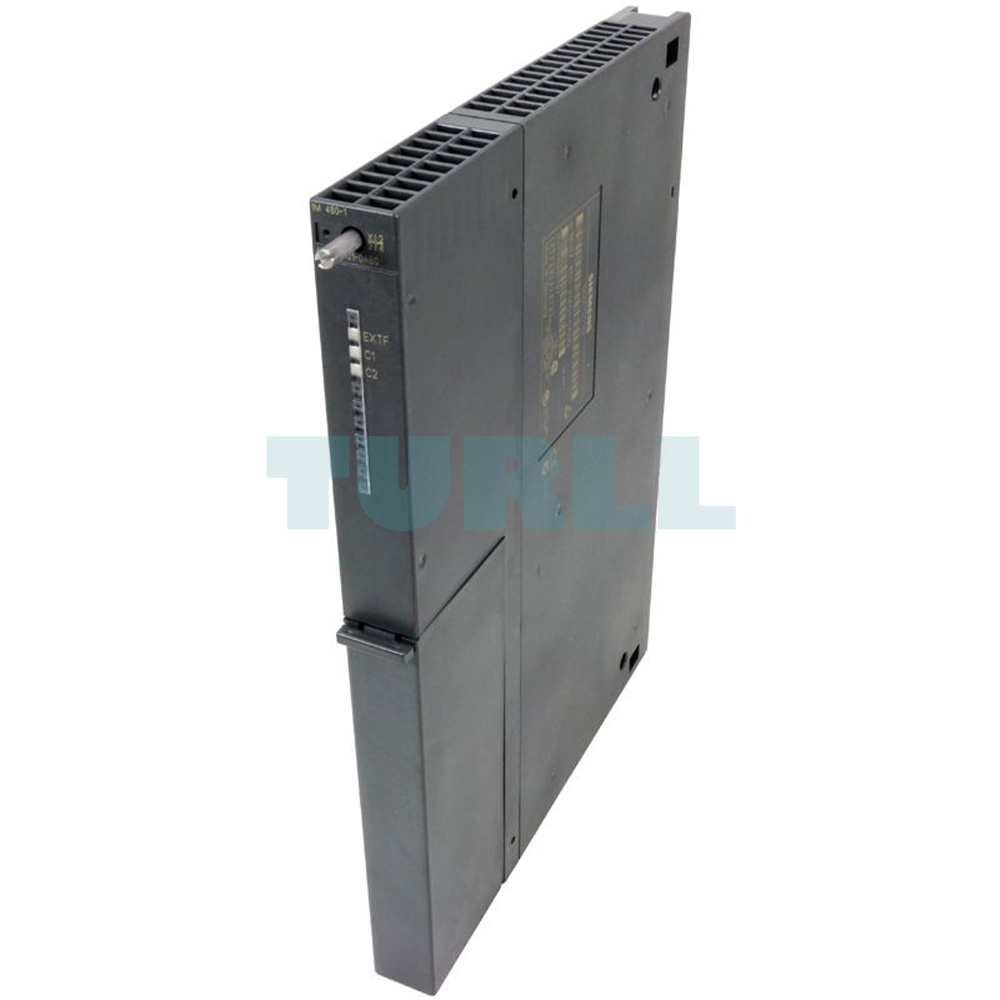

The SIEMENS 6ES7460-1BA01-0AB0 is an original brand new Send Interface Module (IM 460-1) designed for use with SIMATIC S7-400 systems. Engineered for centralized coupling with P bus transmission, this interface module allows seamless expansion of automation systems up to 1.5 meters. With integrated power supply for expansion units and compatibility with IM 461-1, it ensures stable and efficient system scaling.

This module is a critical component for applications requiring precise data transfer and modular extension. Featuring a rugged and compact design, it fits into central controllers UR1, UR2, or CR2 and can support up to two expansion units—one per interface. Each port can deliver up to 5 A at 5 V DC, powering connected modules directly.

Overview

The IM 460-1 Send Interface Module provides central expansion connectivity and power transmission within SIMATIC S7-400 environments. It transmits P bus signals and powers expansion modules without requiring additional power supplies downstream. Key characteristics include:

• Expansion support up to 1.5 meters via 468-3 connecting cable
• Compatible only with IM 461-1 as receiving module
• Up to 2 expansion units connectable
• Plug-in design for UR1, UR2, and CR2 racks

Design

Constructed for industrial-grade performance, the IM 460-1 module features:

• Compact installation in SIMATIC central units
• Power output of 5 A per interface at 5 V DC
• No need for power modules in downstream units
• Two interfaces for expansion connection
• Three onboard LEDs for fault indication

Download

Data Sheet (PDF)

Product Code: 6ES7460-1BA01-0AB0
