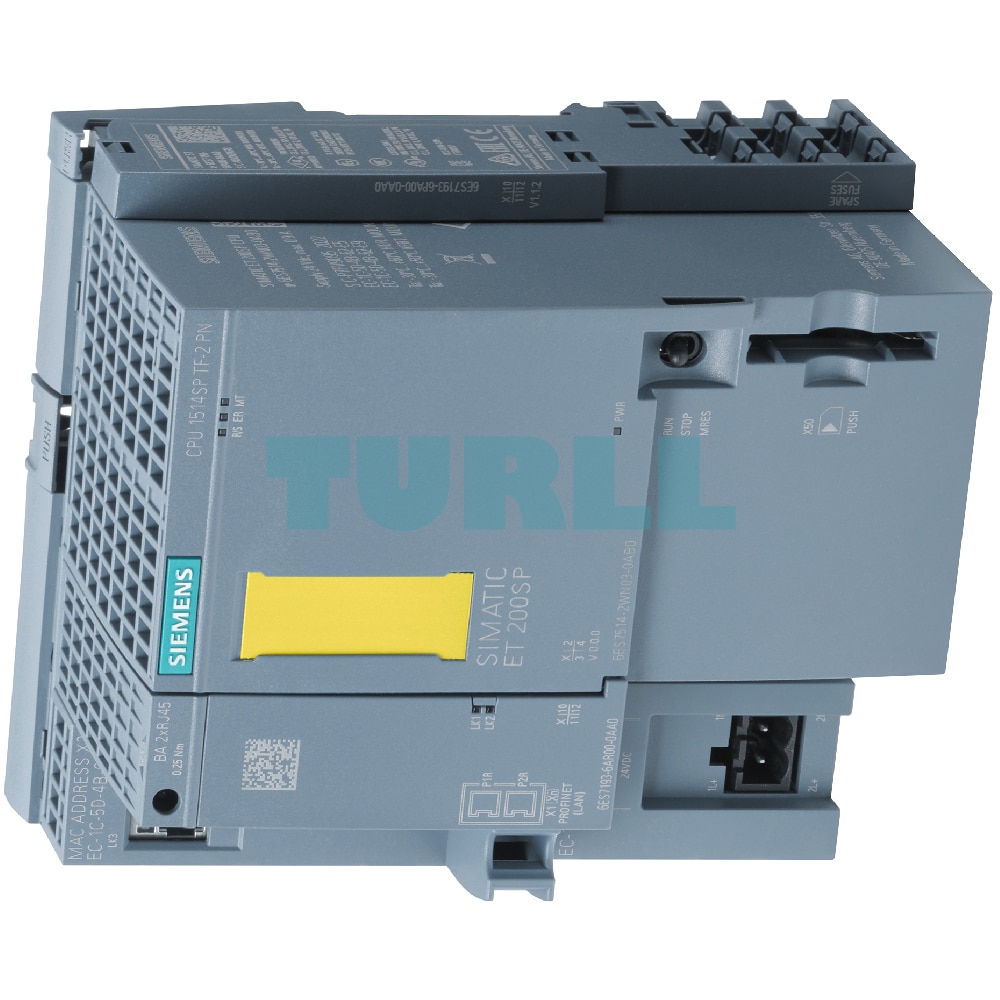

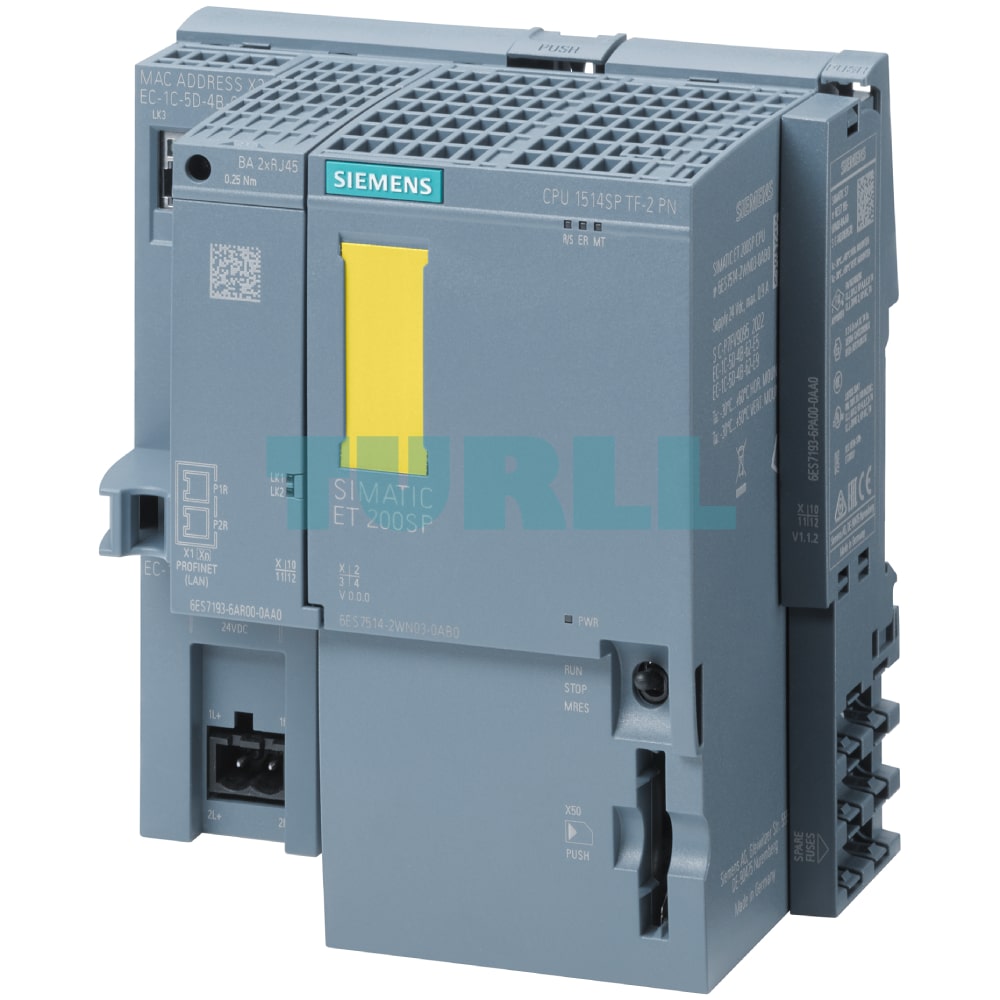

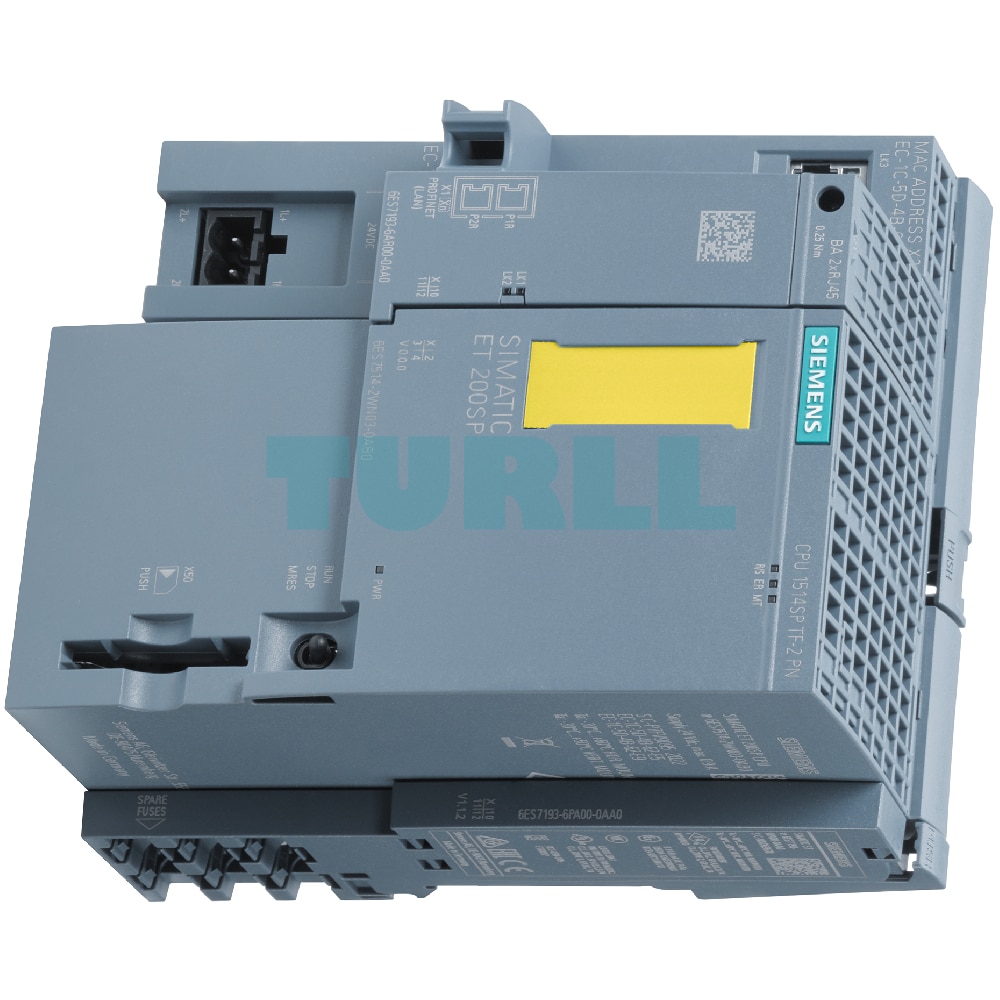

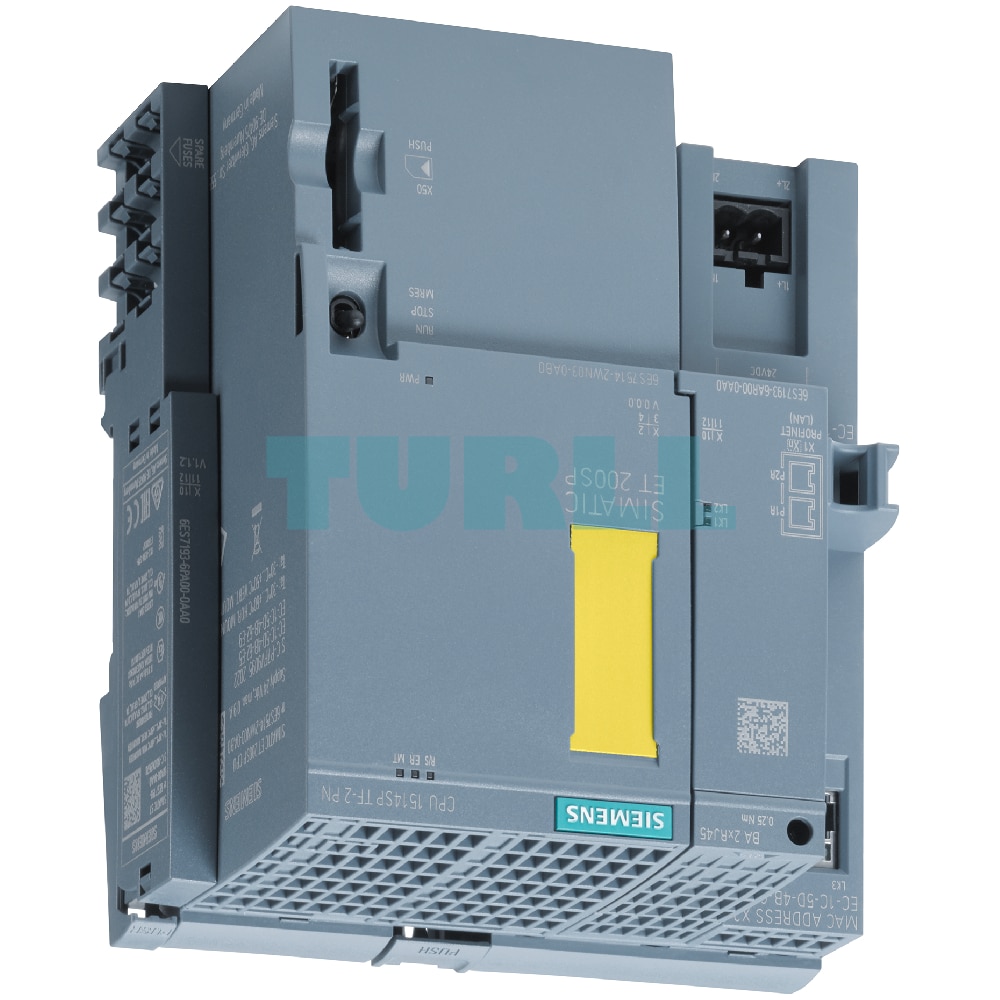

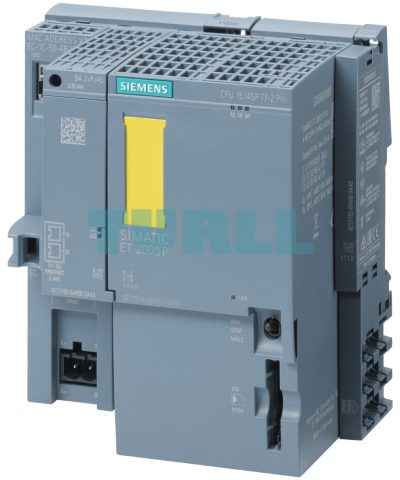

6ES7514-2WN03-0AB0 Siemens SIMATIC DP CPU 1514SP TF-2 PN Original Brand New

• The CPU for standard and fail-safe applications with medium to high requirements regarding program/data storage in the SIMATIC ET 200SP T Controller product range
• Medium to high processing speed for binary and floating-point arithmetic
• PROFINET IO IRT interface with 2-port switch, corresponding BusAdapter required
• PROFINET IO controller for operating distributed I/O on PROFINET
• PROFINET I-Device for connecting the CPU as an intelligent PROFINET device with a SIMATIC or third-party PROFINET IO Controller
• Additional PROFINET interface with separate IP address for network separation, for connecting further PROFINET IO RT devices, or for high-speed communication as an I-Device
• OPC UA Server and Client as runtime option for the easy connection of SIMATIC S7-1500 to third-party devices/systems with the functions:
  • OPC UA Data Access
  • OPC UA Security
  • OPC UA Methods Call
  • Support of OPC UA Companion specifications
  • OPC UA Alarms & Conditions
• Isochronous mode with PROFINET IO IRT
• Integrated Motion Control functionalities for controlling speed-controlled, positioning and synchronized axes (gearing and camming), support for external encoders, output cams/cam tracks and probes.
  Technology object for controlling kinematics with up to 4 interpolating axes, e.g. Cartesian portal, delta picker, roller picker, articulated arm, cylindrical robot, tripod picker and SCARA.
• SIMATIC Motion Interpreter – Technology objects for programming and controlling axes and kinematics
• Cross-PLC synchronous operation for synchronization of multiple SIMATIC S7-1500T Controllers
• Integrated web server for diagnostics with the option of creating user-defined web pages

Note

SIMATIC Memory Card required for operation of the CPU.

The BusAdapter is not included in the scope of supply and must be ordered separately.

The CPU 1514SP TF-2 PN is the CPU for standard and fail-safe applications with medium requirements in terms of processing performance and response speed in discrete production technology. It can be used as a PROFINET IO controller or as distributed intelligence (PROFINET I-Device). The integrated PROFINET IO IRT interface is designed as a 2-port switch so that a linear topology can be set up in the system. A corresponding BusAdapter is required for this. The additional integrated PROFINET interface with separate IP address can be used for network separation, connecting further PROFINET IO RT devices, or high-speed communication as an I-Device, for example.

When used as an I-Device, the CPU 1514SP TF-2 PN enables distributed preprocessing of process data locally and only delivers the information actually required to the higher-level PLC. This has the following advantages:

• Reduced load on the central PLC
• Short response times to critical local signals
• Less load on the bus system due to smaller data volumes
• Faster set-up due to pretested units and parallel commissioning
• Increased availability and flexibility due to autonomous machine units
• Clear-cut configuration

The CPU 1514SP TF-2 PN operates completely independently of the central PLC. If it fails, the CPU 1514SP TF-2 PN simply continues running.
The bit-modular design of the ET 200SP I/O system, together with the CPU 1514SP TF-2 PN, enables functionally oriented station design.

In addition, the CPU offers comprehensive control functionalities as well as the ability to connect drives via standardized PLCopen blocks. Furthermore, multiple SIMATIC S7-1500T Controllers can be synchronized with one another through cross-PLC synchronous operation.

The CPU 1514SP TF-2 PN features:

• A powerful processor:
  The CPU achieves command execution times as low as 6 ns per binary instruction.
• A large work memory:
  900 KB for program, 3.5 MB for data
• SIMATIC Memory Cards as load memory;
  permit additional functions such as datalog and archives
• Bit-modular expandability for maximum flexibility;
  up to 64 I/O modules (I/O, technology, and communications modules) in any combination. Station width up to 1 m.
• Extended configuration options with ET 200AL;
  It is possible to integrate up to 16 I/O modules of the ET 200AL (IP65/IP67) I/O system in an installation of the scalable I/O system ET 200SP (IP20) via a “BU-Send” BaseUnit and a “BA-Send” BusAdapter.
• PROFINET IO IRT interface for connecting distributed I/O via PROFINET
  The appropriate BusAdapter (e.g. BA 2xRJ45) is to be ordered separately if needed.
• Network separation between the PROFINET interfaces
• Integrated communication functions:
  • PG/OP communication
  • PROFINET IO
  • Open IE communication (TCP, ISO-on-TCP and UDP)
  • OPC UA Server/Client:
    – OPC UA Data Access,
    – OPC UA Security,
    – OPC UA Methods Call,
    – Support of OPC UA Companion Specifications,
    – OPC UA Alarms & Conditions.
  • Web server
  • S7 communication
  • S7 routing
  • Data record routing
• Diagnostics displays for errors (Error), operation (RUN/Stop), maintenance (MT), power supply (PWR) and one link LED per port
• Optional labeling using light gray or yellow labeling strips. There is a choice of 2 materials:
  • Foil and roll with 500 strips, for thermal transfer roll printer
  • Paper (280 g/m2), DIN A4 sheets with 100 strips each, for laser printer
• The ET 200SP CPU can be equipped with an equipment labeling plate.

Scope of delivery:

CPU 1514SP TF-2 PN including server module, 24 V DC connector and cover for BusAdapter port (BusAdapter must be ordered separately).

• Performance
  • Faster command processing, depending on the CPU type, language extensions and new data types
  • High-performance network connection:
    Each CPU is equipped with PROFINET IO IRT (2-port switch) as standard interface. In addition, the CPU 1514SP TF-2 PN features a second PROFINET interface, e.g. for network separation, for connecting further PROFINET IO RT devices, or for high-speed communication as an I-device.
• Integrated technology
  • Control of PROFIdrive-capable drives and drives with analog setpoint interfaces via standardized Motion Control instructions (PLCopen)
  • Motion Control functions:
    Speed axes, positioning axes, synchronized axes, external encoders, output cams, cam track, probes, extended synchronous operation functions (velocity gearing, synchronization with or without specification of the synchronous position, setpoint or actual value linkage, corrections of the leading or following value at the following axis, camming), cyclic cam, max. 4 encoder or measuring systems as actual position for position control.
    Cyclic specification of the motion vector from the application (MotionIn interface), also as overlaid movement.
    Technology object for controlling kinematics with up to 4 interpolating axes, e.g. Cartesian portal, delta picker, roller picker, articulated arm, cylindrical robot, tripod picker and SCARA.
  • SIMATIC Motion Interpreter – Technology objects for programming and controlling axes and kinematics
  • Cross-PLC synchronous operation for synchronization of multiple SIMATIC S7-1500T Controllers
  • Trace functions for all CPU tags, both for diagnostics in real time as well as for sporadic error detection; can also be called via the web server of the CPU
  • Extensive control functionalities, e.g. easily configurable blocks for automatic optimization of the control parameters for optimum control quality
• Security Integrated
  • Password-based know-how protection against unauthorized read-out and modification of program blocks
  • Copy protection for tying individual blocks to the serial number of the SIMATIC Memory Card: The block can only run if the configured memory card is inserted in the CPU.
  • 4-stage authorization concept:
    Communication to HMI devices can also be restricted
  • Manipulation protection:
    The controller recognizes changed or unauthorized transmission of the engineering data
• Integrated system diagnostics
  • System diagnostics information is displayed consistently and in plain text in the TIA Portal, HMI devices and web server, even for messages from the drives, and updated even if the CPU is in STOP mode
  • Integrated in the firmware of the CPU, no special configuration is required
• SIMATIC Memory Card (required for operation of the CPU)
  • Used as plug-in load memory or for updating the firmware.
  • Also for storing additional documents or csv files (for recipes and archives)
  • Creation of data blocks and storage/reading of data via SFCs of the user program
• Data log (archives) and recipes
  • Storage of csv files for recipes and archives on the SIMATIC Memory Card;
    easy access to plant-relevant operating data using Office tools and via web server
  • Easy access to configuration data of the machine by means of a web browser or SD card reader (two-way data exchange from and to the controller)
• Programming
  • Programming with STEP 7 Professional, V18 and higher
