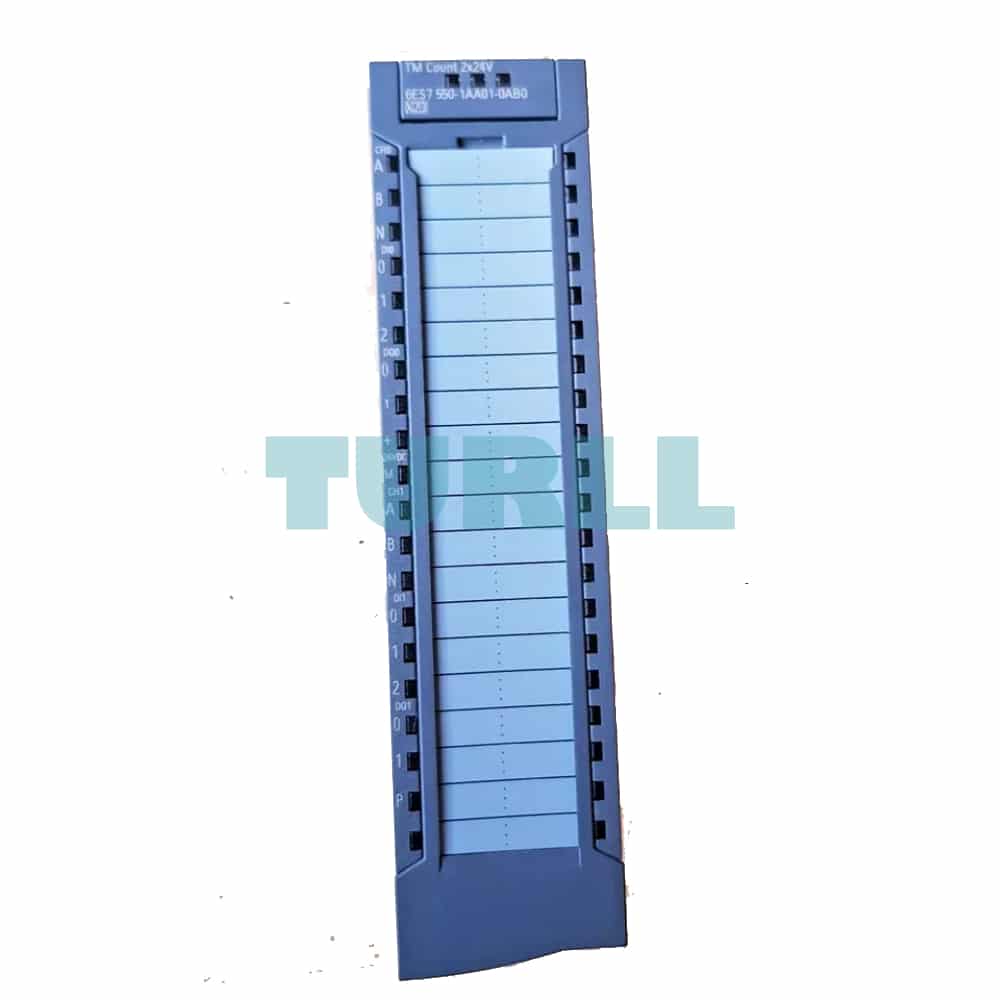

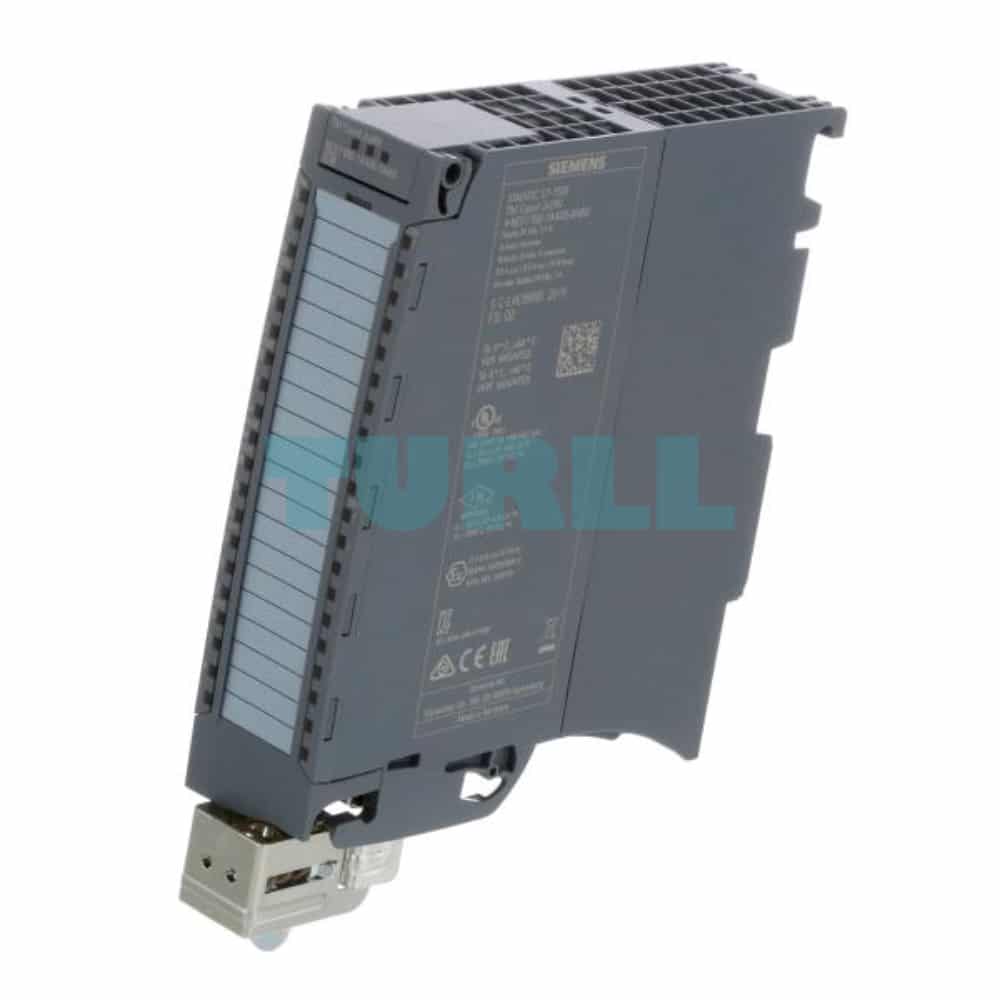

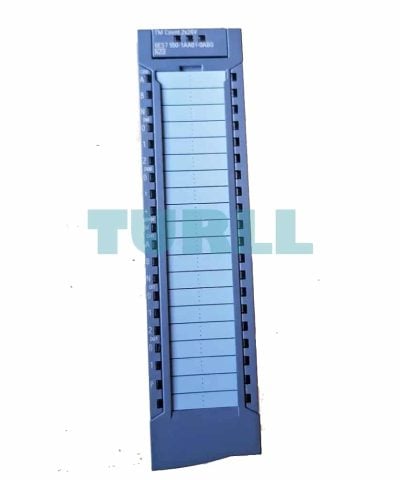

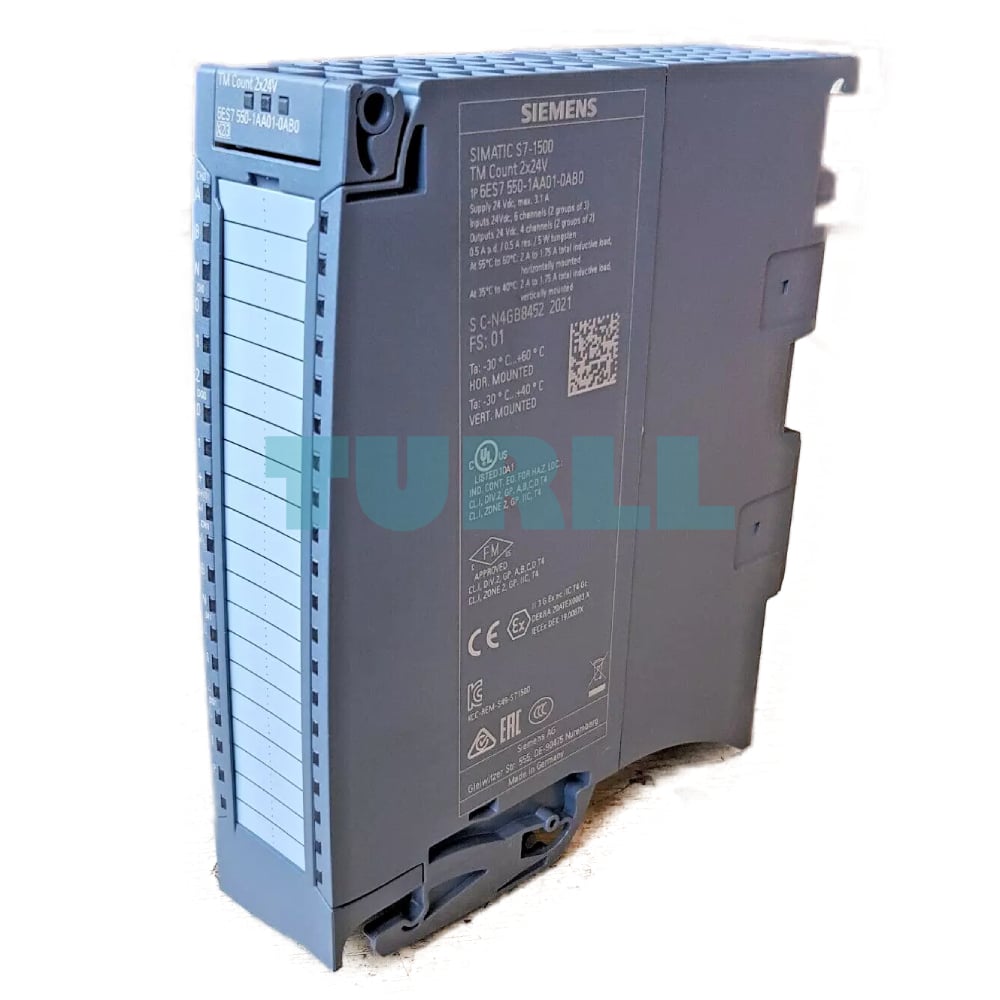

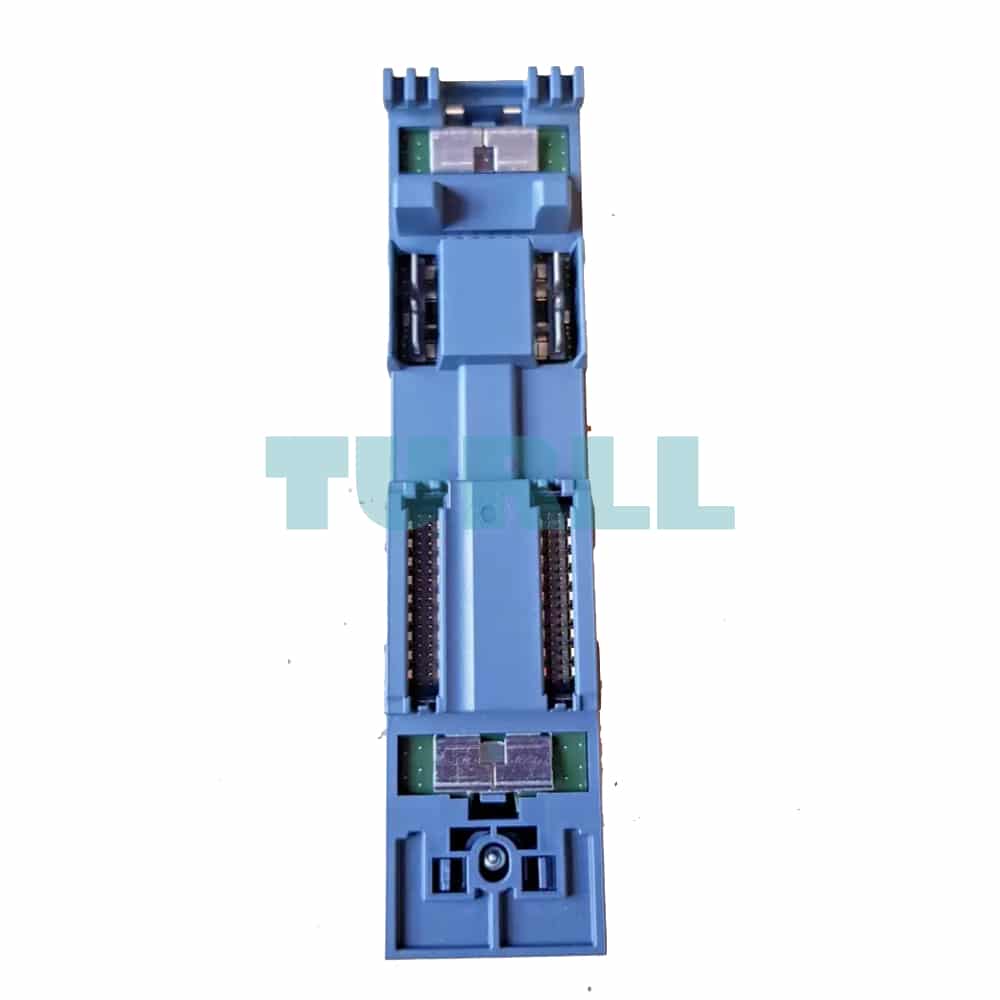

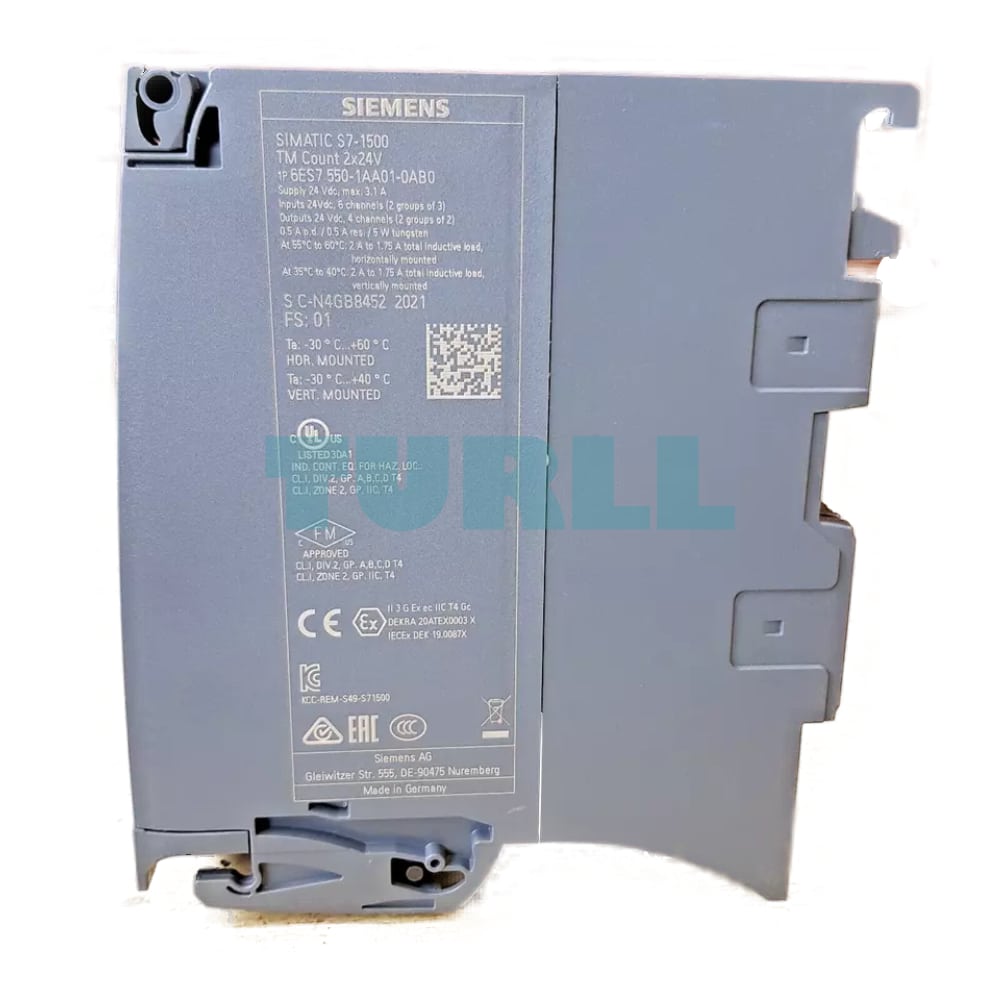

6ES7550-1AA01-0AB0 Siemens SIMATIC S7-1500 TM Count 2x 24 V Original Brand New
$482.00
6ES7550-1AA01-0AB0
Siemens SIMATIC S7-1500, TM count 2x 24 V counter module, 2 channels for 24 V incremental encoder or pulse encoder, 3 DI, 2 DQ per channel
[ez-toc]
Overview
- 2-channel high-speed counter module
- With comprehensive parameterization options for an optimum adaptation to the task and reduction of control load
- Speed and time period measuring
- Storage and comparison functions
- Connection of 24 V encoders
Application
In particular, counter modules detect quick signals with high frequencies and return the counter reading and the current speed to the PLC. The counter control ensures a precise counter result and rapid response in the system via digital input and output signals. Comprehensive parameterization options provide optimum adaptation to the task at hand and reduce control load.
- TM Count 2x24V:
Fast counter module, 2 channels; counting function up to 200 kHz; hardware and software gate; connection of 24 V encoders; 3 digital inputs (in addition to the counter inputs) and 2 digital outputs per channel; measurement of frequency, speed and time period; storage and comparison functions; 24 V encoder supply; isochronous mode
Design
- Mounting on the S7-1500 DIN rail using one single screw
- Standardized 40-pole front connector with screw-type or push-in system
- Connectable core cross-sections: 0.25 mm2 to 1.5 mm2 (AWG24 to 16)
- Prewiring position of the front connector
- Front flap with expandable cable compartment, even if fully wired
- Integrated shielding concept
Included in the scope of delivery:
- One labeling strip for manual labeling
- One U connector
- Printed front door
- Infeed element, shield clamp, and shield terminal
Function
- Uniform display and diagnostics concept:
- Module status display for ERROR (red LED) and RUN (green LED)
- Channel status display for signal state log. “0” and log. “1” (green LED) or diagnostics display (red LED)
- Display for monitoring the 24 V DC supply voltage (green LED)
- Supported functions:
- High-speed counting up and counting down
- Counting range adjustable up to +/- 31 bits
- Integrated digital inputs and outputs for high-speed response
- Measuring of the current signal frequency
- Position detection with incremental encoder
- 2 comparators per channel for controlling the digital outputs
- Saving or setting of the count with digital input
- Hardware interrupts, parameterizable
- Isochronous mode
- Fast Mode with reduced function for particularly short cycle times
- User-friendly configuration through instructions and technology objects
- Uniform system functions of SIMATIC S7-1500 and ET 200MP:
- Identification and maintenance data
- Firmware update
- Unambiguous labeling on front of module
- Uniform front connector
6ES7550-1AA01-0AB0
Siemens SIMATIC S7-1500, TM count 2x 24 V counter module, 2 channels for 24 V incremental encoder or pulse encoder, 3 DI, 2 DQ per channel
Visit 6ES7550-1AA01-0AB0
For more our products visit turll.com
| Weight | 0.357 kg |
|---|---|
| Dimensions | 161.00 × 194.00 × 47.00 mm |
