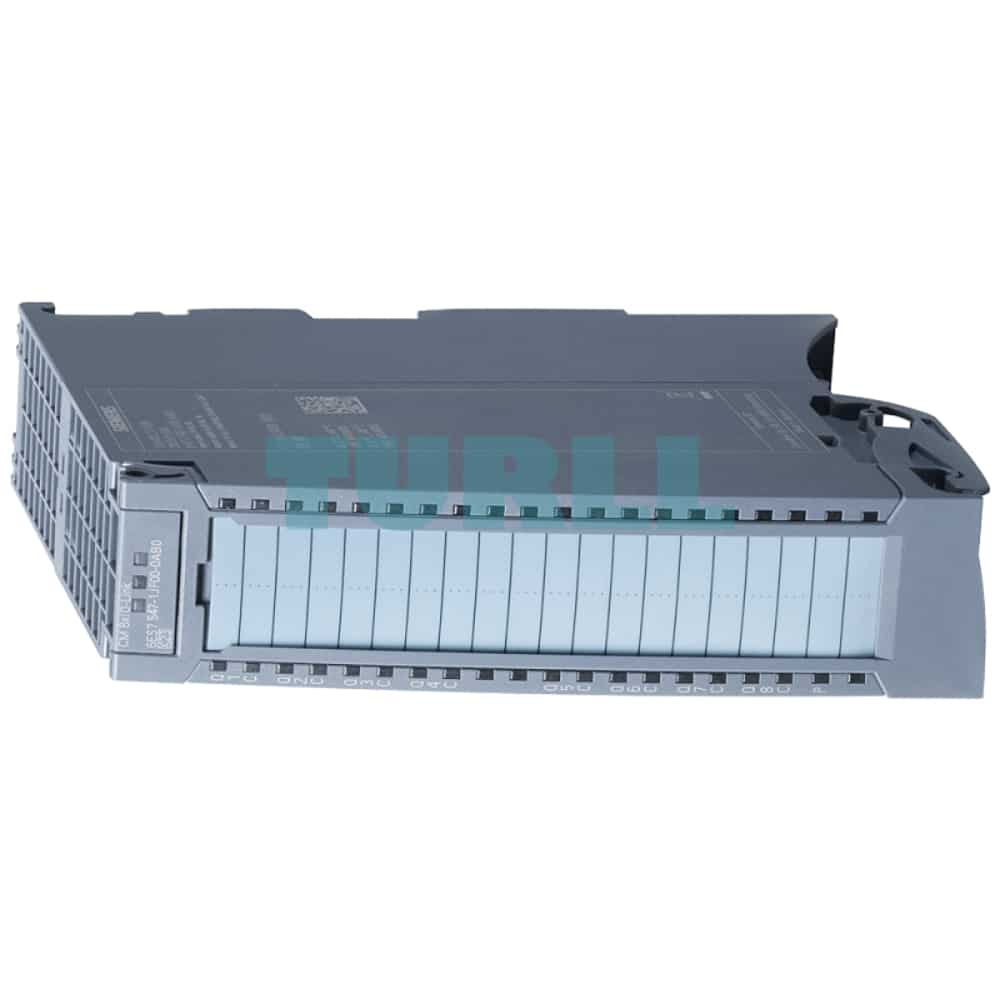

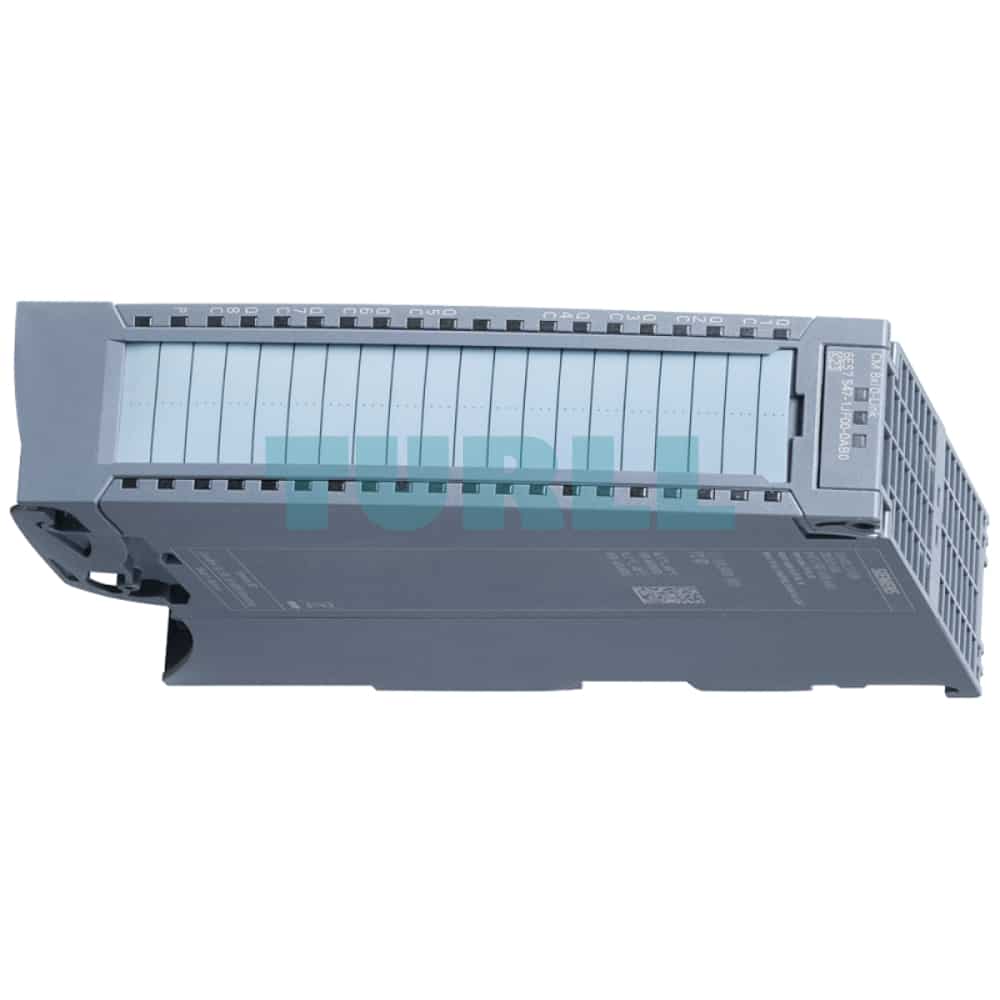

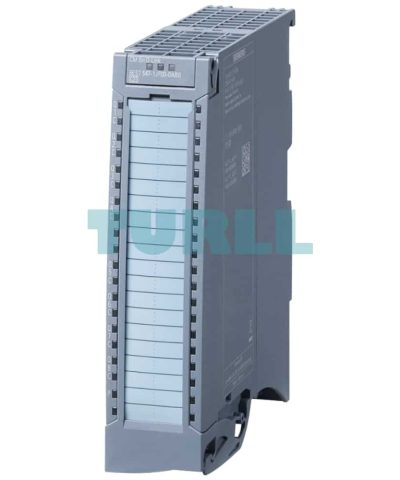

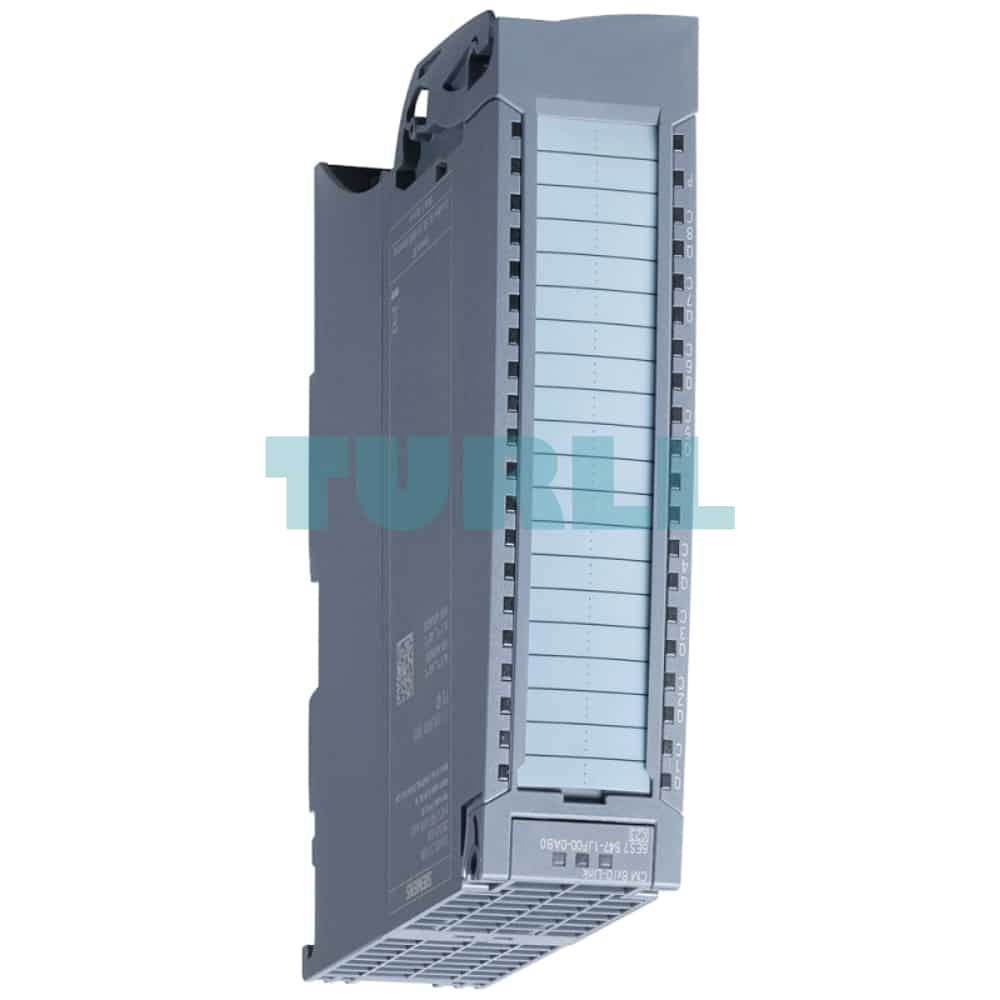

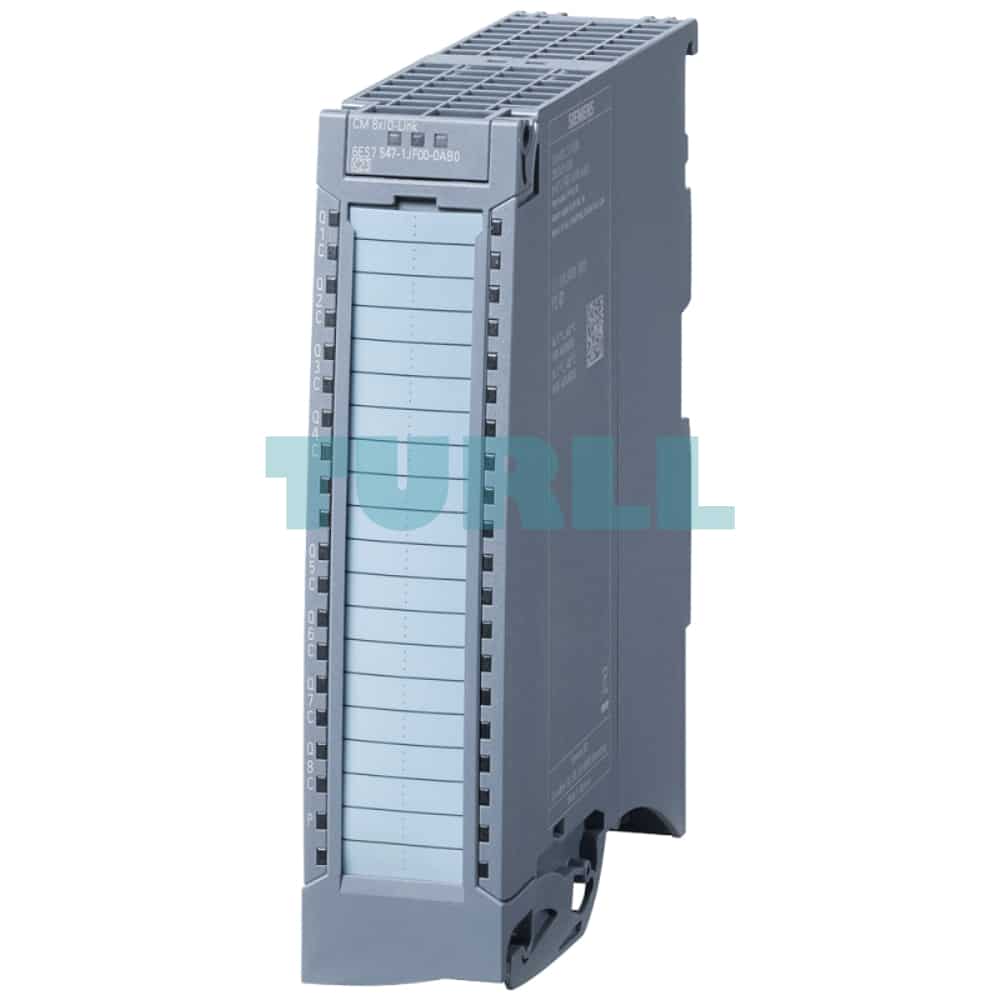

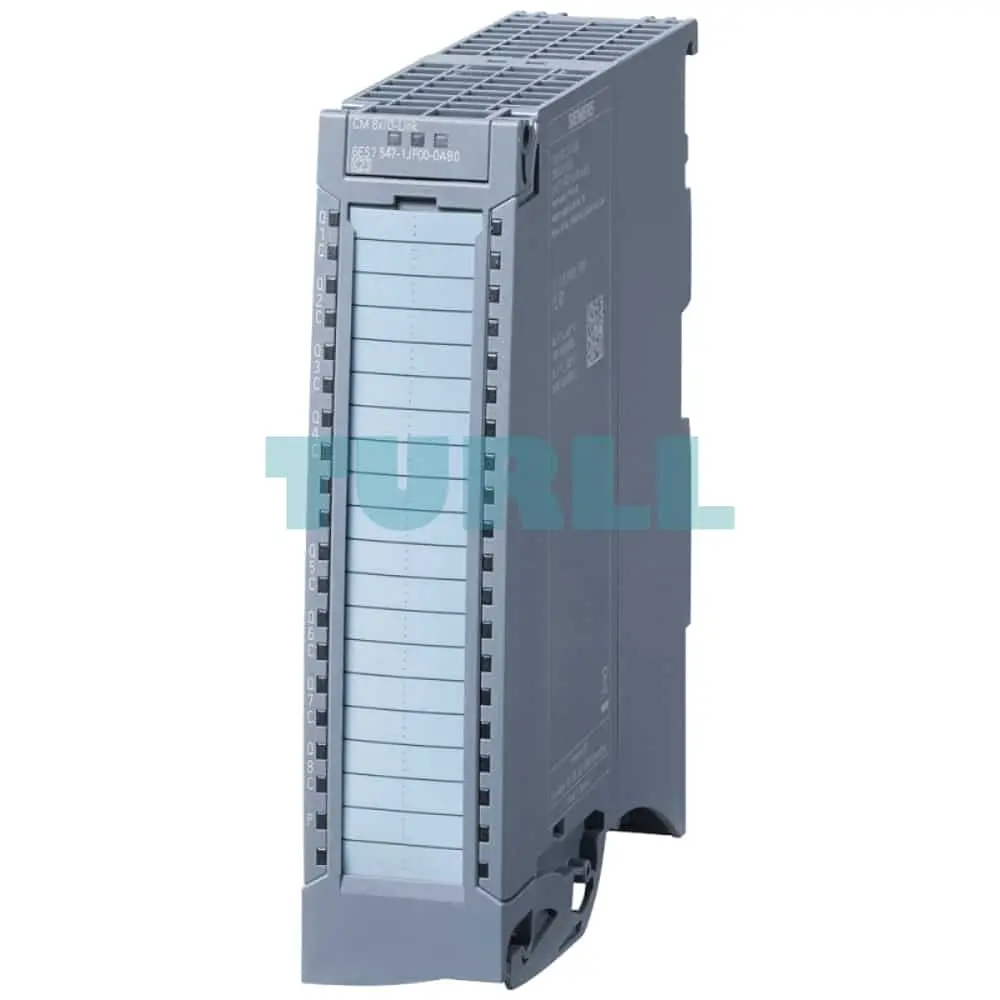

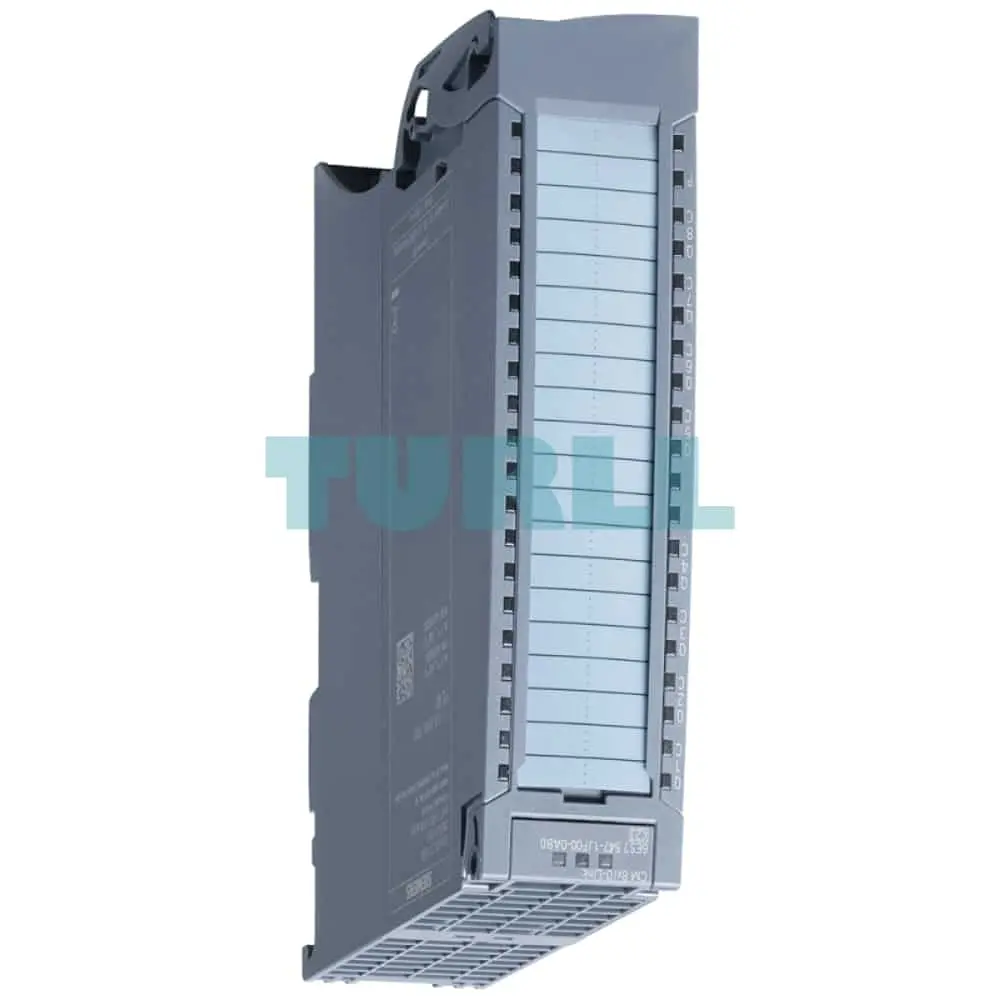

6ES7547-1JF00-0AB0 Siemens S7-1500 Communication Module CM 8xIO-Link Original Brand New
$616.34
6ES7547-1JF00-0AB0
Siemens S7-1500, CM 8xIO-Link, communication module IO-Link Master V1.1; Front connector (screw terminals or push-in) to be ordered separately
[ez-toc]
Overview
- Communication module for connecting up to 8 IO-Link devices (three-wire connection) or 8 standard sensors
- Can be used directly downstream of an S7-1500 CPU or distributed in ET 200MP via PROFINET or PROFIBUS
- Powerful diagnostics functions facilitate preventive maintenance to avoid plant standstills
- Easy replacement of sensors/actuators without time-consuming parameter assignment
Benefits
- Savings on wiring, engineering, commissioning.
System expansion centrally via the CPU. Distributed connection of the module via PROFINET and PROFIBUS (ET 200MP) is also possible. - Pre-assembled cables can be used to reduce wiring errors.
- Space savings
Up to 30 I/O modules can be centrally plugged behind the S7-1500 CPU or ET 200MP. - Uniform, consistent use of SIMATIC S7-1500 simplifies logistics and spare part stocking.
- Enhanced diagnostics capability
Enables transmission of data relevant to preventive maintenance. - Easy sensor/actuator replacement
Parameter assignment is accepted through the IO-Link master. By using the free “IO_LINK_MASTER_8” function blocks, configurations and parameters stored in the master can also be stored in the CPU. Consequently, IO-Link masters can also be replaced without loss of data.
Application
The IO-Link makes it easy to change the parameters for manufacturing and processing different product versions and batches, even during the CPU runtime, and up to the sensor/actuator level. Easy, clearly detailed diagnostics are also possible up to the sensor or actuator, including remote diagnostics.
Up to 8 IO-Link devices can be directly connected to SIMATIC S7-1500 and ET 200MP with the CM 8xIO-Link. This means that the previously required external stations can be omitted,
resulting in savings on wiring, engineering and commissioning, because everything can be done centrally with the CPU.
Design
- Mounting on the S7-1500 mounting rail using a single screw
- 40-pin front connector with screw-type terminals or push-in connections
- Front flap with expandable cable compartment
Included in the scope of delivery:
- One U connector
- Front door
Function
Function overview
- Suitable for connecting up to 8 IO-Link devices (three-wire connection) or 8 standard sensors
- IO-Link Master according to IO-Link specification V1.1
- Data transmission rates COM1 (4.8 kBd), COM2 (38.4 kBd), COM3 (230.4 kBd)
- Parameterizable diagnostics can be set for each channel
- Master backup with “IO_LINK_MASTER_8” function block
- Replacement of IO-Link devices (only for V1.1 devices)
- Supports firmware updates of IO-Link devices
- Variable address range for I/O data with up to 240 byte inputs and 240 byte outputs
Expansion limits:- Max. 32 bytes of input and output data per port
- Max. 240 bytes of input and output data per module
- Port Qualifier Information (PQI)
- IO-Link port configuration with S7-PCT
- IO-Link port configuration with STEP 7 or GSD (without S7-PCT)
- Uniform system functions of SIMATIC ET 200MP:
- Identification and maintenance data IM0
- Firmware update
- Unambiguous labeling on the front of the module
Configuration
The SIMATIC S7-1500 IO-Link master can be easily configured with the graphical user interface in the free S7-Port Configuration Tool (S7-PCT, as of V3.5, SP1).
Configuration is also possible without an S7-PCT. In this case, the port is configured by means of either the TIA Portal or GSD file. The following port modes are then supported:
- Operation in “IO-Link automatic start” mode (default)
- Operation in “IO-Link manual” mode
- Operation as DI
- Deactivated
6ES7547-1JF00-0AB0
Siemens S7-1500, CM 8xIO-Link, communication module IO-Link Master V1.1; Front connector (screw terminals or push-in) to be ordered separately
Visit 6ES7547-1JF00-0AB0
For more our products visit turll.com
| Weight | 0.302 kg |
|---|---|
| Dimensions | 151.00 × 152.00 × 47.00 mm |
