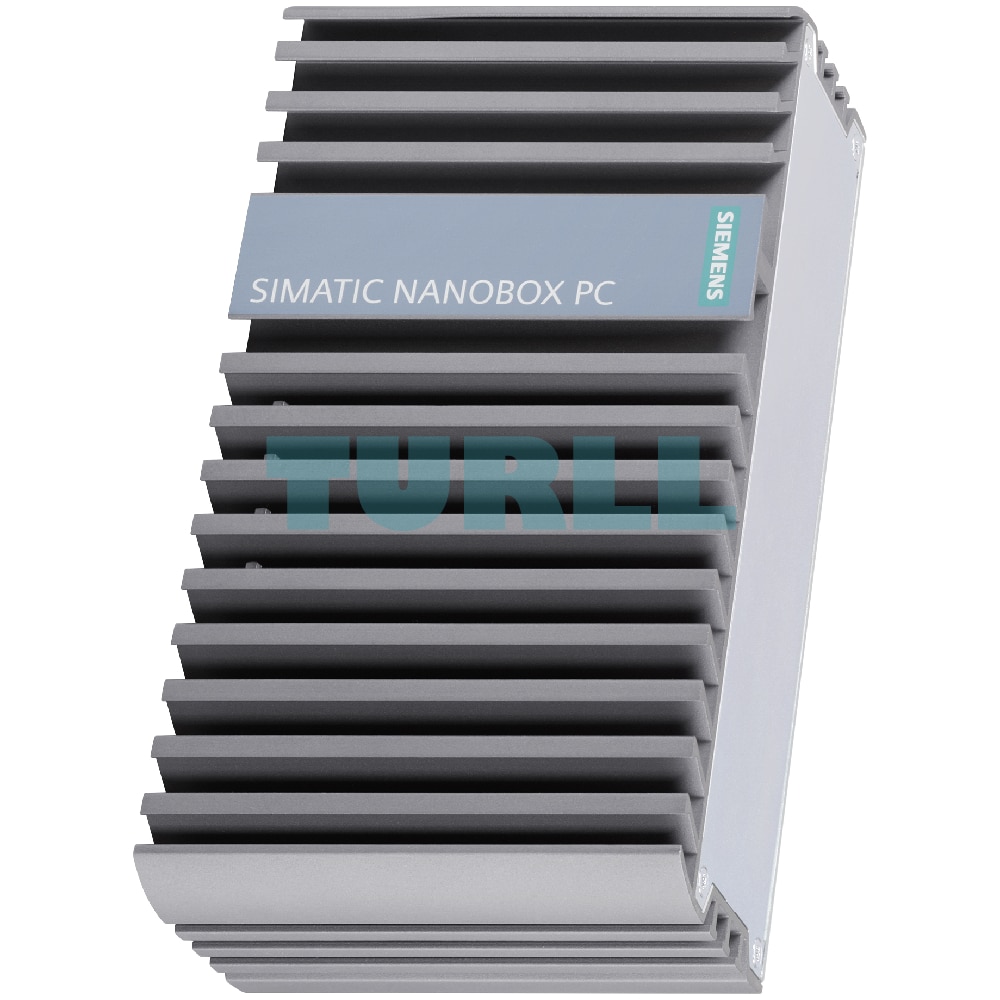

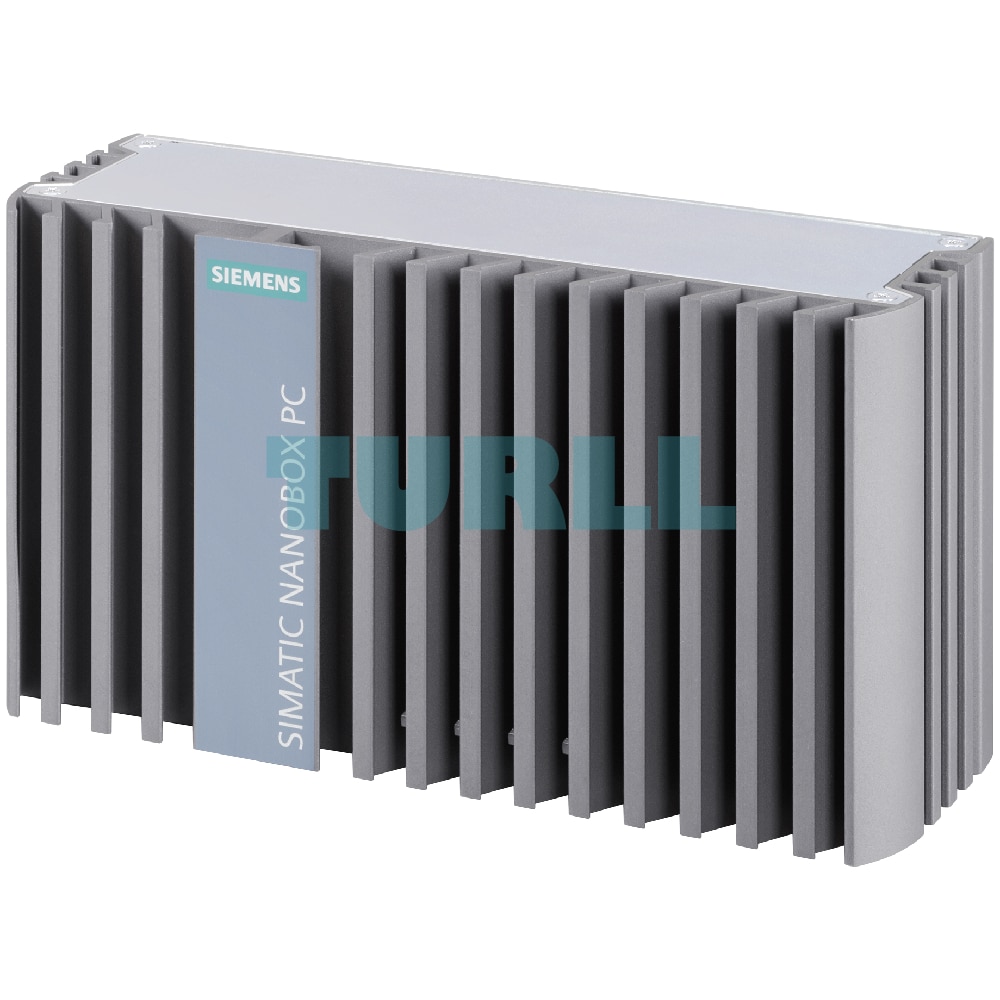

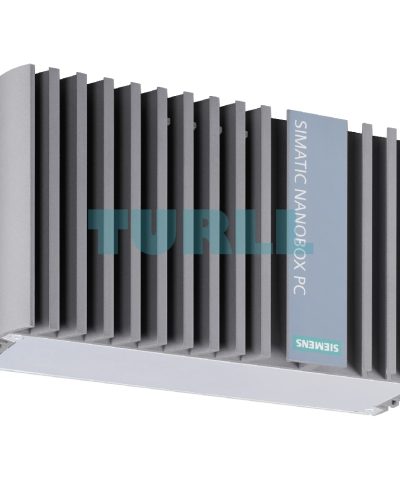

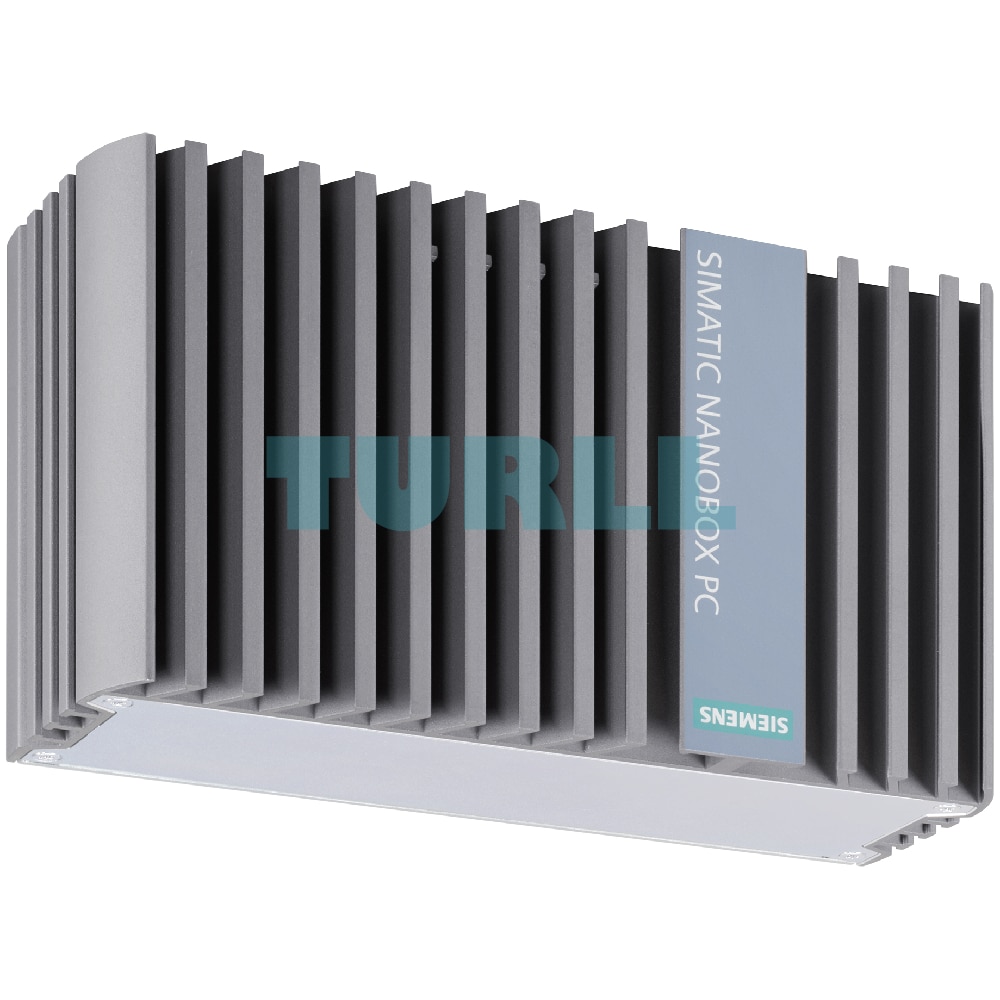

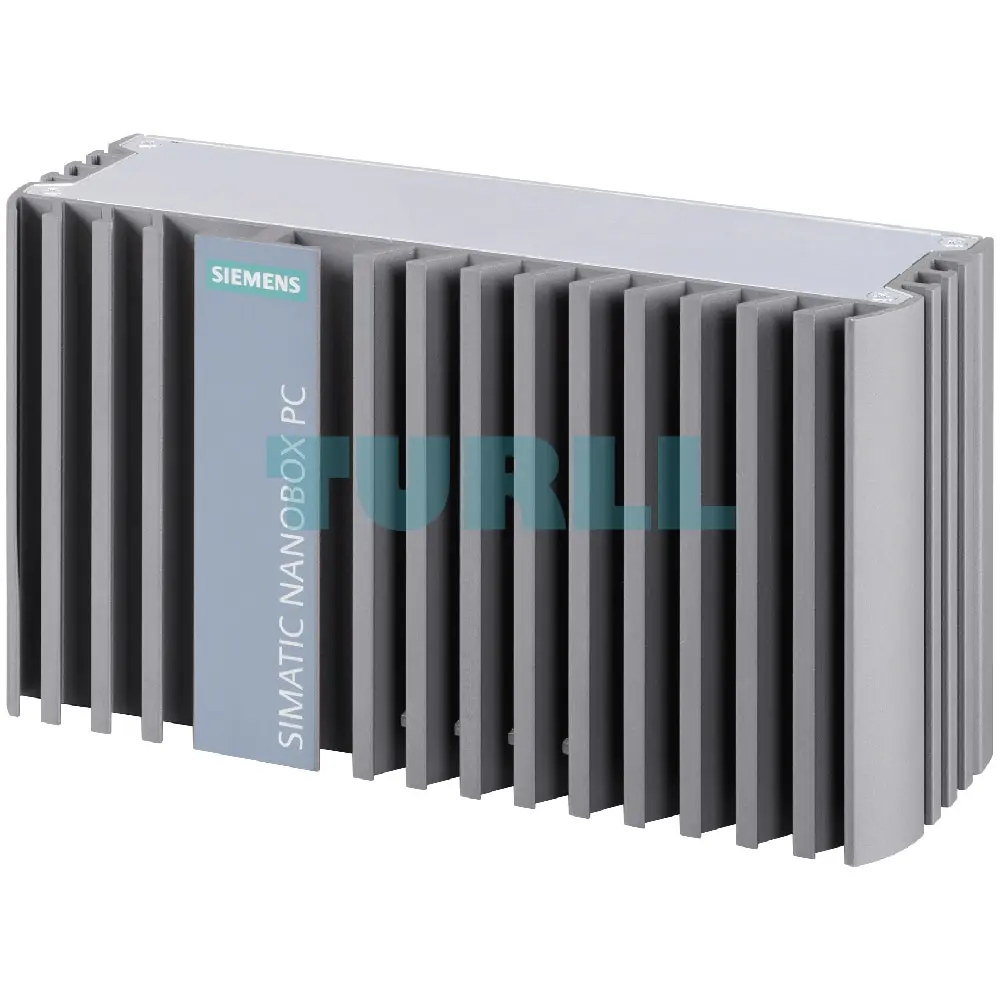

6ES7647-8CE31-2AB0 Siemens SIMATIC IPC227G Original Brand New
$3,309.21
6ES7647-8CE31-2AB0
Siemens SIMATIC IPC227G 2x display ports; 3x 10/100/1000 Mbps Ethernet; 4x USB3.0, 2x M.2 expansion slot; 24 V DC industrial power supply Atom X6413E (4-core) with TPM; 16 GB RAM; without COM; 256 GB Eco SSD; without hardware extension; Windows 10 Enterprise 2019 LTSC, 64-bit; MUI (en,de,fr,it,es); without mounting accessories;
[ez-toc]
Overview
SIMATIC IPC277G: The Panel PC with optimized performance – flexible in respect of interfaces and expansions with multi-touch displays from 7″ to 24″
SIMATIC IPC277G is based on the Nanobox PC IPC227G and is characterized by its robust design and maintenance-free operation.
With its integrated interfaces, expansion options and the large range of multi-touch fronts from 7″ to 24″, the Nanopanel PC is intended for a broad range of applications.
Benefits
High flexibility in the selection of industry-compatible multi-touch fronts:
- Widescreen displays with end-to-end glass front and projected-capacitive touch technology and brilliant rendering
- 24″ (1920 x 1080 Full HD)
22″ (1920 x 1080 Full HD)
19″ (1920 x 1080 Full HD)
15″ (1920 x 1080 Full HD)
12″ (1280 x 800)
10″ (1280 x 800)
7″ (800 x 480)
- 24″ (1920 x 1080 Full HD)
- Scratch-resistant, non-reflective surfaces with high resistance to chemicals
- Simultaneous detection of five fingers
- Automatic detection of unwanted contact (water droplets, ball of the thumb, etc.) and cleaning procedures
- For flexible use, operation with working gloves is possible
- Slim options with reduced enclosure thickness for applications with limited space
- ATEX versions for applications requiring ATEX certificates; high industrial functionality
- For flexible use, operation with working gloves is possible
High degree of industrial functionality
- Flexible memory concept
- Solid-state drive (SSD) from 256 GB
- Can be changed from outside by means of a rack unit
- 3x Gigabit Ethernet (IE/PN), PROFINET with RT functionality (via Standard Ethernet)
- 4x USB 3.1
- 2x DisplayPort graphics interfaces
- 0 or 1x or 2x COM (RS232 / RS485 / RS422; switchable in the BIOS; optional)
- 2x M.2 module slot for simple expansion with supplementary functions
- Preinstalled operating system with a choice of:
- Windows 10 IoT Enterprise 2019 LTSC
- Windows 10 IoT Enterprise 2021 LTSC
High degree of industrial capability
- Up to 50 °C ambient temperature in operation
- Up to 1 g vibration / 15 g shock during operation
- Front with IP65 degree of protection
High system availability
- Maintenance-free since there are no rotating parts
- Extensive self-diagnostics using local diagnostics software SIMATIC IPC DiagBase
- LEDs for efficient self-diagnostics
High degree of investment security
- Platform available long-term with Intel Embedded components
- PC development and production (incl. motherboard and BIOS) by Siemens
- 5-year spare parts availability
Application
- Visualization and control tasks, for example in mechanical engineering, plant construction, transportation systems or power transmission;
compact client for SCADA applications - Acquisition, further processing and visualization of data
- Control
- Machine-level applications that additionally require C/C++ programs
- Additional applications such as shipbuilding, building automation, storage & logistics
- Edge applications
- AI inference applications that require a local display unit
Design
The SIMATIC IPC277G Nanopanel PC is a compact unit comprising an operating unit with an integrated computing unit.
Computing unit:
- Isolated power supply: 24 V DC (19.2 to 28.8 V)
- Additional video interfaces:
- 2x DisplayPort V1.3
- Interfaces (accessible from one side):
- 3 x LAN 10/100/1 000 Mbps Ethernet interface (RJ45)
- 4 x USB V3.1
- 0/1/2 x COM interfaces (RS232 / RS485 / RS422, switchable in the BIOS)
- Fieldbus
- PROFINET Realtime via Standard Ethernet interface
Design variants
- Processor/main memory configuration:
- Atom X642131E (2-core / 2 threads – current consumption-optimized)
- Atom X6211E (2-core / 2 threads – current consumption-optimized)
- Atom X6413E (4-core/4 threads – performance-optimized)
- Atom X6414RE (4-core / 4 threads – optimized for real-time applications)
- Respectively without/with trusted platform module TPM
- Main memory configuration:
- 4 GB, 8 GB, or 16 GB RAM
- Retentive memory
- 512 KB retentive memory (NVRAM), of which 128 KB can be written within the buffer time (optional)
- Drives:
- Solid-state drive 256 GB
- Device variants:
- No / 1 / 2 COM interface(s) (optional; RS232 / RS485 / RS422; switchable in the BIOS)
- Slim options with reduced enclosure thickness
- Operating system preinstalled:
- Windows 10 IoT Enterprise 2019 LTSC
- Windows 10 IoT Enterprise 2021 LTSC
Operating unit:
The following operating units are available in the following versions (also as neutral variant):
- 7″ multi-touch: 800 x 480 pixels
- 10″ multi-touch: 1 280 x 800 pixels
- 12″ multi-touch: 1 280 x 800 pixels
- 15″ multi-touch: 1 920 x 1 080 pixels
- 19″ multi-touch: 1 920 x 1 080 pixels
- 22″ multi-touch: 1 920 x 1 080 pixels
- 24″ multi-touch: 1 920 x 1 080 pixels
DiagBase diagnostics
Parameterizable monitoring functions (program execution/watchdog, internal enclosure temperature, mass storage).
6ES7647-8CE31-2AB0
Siemens SIMATIC IPC227G 2x display ports; 3x 10/100/1000 Mbps Ethernet; 4x USB3.0, 2x M.2 expansion slot; 24 V DC industrial power supply Atom X6413E (4-core) with TPM; 16 GB RAM; without COM; 256 GB Eco SSD; without hardware extension; Windows 10 Enterprise 2019 LTSC, 64-bit; MUI (en,de,fr,it,es); without mounting accessories;
Visit 6ES7647-8CE31-2AB0
For more our products visit turll.com
| Weight | 2.1 kg |
|---|---|
| Dimensions | 1 × 1 × 1 mm |
