6ES7661-0KD12-1PA3 SIEMENS Exclusive SIMATIC IPC647E PCS 7 OS Server Original Brand New

6ES7661-0KD12-1PA3 SIEMENS Exclusive SIMATIC IPC647E PCS 7 OS Server Original Brand New

For price details, please contact our customer service

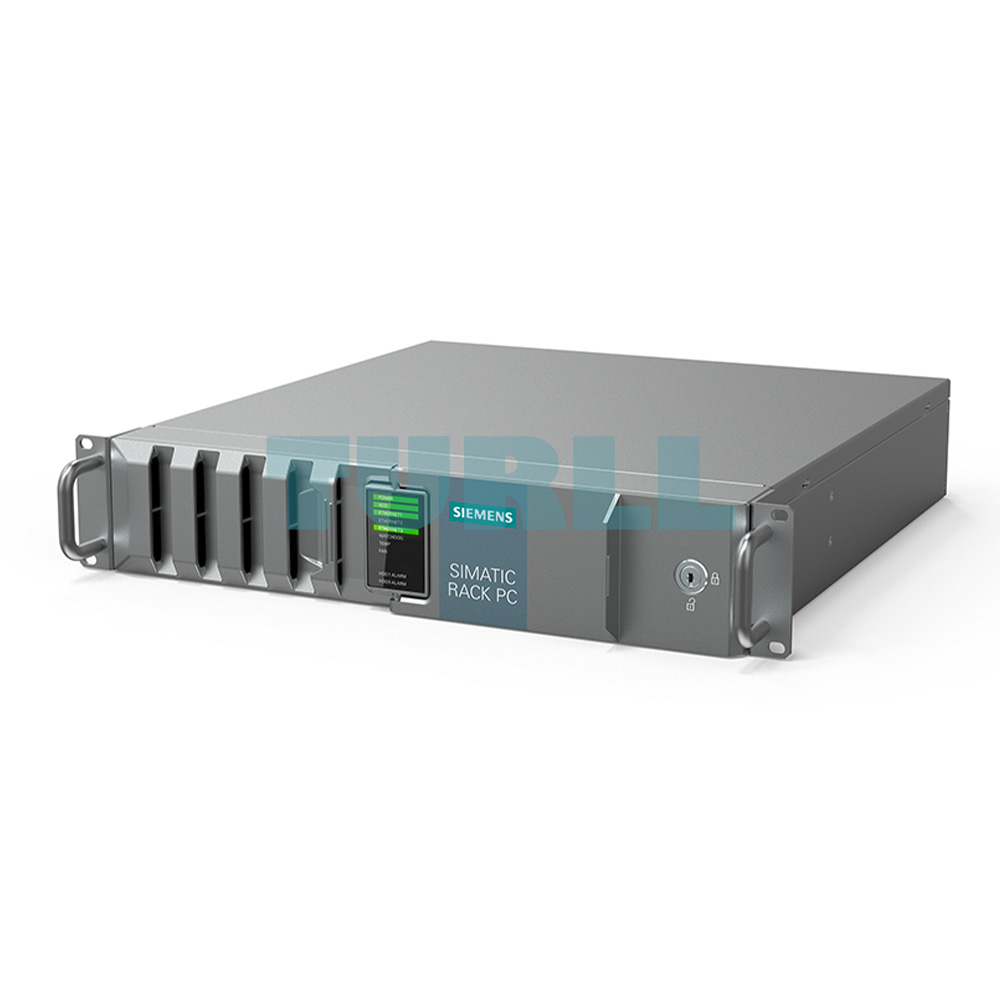

The SIEMENS 6ES7661-0KD12-1PA3 is a high-performance SIMATIC IPC647E rackmount industrial PC designed for PCS 7 OS server, engineering server, and web server applications. Powered by the Intel Xeon E-2176G processor (6 cores, 12 threads, 3.7 GHz base clock, up to 4.7 GHz turbo), this 2U rack PC supports critical industrial operations with reliable performance and redundancy. Preinstalled with PCS 7 V9.1 SP2 and Windows Server 2019 Standard Edition, it ensures seamless integration within the SIMATIC PCS 7 system architecture. The unit features RAID1 configuration with dual 4 TB enterprise-grade HDDs and a 512 GB SSD M.2 NVMe for fast system operations, backed by 32 GB DDR4 RAM for demanding workloads.

Overview

6ES7661-0KD12-1PA3 Engineered for continuous 24/7 operation, the IPC647E offers exceptional reliability in industrial environments. Its robust metal chassis, 6ES7661-0KD12-1PA3 includes advanced cooling, temperature and fan monitoring, and watchdog functionality for high availability. With flexible connectivity options such as triple Gbit LAN, multiple USB 3.1 ports, DisplayPort, DVI-D, and COM interfaces, the system is built for complex industrial networking. Expansion is supported through four bus slots (2x PCI, 2x PCIe x16). This IPC647E is optimized for PCS 7 applications requiring high processing capacity, data integrity through RAID1, and the resilience of a dual-drive configuration in harsh operating conditions.

• Intel Xeon E-2176G (6 cores/12 threads, 3.7 GHz base, 4.7 GHz turbo, 12 MB cache)
• Preinstalled PCS 7 V9.1 SP2 with Windows Server 2019 Standard Edition (64-bit)
• RAID1 with 2x 4 TB Enterprise HDD (3.5" SATA)
• 512 GB SSD M.2 NVMe for operating system (M.2 slot occupied)
• 32 GB DDR4 SDRAM (2x 16 GB), Dual Channel
• Temperature and fan monitoring, watchdog, card retainer
• Interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x DisplayPort, 1x COM, Audio
• USB Ports: 4x USB 3.1 Gen2 (rear), 2x USB 3.1 Type C (rear), 2x USB 3.1 (front), 1x USB 3.1 internal
• 4 expansion slots: 2x PCI, 2x PCIe x16 (8 lanes)
• Industrial 100/240 V AC power supply with China power cord

Design

• Rugged 19" 2U rackmount design with enhanced durability for industrial applications
• Built for 24/7 operation with high shock (5 g) and vibration (0.5 g) resistance
• Optimized airflow and advanced cooling system with monitoring features
• Compact design allows space-saving installation in control cabinets
• Scalable expansion options for advanced industrial automation projects
• Factory-configured with system recovery and optimized for PCS 7 environments
