6ES7661-1AC00-1CB3 SIEMENS Exclusive SIMATIC IPC847E PCS 7 Single Station Original Brand New

6ES7661-1AC00-1CB3 SIEMENS Exclusive SIMATIC IPC847E PCS 7 Single Station Original Brand New

For price details, please contact our customer service

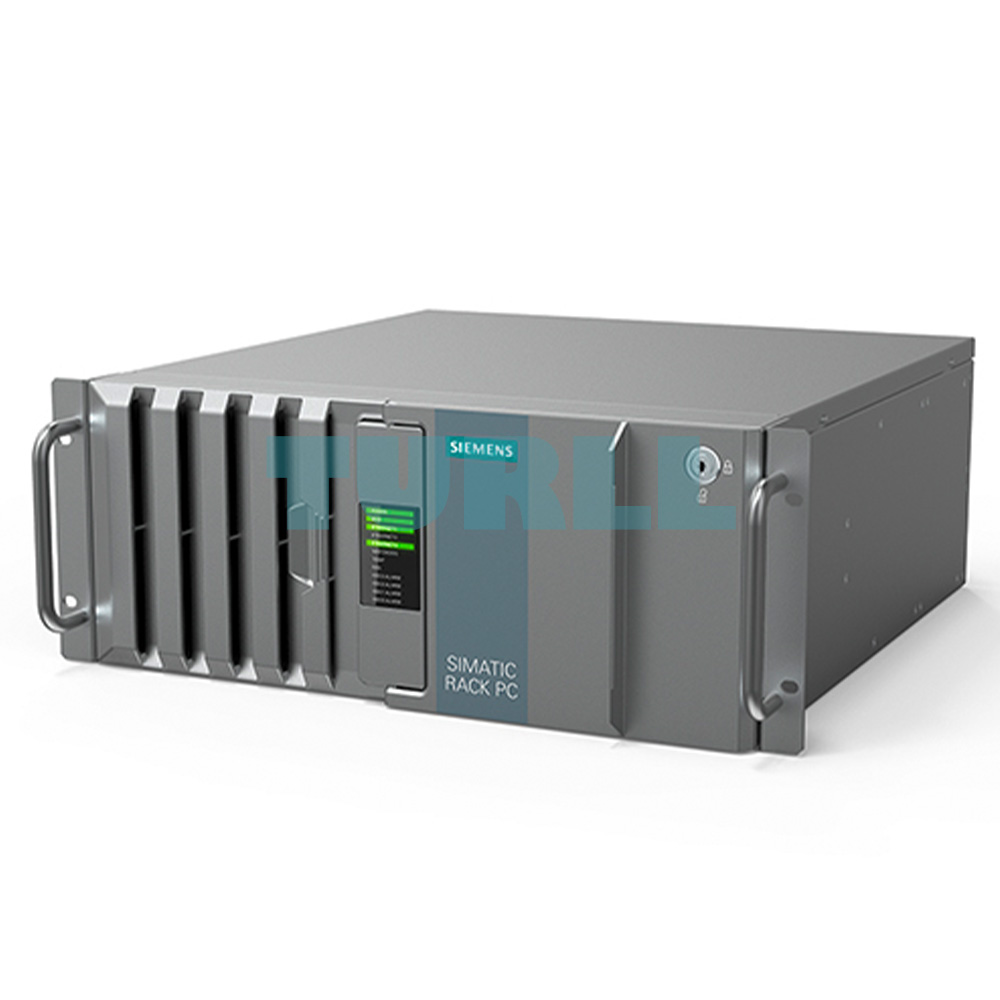

The SIEMENS 6ES7661-1AC00-1CB3 is a high-performance industrial rack PC from the SIMATIC IPC847E series, designed for PCS 7 ES/OS single station or OS client applications. Powered by the Intel Core i5-8500 processor, this system delivers reliable computing power with robust industrial features. Equipped with RAID1 configuration using dual 2 TB enterprise HDDs and 8 GB DDR4 memory, it provides dependable storage and performance for industrial environments. The unit comes with PCS 7 V9.1 SP2 and Windows 10 Enterprise 2019 LTSC preinstalled, making it ready for immediate deployment in demanding automation tasks.

Overview

The SIMATIC IPC847E 6ES7661-1AC00-1CB3 is designed to operate reliably in 24/7 industrial conditions, built with a durable 4U 19″ rack-mountable metal enclosure, enhanced with dust protection and active ventilation. With high shock (5 g) and vibration (0.5 g) tolerance, it ensures stable operation in harsh industrial settings. The IPC847E offers a comprehensive set of interfaces including multiple LAN ports, USB3.1 ports, DVI-D, and DisplayPort connections. The included PCIe graphics card supports multi-monitor configurations, making it ideal for control rooms and industrial monitoring stations.

• Intel Core i5-8500 (6 cores/6 threads, 3.0 GHz base, 4.1 GHz turbo, 9 MB cache)
• PCS 7 V9.1 SP2 preinstalled with Windows 10 Enterprise 2019 LTSC (64-bit, multilingual)
• RAID1 with 2x 2 TB Enterprise HDDs for enhanced data protection
• 8 GB DDR4 SDRAM (2x 4 GB), Dual Channel memory configuration
• Temperature and fan monitoring with industrial watchdog system
• Interfaces: 3x Gbit LAN, 1x DVI-D, 2x DisplayPort, 1x COM, Audio
• USB Ports: 4x USB3.1 Gen2 (rear), 2x USB3.1 (Type C) rear, 2x USB3.1 (front), 1x USB3.1 (internal)
• Expansion: 3x PCI, 1x PCIe x16 (8 lanes), 5x PCIe x16 (4 lanes), 2x PCIe x4 (4 lanes)
• Pre-installed PCIe x16 graphics card with multi-monitor support (4-5 screens)
• 100/240 V AC industrial power supply with China power cord included

Design

• Rugged 4U rackmount design for industrial environments
• Advanced ventilation and dust protection with easy service access
• Designed for horizontal installation in control cabinets
• Supports harsh condition operation with shock and vibration resistance
• Includes system restore USB flash drive for recovery
• Optimized for use within SIMATIC PCS 7 as a single station or client
