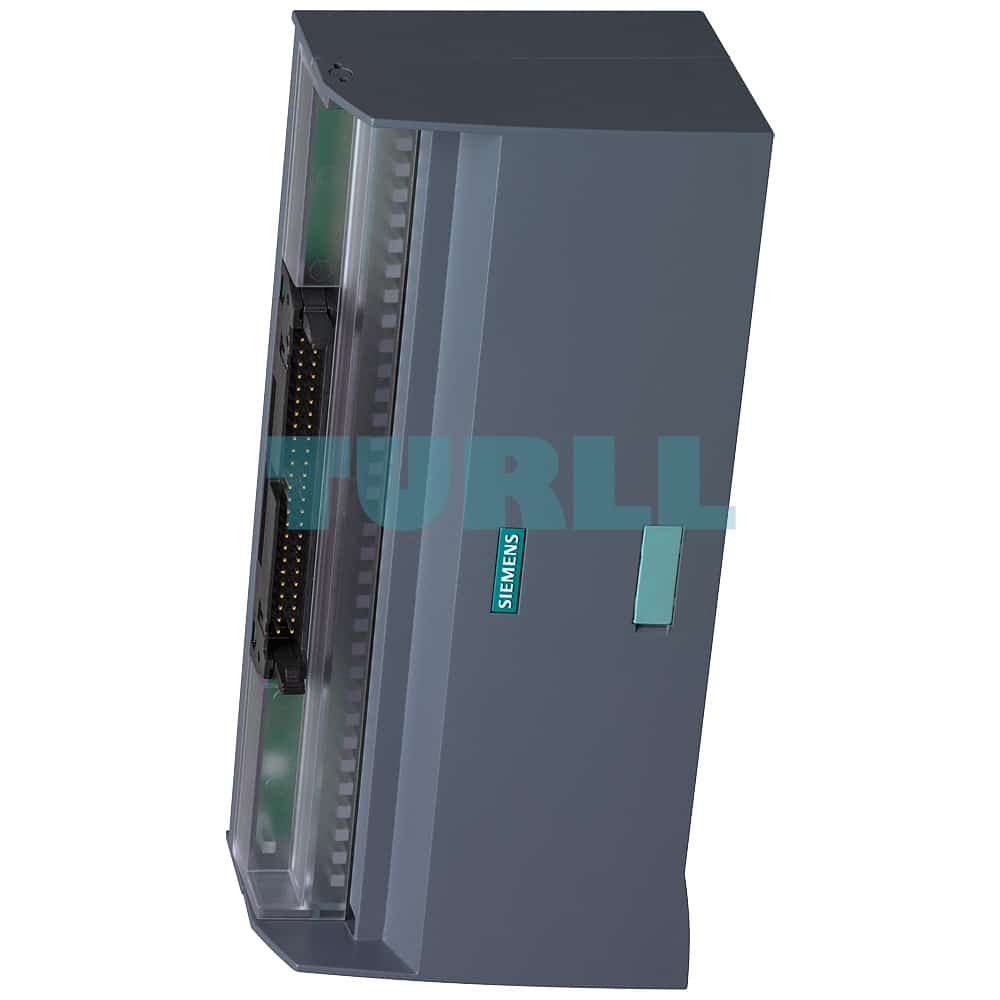

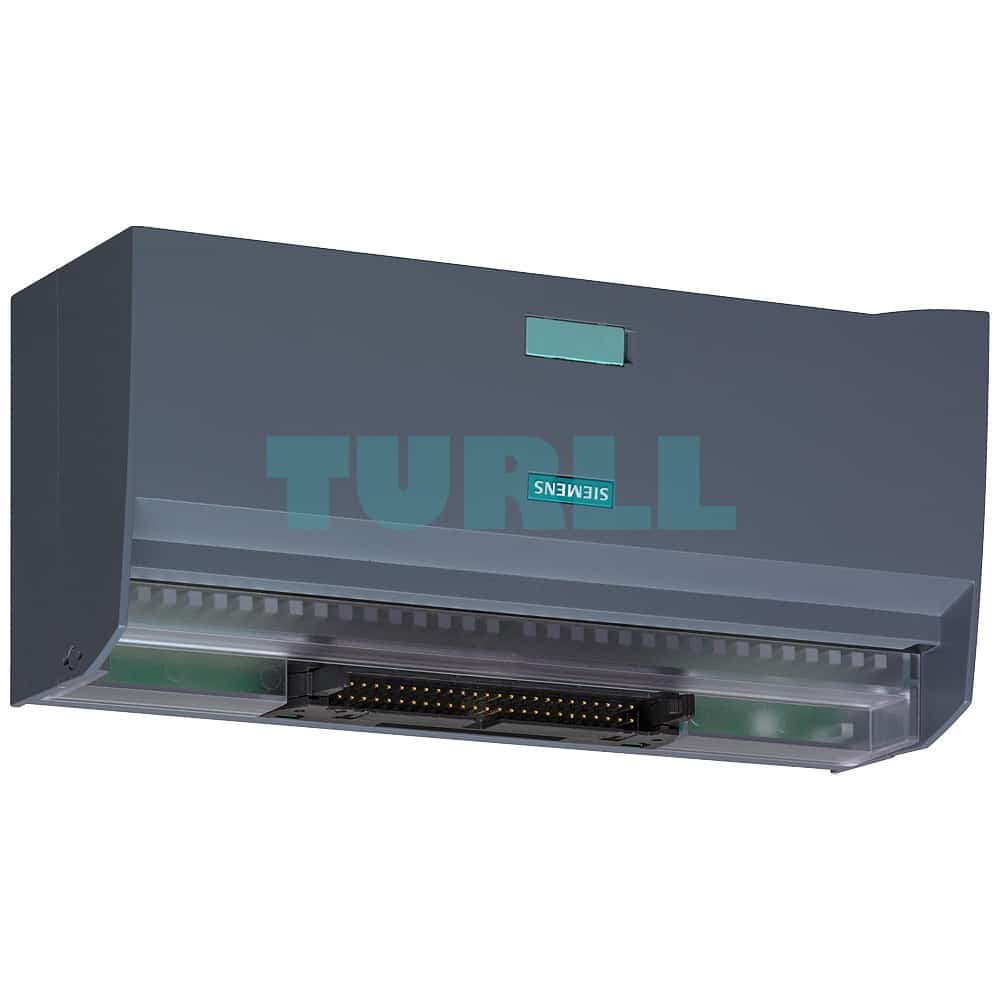

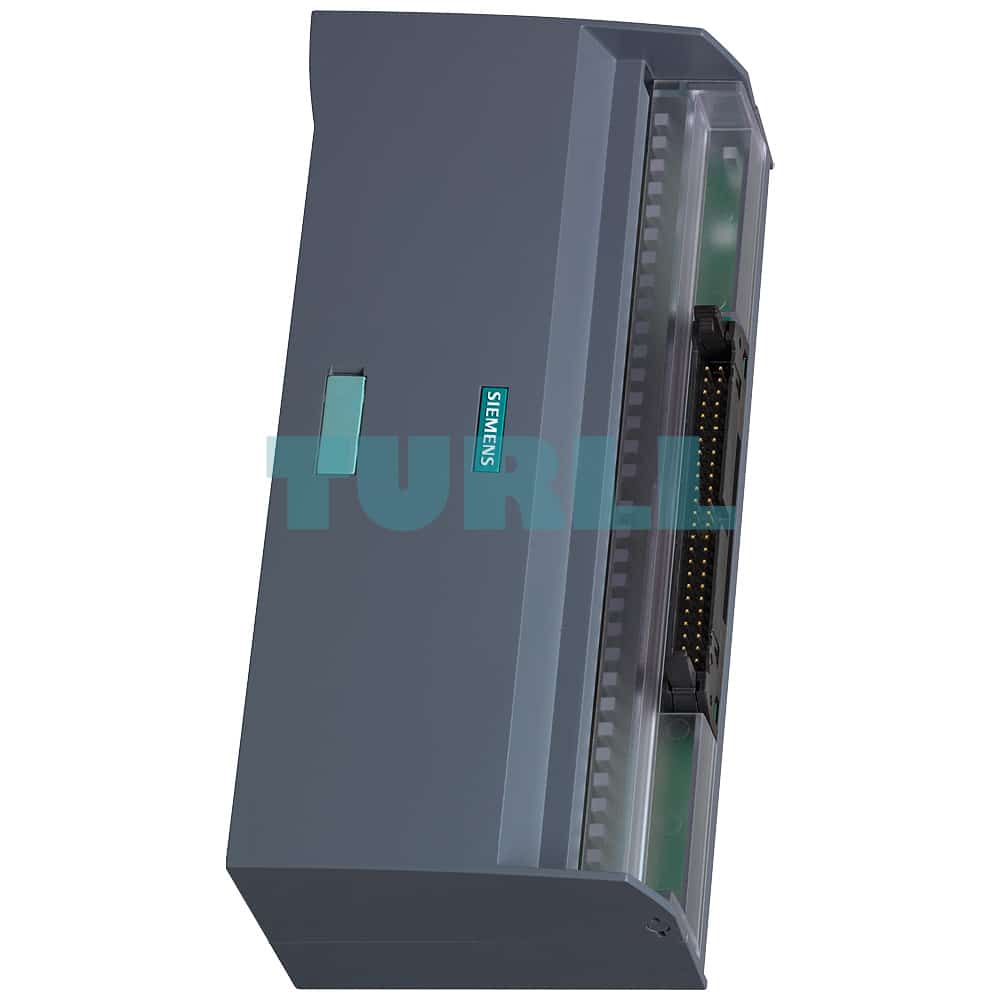

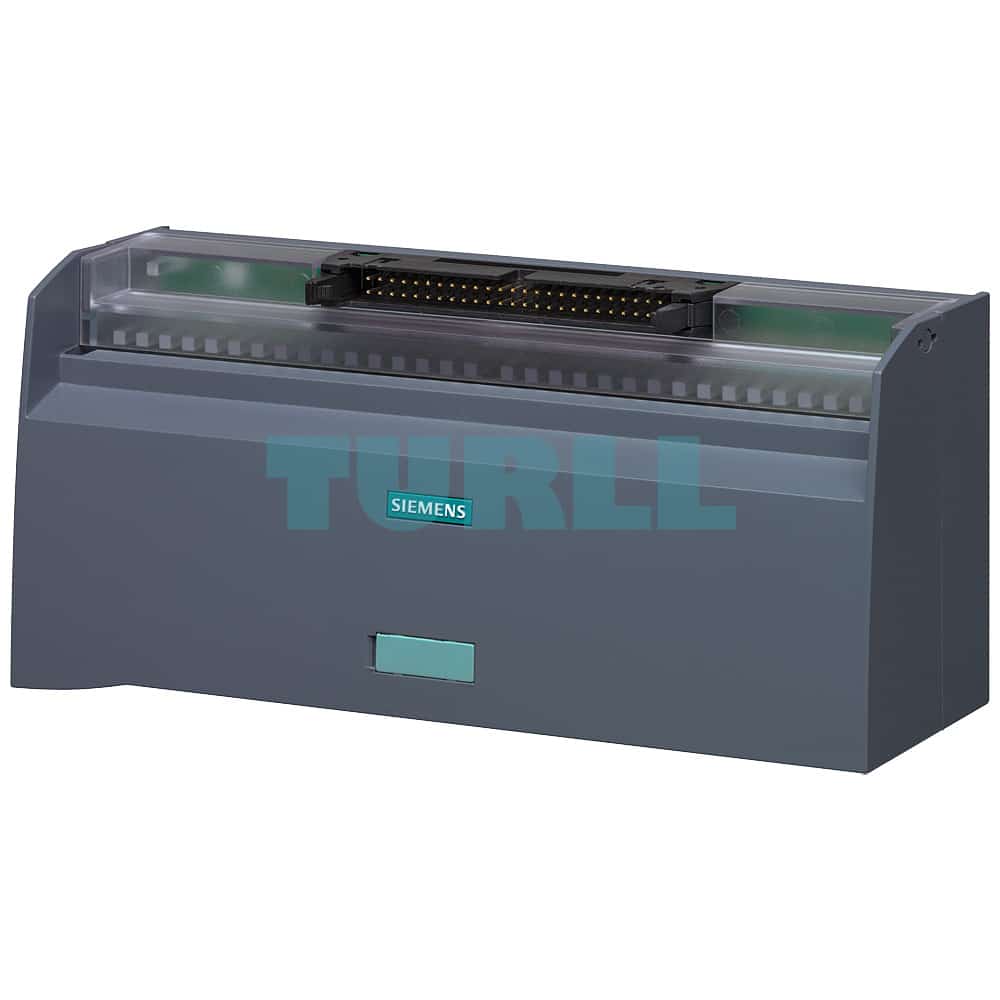

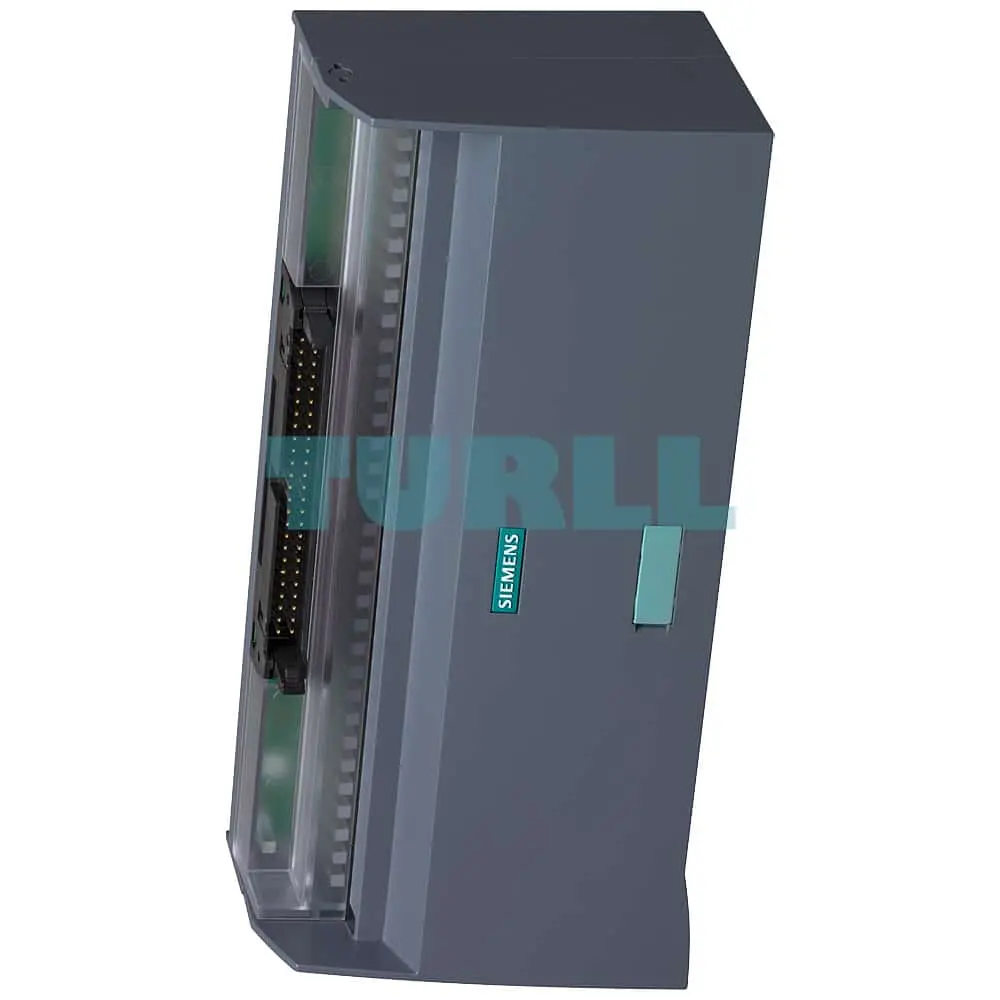

6ES7924-2CC20-0AA0 SIEMENS Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Screw terminal without LED Original Brand New

6ES7924-2CC20-0AA0 SIEMENS Connection module TPA 3-tier for analog Modules of the SIMATIC S7-1500 Screw terminal without LED Original Brand New

The 6ES7924-2CC20-0AA0 Siemens connection module TPA is a high-quality solution specifically designed for analog modules of the SIMATIC S7-1500 series. This connection module features a robust 3-tier configuration, providing reliable and organized wiring for complex automation systems. Equipped with screw-type terminals without LED indicators, it offers a classic and durable connection method that ensures long-term stability even under challenging industrial conditions.

This module integrates seamlessly with SIMATIC S7-1500 systems, facilitating the secure connection between field I/O devices and controllers. The 50-pole IDC connector enables efficient cabling management, reducing installation time and potential wiring errors. The design supports DIN rail mounting, making it suitable for compact control cabinet layouts while offering flexibility during system expansion or maintenance.

The 6ES7924-2CC20-0AA0 allows the use of up to 4 connection modules per front connector module, depending on configuration. With appropriate cabling, up to 32 channels can be routed efficiently via a single line, improving space utilization and system clarity. The passive module construction makes it ideal for analog signal transmission where no additional signal conditioning is required.

This connection module supports distances of up to 30 meters between the SIMATIC S7 controller and the connection module, depending on system requirements and design preferences. The unit is compatible with insertable labels, allowing easy system identification and documentation for maintenance or future upgrades.

Engineers and system integrators will appreciate the combination of simplicity, durability, and compatibility that this connection module offers. It is an essential component for creating clean, efficient, and reliable wiring structures in modern industrial automation setups.

Key technical highlights include:

• 3-tier TPA connection module designed for SIMATIC S7-1500 analog modules

• Screw terminals without LED indicators for robust and straightforward connections

• 50-pole IDC connector enabling neat and organized cabling

• DIN rail mountable for easy installation

• Supports distances up to 30 m between controller and connection module

• Compatible with system labeling accessories for clear identification
