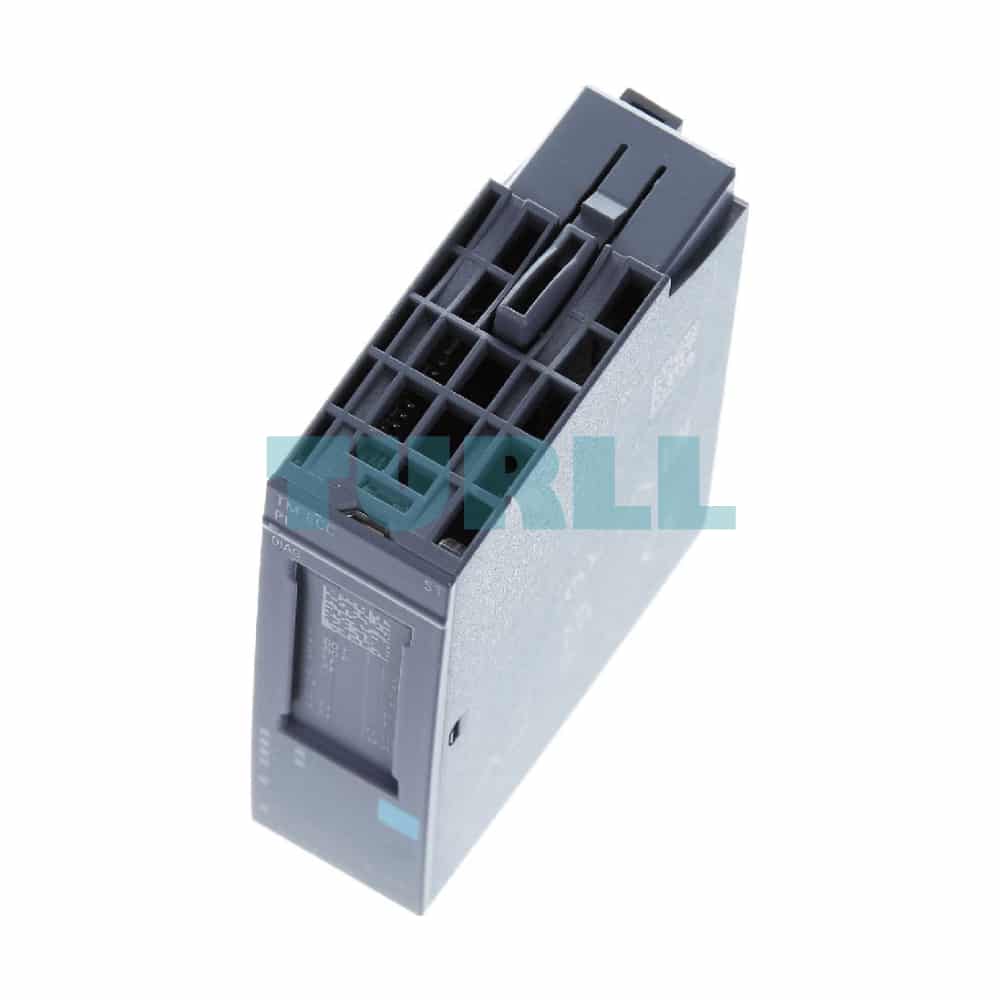

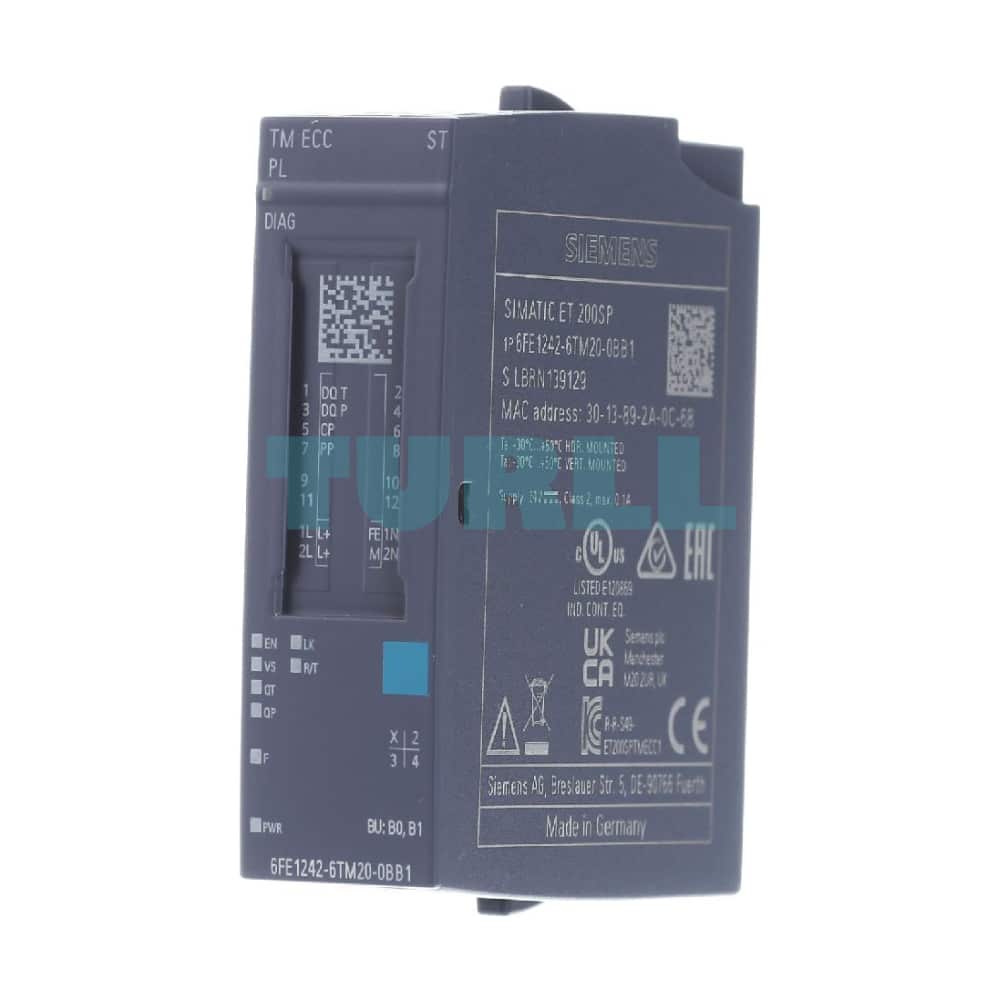

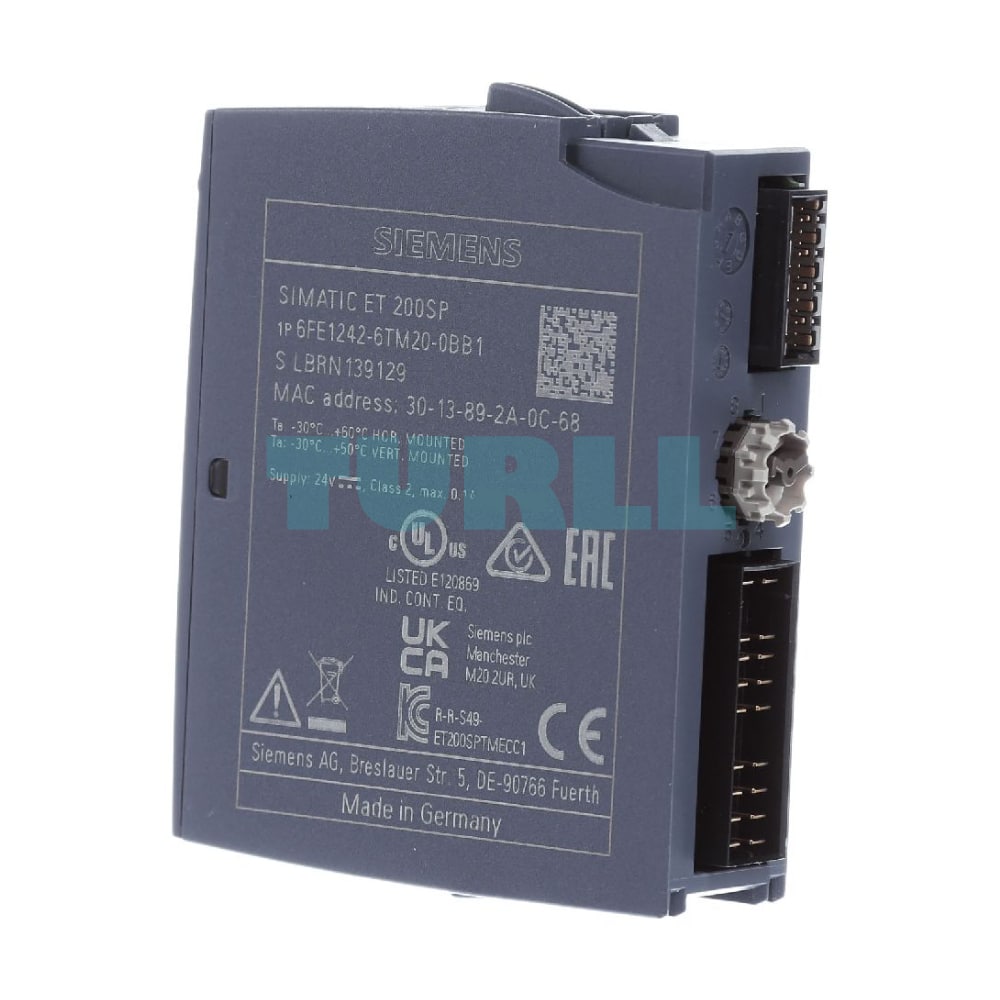

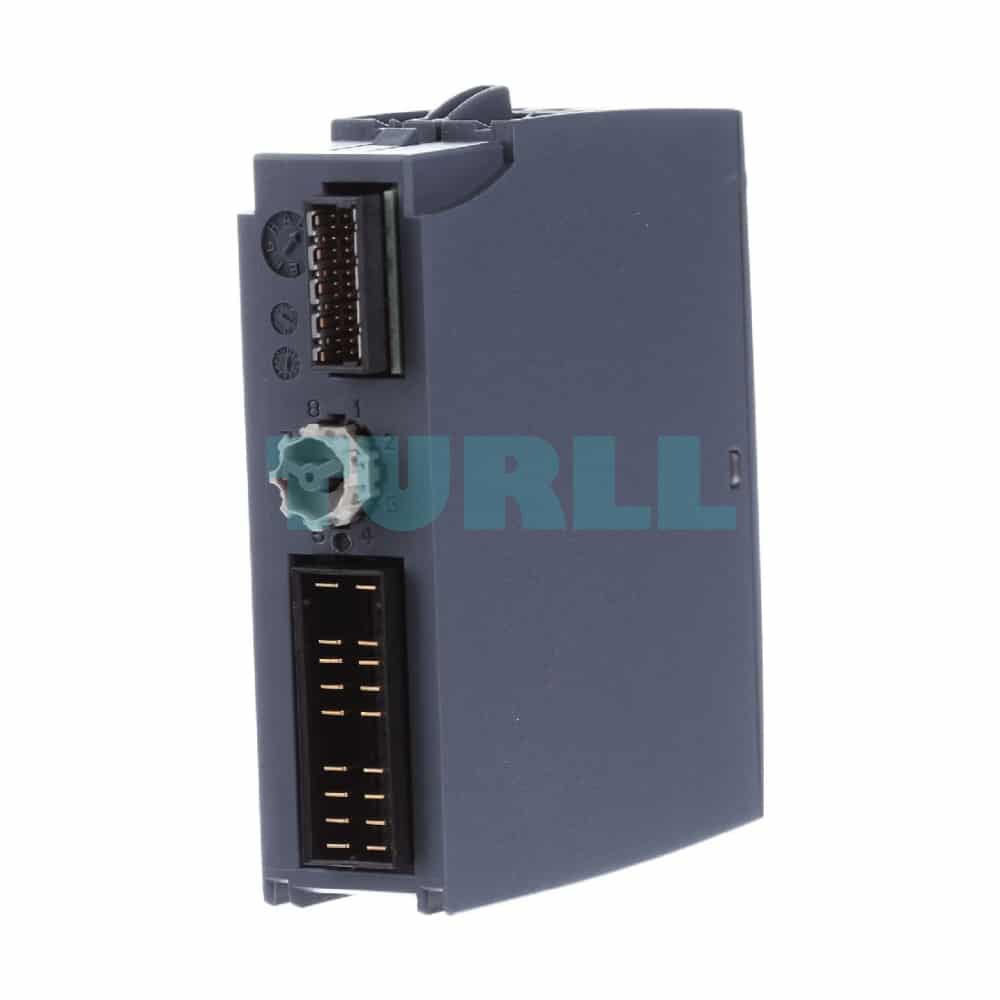

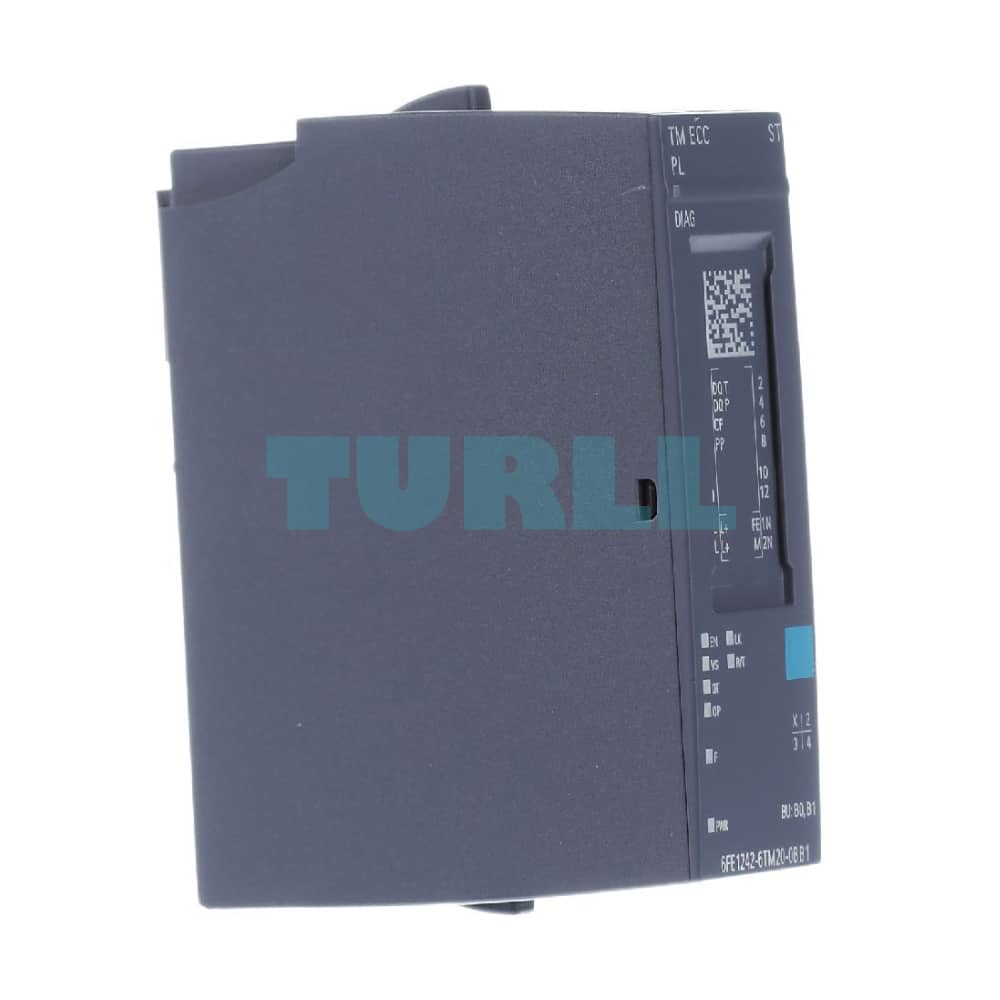

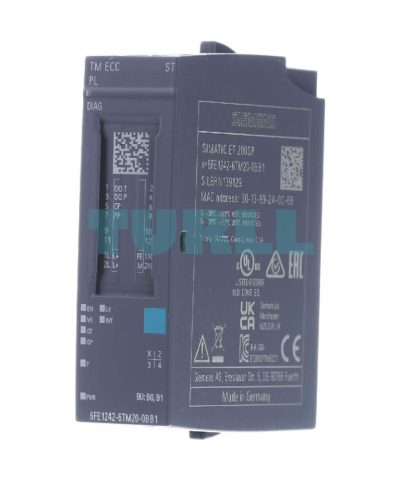

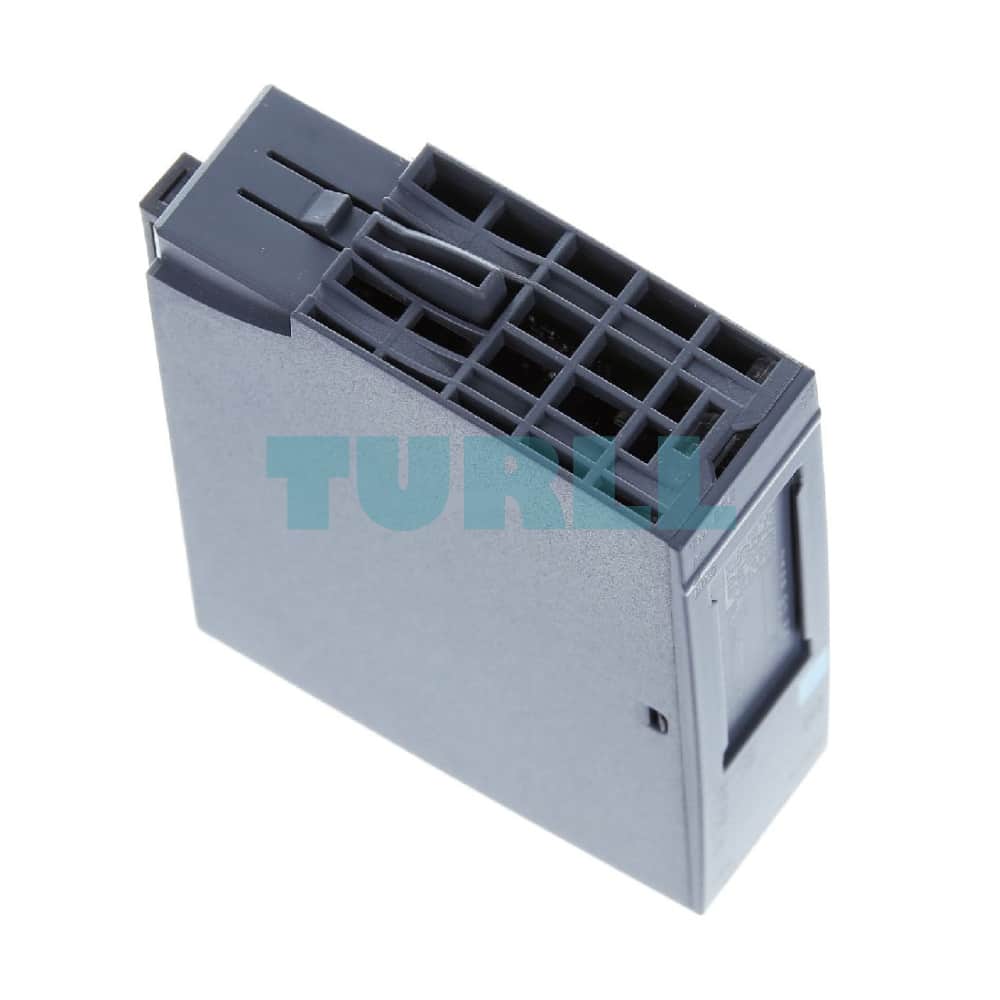

6FE1242-6TM20-0BB1 Siemens SIMATIC ET 200SP TM ECC PL ST Load Controller Original Brand New
$1,030.62
6FE1242-6TM20-0BB1
Siemens SIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS combined charging temp.: -30 °C to 60 °C 1x Control Pilot including Powerline Green Phy 1x Plug Present / Proximity Pilot 1x Digital Out TRIP function as open collector 1x Digital Out (DQ P) as open collector suitable for BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B
[ez-toc]
Overview
SIPLUS and SIMATIC Electrical Charging Controllers are the key components in infrastructure solutions for the conductive charging of electric vehicles.
They perform the following functions:
- Detection of the charging cable and its permissible current carrying capacity
- Transfer of the maximum charging current from the charging station to the electric vehicle
- Evaluation of the status signals from the electric vehicle:
- Ready for charging
- Charging
- Charging with ventilation
- Cost-optimized, space-saving charging infrastructure solutions due to compact design based on SIMATIC ET 200SP.
ET 200SP TM ECC 2xPWM ST AC module
- Control of charging outputs according to IEC 61851 by parameterizable SIMATIC ET 200SP TM ECC 2xPWM ST charging controller
- Control of load tap-off
- Control of connector lock
- Evaluation of connector lock or load contactor status
ET 200SP TM ECC PL ST DC module
- The SIMATIC ET 200SP TM ECC PL ST charging controller fully controls a DC charging process according to DIN SPEC 70121.
- The following sequences are performed:
- Session Setup
- Service Discovery
- Service and Payment Selection
- Contract Authentication
- Charge Parameter Discovery
- Power Delivery
- Charging Status
- Cable Check
- Pre Charging
- Current Demand
- Welding Detection
- Session Stop
Accessories: Calibration Kit TM ECC CCS2
Expansion kit for calibration of the power line signal strength of an EVSE.
- According to DIN SPEC 70121 / ISO15118 or design guidelines for CCS charging stations Type 2
- Suitable for the SIMATIC ET 200SP TM ECC PL ST technology module
6FE1242-6TM20-0BB1
SiemensSIMATIC ET 200SP TM ECC PL ST load controller for conductive charging of electric vehicles according to DIN SPEC 70121 / ISO15118 charge operating mode 4 CCS combined charging temp.: -30 °C to 60 °C 1x Control Pilot including Powerline Green Phy 1x Plug Present / Proximity Pilot 1x Digital Out TRIP function as open collector 1x Digital Out (DQ P) as open collector suitable for BU type BU20-P12+A0+4B or BU type BU20-P12+A4+0B
Visit 6FE1242-6TM20-0BB1
For more our products visit turll.com
| Weight | 0.051 kg |
|---|---|
| Dimensions | 65 × 77 × 23 mm |
