6FX5002-5DS14-1CD0 SIEMENS Exclusive Power Cable Pre-Assembled Original Brand New

6FX5002-5DS14-1CD0 SIEMENS Exclusive Power Cable Pre-Assembled Original Brand New

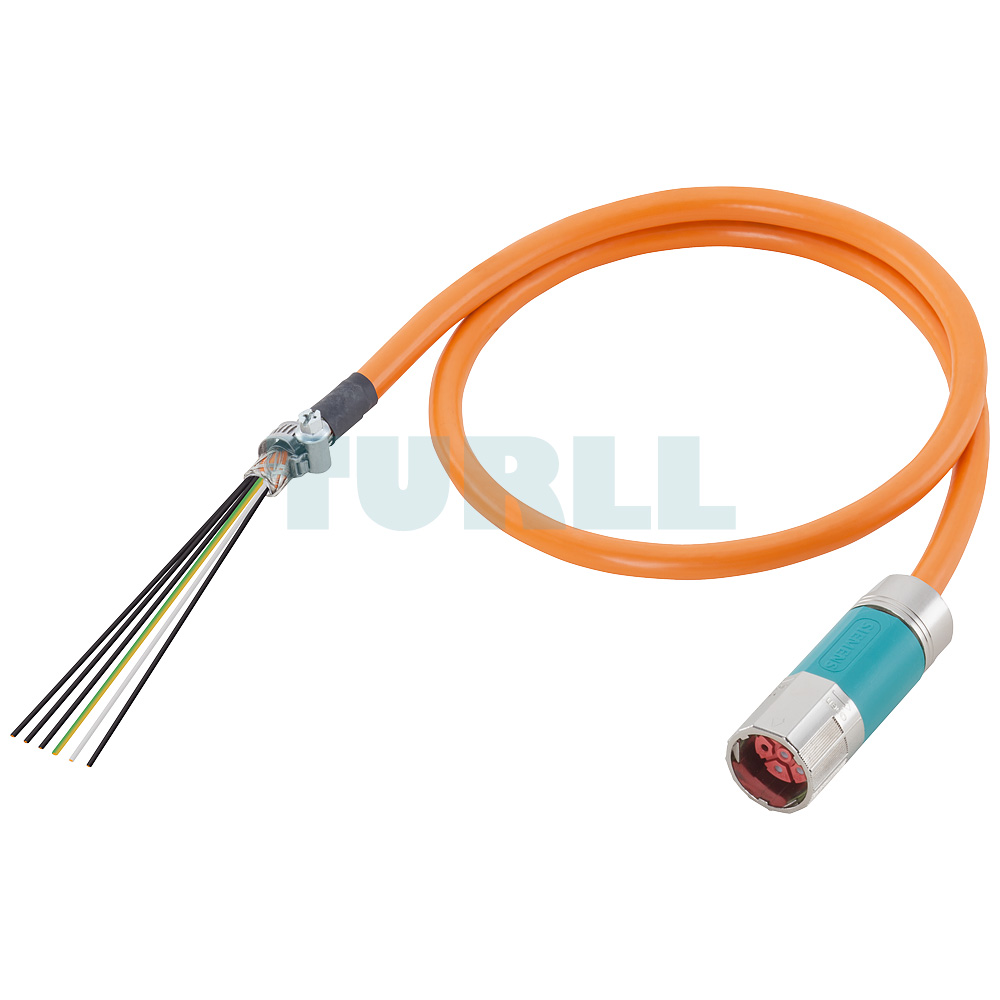

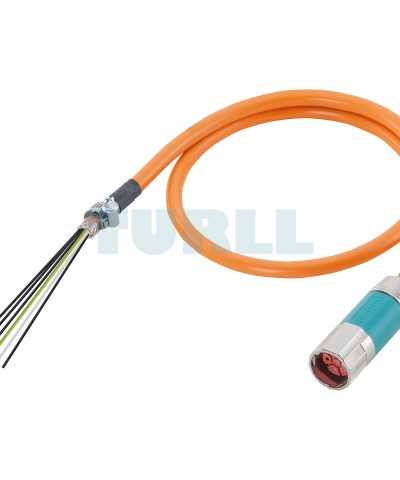

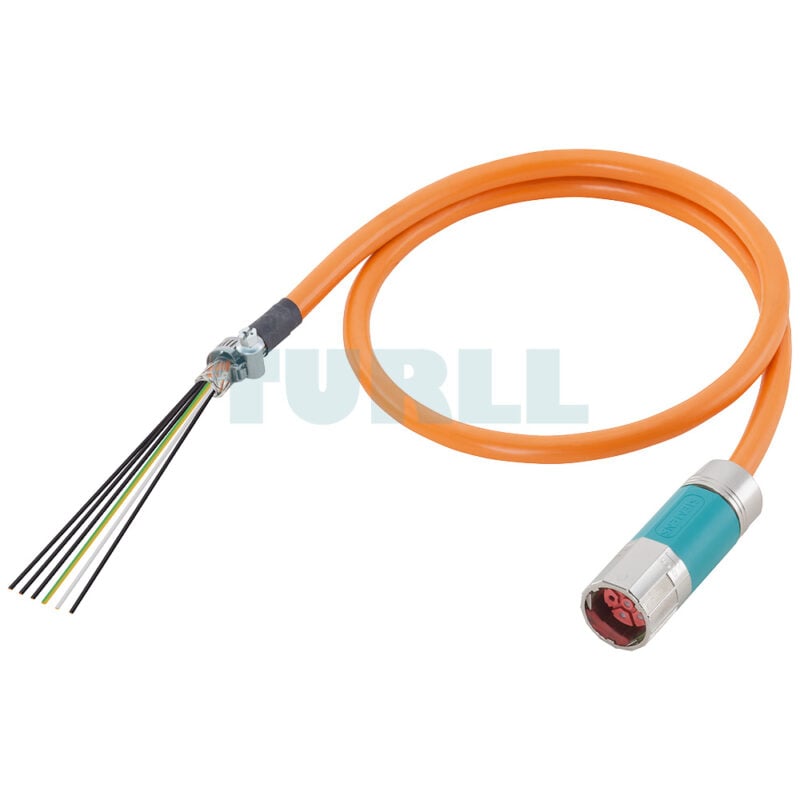

The SIEMENS 6FX5002-5DS14-1CD0 is a high-quality, pre-assembled power cable engineered to provide reliable connectivity for SINAMICS drives and compatible motor types such as 1FT, 1FK, and 1PH. As part of the MOTION-CONNECT 500 product line, this cable is manufactured to meet demanding industrial standards, ensuring long-lasting performance in challenging environments. Designed with a diameter of 21.7 mm, the cable is both durable and flexible, making it suitable for applications that require consistent power transfer and robust mechanical resistance.

This pre-assembled version simplifies installation and reduces downtime by offering a ready-to-use solution with precision connectors and ring cable lugs. With a conductor size of 4x10 mm² and 2x1.5 mm², it provides efficient current handling while maintaining stability and safety during operation. Built with DESINA-compliant materials, the cable is UL/CSA certified, further demonstrating its compliance with international safety and quality regulations. The precise manufacturing ensures that every connection is secure, minimizing the risk of faults and extending the overall system lifecycle.

Overview

Engineered for SINAMICS drive systems, the 6FX5002-5DS14-1CD0 power cable offers superior electrical and mechanical reliability. Its design allows quick connection to motors and drives without additional assembly, making it a cost-effective solution for industries focused on efficiency. The robust insulation and pre-terminated connectors guarantee smooth installation and easy maintenance.

Design

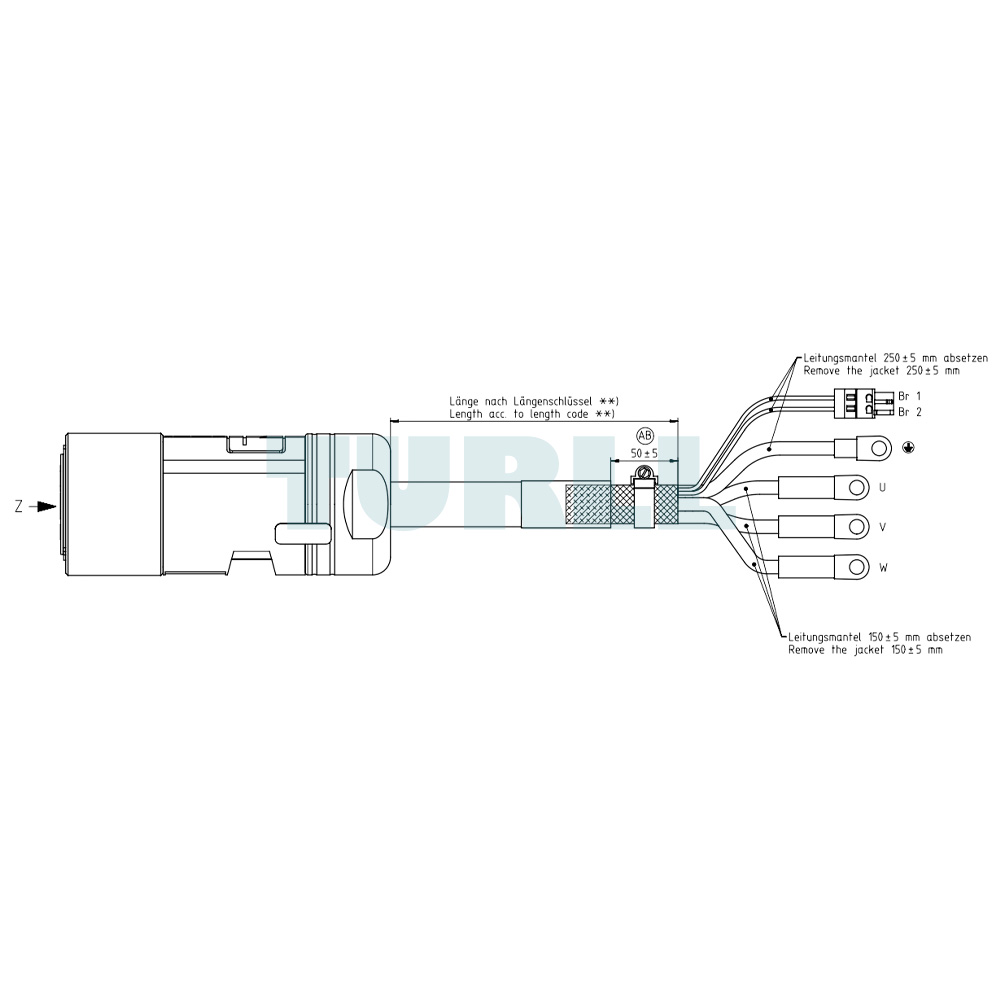

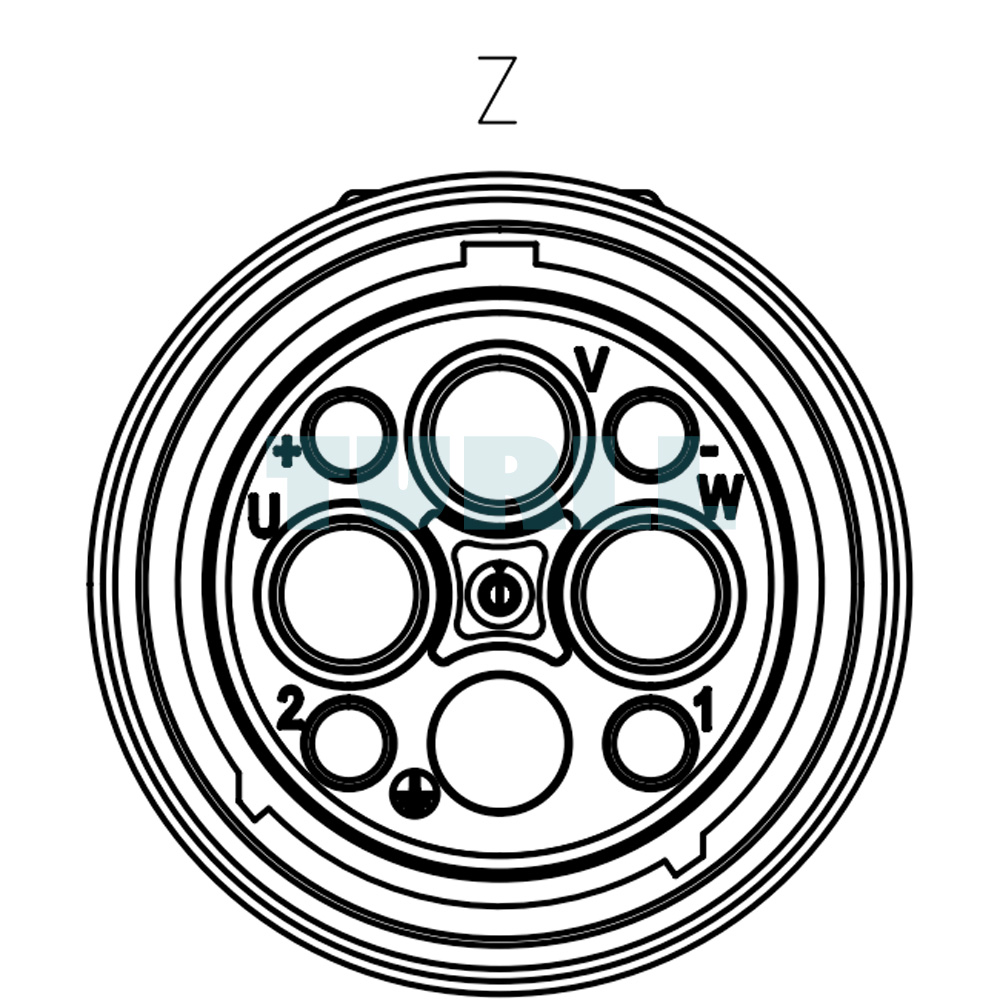

The cable is designed with a connector size 3 and integrated ring cable lugs to ensure strong and secure connections. With its compact structure, it supports efficient routing in control cabinets or mechanical systems. The construction provides high flexibility while maintaining resistance to stress, vibration, and bending cycles, making it suitable for demanding motion applications.

Download

Data Sheet (PDF)

Product Code: 6FX5002-5DS14-1CD0
