6GK5108-0RA00-2AC2 SIEMENS SCALANCE XCM108PoE (8×100/1000 Mbit/s RJ45, PoE) Unmanaged IE Switch Original Brand New

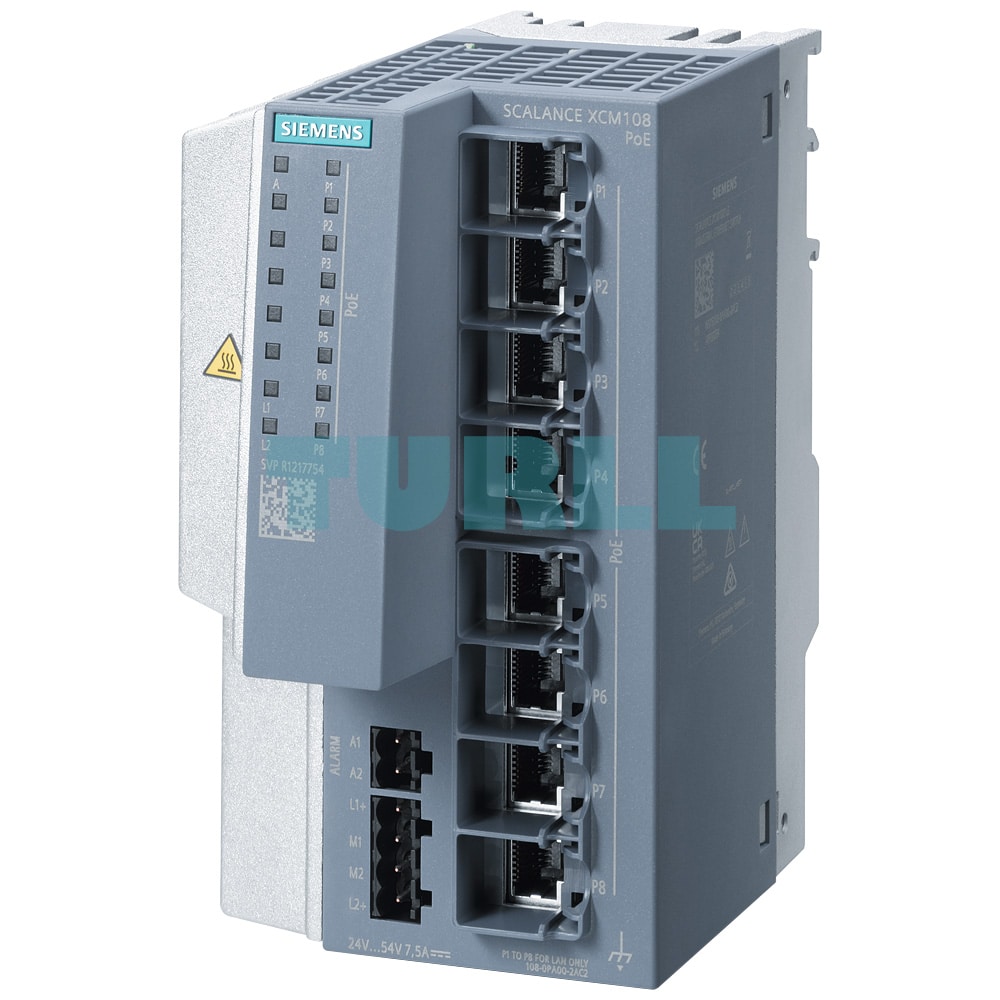

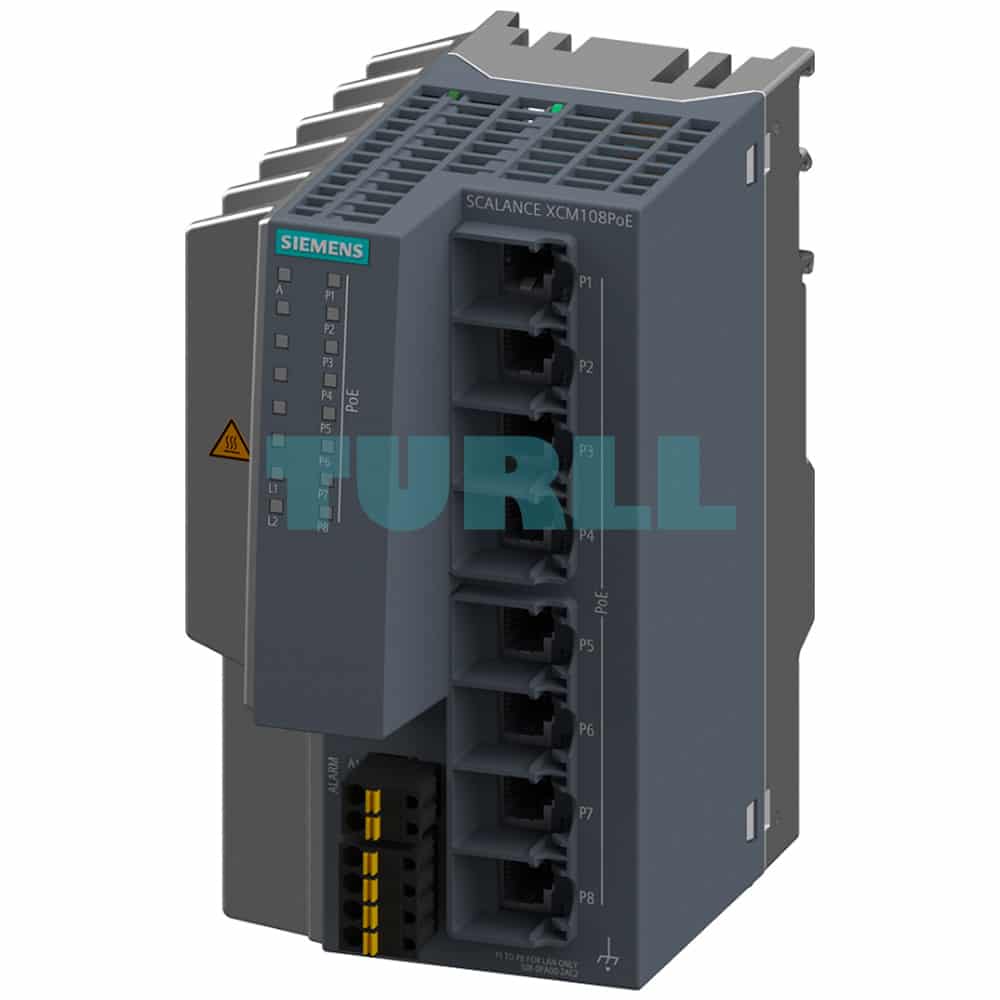

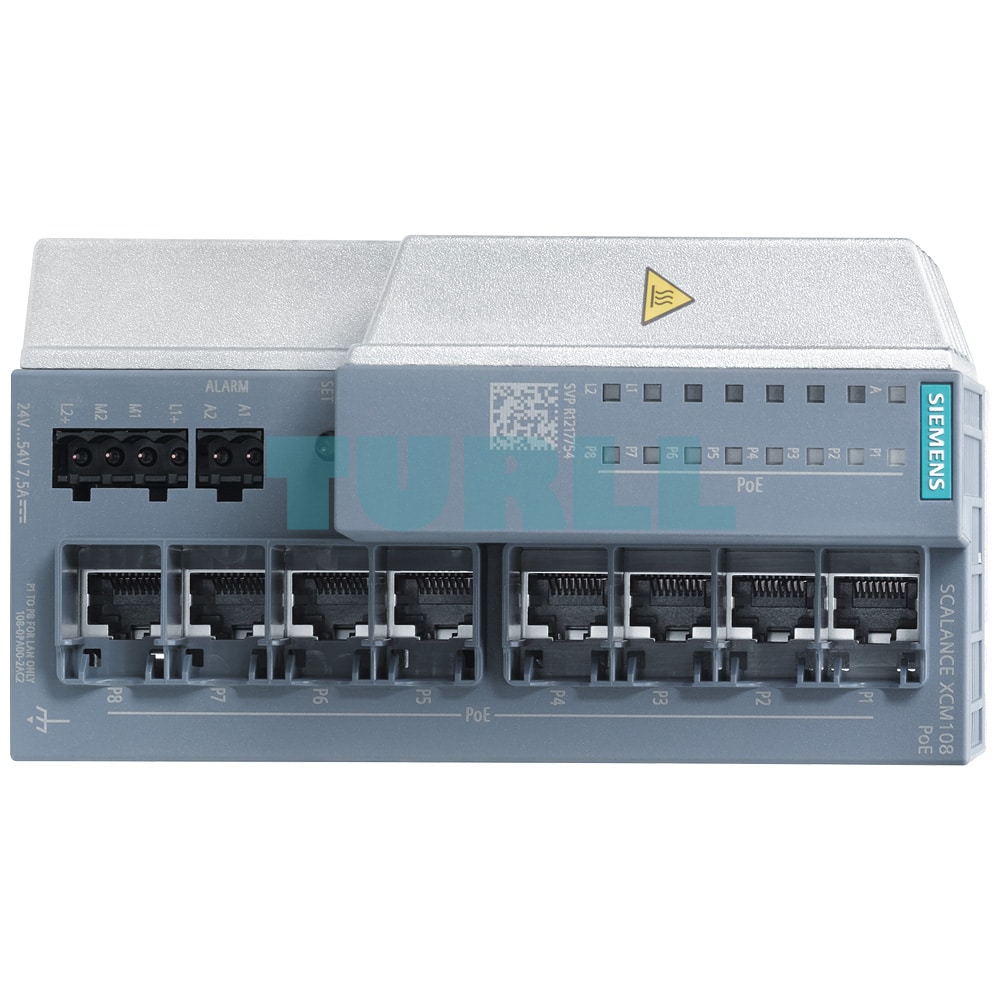

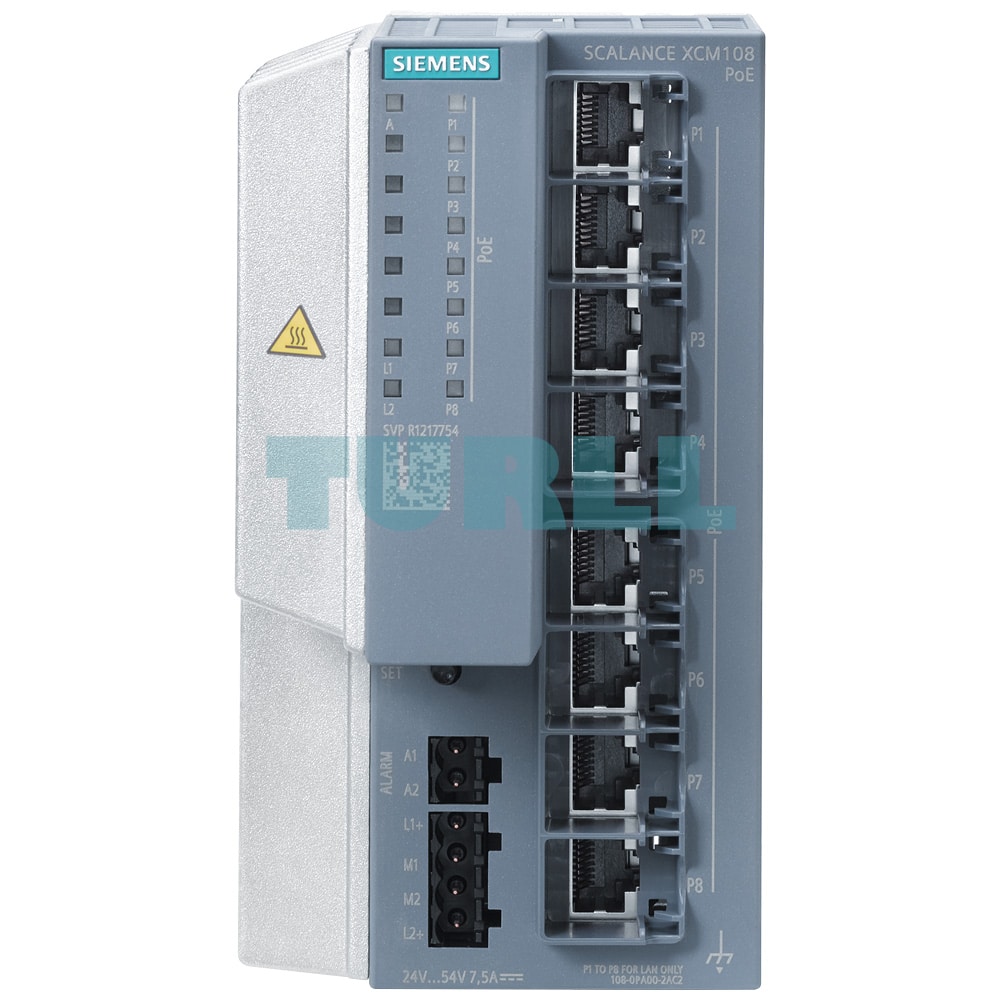

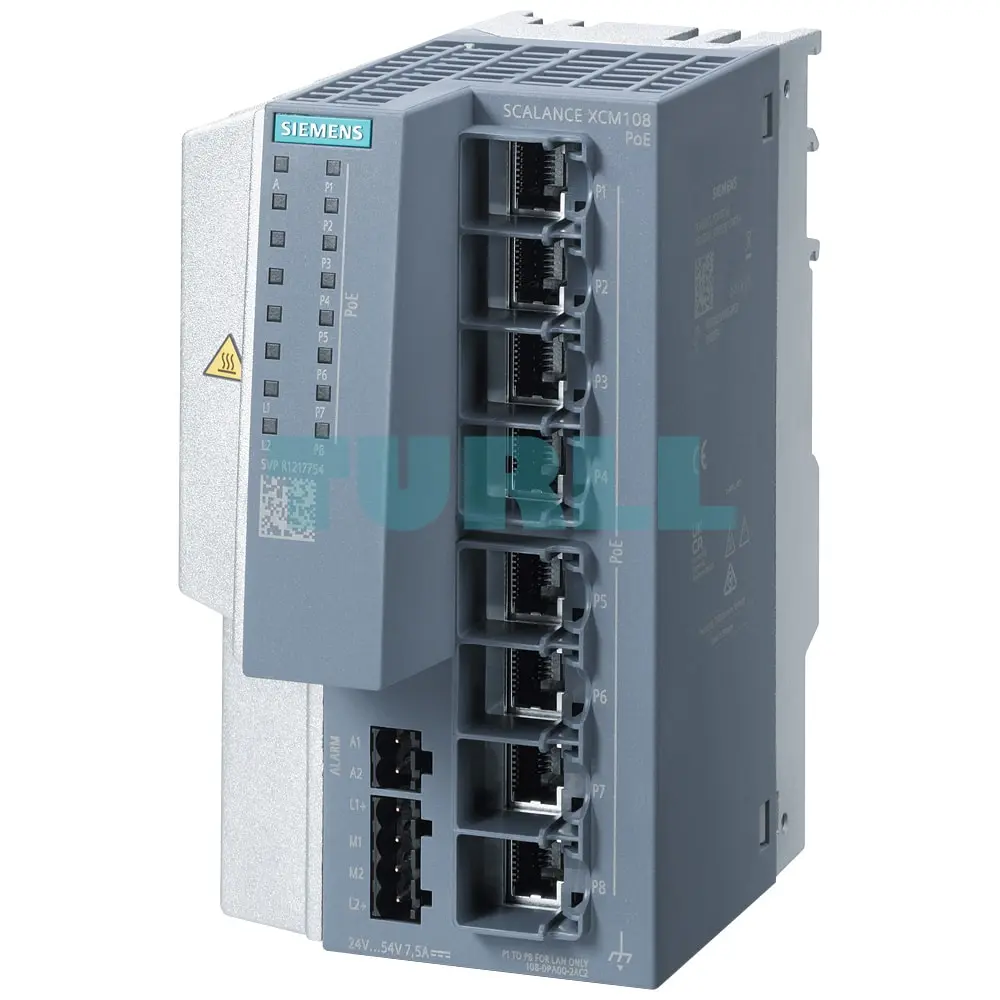

SIEMENS SCALANCE XCM108PoE – 6GK5108-0RA00-2AC2

SCALANCE XCM108PoE (8x100/1000 Mbit/s RJ45, PoE) unmanaged IE Switch with up to 120 W PoE power across 8 ports. Features LED diagnostics, error-signaling contact with SET pushbutton, and redundant power supply. Manual available as a download.

Overview

The unmanaged Industrial Ethernet switches of the SCALANCE XCM-/XCH*-100 product line are optimized for setting up Industrial Ethernet networks at transfer rates of 10/100/1000 Mbps in line and star topologies for machine-level applications.

Station or network connection, depending on the device port characteristics, either electrically with RJ45 ports or optically with SFP
Space-saving control cabinet installation on DIN rail, SIMATIC S7-300, S7-1500 mounting rail, or for wall mounting
Rugged station connections with industry-standard RJ45 connectors that offer additional strain and bending relief thanks to latching on the enclosure (securing collar)
Redundant power supply
Clear diagnostics display on the device by means of LEDs (power, link status, data traffic)
Fault signaling contact with easy adjustment using the SET button
*SCALANCE XCH stands for high-end applications and includes features beyond mainstream SCALANCE XCM devices.

Product Variants

• SCALANCE XCM108PoE / SCALANCE XCH108PoE
  • XCM108PoE (G, 2x SFP): 6x RJ45 (10/100/1000 Mbps) + 2 SFP + 6 PoE ports (30 W/port), 120 W total
  • XCH108PoE (G, 2x SFP): same with additional coating for harsh environments
  • XCM108PoE (FE): 8x RJ45 (10/100 Mbps), 8x PoE ports (30 W/port), 120 W total
  • XCM108PoE (G): 8x RJ45 (10/100/1000 Mbps), 8x PoE ports (30 W/port), 120 W total
• SCALANCE XCM108

• XCM108 (6x G, 2x SFP): 6x RJ45 (100/1000 Mbps) + 2x SFP
• XCM108 (8x G): 8x RJ45 (100/1000 Mbps)

All devices feature diagnostics via LEDs (power, link status, data traffic) and signaling contact using a configurable SET button.
RJ45 ports are designed for industrial use and come with securing collars, optimized for use with IE FC RJ45 plug 180.

Product code: 6GK5108-0RA00-2AC2
