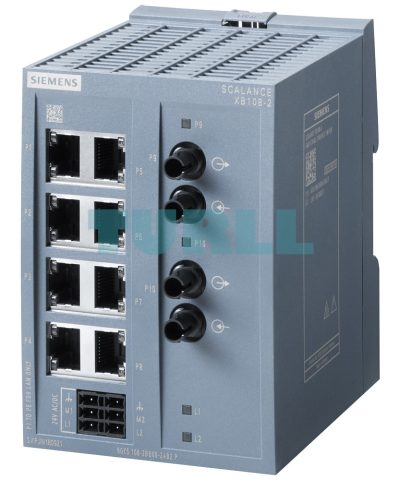

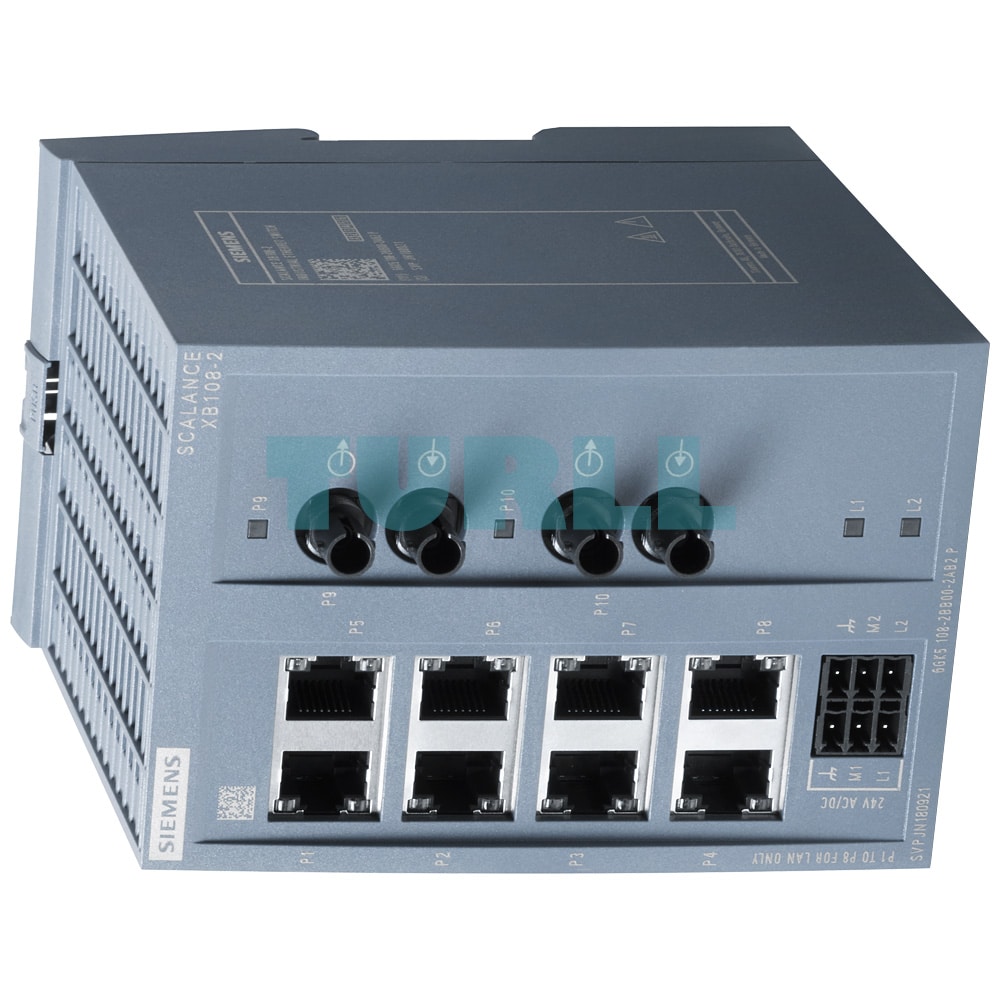

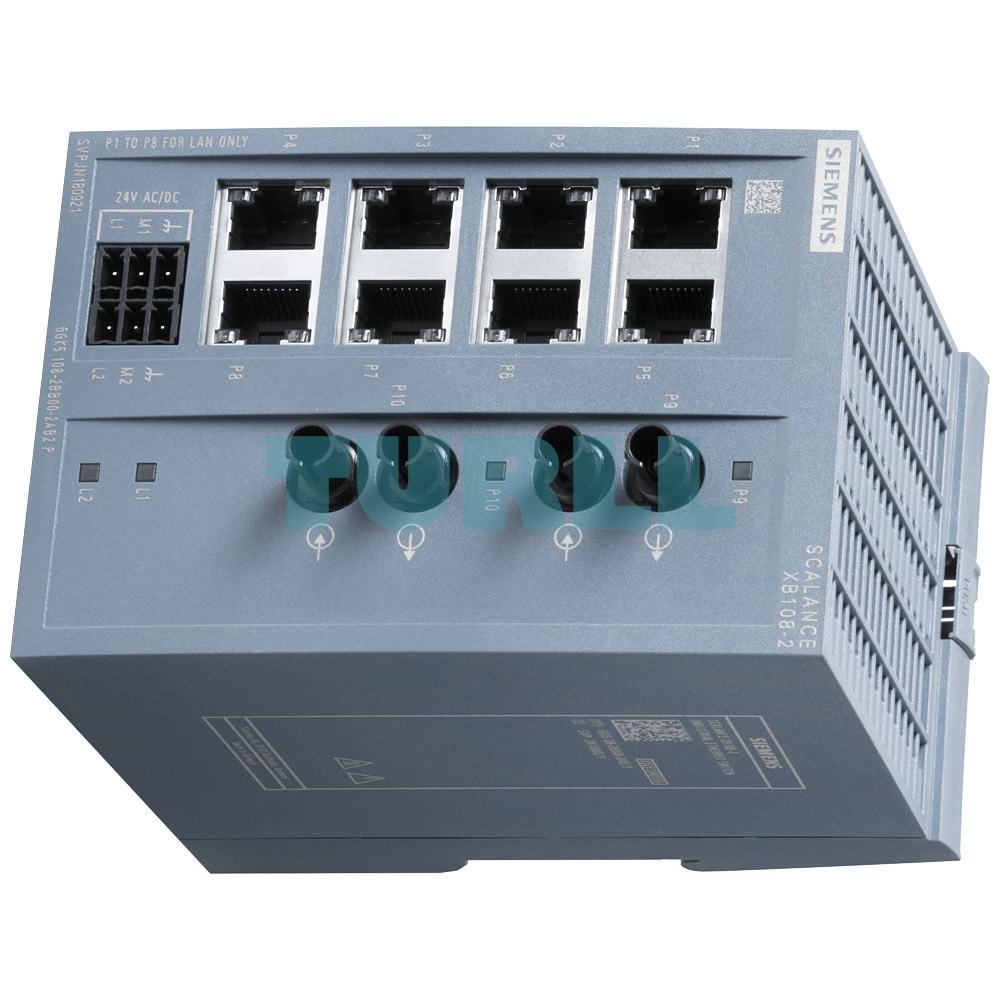

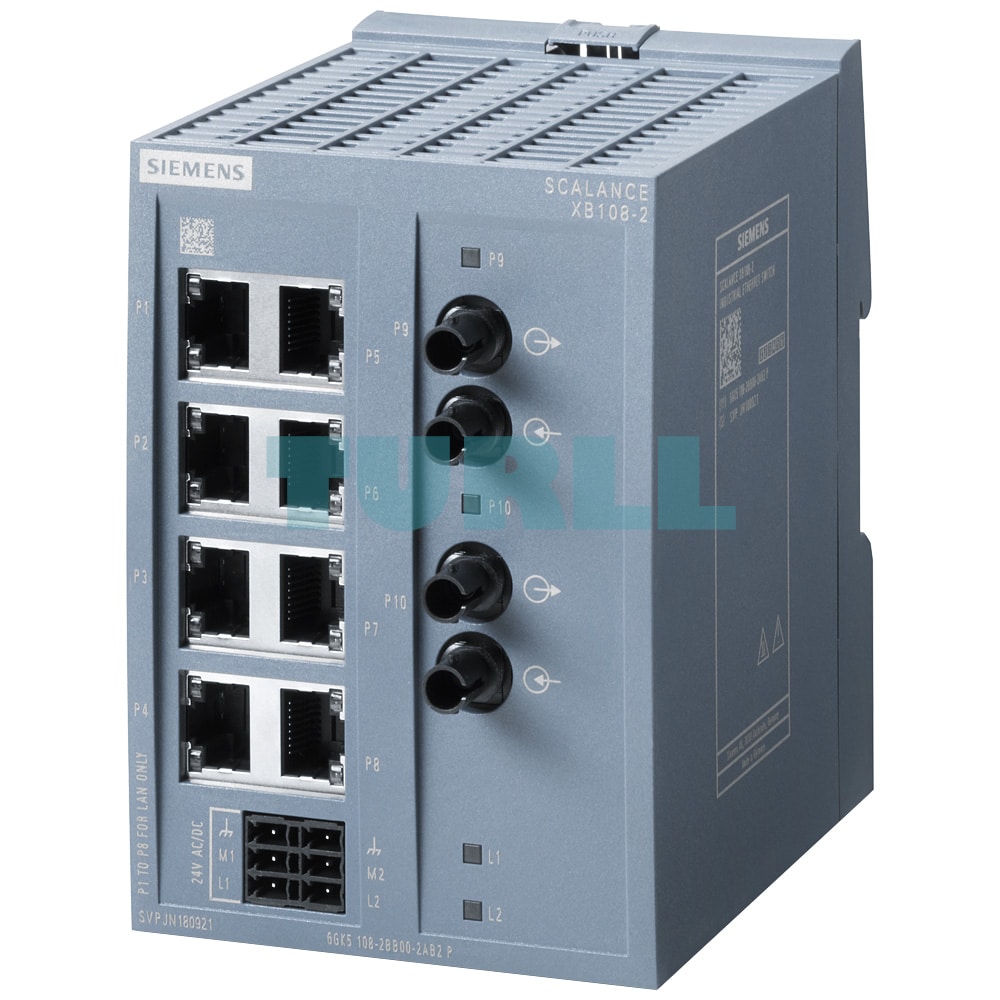

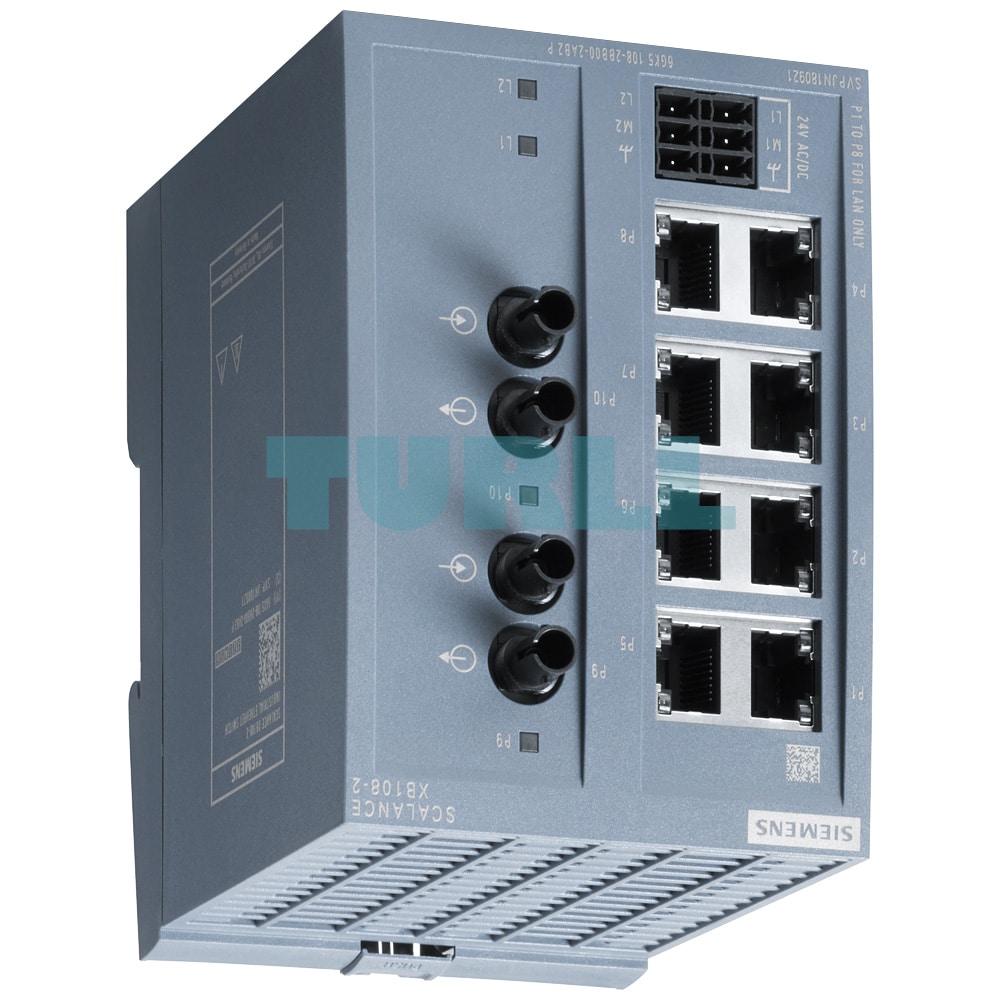

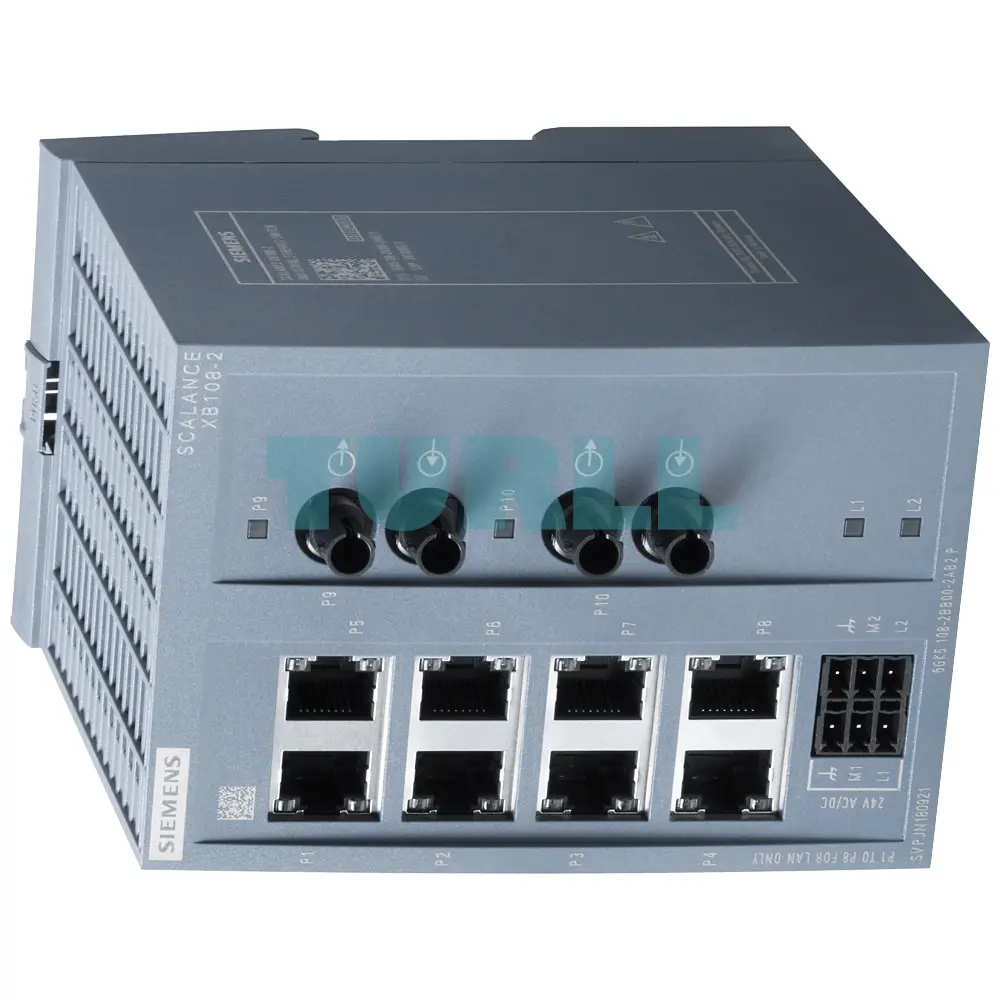

6GK5108-2BB00-2AB2 SIEMENS SCALANCE XB108-2 Unmanaged IE Switch Original Brand New

SIEMENS SCALANCE XB108-2 – 6GK5108-2BB00-2AB2

SCALANCE XB108-2 unmanaged IE switch, 8x 10/100 Mbit/s ports, 2x 100 Mbit/s multimode BFOC ports, ideal for setting up small star and line topologies. Includes LED diagnostics, IP20 protection, and redundant 24 V AC/DC power supply. Manual available as a download.

Overview

The unmanaged Industrial Ethernet switches of the SCALANCE XB-100 product line are optimized for installing Industrial Ethernet networks in line and star topologies. The devices are suitable for use in industry as well as in building automation. The switches feature high port density with up to 24 ports. Due to their compact and lightweight enclosure, they are suitable for space-saving DIN rail mounting in control cabinets or boxes, as well as for wall mounting.

Product Variants

• SCALANCE XB108-2 (ST/BFOC):
  8 x 10/100 Mbps RJ45 ports, electrical
  2 x 100 Mbps ST/BFOC ports, optical (multimode, glass), up to 5 km
• SCALANCE XB108-2 (SC):
  8 x 10/100 Mbps RJ45 ports, electrical
  2 x 100 Mbps SC ports, optical (multimode, glass), up to 5 km
• SCALANCE XB112: 12 x 10/100 Mbps RJ45 ports
• SCALANCE XB116: 16 x 10/100 Mbps RJ45 ports
• SCALANCE XB124: 24 x 10/100 Mbps RJ45 ports

Design Features

SCALANCE XB-100 Industrial Ethernet switches are optimized for DIN rail installation but can also be mounted directly to a wall.

SCALANCE XB-100 switches feature:

• Two 3-pin terminal blocks for redundant 24 V AC/DC supply and functional grounding
• One LED for overall power status
• Individual LEDs per port for link status and data activity

Port Types Available

• 10/100 BaseTX RJ45 (electrical): supports autosensing and autocrossing, cable length up to 100 m
• 100 BaseFX ST/BFOC (optical): multimode fiber, up to 5 km
• 100 BaseFX SC (optical): multimode fiber, up to 5 km

All data cable connections are located at the front of the unit.

Product code: 6GK5108-2BB00-2AB2
