6GK5201-3BH00-2BA3 SIEMENS SCALANCE X201-3PIRT Managed IE IRT Switch Original Brand New

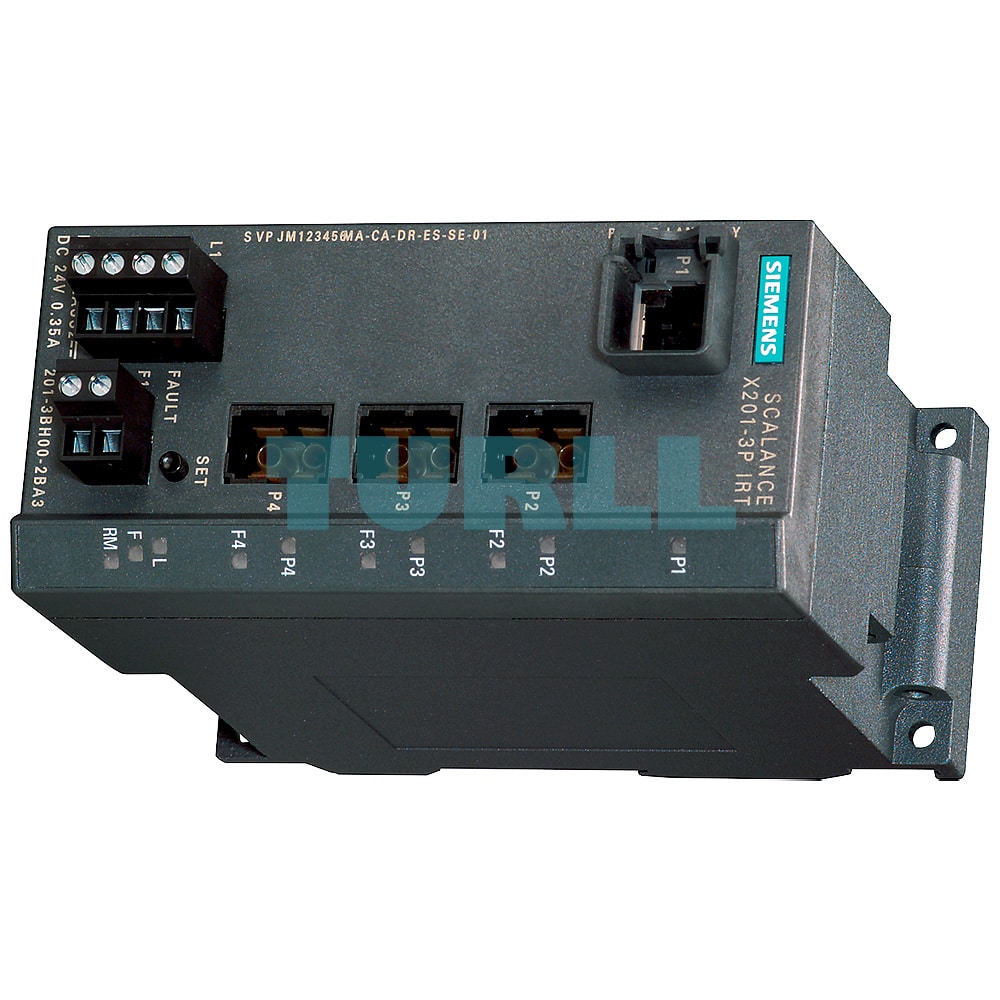

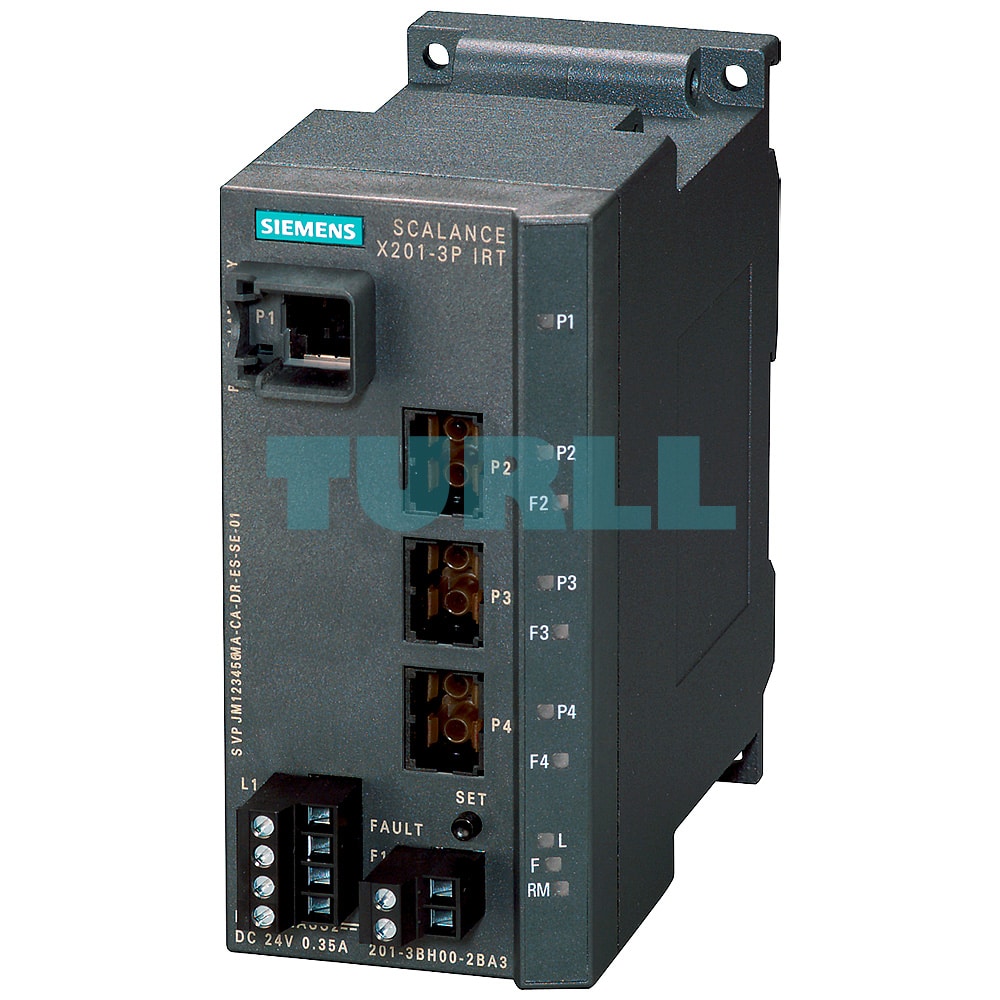

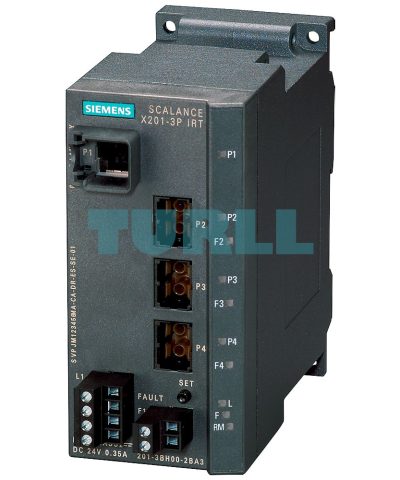

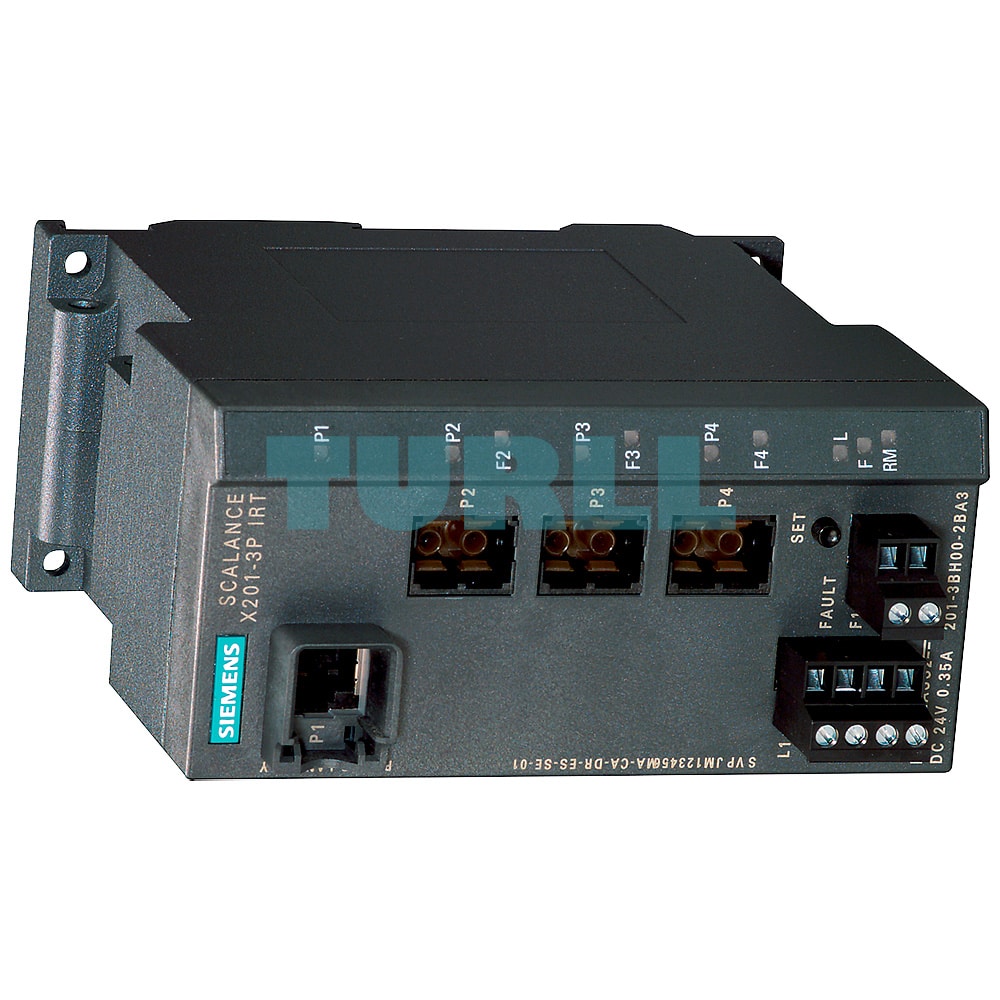

SIEMENS SCALANCE X201-3PIRT – 6GK5201-3BH00-2BA3

SCALANCE X201-3PIRT is a managed Industrial Ethernet IRT switch equipped with 1x 10/100 Mbps RJ45 port and 3x 100 Mbps SC RJ POF optical ports. Includes LED diagnostics, error signaling contact (configurable with SET button), redundant power supply support, integrated Redundancy Manager, and full PROFINET IO device functionality. Supplied with electronic manual on CD-ROM. C-plug optional.

Overview

The SCALANCE X-200 IRT switches are designed for building isochronous real-time (IRT) Industrial Ethernet networks in line, star, or ring topologies at 10/100 Mbps, with integrated redundancy capabilities.

• Optimized switching with both “Cut Through” and “Store and Forward” modes
• Integrated Redundancy Manager enables fast and seamless media recovery
• Ruggedized connectors with strain relief and latch-based locking
• Full diagnostics via PROFINET, SNMP, integrated web interface, or SINEC NMS
• Optional automatic email alerts for remote diagnostics and alarms
• Mountable on standard DIN rail, SIMATIC S7-300 rail, or wall with adapter

Product Variants

• SCALANCE X204IRT – 4 x RJ45 electrical ports
• SCALANCE X202-2IRT – 2 x RJ45 + 2 x glass fiber-optic ports
• SCALANCE X202-2PIRT – 2 x RJ45 + 2 x POF SC RJ
• SCALANCE X201-3PIRT – 1 x RJ45 + 3 x POF SC RJ (this unit)
• SCALANCE X200-4PIRT – 4 x POF SC RJ optical ports
• SIPLUS NET X202-2PIRT – rugged version with coated PCB for harsh environments

Design Features

• 4-pin terminal block for redundant 24 V DC power
• 2-pin terminal block for signaling contact
• Front-facing status LEDs (power, link, data, signal)
• Configurable signal mask via SET button
• Rugged metal enclosure for industrial applications

Port Types Available

• 1 x 10/100 BaseTX RJ45 (autosensing, autocrossing)
• 3 x 100 Mbps POF SC RJ (plastic optical fiber, ideal for EMI-sensitive areas)
• PROFINET IRT-ready, supporting real-time class communications

Product code: 6GK5201-3BH00-2BA3
