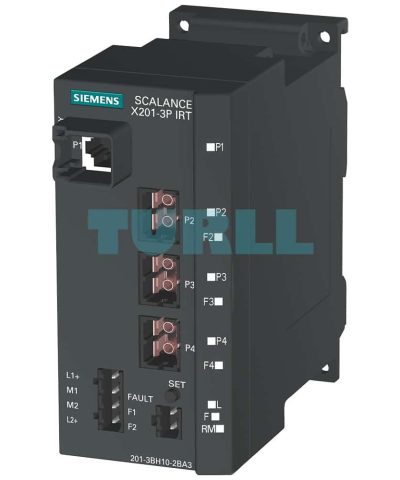

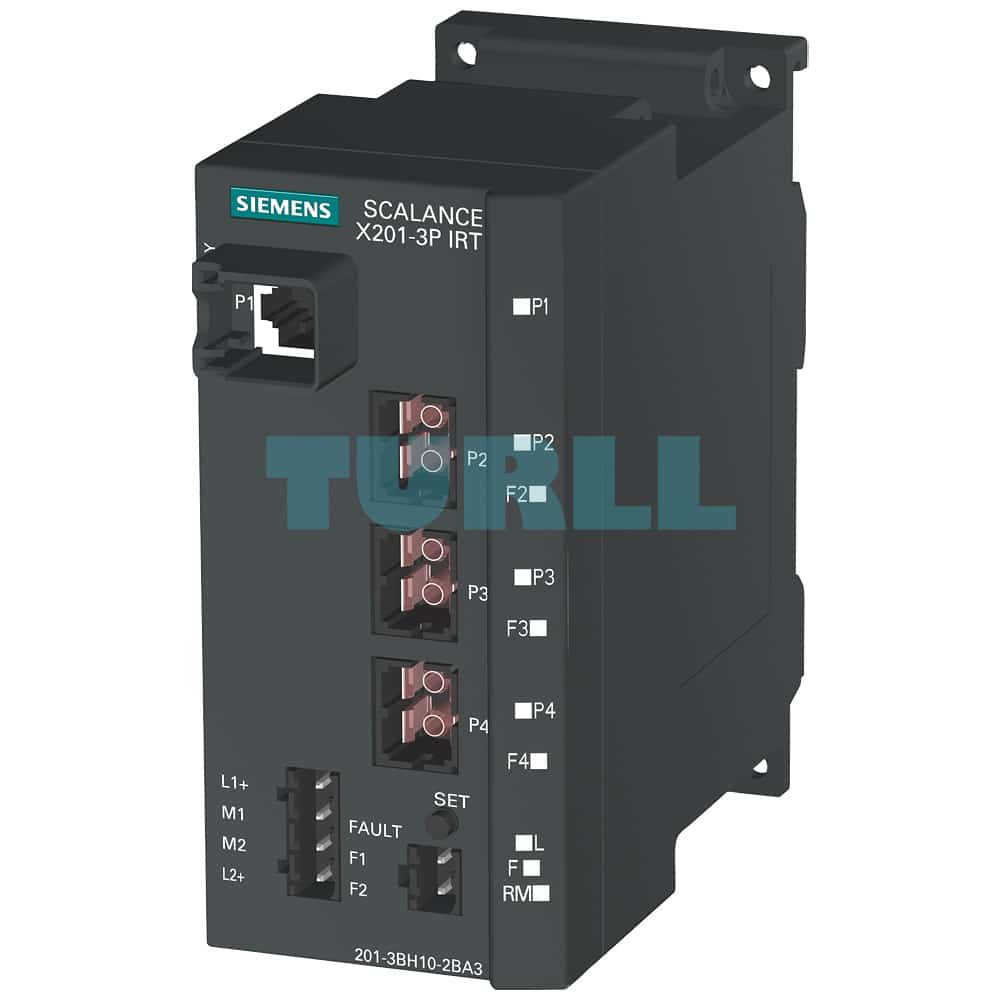

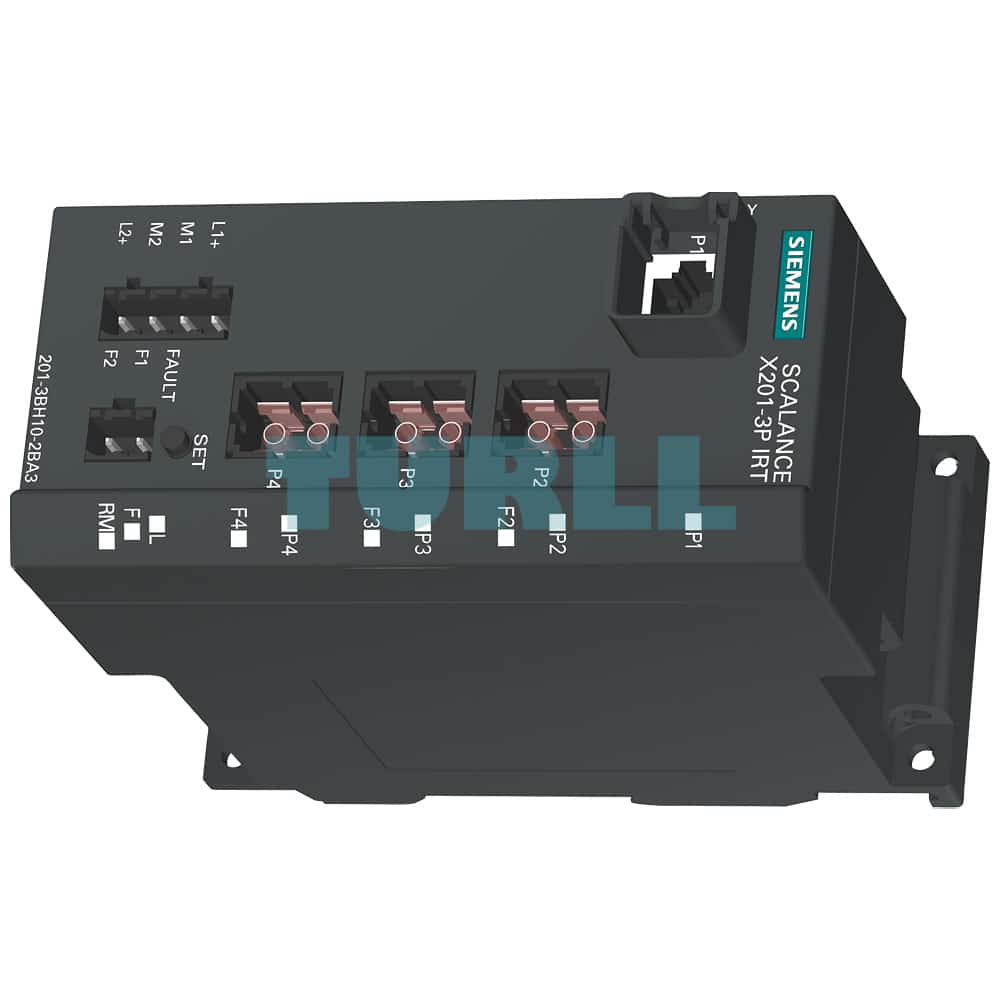

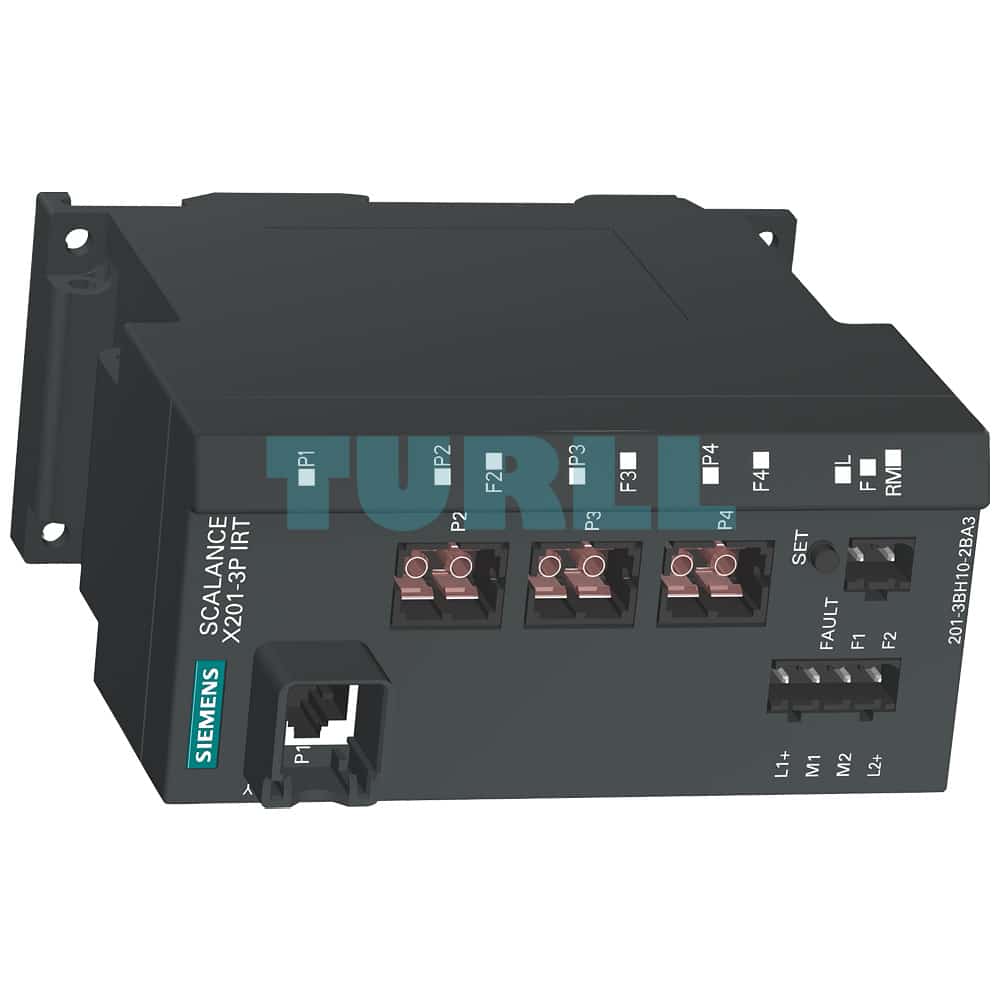

6GK5201-3BH10-2BA3 SIEMENS SCALANCE X201-3P IRT Managed IE IRT Switch Original Brand New
$1,362.53
6GK5201-3BH10-2BA3 is a SIEMENS SCALANCE X201-3P IRT managed Ethernet switch featuring 1x RJ45 and 3x SC RJ POF ports, Redundancy Manager, diagnostics LEDs, error signaling contact, and PROFINET IO integration. Built for high-reliability industrial networks.
SIEMENS SCALANCE X201-3P IRT – 6GK5201-3BH10-2BA3
SCALANCE X201-3P IRT managed Industrial Ethernet switch from Siemens with 1x 10/100 Mbps RJ45 electrical port and 3x 100 Mbps SC RJ POF optical ports. Features include error signaling contact with configurable SET button, redundant power input, integrated Redundancy Manager, and full PROFINET IO device functionality. Manual available on CD-ROM. C-PLUG sold separately.
Overview
Part of the SCALANCE X-200 IRT series, this switch is ideal for constructing deterministic and isochronous real-time Industrial Ethernet networks in line, star, or ring topology at 10/100 Mbps.
- Combines “Cut Through” and “Store & Forward” switching for optimized latency
- Built-in Redundancy Manager enables fast and seamless media recovery in ring topologies
- Rugged ports with strain relief and latch locking—ideal for industrial environments
- Supports full network diagnostics via PROFINET, SNMP, web interface, or SINEC NMS
- Optional automatic email alerts for fault signaling
- Compact footprint suitable for DIN rail, wall, or SIMATIC rail mounting (with adapter)
Product Variants
- X204IRT: 4x RJ45 (electrical)
- X202-2IRT: 2x RJ45 + 2x glass fiber
- X202-2P IRT: 2x RJ45 + 2x POF SC RJ
- X201-3P IRT: 1x RJ45 + 3x POF SC RJ (this unit)
- X200-4P IRT: 4x POF SC RJ
- SIPLUS X202-2P IRT: version with PCB coating for harsh environments
Design Features
- 4-pin terminal block for redundant 24 V DC power
- 2-pin terminal for floating signaling contact
- SET button to configure local signal mask
- Status LEDs for power, link, communication, and error diagnostics
- PROFINET IRT-ready for class C real-time requirements
Port Types Available
- 1 x RJ45 10/100 BaseTX, autosensing with autocrossing
- 3 x SC RJ ports for 100 Mbps POF (plastic optical fiber), resistant to EMI
- PROFINET IO device with integrated diagnostics and configuration support
Product code: 6GK5201-3BH10-2BA3
More Siemens products available at Turll.com
| Weight | 0.92 kg |
|---|---|
| Dimensions | 90 × 124 × 125 mm |
