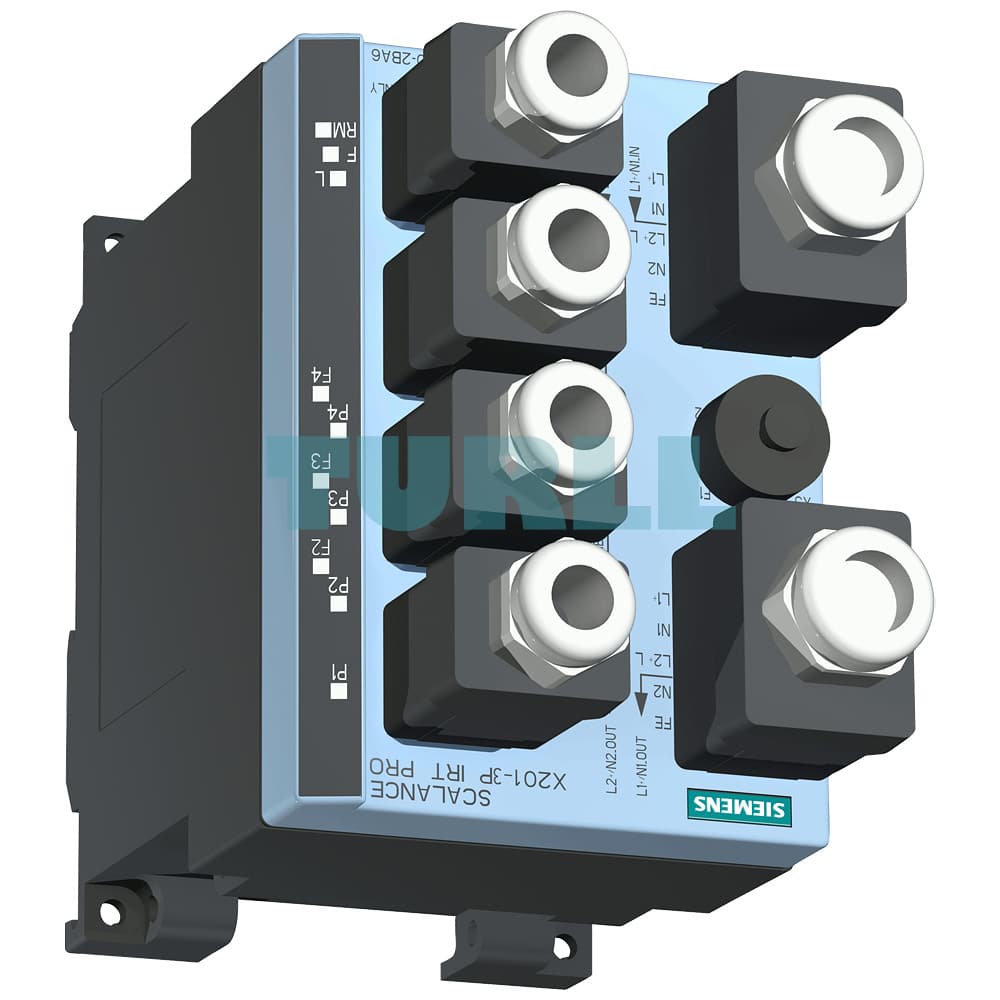

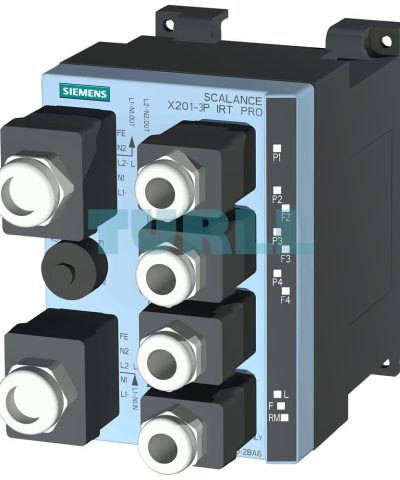

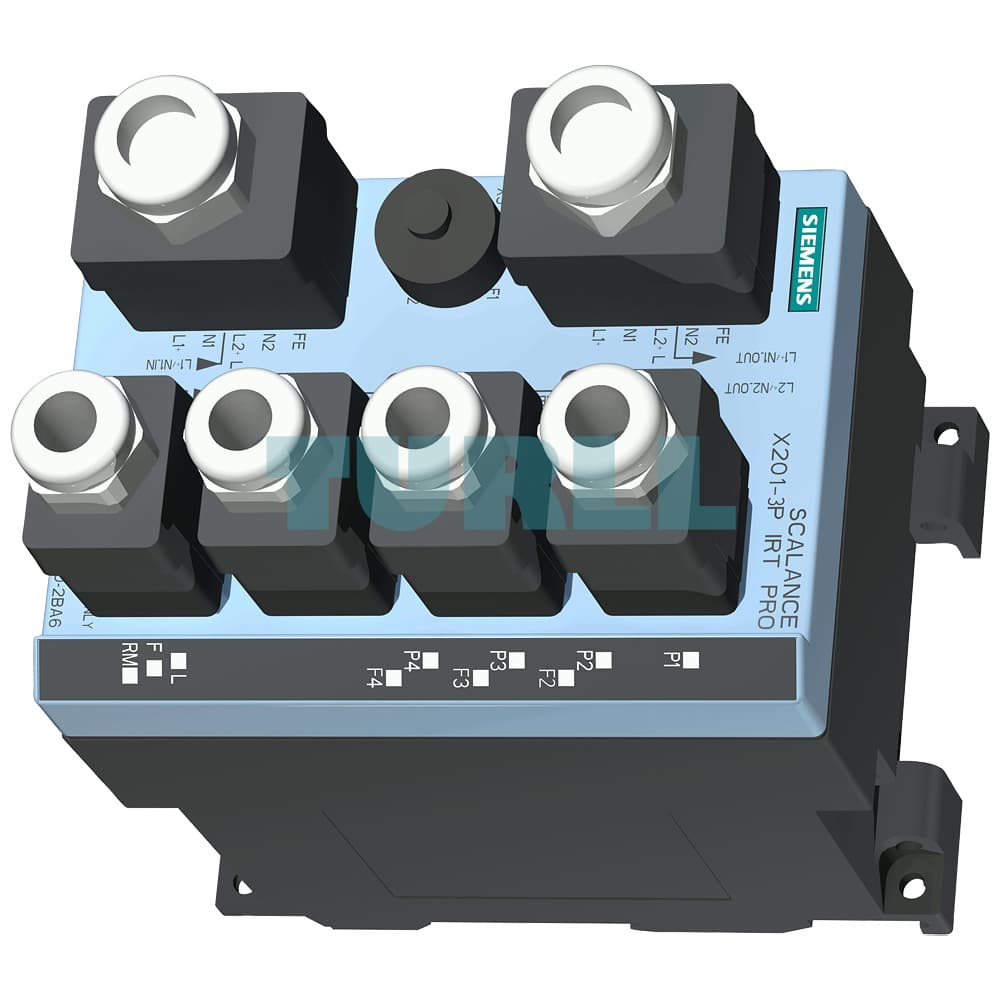

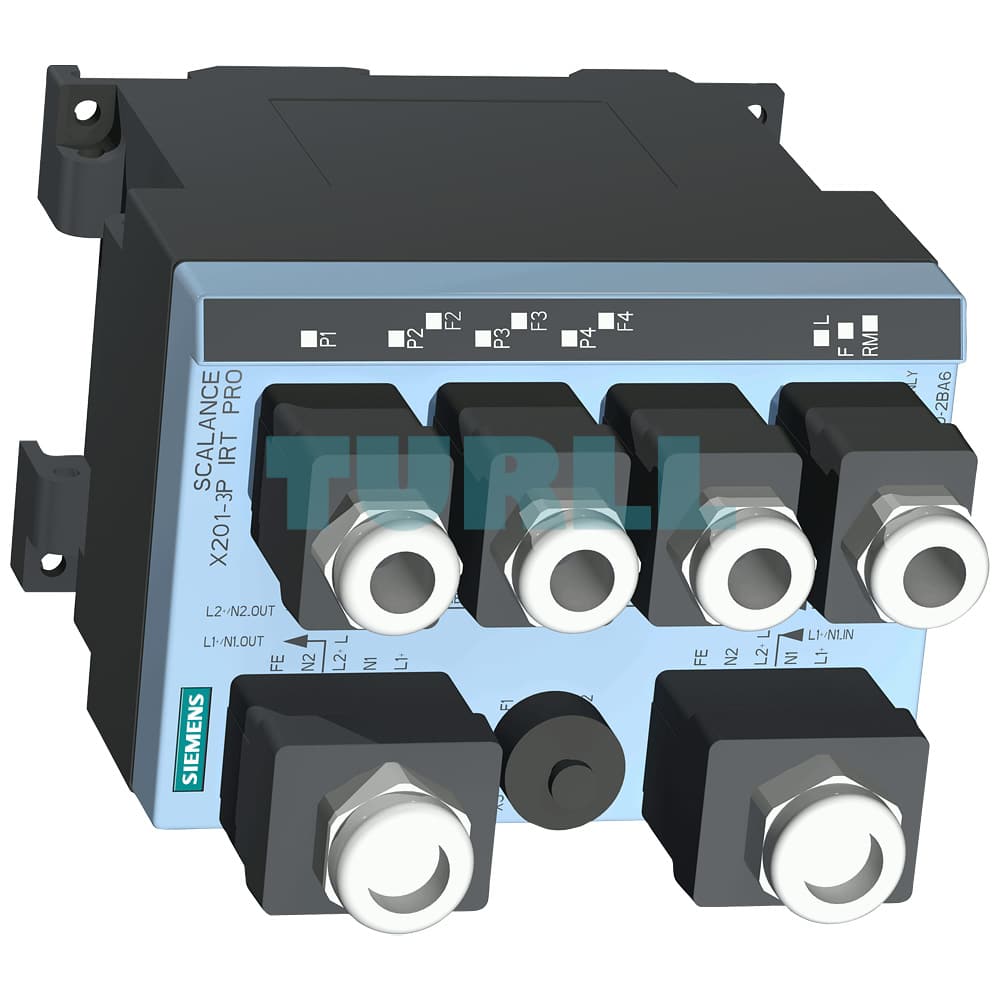

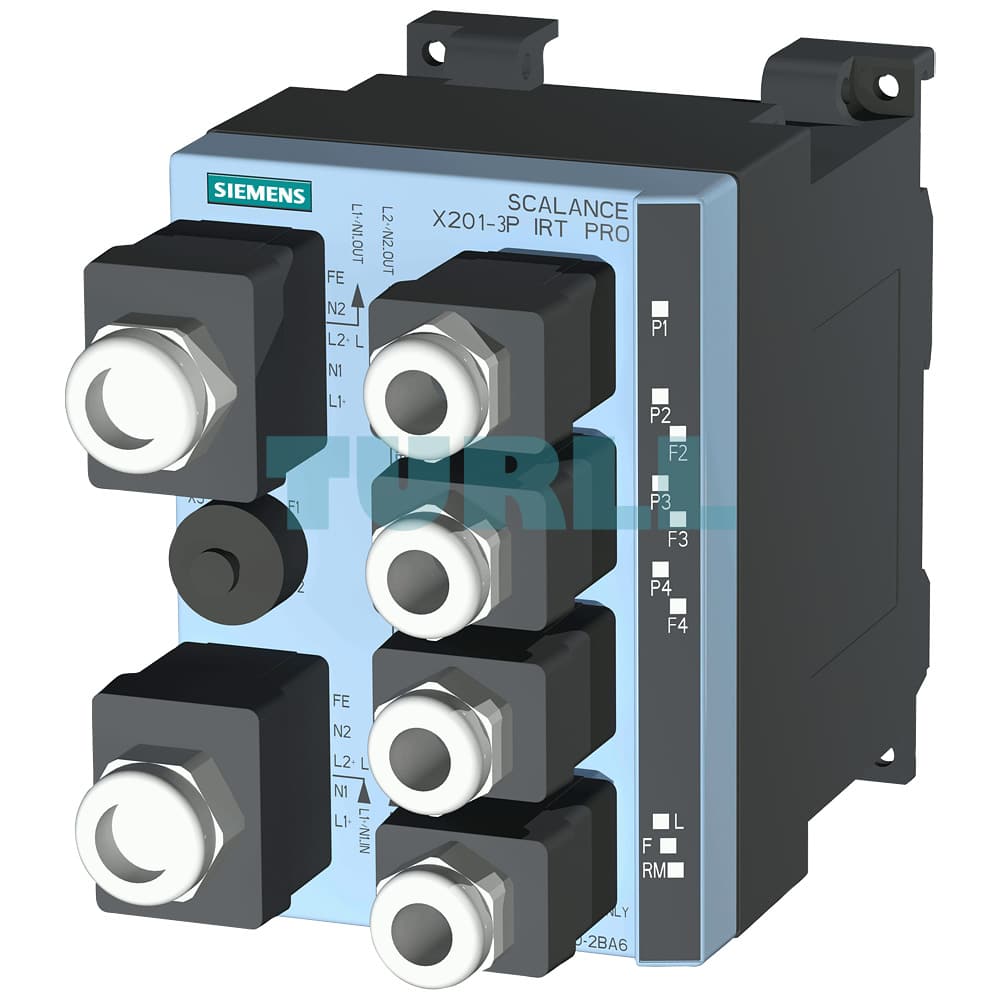

6GK5201-3JR10-2BA6 SIEMENS SCALANCE X201-3P IRT PRO Managed IE IRT Switch IP65/67 Original Brand New
$1,569.31
6GK5201-3JR10-2BA6 is a SIEMENS SCALANCE X201-3P IRT PRO managed industrial Ethernet switch with IP65/67 protection, featuring 1x push-pull RJ45 and 3x SC RJ POF ports, integrated Redundancy Manager, and full PROFINET IO support for harsh environments.
SIEMENS SCALANCE X201-3P IRT PRO – 6GK5201-3JR10-2BA6
Managed IE IRT switch with IP65/67 protection, designed for cabinet-free industrial Ethernet networks. Features 1x 10/100 Mbps push-pull RJ45 port and 3x 100 Mbps push-pull SC RJ POF ports, integrated Redundancy Manager, PROFINET IO device capabilities, and network management support. Includes electronic manual on CD-ROM. C-PLUG optional.
Overview
The SCALANCE X-200IRT PRO series offers robust and real-time-capable networking for isochronous PROFINET applications. Specifically engineered for harsh environments and machine-level installations without control cabinets.
- Combines “Cut Through” & “Store and Forward” switching mechanisms
- Integrated Redundancy Manager ensures fast, seamless media redundancy (MRP & MRPD supported)
- Designed for reliable line, ring, and star topologies at 10/100 Mbps
- Push-pull connection system (PROFINET-compatible) ensures fast and tool-free installation
- Real-time diagnostics and management via PROFINET, SNMP, web interface, or SINEC NMS
- Optional automatic alarm signaling via email
- IP65/67-rated rugged metal housing ideal for outdoor or washdown areas
Product Variants
- SCALANCE X204 IRT PRO – 4x electrical ports
- SCALANCE X202-2P IRT PRO – 2x electrical + 2x optical POF/PCF
- SCALANCE X201-3P IRT PRO – 1x electrical + 3x optical POF/PCF (this unit)
Design Features
- Power input for load/encoder via industry-standard connectors
- Status LEDs: power, link, data traffic
- Signaling contact with configurable mask via SET button
- SIMATIC-compatible mounting possible with optional DIN rail adapter
- PROFINET IRT-ready for Motion Control and Class C real-time communication
Port Types Available
- 1 x Push-pull RJ45 10/100 BaseTX port
- 3 x Push-pull SC RJ POF 100 Mbps ports (plastic optical fiber)
- All ports protected to IP65/67 and PROFINET-compatible
Product code: 6GK5201-3JR10-2BA6
More Siemens products available at Turll.com
| Weight | 1.225 kg |
|---|---|
| Dimensions | 75 × 73 × 125 mm |
