6GK5202-2JR10-2BA6 SIEMENS SCALANCE X202-2P IRT PRO Managed IE IRT Switch IP65/67 Original Brand New

SIEMENS SCALANCE X202-2P IRT PRO – 6GK5202-2JR10-2BA6

Managed IE IRT switch with IP65/67 protection class, equipped with 2x 10/100 Mbps push-pull RJ45 ports and 2x 100 Mbps push-pull SC RJ optical ports. Integrated Redundancy Manager, error signaling contact (SET button), PROFINET IO functionality, and network diagnostics. Supplied with electronic manual on CD-ROM. C-PLUG optional.

Overview

SCALANCE X-200IRT PRO switches are especially designed for constructing isochronous real-time (IRT) Industrial Ethernet networks in line, star, and ring topologies at transmission rates of 10/100 Mbps, with integrated Redundancy Manager for seamless media recovery.

• Combines “Cut Through” and “Store and Forward” switching modes for optimized latency
• Supports rugged, latch-secured push-pull connections for strain relief
• Full diagnostics via PROFINET, SNMP, web server, or SINEC NMS
• Remote alerts via configurable signaling contact and automatic email reporting
• Supports cabinet-free installations in IP65/67 environments using PROFINET-compatible connectors
• Mounting options: DIN rail, SIMATIC S7-300/S7-1500 rail, or wall

Product Variants

• SCALANCE X204 IRT PRO 4 x push-pull RJ45 ports (electrical)
• SCALANCE X202-2P IRT PRO (this unit) 2 x push-pull RJ45 + 2 x SC RJ POF ports
• SCALANCE X201-3P IRT PRO 1 x push-pull RJ45 + 3 x SC RJ POF ports

Applicable to All Versions

• Integrated redundancy manager (MRP, MRPD)
• Diagnostic LEDs for power, link, traffic, and signal
• Remote configuration and signaling via PROFINET stack
• Industrial-grade push-pull system ensures secure connectivity even in harsh conditions

Design

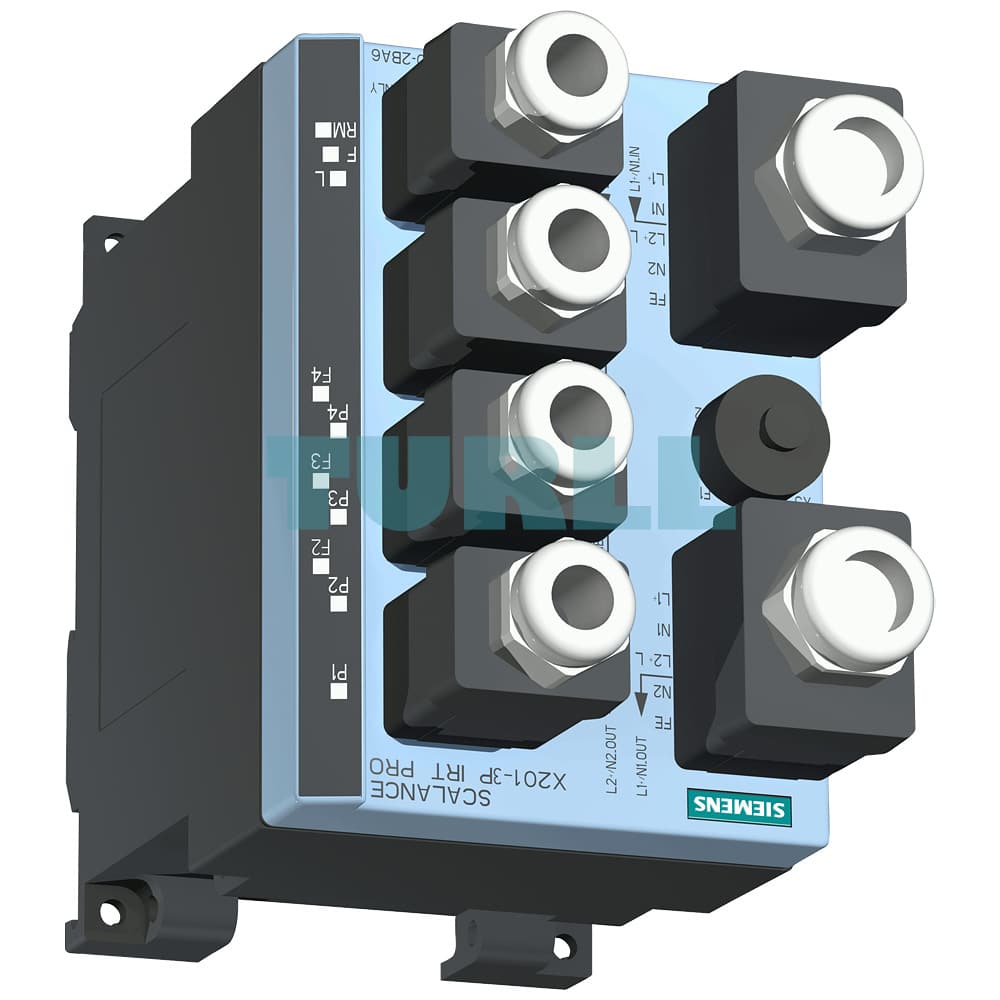

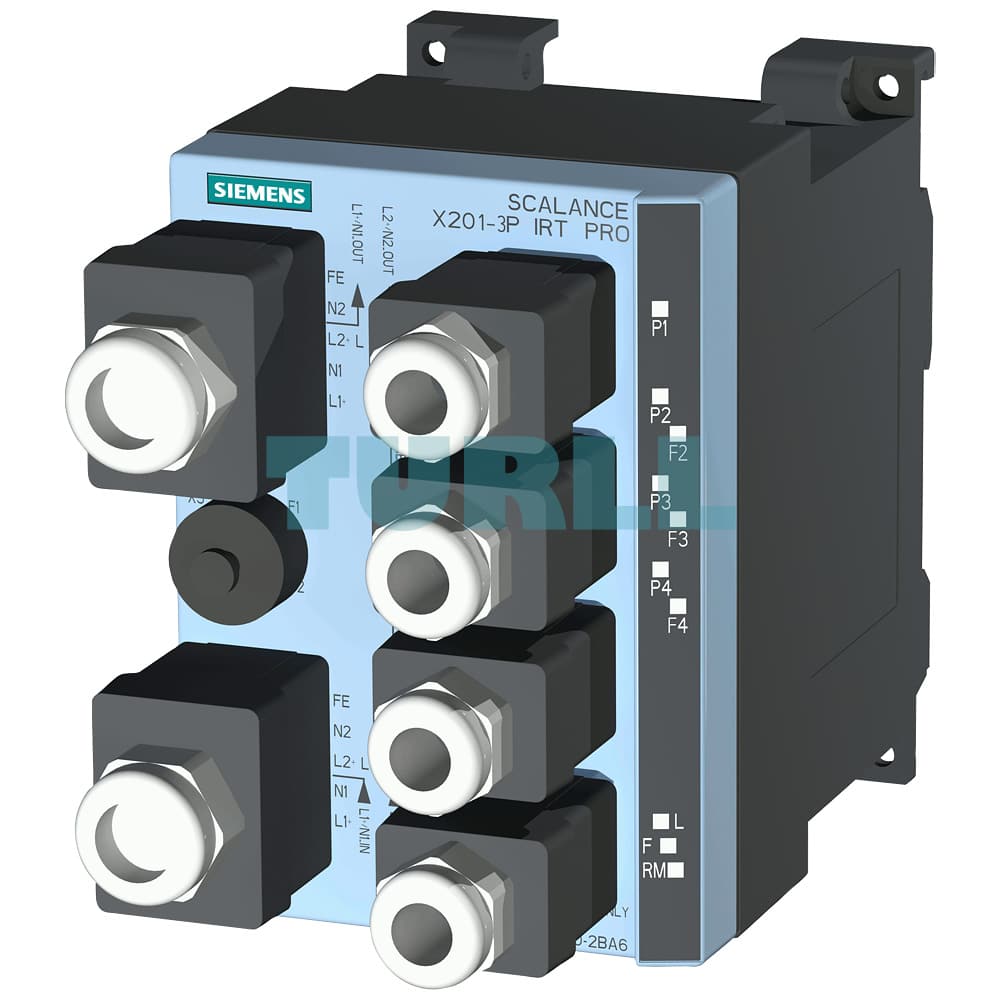

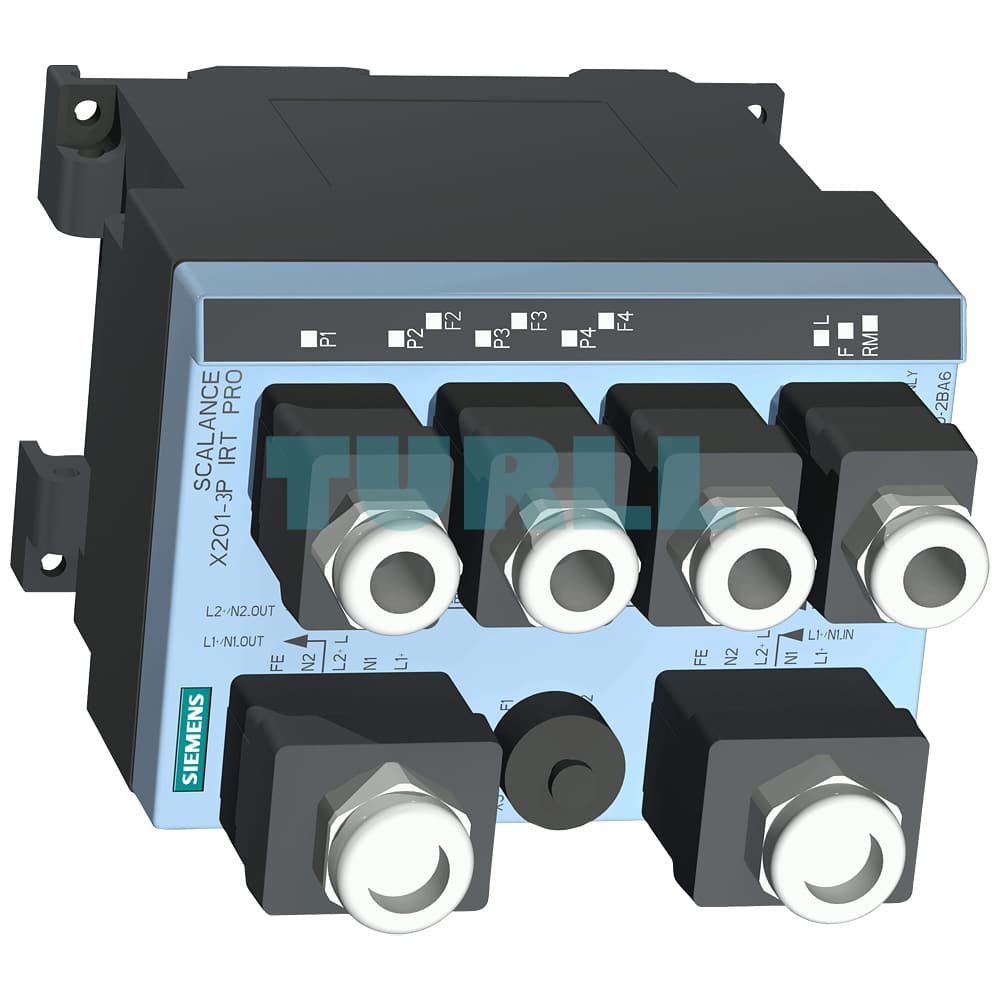

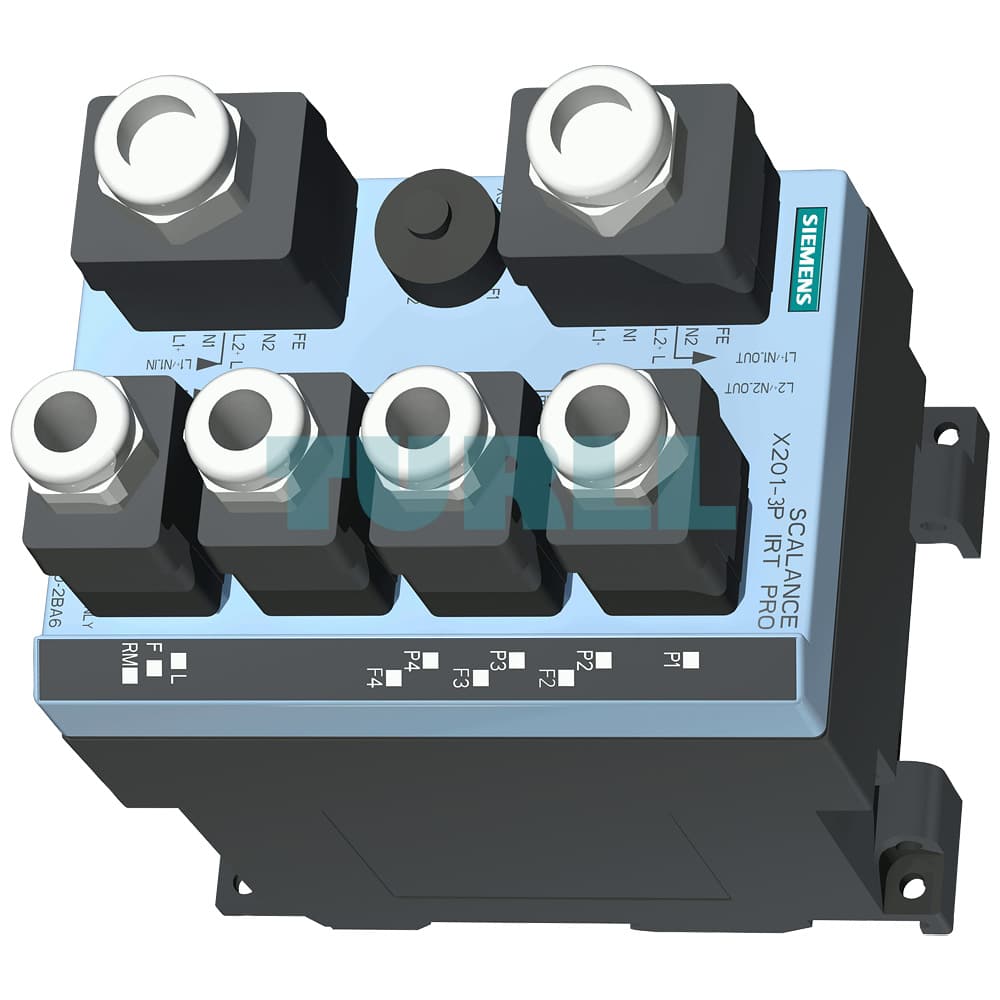

Rugged IP65/67-rated metal housing designed for field-level use without control cabinet.

• Two 5-pin push-pull power connectors support power loop-through for SIMATIC ET 200pro
• No redundant power feed, optimized for integration with IP65/67 device environments
• LED indicators on raised panel for power, link, signal, data traffic, and supply status
• Dimensions compatible with SIMATIC S7-300 format for seamless integration

Port Types Available

• 2 x 10/100BaseTX push-pull RJ45 (electrical): autosensing, autocrossover, up to 100 m via IE FC RJ45 Plug PRO
• 2 x 100BaseFX push-pull SC RJ (POF/PCF): 50 m (POF) / 100 m (PCF), EMI-resistant optical transmission

Product code: 6GK5202-2JR10-2BA6
