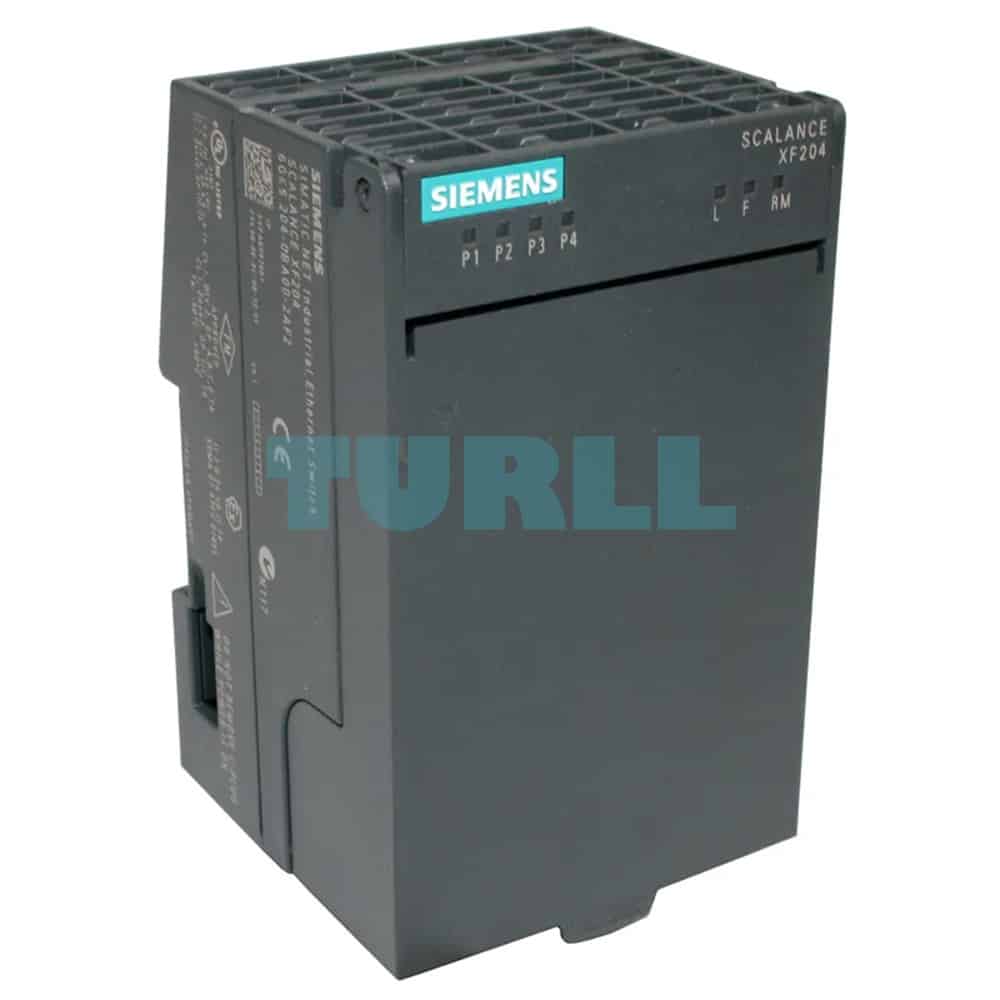

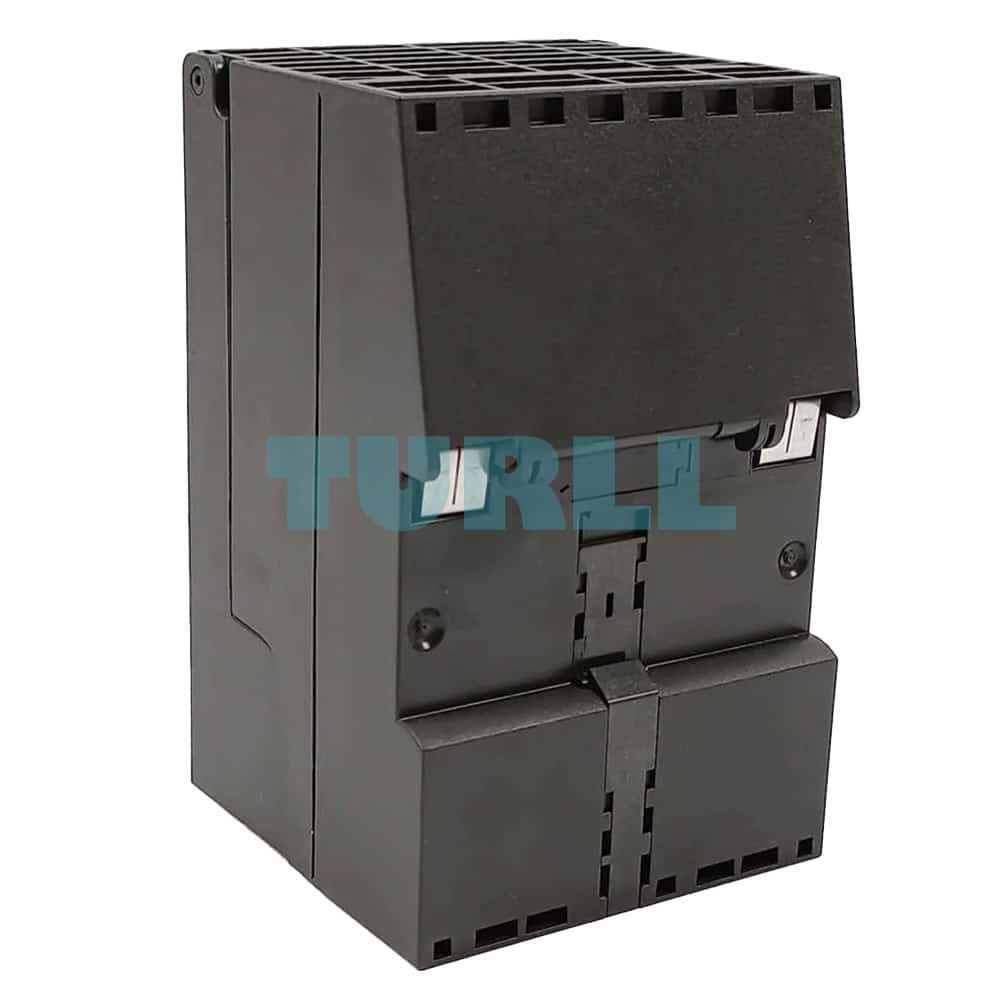

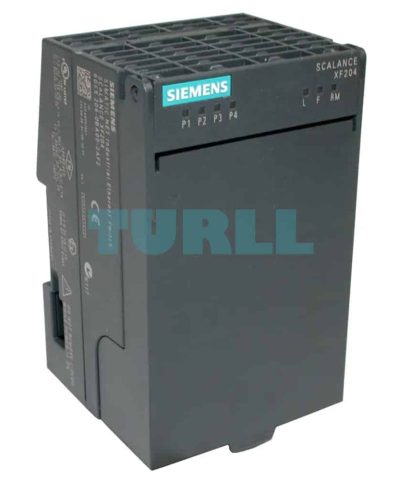

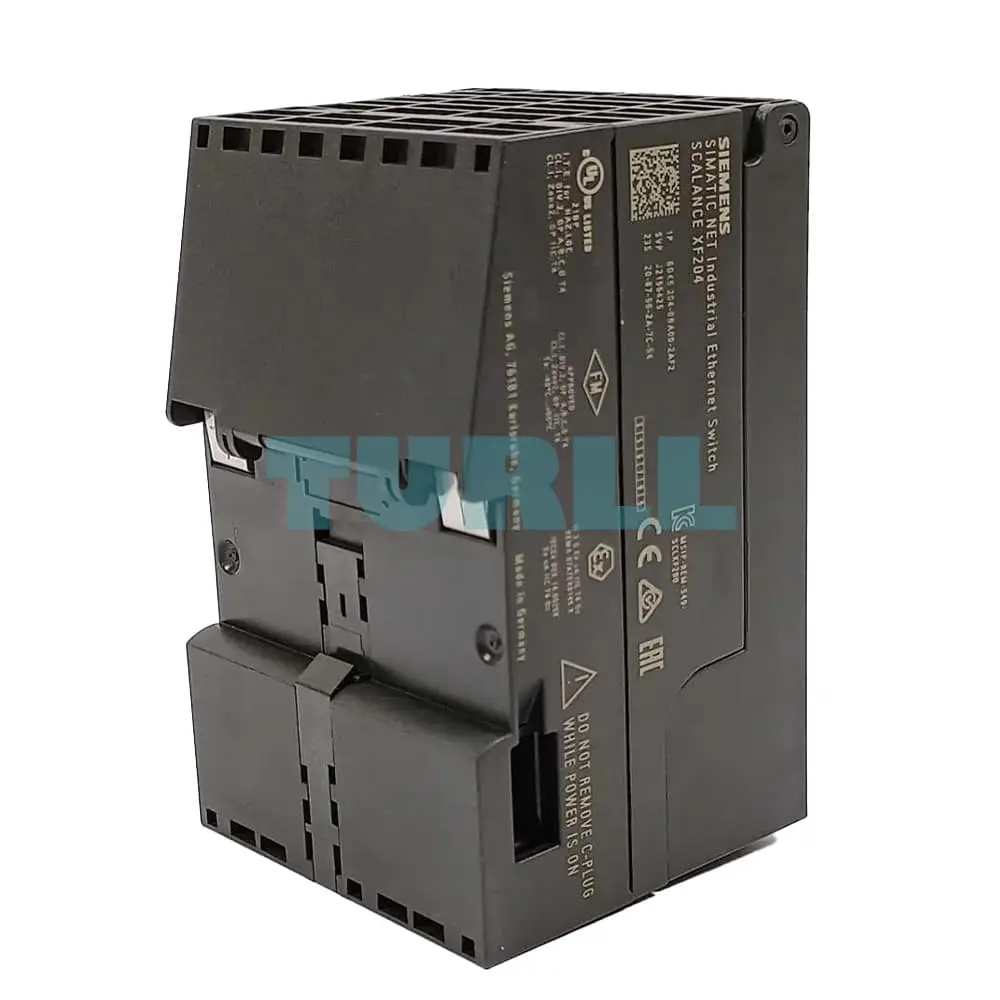

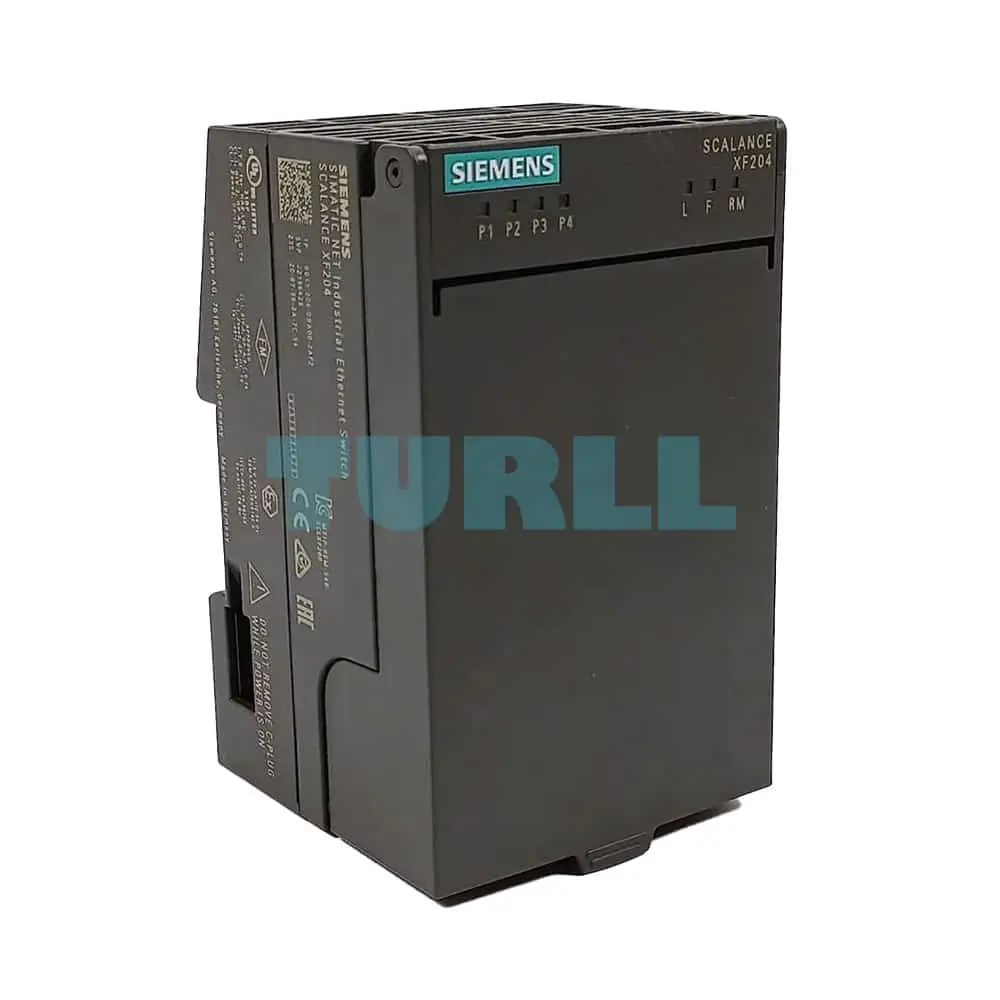

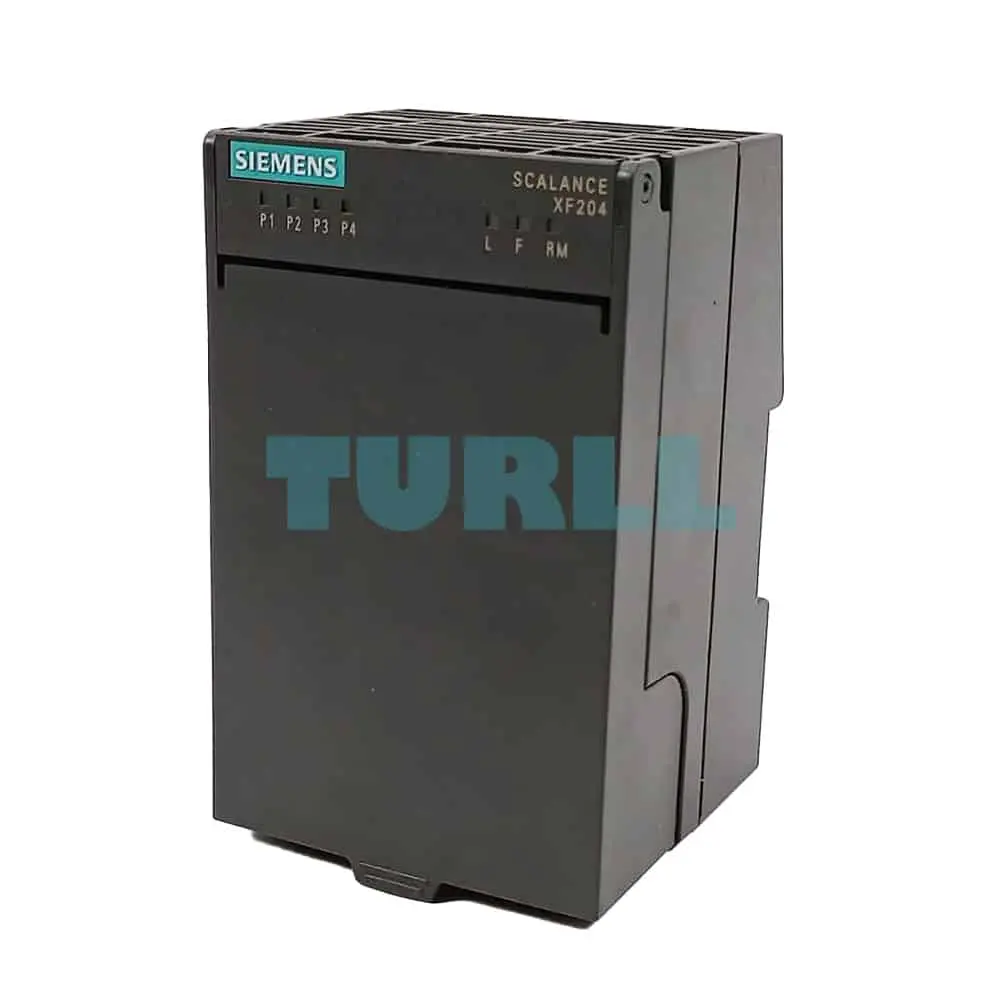

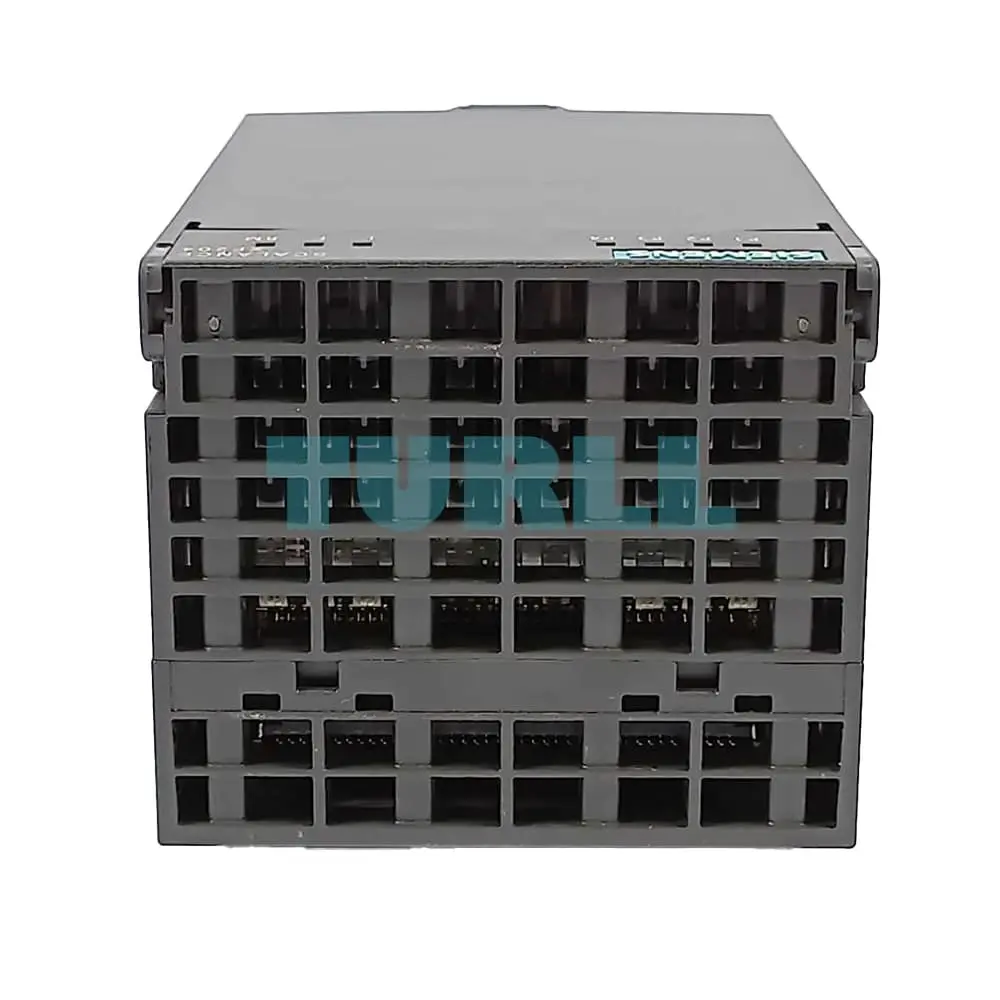

6GK5204-0BA00-2AF2 SIEMENS SCALANCE XF204 Managed IE Switch 4 Port Original Brand New
$682.66
6GK5204-0BA00-2AF2 is a SIEMENS SCALANCE XF204 managed Industrial Ethernet switch with 4x 10/100 Mbps RJ45 ports, redundant 24 V power input, diagnostics, and PROFINET IO integration in a compact ET 200S-style housing.
SIEMENS SCALANCE XF204 – 6GK5204-0BA00-2AF2
SCALANCE XF204 managed Industrial Ethernet switch, flat version with 4x 10/100 Mbps RJ45 ports. Features error signaling contact with configurable SET button, redundant power supply, integrated Redundancy Manager, and PROFINET IO device functionality. Supplied with electronic manual on CD-ROM. C-PLUG optional.
Overview
The SCALANCE XF-200 series is tailored for configuring line, star, and ring Industrial Ethernet topologies at 10/100 Mbps. The XF204G variant extends to 1000 Mbps.
- Integrated Redundancy Manager for fast Ethernet ring topologies (Fast Ethernet/Gigabit)
- Supports electrical or optical connections depending on port configuration
- Slim SIMATIC ET 200S-style enclosure ideal for compact control panels
- Industrial RJ45 sockets with strain and bend relief locking mechanism
- Complete diagnostics via PROFINET, SNMP, web server, and email notification
- Integrates with SINEC NMS for centralized monitoring and firmware management
Product Variants
Electrical + Optical Ports (multimode up to 5 km):
- SCALANCE XF204-2: 4 x RJ45 + 2 x ST/BFOC
- SCALANCE XF206-1: 6 x RJ45 + 1 x ST/BFOC
Electrical Only Ports:
- SCALANCE XF204G: 4 x RJ45 (10/100/1000 Mbps)
- SCALANCE XF204: 4 x RJ45 (10/100 Mbps) (this unit)
- SCALANCE XF208: 8 x RJ45 (10/100 Mbps)
Design
SCALANCE XF-200 switches are designed for DIN rail mounting and optimized for integration into SIMATIC ET 200S-based installations in compact enclosures.
Features include:
- 4-pin terminal block for redundant 24 V DC supply
- LED row for indicating power, link, traffic, power status, and signal contact
- 2-pin terminal block for floating signaling contact
- SET button for local configuration of signaling events
Port Types Available
- 10/100BaseTX RJ45: Autosensing and autocrossing via IE FC RJ45 plug 180 (up to 100 m)
- 100/1000BaseTX RJ45 (on XF204G): Same features with Gigabit support
- 100BaseFX ST/BFOC (on optical variants): For multimode glass fiber up to 5 km
Product code: 6GK5204-0BA00-2AF2
More Siemens products available at turll.com
| Weight | 0.396 kg |
|---|---|
| Dimensions | 70 × 123 × 147 mm |
